1. Nhanganyaya

This manual provides essential information for the safe and efficient operation of your Schauer JAC1548H 48 Volt Charger. This charger is designed to provide optimal charging for 48V golf cart batteries, specifically compatible with pre-2007 Club Car golf carts. It features advanced charging control to ensure battery health and longevity.

Important Compatibility Note: This charger is compatible with pre-2007 Club Car golf carts only.

Mufananidzo 1.1: Mberi view of the Schauer JAC1548H 48 Volt Charger, showing the control panel, output cable, and AC input cable.

2. Safety Information

Please read and understand all safety instructions before operating the charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Kufefetedza Ensure adequate ventilation when charging batteries. Batteries can produce explosive gases.
• Kudzivirira Kweziso: Pfeka dziviriro yemaziso nguva dzose kana uchishanda pedyo nemabhatiri.
• Magirovhosi: Wear protective gloves to prevent contact with battery acid.
• Zvishandiso zvinopisa: Keep the charger and batteries away from open flames, sparks, and flammable materials.
• Kurongeka kweKubatanidza: Connect the charger to the battery first, then plug the charger into the AC power outlet. Disconnect in reverse order.
• Matambo Akakuvadzwa: Do not operate the charger with damaged cables or connectors.
• Kuratidzwa kwemvura: Usaisa charger kunaya kana kunyorova zvakanyanya.
• Vana uye Zvipfuwo: Keep the charger and batteries out of reach of children and pets.

3. Zvigadzirwa zveChigadzirwa

The Schauer JAC1548H charger incorporates several advanced features for efficient and safe battery charging:

• Optimal Battery Health Charge Control: Utilizes advanced charge control, starting with constant current, transitioning to constant voltage, and concluding with a float standby mode. This process prevents overcharging and extends battery life.
• Club Car Adapter: Includes a specific adapter for seamless and secure connection to Club Car models, ensuring stable power delivery.
• Fully Automatic Three-Stage Kuchaja: Offers bulk, absorption, and float stages for a hands-free charging process, adapting to the battery's needs.
• Multi-Battery Kuenderana: Works with various lead-acid battery types, including conventional (flooded), maintenance-free, gel, and AGM batteries.
• Customizable Voltage Settings: Features adjustable cyclic voltage settings for flooded (2.47 volts/cell) and gel & AGM (2.4 volts/cell) batteries, allowing optimization for specific battery types.

Image 3.1: The charger is fully automatic and intelligently monitors battery impedance throughout the charging cycle.

Image 3.2: The charger features a fully automatic 3-stage charging process, allowing it to be left connected in float mode.

4. Setup

Follow these steps to set up your Schauer JAC1548H charger:

1. Bvisa zvinhu: Carefully remove the charger from its packaging and inspect for any damage.
2. Kuiswa: Place the charger on a stable, dry, and well-ventilated surface. Ensure there is sufficient space around the unit for airflow, especially around the cooling fan.
3. Kusarudza Rudzi rweBattery: Locate the front panel switch labeled "FLOODED BATTERIES" and "GEL or AGM". Select the appropriate setting for your battery type.
   • Flooded Batteries: For normal lead-acid batteries with caps for checking liquid levels.
   • Gel or AGM: For sealed Gel or Absorbed Glass Mat batteries.
4. Batanidza kuBattery: Connect the charger's output cable (with the Club Car adapter) to the charging port of your Club Car golf cart. Ensure a secure connection.
5. Batanidza kune AC Power: Plug the charger's AC input cable into a standard 120V AC wall outlet.

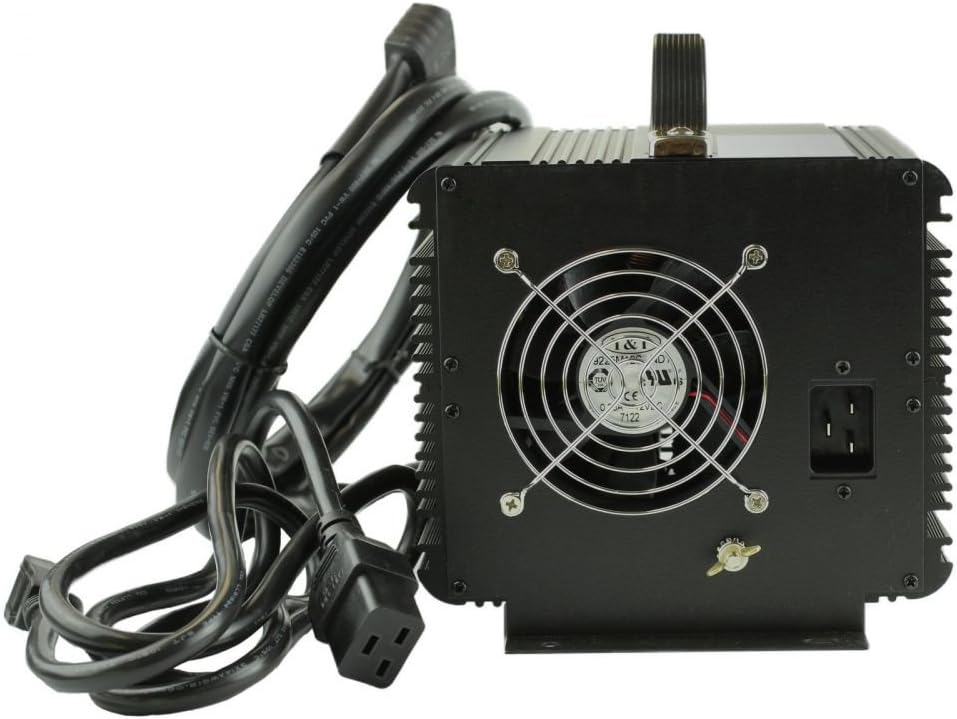

Mufananidzo 4.1: Kurutivi view of the charger, highlighting the cooling fan for proper ventilation during operation.

Image 4.2: Close-up of the Club Car adapter, designed for secure connection to compatible golf carts.

5. Operating Instructions

Once the charger is properly set up, follow these steps to begin charging:

1. Power On: Flip the ON/OFF switch on the front panel to the "ON" position.
2. Monitor Indicators: Observe the LED indicators on the front panel to understand the charging status.
3. Kuchaja otomatiki: The charger will automatically begin the charging process based on the battery's state of charge and the selected battery type.
4. Float Mode: Once the battery is fully charged, the charger will automatically transition into float mode, maintaining the battery at full charge without overcharging. It is safe to leave the charger connected indefinitely in this mode.
5. Kubvisa: To disconnect, first unplug the AC power cord from the wall outlet, then disconnect the charger's output cable from the golf cart.

LED Indicator Guide:

• Red LED (POWER): Indicates AC power is connected and the charger is turned on.
• Yellow LED (CHARGING): Zvinoratidza kuti bhatiri ririkuchaja.
• Green LED (FLOAT MODE): Indicates that charging has completed, and the charger has entered float (maintenance) mode.

Image 5.1: Front panel of the charger showing the LED indicators for power, charging, and float mode.

6. Kuchengeta

Proper maintenance ensures the longevity of both your charger and your golf cart batteries.

Kugadzirisa Charger:

• Kuchenesa: Keep the charger clean and free from dust and debris. Use a dry cloth for cleaning. Do not use liquid cleaners.
• Cable Inspection: Regularly inspect the AC power cord and the DC output cable for any signs of damage, fraying, or exposed wires. Replace if damaged.
• Kufefetedza Ensure the cooling fan and vents are not obstructed to prevent overheating.
• Kuchengeta: Chengetedza charger munzvimbo inotonhorera, yakaoma kana isiri kushandiswa.

Battery Maintenance (for Flooded Batteries):

• Matanho emvura: Periodically check the electrolyte levels in flooded lead-acid batteries and top up with distilled water if necessary, after charging.
• Kuchenesa Chiteshi: Chengetedza nzvimbo dzemabhatiri dzakachena uye dzisina ngura.

The charger's maintenance mode significantly reduces the formation of sulfates on battery plates, contributing to extended battery life.

7. Kugadzirisa matambudziko

Kana ukasangana nenyaya nechaja yako, tarisa kune anotevera matambudziko akajairika uye mhinduro:

Kana dambudziko rikaramba riripo mushure mekuyedza mhinduro idzi, ndapota taura nerutsigiro rwevatengi.

8. Zvinotsanangurwa

Technical specifications for the Schauer JAC1548H 48 Volt Charger:

Image 8.1: The charger features a durable aluminum case with specified dimensions and weight.

9. Warranty uye Tsigiro

Ruzivo rwewaranti:

Brookwood Group Inc., DBA Schauer Battery Chargers (hereinafter “SCHAUER”), warrants to the Original Consumer Purchaser, subject to the conditions set forth below, that it will repair or replace (at SCHAUER’s option) the product or any part thereof which proves defective by reason of improper workmanship or material for a period of makore maviri (2). from the original purchase date without charge for parts or labor.

Tsigiro yeVatengi:

For technical assistance, warranty claims, or further inquiries, please refer to the contact information provided with your purchase documentation or visit the official Schauer website.
