HornBlasters 100 Watt Public Address with Sirens (Model PA-100H) User Manual

1. Ruzivo Rwakakosha Chekuchengetedza

WARNING: This product is intended for OFFROAD USE ONLY. Using sirens on public roads to impersonate law enforcement or other emergency services is illegal and can result in severe penalties. HornBlasters, Inc. is not responsible for misuse of this product.

California Proposition 65 Yambiro: Chigadzirwa ichi chine makemikoro anozivikanwa neHurumende yeCalifornia kukonzera gomarara, kuremara pakuzvara, kana kumwe kukuvadza pakuzvara.

Always ensure proper installation and operation to prevent damage to the unit or vehicle. Disconnect the vehicle's battery before beginning installation.

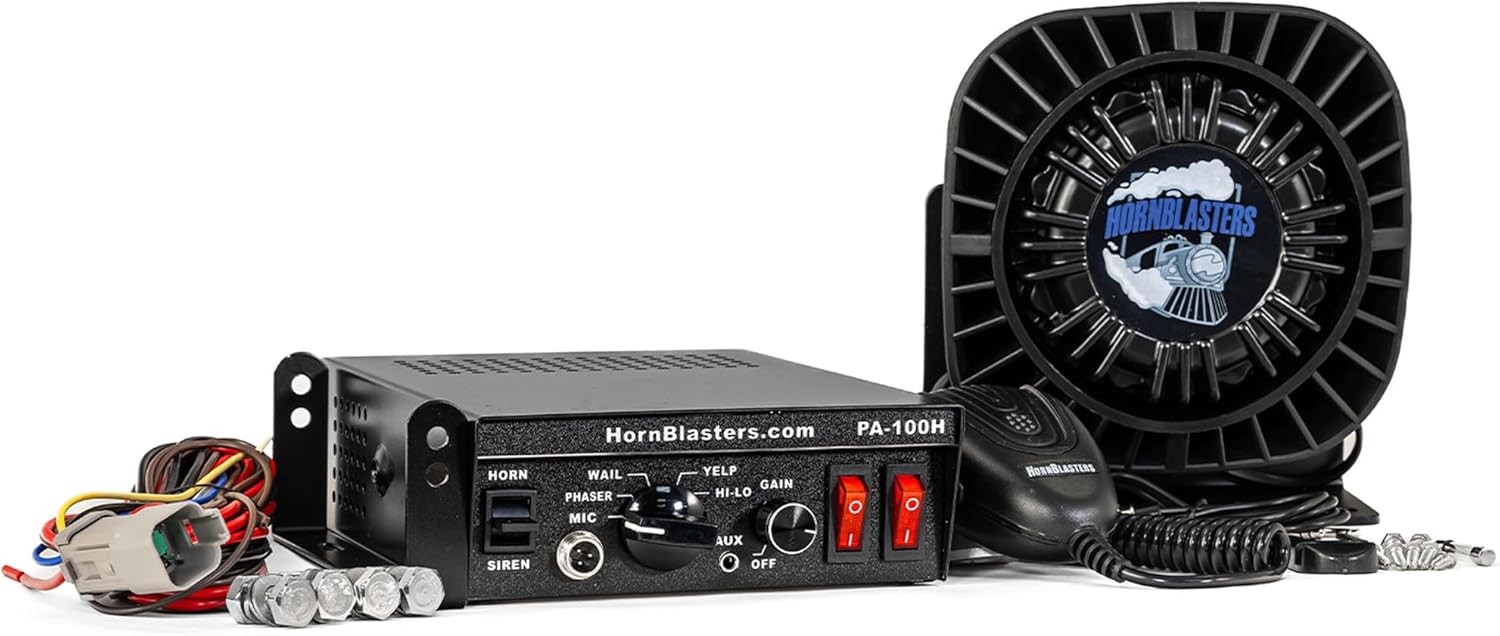

2. Package Zviri mukati

Verify that all components are present in your HornBlasters PA-100H kit:

• PA-100H Control Unit
• Maikorofoni
• 100 Watt Weather-Resistant Speaker
• Wiring Sunga
• Mounting Hardware (bolts, screws, bracket, fuse)
• Anobatsira Inzwa Zvinotaurwa Cable

3. Setup uye Kuiswa

The HornBlasters PA-100H is designed for straightforward installation. Basic knowledge of 12V automotive electrical systems is recommended.

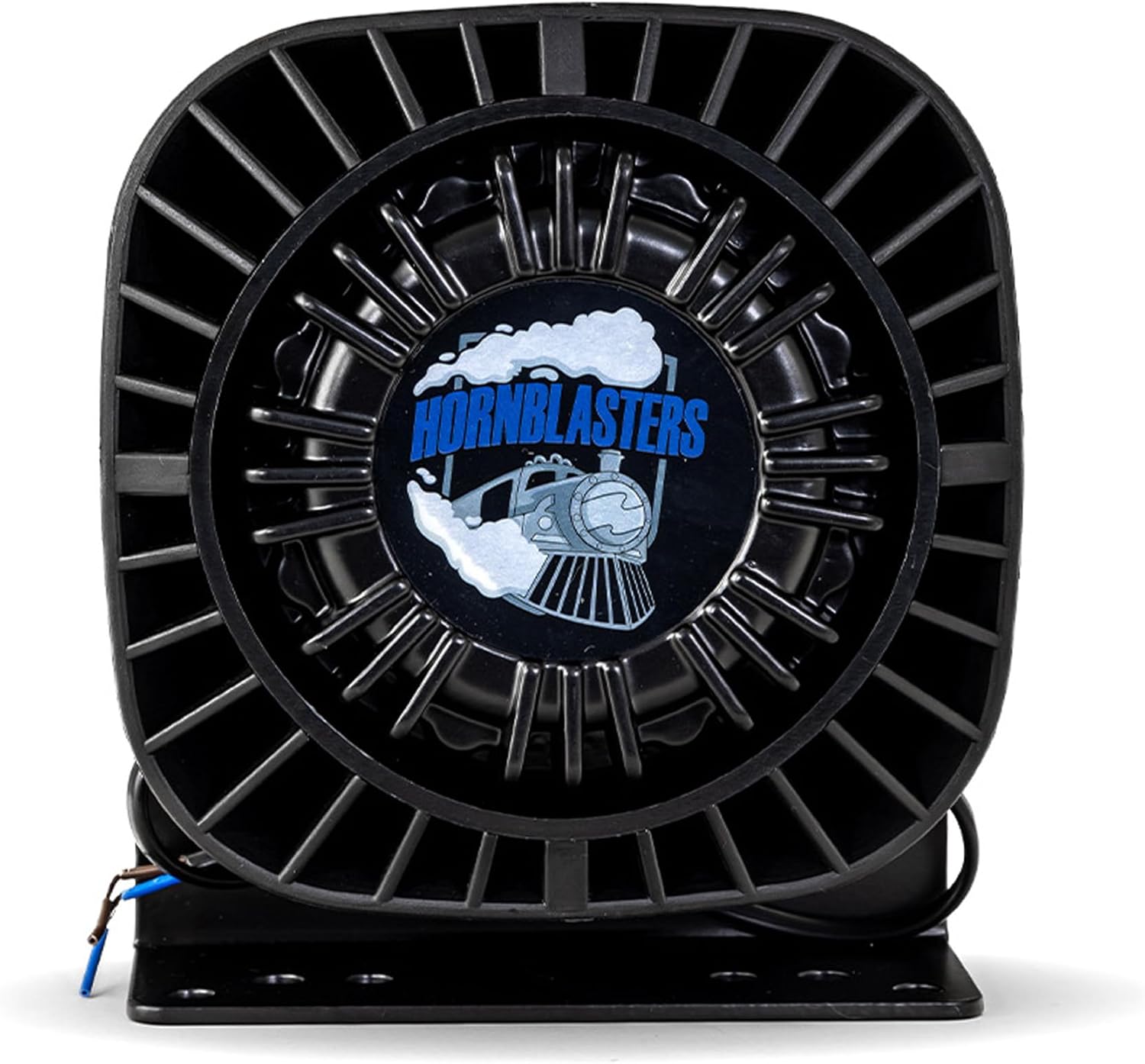

3.1 Speaker Mounting

The weather-resistant speaker is designed to be mounted underneath your vehicle. Choose a location that is secure and allows for optimal sound projection while protecting the speaker from direct impact. Ensure the speaker is not fully submerged in water, as this can cause damage.

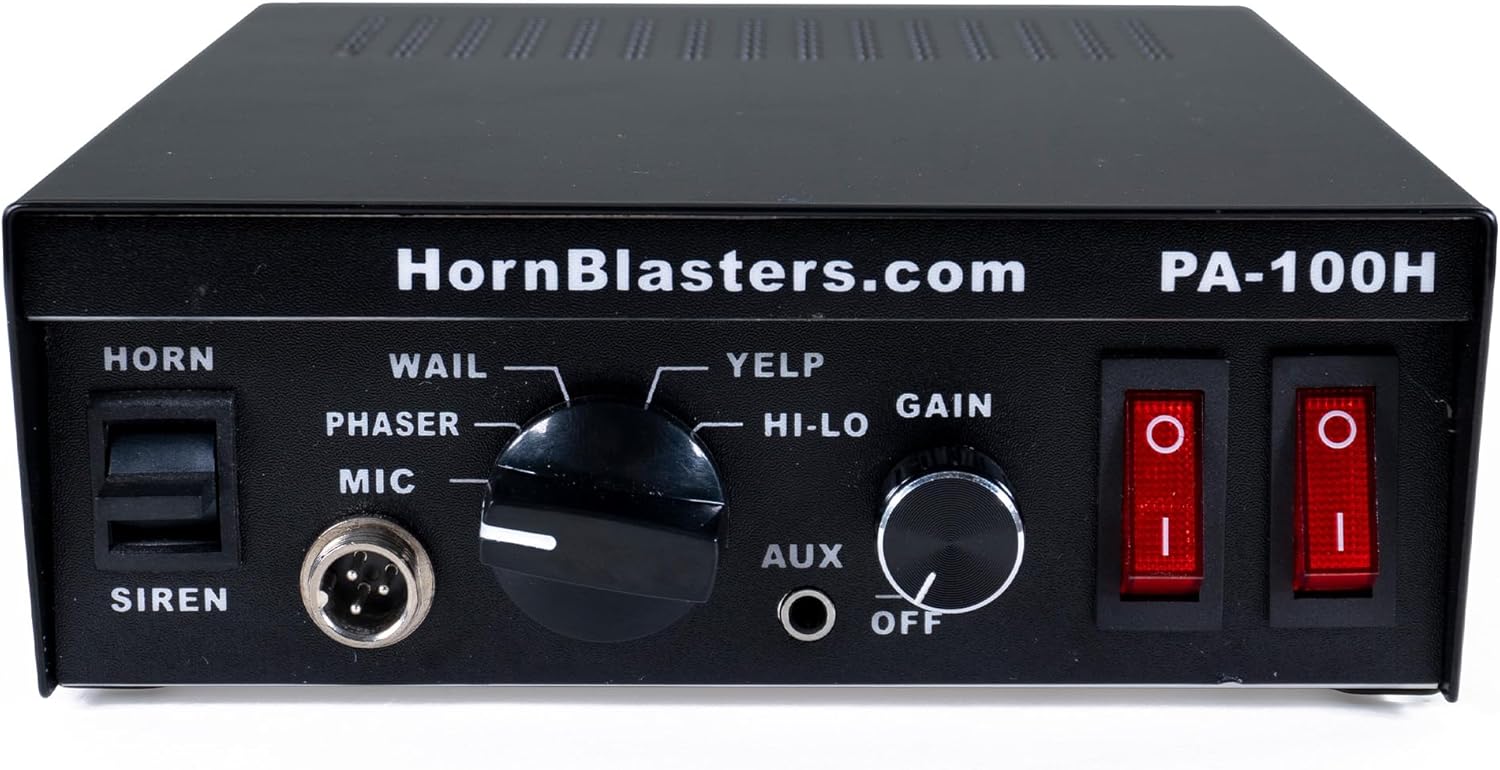

3.2 Kuiswa kweChikamu Chekudzora

Mount the PA-100H control unit in a convenient location within the vehicle's cabin, ensuring easy access to controls and the microphone input. Use the provided mounting bracket and hardware for a secure installation.

3.3 Wiring Connections

1. Power Connection: Connect the wiring harness directly to your vehicle's 12V battery. Ensure proper polarity (red to positive, black to negative) and use the inline fuse provided for circuit protection.
2. Kubatanidza Mutauri Connect the speaker wires from the wiring harness to the 100-watt speaker.
3. Control Unit Connection: Plug the main connector from the wiring harness into the back of the PA-100H control unit.
4. Kubatanidza Maikorofoni: Plug the microphone into the designated MIC input on the front of the control unit.
5. Ebetsero Swichi: The unit includes two auxiliary switches. These can be wired to control other 12V accessories (e.g., lights) as desired. Consult a professional if unsure about wiring these switches.

4. Operating Instructions

The PA-100H offers public address functionality and a selection of siren tones.

4.1 Public Address (PA) Function

1. Ensure the microphone is connected.
2. Turn the unit ON using the main power switch.
3. Select the 'MIC' position on the rotary switch.
4. Adjust the 'GAIN' knob to control the microphone volume.
5. Speak clearly into the microphone. Your voice will be amplified through the external speaker.

4.2 Siren Operation

The PA-100H features several siren tones. Remember, these are for off-road use only.

1. Dzorera unit ON.
2. Use the rotary switch to select the desired siren tone: 'WAIL', 'YELP', or 'HI-LO'.
3. The selected siren will sound through the external speaker.
4. To stop the siren, turn the rotary switch to 'OFF' or 'MIC'.

4.3 Wekubatsira Input

The unit includes an auxiliary input ('AUX') for playing external audio through the speaker. Connect an audio device (e.g., phone, MP3 player) to the AUX input using the provided cable. Select 'AUX' on the rotary switch to enable this function.

5. Kuchengeta

The HornBlasters PA-100H is designed for durability with minimal maintenance required.

• Kuchenesa: Keep the control unit and speaker free from excessive dirt and debris. Use a soft, dry cloth for cleaning.
• Mutauri Kuchengeta: The speaker is weather-resistant but not waterproof. Avoid full submersion in water. If the speaker gets wet, allow it to dry thoroughly before prolonged use.
• Wiring Inspection: Periodically check all wiring connections for corrosion or damage. Ensure connections remain secure.

6. Kugadzirisa matambudziko

If you encounter issues with your PA-100H, refer to the following common troubleshooting steps:

• Hapana Simba: Check the inline fuse in the power wiring. Ensure all power connections to the battery and control unit are secure and correctly polarized.
• No Sound from PA/Siren: Verify the speaker is properly connected. Check the 'GAIN' knob setting for PA function. Ensure the correct mode (MIC, WAIL, YELP, HI-LO, AUX) is selected on the rotary switch.
• Inzwi Rakakanganiswa: Adjust the 'GAIN' knob for the microphone. Ensure the speaker is not obstructed.
• Siren Malfunctions: If a siren sounds by itself or behaves erratically, check for loose wiring or internal damage. Disconnect power and contact support if the issue persists.

7. Zvinotsanangurwa

8. Warranty uye Tsigiro

For warranty information, technical support, or to purchase replacement parts, please contact HornBlasters directly or visit their official store page on Amazon:

Visit the HornBlasters Store on Amazon
