1. Chigadzirwa Pamusoroview
The Keeney Belanger KIT-QUA130CMB Quadrato Shower System offers a modern design with durable construction for a luxurious showering experience. This system features a square rainfall showerhead, a single-function hand shower, and a pressure-balanced diverter valve. Constructed from Grade A brass with a matte black finish, it ensures long-lasting use and resistance to corrosion.

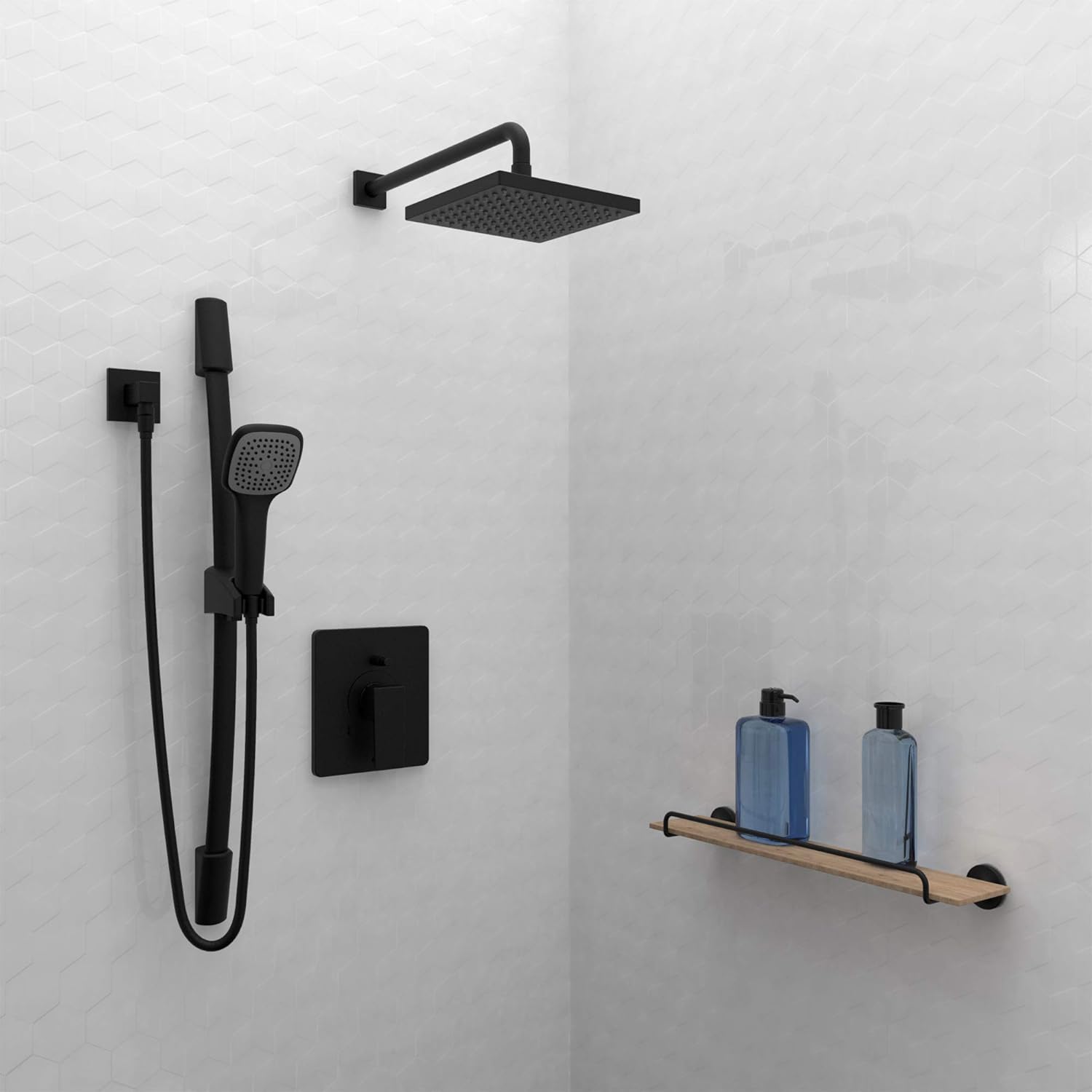

Figure 1: Complete Belanger KIT-QUA130CMB Shower System
Key features include a TempRIGHT temperature limiting device for safety, soft silicone nozzles for easy cleaning, and a 59-inch flexible hose for the hand shower. This manual provides essential information for installation, operation, and maintenance to ensure optimal performance and longevity of your shower system.
2. Chii Chinosanganisirwa
Before beginning installation, verify that all components are present in your package:
- Shower faucet with pressure balanced diverter valve
- Rainfall showerhead (square design)
- Single function hand shower
- Shower ruoko uye flange
- Sliding bar with 59-inch flexible hose
- Mvura inopa gokora
- Rough-in kit (including drilling guide and test plug)

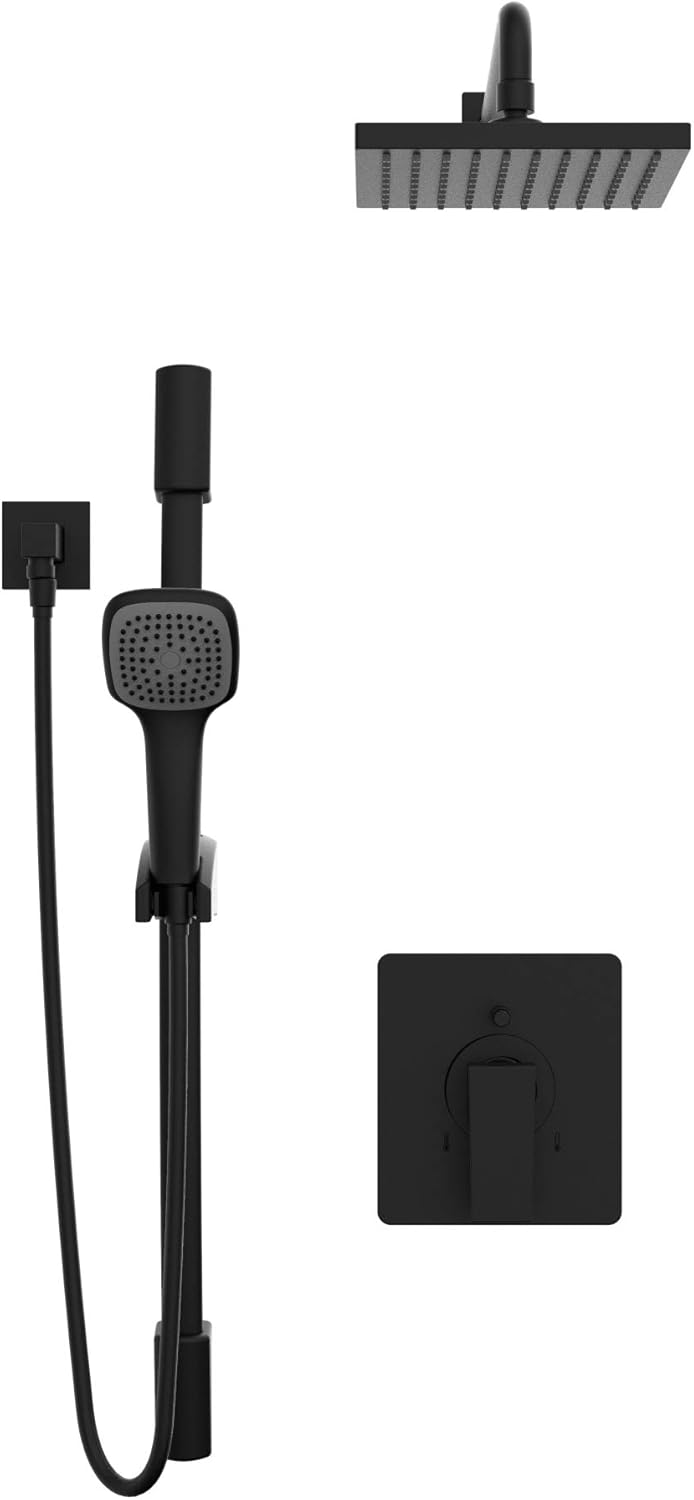

Figure 2: Shower System Components
3. Setup uye Kuiswa
Professional installation is recommended. Ensure water supply is turned off before beginning. Follow all local plumbing codes.
3.1 Kuisa Vharuvhu Yakakangwa
The rough-in valve is the core of your shower system. It must be securely installed within the wall, ensuring proper depth and alignment. The allowable embedded depth ranges from 2.6 to 3.2 inches. After applying tile, any excess can be trimmed.
Figure 3: Rough-in Valve and Drilling Guide
Before making connections, flush the pipes to prevent clogs and ensure proper sewage drainage.
3.2 Trim Kit and Components Installation
Once the rough-in valve is installed and the wall is finished, you can proceed with installing the trim kit, shower arm, showerhead, hand shower, and hose.
Video 1: Installation Tutorial for Shower System. This video provides a visual guide for installing the shower system components.
Video 2: Lavatrum Shower Faucet Set Overview. This video demonstrates the components and some installation steps for a similar shower system.
4. Operating Instructions
Your Belanger shower system is designed for ease of use and precise control over water temperature and flow.
4.1 Single-Handle Valve
The ergonomic single-handle valve allows you to easily adjust both water volume and temperature. Rotate the handle to control temperature (hot/cold) and lift/lower to control water flow.
4.2 2-Way Diverter
The 2-way diverter offers the ability to toggle between the rainfall showerhead and the hand shower. Simply turn the diverter knob to select your desired water outlet.

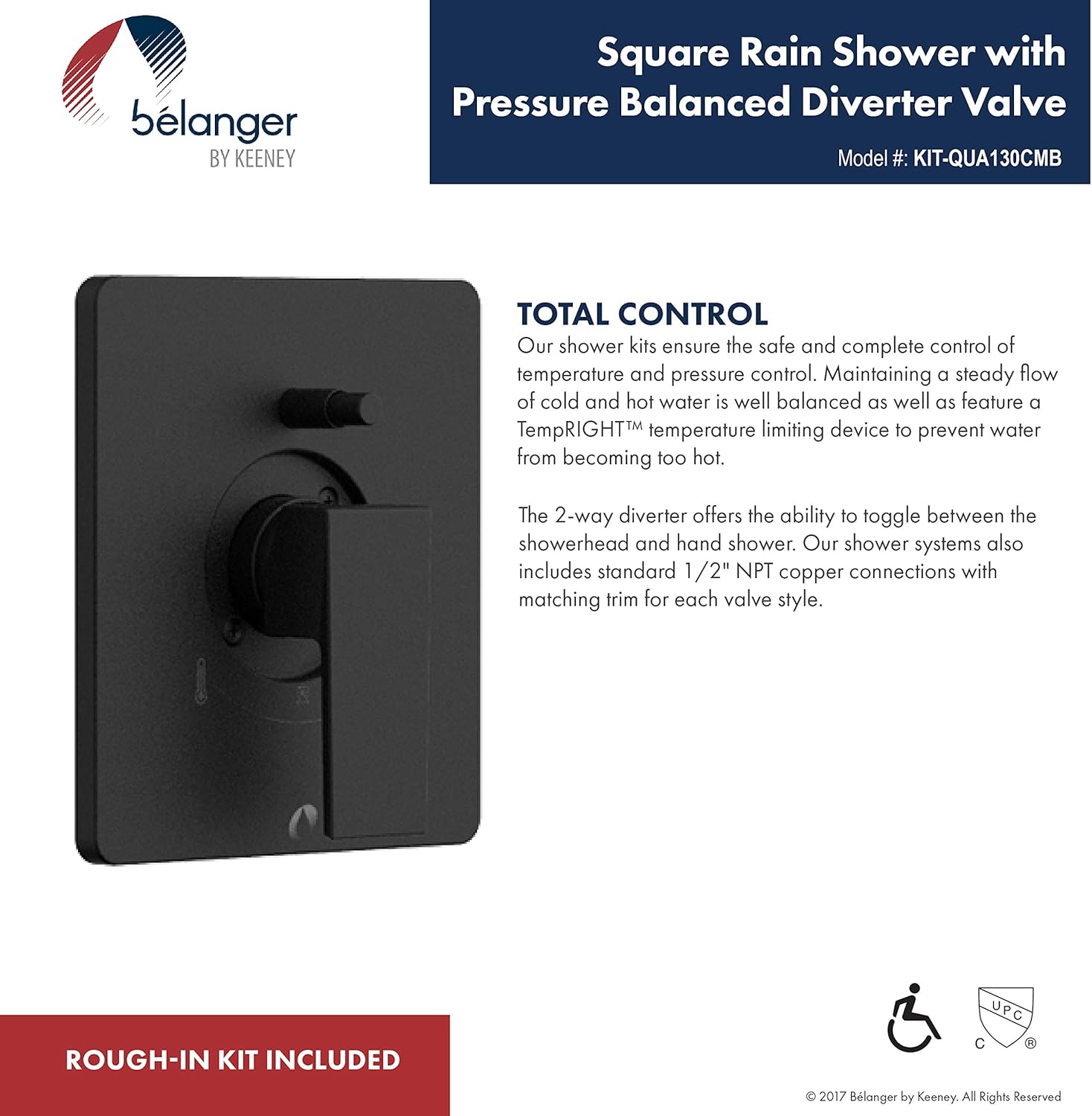

Figure 4: Control Panel with Diverter
4.3 TempRIGHT Temperature Limiting Device
The integrated TempRIGHT temperature limiting device prevents water from becoming excessively hot, enhancing user safety. This feature helps maintain a steady flow of both cold and hot water.
Video 3: Rainfall Shower System Operation. This video demonstrates the functionality of the shower system, including the diverter and water flow.
Video 4: Black Shower System Features. This video highlights various features and operational aspects of a black shower system.
5. Kuchengeta
Regular cleaning and maintenance will help preserve the matte black finish and ensure the longevity of your shower system.
5.1 Cleaning the Showerhead and Hand Shower Nozzles
The showerhead and hand shower feature soft silicone nozzles. To remove mineral buildup from hard water and limescale, simply wipe the nozzles with your finger or a soft cloth. This chemical-free cleaning method helps maintain optimal spray performance.
Figure 5: Easy-to-Clean Silicone Nozzles
5.2 General Kuchenesa
- Shandisa nyoro, damp cloth and mild soap to clean the matte black surfaces.
- Dzivisai zvinhu zvinobvisa huturu, makemikari akaomarara, kana mapedhi ekukwesha, sezvo izvi zvinogona kukuvadza magumo acho.
- Shamba zvakanaka nemvura yakachena woomesa nejira rakapfava kudzivirira mavanga emvura.
6. Kugadzirisa matambudziko
If you encounter issues with your shower system, refer to the following common troubleshooting tips:
- Kumanikidzwa Kwemvura Kushoma: Check if the main water supply valve is fully open. Inspect showerhead and hand shower nozzles for mineral buildup and clean as described in Section 5.1.
- Kusaenderana Kupisa Kwemvura: Ensure both hot and cold water supply lines are fully open. If the issue persists, the ceramic cartridge may need inspection or replacement by a qualified plumber.
- Kubuda Check all connections for tightness. If leaks persist from the valve or components, professional assistance may be required.
- Kuchinja-chinja Kwete: Ensure the diverter knob is fully engaged in the desired position. If it feels stiff or doesn't switch completely, mineral buildup or internal wear might be the cause, requiring professional inspection.
7. Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Model Number | KIT-QUA130CMB |
| Brand | Keeney (Belanger) |
| Color | Matte Black |
| Material | Brass (Ceramic, Silicone for handles/nozzles) |
| Finish Type | Mat |
| Mounting Type | Gomo reMasvingo |
| Nhamba yeMaholo | 1 |
| Showerhead Type | Rainfall (Square) |
| Hand Shower Type | Single Function |
| Hose Length | 59 inches |
| Valve Type | Pressure Balanced Diverter Valve, Ceramic Disc Cartridge |
| Special Features | TempRIGHT temperature limiting device, Easy-to-clean silicone nozzles |
| Product Dimensions | 62.87 x 30.48 x 12.7 cm |
| Item Weight | 4.46 kg (9.84 pound) |
8. Ruzivo rweWaranti
The Belanger KIT-QUA130CMB Shower System is backed by a Yakaganhurirwa Hupenyu Hwarandi. For specific terms and conditions, please refer to the warranty documentation included with your product or contact Keeney customer support.
9. Tsigiro
For further assistance, technical support, or warranty claims, please contact Keeney customer service. Contact information can typically be found on the product packaging or the official Keeney website.
