ZMJH ZMA201 Elongated Smart Toilet Seat User Manual

1. Nhanganyaya

Thank you for choosing the ZMJH ZMA201 Elongated Smart Toilet Seat. This manual provides essential information for the safe installation, operation, and maintenance of your new smart toilet seat. Please read this manual thoroughly before installation and use, and retain it for future reference.

The ZMA201 offers advanced features designed for enhanced hygiene and comfort, including adjustable water temperature, heated seat, warm air dryer, and various wash modes. It features a durable, hygienic stainless steel nozzle and an illuminating LED nightlight.

2. Ruzivo Rwakakosha Chekuchengetedza

To reduce the risk of injury, electric shock, fire, or damage to property, always follow basic safety precautions when using electrical appliances. This product requires an electrical connection.

• Ensure the power outlet is properly grounded and rated for the product's electrical requirements.
• Usanyudze chigadzirwa mumvura kana zvimwe zvinwiwa.
• Do not attempt to repair or modify the product yourself. Contact qualified service personnel for assistance.
• Bvisa unit kubva pamagetsi usati wachenesa kana kuita chero kugadzirisa.
• Chengetedza tambo yemagetsi kure nenzvimbo dzinopisa.
• Chishandiso ichi hachina kuitirwa kuti chishandiswe nevanhu (kusanganisira vana) vane masimba emuviri, pfungwa kana pfungwa dzakadzikira, kana kushaya ruzivo neruzivo, kunze kwekunge vapihwa tarisiro kana kuraira maererano nekushandiswa kwemudziyo nemunhu ane mutoro wekuchengetedza kwavo.

3. Package Zviri mukati

Ndokumbira utarise kuti zvese zviriko zviripo usati watanga kuisa:

• ZMJH ZMA201 Smart Toilet Seat (Elongated)
• Mounting Hardware
• Hose Yekupa Mvura
• T-Valve Connector
• Remote Control (with batteries, if applicable)
• Mushandisi Chinyorwa (gwaro iri)

4. Setup uye Kuiswa

Installation of the ZMJH ZMA201 smart toilet seat requires basic plumbing and electrical connections. If you are unsure about any steps, it is recommended to consult a qualified professional.

4.1 Pre-Kuisa Rondedzero

• Ensure your toilet is an elongated type. Refer to the dimension diagram below.
• Verify that a grounded electrical outlet (120V AC) is available within 4.9 feet (1.5 meters) of the toilet.
• Confirm that the water supply valve is accessible and can be shut off.

Mufananidzo: This diagram provides dimensional guidance for both elongated and round toilet seats, helping users determine compatibility. The ZMA201 is an elongated model, requiring specific measurements for proper fit.

4.2 Matanho ekuisa

1. Dzima Mvura: Locate the water supply valve behind your toilet and turn it clockwise to shut off the water. Flush the toilet to empty the tank.
2. Bvisa Chigaro Chechimbuzi Chiripo: Bvisa chigaro chako chechimbuzi nechidzitiro. Chenesa muromo wembiya yechimbuzi zvakanaka.
3. Isa Mounting Plate: Place the mounting plate over the toilet bowl holes. Insert the mounting bolts and secure them loosely with washers and nuts from underneath.
4. Connect T-Valve: Disconnect the existing water supply hose from the toilet tank. Install the provided T-valve connector to the toilet tank's fill valve. Reconnect the original water supply hose to one end of the T-valve.
5. Batanidza Bidet Water Pombi: Connect the provided bidet water supply hose from the T-valve to the water inlet on the smart toilet seat. Ensure all connections are hand-tightened, then use a wrench for a quarter turn to prevent leaks.
6. Slide Seat onto Mounting Plate: Carefully slide the ZMJH ZMA201 smart toilet seat onto the mounting plate until it clicks into place. Adjust the seat position as needed, then tighten the mounting bolts securely.
7. Dzosera Mugove Wemvura: Slowly turn the water supply valve counter-clockwise to restore water flow. Check for any leaks.
8. Batanidza Simba: Plug the power cord into a grounded electrical outlet. The unit will perform a self-test.

Mufananidzo: An image of the ZMJH ZMA201 smart toilet seat properly installed on a toilet, demonstrating its appearance in a typical bathroom environment and highlighting the necessary electrical connection to a wall outlet.

5. Operating Instructions

The ZMJH ZMA201 smart toilet seat is operated via its integrated side control panel. Familiarize yourself with the functions below.

Mufananidzo: This diagram illustrates the various buttons and their corresponding functions on the control panel, including wash modes, temperature adjustments, and power settings, for easy reference during operation.

5.1 Basic Mabasa

• SIMBA: Press to activate or deactivate the unit.
• MIRA: Stops all current operations (wash, dry).
• BIDET/SPA (Feminine Wash): Initiates a gentle front wash.
• CLEANING/MASSAGE (Posterior Wash): Initiates a rear wash.
• DRY: Activates the warm air dryer for approximately 3 minutes after a wash cycle.
• CHIEDZA: Press to activate or deactivate the illuminating LED nightlight.

Mufananidzo: The image highlights the dual-function stainless steel nozzle, indicating options for posterior and feminine wash modes for comprehensive cleaning.

5.2 Adjustable Settings

• WATER/AIR TEMP: Adjusts water pressure and warm air temperature. Use '+' for higher settings and '-' for lower settings. Water temperature is adjustable in 3 levels.
• KUTENHA KWECHIGARO: Adjusts the heated seat temperature. Adjustable in 3 levels (High, Middle, Low).
• POSITION: Adjusts the nozzle position to the desired setting.
• AUTO: Provides a wider cleansing area.
• VANA: Adjusts nozzle position, water pressure, and seat temperature for child use.
• DEFECATION: Provides a highly concentrated stream to assist with bowel movement.
• DEODORANT: The deodorizer activates automatically when the unit is occupied.
• SAVE ELE (Energy Save Mode): Activates automatic power saving mode to reduce electricity consumption.

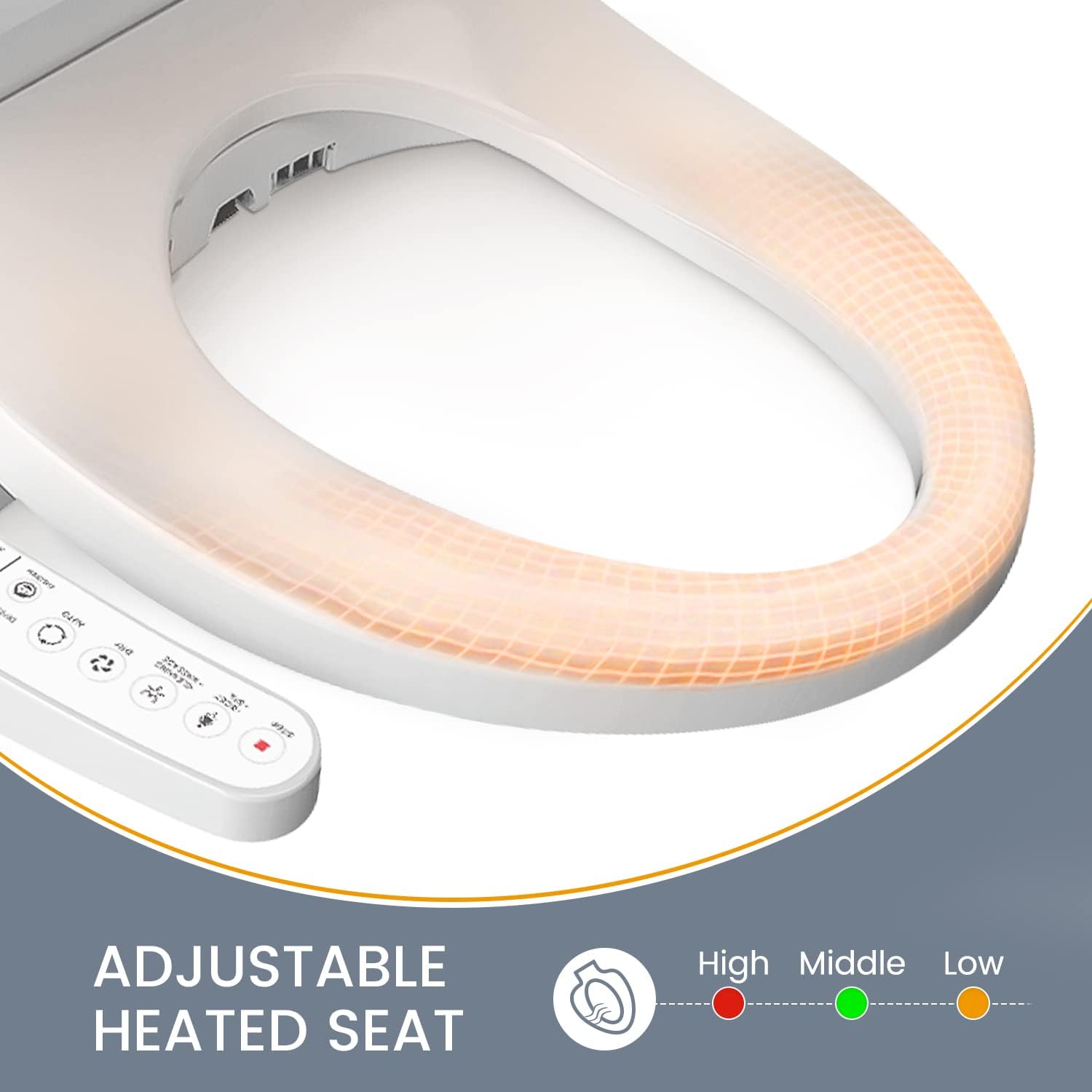

Mufananidzo: This graphic demonstrates the adjustable heated seat feature, allowing users to select from three temperature levels: High, Middle, and Low, for personalized comfort.

Mufananidzo: The image displays the warm air dryer vent, which provides adjustable drying with High, Middle, and Low intensity settings after washing, contributing to a complete and comfortable experience.

6. Kuchengeta

Regular maintenance ensures the longevity and hygienic operation of your smart toilet seat.

• Kuchenesa Nozzle: The stainless steel nozzle is self-cleaning. It will rinse itself before and after each use. For additional cleaning, you may manually extend the nozzle (refer to control panel functions) and gently wipe it with a soft cloth and mild, non-abrasive cleaner.
• Kuchenesa Chikamu: Unplug the unit before cleaning. Wipe the exterior surfaces with a soft, damp cloth and a mild, non-abrasive cleaning solution. Do not use harsh chemicals, abrasive cleaners, or scrub brushes, as these can damage the finish.
• Water Filter (if applicable): Check and clean or replace the water filter periodically according to local water quality.
• Kuchengetedza Kwenguva Yakareba: If the unit will not be used for an extended period, unplug it, turn off the water supply, and drain any remaining water from the unit to prevent freezing or stagrudzi.

7. Kugadzirisa matambudziko

If you encounter issues with your ZMJH ZMA201 smart toilet seat, refer to the following common problems and solutions. If the problem persists, contact customer support.

8. Zvinotsanangurwa

9. Warranty uye Customer Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact ZMJH customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

Contact information for ZMJH customer support can typically be found on the product packaging or the official ZMJH website.
