Xbuyee 200W 2FT Linear High Bay LED Shop Light Instruction Manual

Model: 200W-2Pack

1. Safety Information

Ndokumbira uverenge uye unzwisise mirairo yese usati waisa kana kushandisa chigadzirwa ichi. Kutadza kutevedzera mirairo iyi kunogona kukonzera kuvhunduka kwemagetsi, moto, kana dzimwe njodzi dzinogona kukonzera kukuvara kwemunhu kana kukuvadzwa kwemidziyo.

  • Kuchengetedzwa Kwemagetsi: Ensure power is disconnected at the circuit breaker before installation or maintenance. All wiring must be in accordance with national and local electrical codes. If you are unsure about wiring, consult a qualified electrician.
  • Kuiswa: This fixture is designed for chain mount installation. Ensure the mounting surface and hardware can support the weight of the fixture. Do not install in locations where the operating temperature exceeds the specified range.
  • Kubata: Avoid direct eye exposure to the light source when the fixture is powered on. Do not touch the fixture when it is operating, as it may be hot.
  • Environment: This product is intended for indoor use only. Do not expose to water or excessive moisture.

2. Chigadzirwa Pamusoroview

The Xbuyee 200W 2FT Linear High Bay LED Shop Light is designed for high-efficiency illumination in various commercial and industrial settings. It features adjustable wattage and color temperature, robust construction, and flexible lighting angles.

Zvinokosha:

  • Kunyatsogona: Delivers 28,000 lumens at 200W, with an efficiency of 140LM/W.
  • 3 Wattages Adjustable: Selectable power output at 200W, 150W, or 100W to suit different lighting needs.
  • Color Temperature Selectable: Choose between 4000K (natural white) and 5000K (daylight) for optimal lighting ambiance.
  • Yakanakisa Heat Dissipation: Constructed with die-cast aluminum housing and multiple air vents for extended lifespan.
  • Flexible Lighting Angle: 360° rotatable design allows adjustment of light direction.
  • 0-10V Inodzikiswa: Compatible with 0-10V dimmer switches (not included) for adjustable brightness.
  • Anti-glare: Frosted polycarbonate lens provides soft, even, and non-dazzling light.
Xbuyee 200W 2FT Linear High Bay LED Shop Light

Image: The Xbuyee 200W 2FT Linear High Bay LED Shop Light, showcasindhizaini yayo inoyevedza uye kuvakwa kwayo kwakasimba.

Chii chiri muBhokisi:

  • 2 x LED Linear High Bay Lights
  • Mounting Hardware (2 x Strong Suspending Chains, 2 x V-Shaped Hooks)
Zviyero zvechigadzirwa uye zvishongedzo zvekuisa

Image: Diagram illustrating the product dimensions (23.6 in L x 9.84 in W x 1.96 in H) and included mounting accessories: two strong suspending chains and two V-shaped hooks.

3. Kuiswa

The Xbuyee High Bay LED Shop Light is designed for hassle-free chain mount installation. Follow these steps carefully.

Kuisa Matanho:

  1. Gadzirira Nzvimbo Yekukwirisa: Identify a suitable location on the ceiling for hanging the light fixture. Ensure the ceiling structure can support the weight of the light.
  2. Isa Hooks: Securely install appropriate ceiling hooks (not included, unless specified) into the ceiling.
  3. Attach V-Shaped Hooks: Insert the V-shaped hooks into the slotted holes on the top of the light fixture.
  4. Batanidza Chain: Attach the strong suspending chains to the V-shaped hooks on the fixture and then to the ceiling hooks. Ensure the fixture is level and securely suspended.
  5. Wiring Connections: Make wiring connections with terminal caps. Connect the live, neutral, and ground wires according to local electrical codes. For 0-10V dimming, connect the dimming wires to a compatible 0-10V dimmer switch (not included).
  6. Secure Driver Box: Insert the terminal cap and wires into the driver box, ensuring all connections are secure and insulated.
  7. Dzosera Simba: Kana kuiswa kwapera uye zvese zvabatanidzwa zvaongororwa, dzorera simba pacircuit breaker.
Hassle-Free Mounting Steps

Image: A four-step visual guide demonstrating the hassle-free mounting process: 1. Inserting the V-shaped hook into slotted holes. 2. Hooking up the chain to the ceiling. 3. Making wiring connections with terminal caps. 4. Inserting the terminal cap and wires into the driver box.

Video: An official product video from Xbuyee demonstrating the features and installation process of the LED Linear High Bay Light. This video highlights the frosted PC lens, integrated LEDs, sturdy aluminum housing, strong hanging chains, excellent heat dissipation, and flexible angle adjustment.

4. Kushanda

The Xbuyee High Bay LED Shop Light offers versatile settings for optimal lighting control.

Kugadzirisa Wattage uye Rudzi Tembiricha:

The fixture features integrated switches for adjusting both wattage and color temperature. These switches are typically located on the fixture's body.

  • Wattage Sarudzo: Svetera wattage switch to select between 200W, 150W, or 100W. Adjusting the wattage will change the brightness (lumens) of the light.
  • Rura rweTembiricha Sarudzo: Slide the color temperature switch to choose between 4000K (Natural White) and 5000K (Daylight).
Wattage and color temperature selection switches

Mufananidzo: Pedyo-up view of the switches on the light fixture, indicating options for 200W/150W/100W power output and 5000K/4000K color temperature selection.

0-10V Dimming:

This fixture supports 0-10V dimming. To utilize this feature, connect the fixture to a compatible 0-10V dimmer switch (not included) during installation. The dimmer allows you to control the LED output intensity from 10% to 100% to achieve your desired lighting effect.

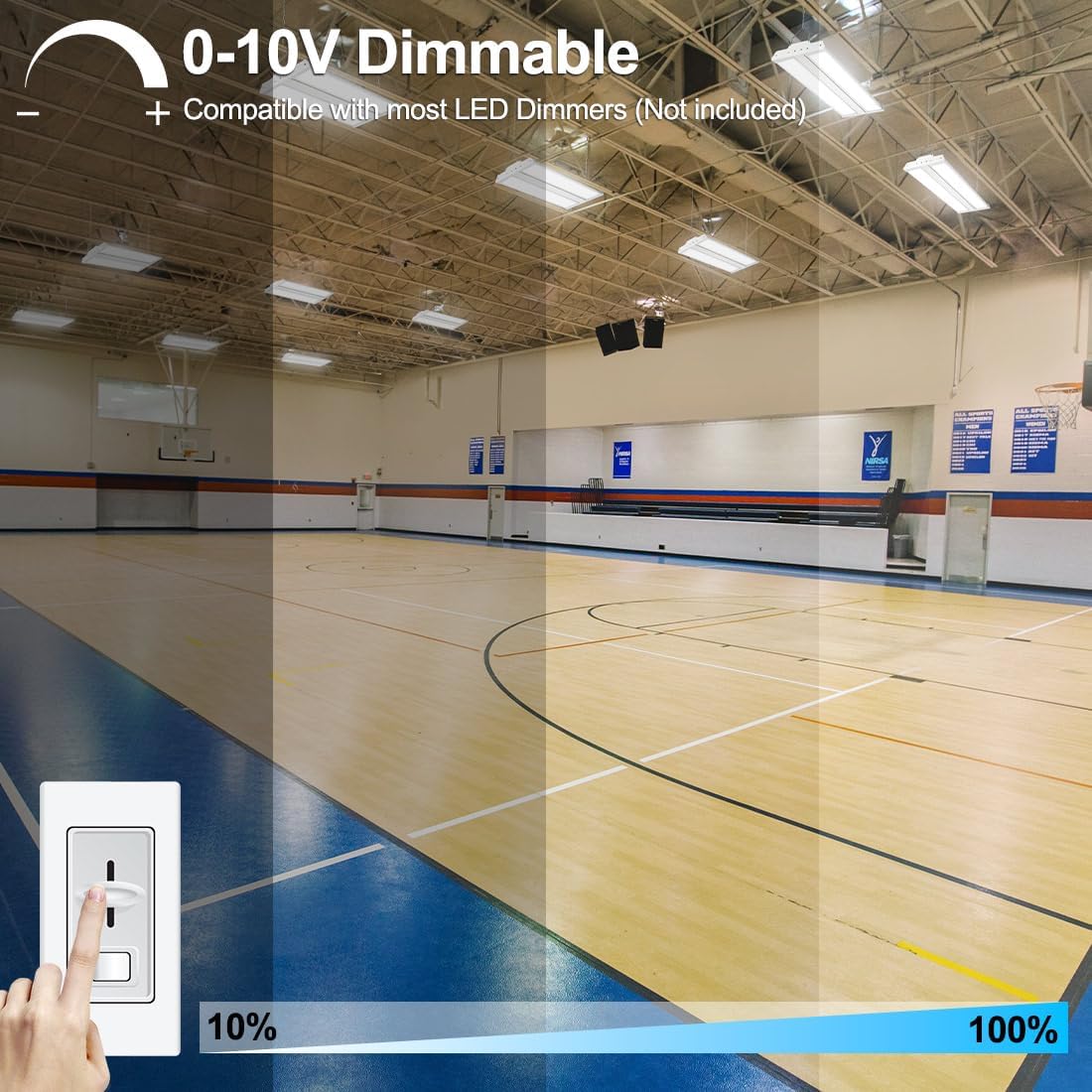

0-10V dimming kugona

Image: Illustration of the 0-10V dimming feature, showing a dimmer switch adjusting light output from 10% to 100% in a large indoor space.

Flexible Angle Adjustment:

The light panels of the fixture can be rotated 360° to adjust the lighting direction. Gently rotate the panels inwards or outwards to direct light precisely where needed.

360 degree rotatable light panels

Image: A diagram illustrating the 360° rotatable feature of the light panels, showing how they can be adjusted for flexible lighting angles.

5. Kuchengeta

Regular maintenance ensures optimal performance and longevity of your Xbuyee LED Shop Light.

  • Kuchenesa: Bvisa magetsi usati wageza. Shandisa jira rakapfava, rakaoma, kana kuti d zvishomaamp cloth to wipe the exterior of the fixture. Avoid abrasive cleaners, solvents, or harsh chemicals that could damage the finish or electrical components.
  • Kuongorora: Periodically inspect the fixture, mounting hardware, and wiring for any signs of damage, wear, or loose connections. Address any issues promptly.
  • MaODs: Chiedza che LED chakabatanidzwa uye hachitsiviwi nemushandisi. Chigadziko ichi chinogara kwenguva refu kwemaawa angangoita 50,000.

6. Kugadzirisa matambudziko

If you encounter issues with your Xbuyee LED Shop Light, refer to the following common problems and solutions:

DambudzikoZvinogona KukonzeraSolution
Chiedza hachibatikiNo power supply; Loose wiring; Faulty switch/dimmerCheck circuit breaker; Verify all wiring connections are secure; Test switch/dimmer for functionality.
Chiedza chinopenya kana kudzima zvisingatarisirwiIncompatible dimmer; Loose wiring; Power fluctuationsEnsure 0-10V dimmer compatibility; Check wiring connections; Consult an electrician for power supply issues.
Wat isiriyotage or color temperatureSwitches set incorrectlyGadzirisa wattage and color temperature switches on the fixture to the desired settings.
Kubuda kwechiedza kwakadzikiraWattage set too low; Dimmer setting too lowWedzera wattage setting on the fixture; Adjust dimmer to a higher brightness level.

If the problem persists after attempting these solutions, please contact Xbuyee customer support.

7. Zvinotsanangurwa

Detailed technical specifications for the Xbuyee 200W 2FT Linear High Bay LED Shop Light.

AttributeValue
BrandXbuyee
Model200W-2Pack
Wattage200W (Tunable: 200W/150W/100W)
Kupenya28000 Lumens (at 200W)
Kubudirira140 lumens pa watt
Rudzi Tembiricha4000K / 5000K Selectable
Voltage100-277 Volts
Dimmable0-10V Dimmable
Chiedza Chinyorwa TypeLED (machipisi eSMD2835)
MaterialDie-cast aluminum, Polycarbonate Lens
Product Dimensions23.6"L x 9.84"W x 1.96"H
Item Weight14.87 mapaundi (emapaketi gumi nemaviri)
Hupenyu hurefu50,000 maawa
Installation TypeChain Mount (Hook Mount)
Indoor / Outdoor KushandiswaIndoor
CertificationETL Qualified

8. Warranty & Tsigiro

Xbuyee stands behind the quality of its products.

  • 5-Yemakore Warranty: This product is covered by a 5-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
  • Tsigiro yeVatengi: For any issues, questions, or warranty claims, please contact Xbuyee customer support through the platform where the product was purchased. Provide your order number and a detailed description of the issue for prompt assistance.
