1. Nhanganyaya
This instruction manual provides detailed information on the installation, operation, and maintenance of your Argendon Sandidry 55C Commercial Dehumidifier. This unit is designed to effectively remove excess moisture from basements, crawl spaces, garages, and other large areas, improving air quality and preventing moisture-related issues. Please read this manual thoroughly before operating the unit and retain it for future reference.
2. Safety Information
Always observe the following safety precautions to reduce the risk of electric shock, injury, or fire:
- Ensure the unit is connected to a properly grounded electrical outlet.
- Usashandise dehumidifier netambo yemagetsi kana chivhariso chakakuvara.
- Keep the unit away from water and do not immerse it in liquid.
- Usavhare maburi emhepo kana maburi. Chengetedza kubvumidzwa kwakaringana kwakatenderedza yuniti yekuyerera kwemhepo.
- Unplug the unit before cleaning, performing maintenance, or moving it.
- Chishandiso ichi hachina kuitirwa kuti chishandiswe nevanhu (kusanganisira vana) vane masimba emuviri, pfungwa kana pfungwa dzakadzikira, kana kushaya ruzivo neruzivo, kunze kwekunge vapihwa tarisiro kana kuraira maererano nekushandiswa kwemudziyo nemunhu ane mutoro wekuchengetedza kwavo.
- Usashandise mudziyo uyu munzvimbo dzinochengeterwa mvura kana magasi anobvira moto.
3. Chigadzirwa Pamusoroview
The Argendon Sandidry 55C is a robust commercial-grade dehumidifier designed for high-efficiency moisture removal. It features a durable construction and user-friendly controls.
Figure 3.1: Argendon Sandidry 55C Commercial Dehumidifier. This image shows the front and side view of the white and blue dehumidifier unit with a handle on top and a clear drainage hose in front.
Zvikamu Zvikuru:
- Air Inlet/Outlet: Located on the sides, these allow air to enter and exit the unit.
- Control Panel: Front-mounted panel for setting operation modes and humidity levels.
- Drainage Outlet: Connection point for gravity or pump drainage hoses.
- Bata: Integrated handle on top for easy portability.
- MERV-1 Sefa: Removable air filter for maintaining air quality and unit efficiency.
4. Setup
4.1 Kuiswa
Place the dehumidifier on a level, stable surface in the area requiring dehumidification. Ensure adequate space around the unit (at least 12 inches) for proper air circulation. This unit is specifically designed for environments such as crawl spaces and basements.
Figure 4.1: Dehumidifier placed in a basement near stairs, illustrating its suitability for such environments. The image highlights its coverage area of up to 1,500 sq. ft., 120 Pints/Day capacity, and 153 CFM airflow.
4.2 Drainage Sarudzo
The Sandidry 55C offers two methods for continuous drainage:
- Gravity Drainage: For this method, connect the provided 6.5 ft gravity drain hose to the unit's drainage outlet. Ensure the hose is sloped downwards to a suitable drain or collection point, allowing water to flow out by gravity.
- Kudhonza Pombi: Utilize the integrated pump for draining water to a higher or more distant location. Connect the provided 19.6 ft pump drain hose to the pump outlet. The pump can lift water up to 19.6 ft vertically.
Figure 4.2: Illustration of Gravity Drainage and Pump Drainage setups. The top shows gravity drainage with the unit suspended in a crawl space, and the bottom shows pump drainage with the unit on the ground.
4.3 Kutanga Simba-Kubatidza
Once the unit is placed and drainage is set up, plug the power cord into a grounded electrical outlet. The unit is now ready for operation.

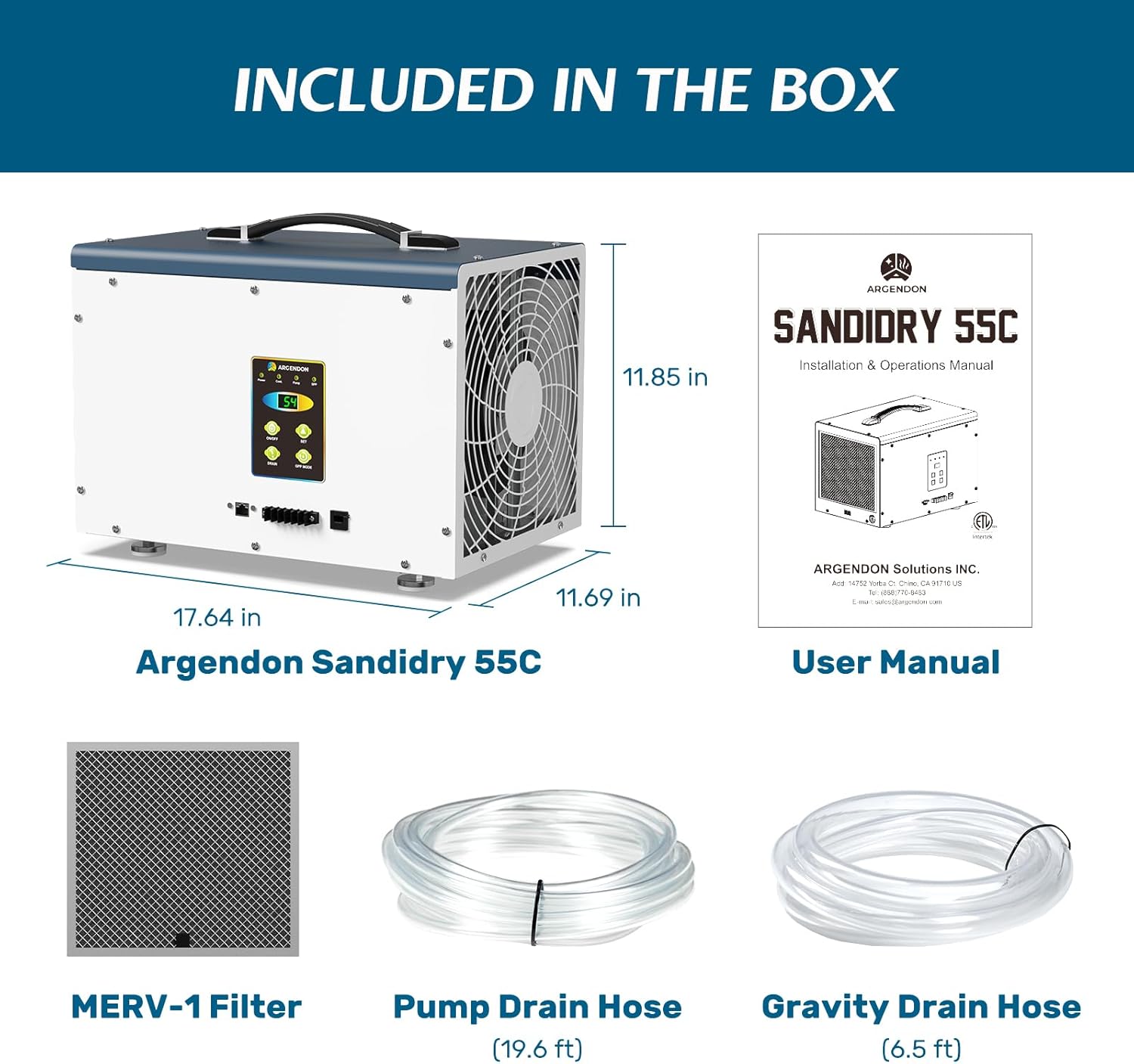

Figure 4.3: Contents included in the box: Argendon Sandidry 55C unit, User Manual, MERV-1 Filter, Pump Drain Hose (19.6 ft), and Gravity Drain Hose (6.5 ft).
5. Operating Instructions
5.1 Control Panel
The control panel allows you to manage the dehumidifier's settings and monitor its status.
Mufananidzo 5.1: Detailed view of the Argendon Sandidry 55C control panel with buttons for ON/OFF, SET, DRAIN, GPP MODE, and indicator lights for Power, Cont., Pump, and GPP. The display shows the current humidity level.
5.2 Mashandiro Modes
- Auto Operation: The unit automatically adjusts its operation based on the set humidity level.
- Auto Defrost: The unit features an automatic defrost function to prevent ice buildup on the coils, ensuring efficient operation in low temperatures.
- Continuous Mode: The dehumidifier will operate continuously regardless of the humidity level until manually turned off.
- Kutanga Kwekurangarira: The unit will resume operation with the last settings used after a power interruption.
5.3 Setting Humidity Levels
Use the "SET" button to adjust the desired humidity level. The display will show the target humidity, and the unit will work to maintain this level.
5.4 Kudzora Kure Kwesarudzo
The Sandidry 55C supports an optional remote control accessory (sold separately) for convenient operation when the unit is placed in hard-to-reach areas like crawl spaces.
Figure 5.2: The Argendon Sandidry 55C connected to an optional remote control unit, demonstrating its use in a crawl space. The remote displays relative humidity (RH) and room temperature (RT).
6. Kuchengeta
Kugara kugadziridza kunovimbisa kuita kwakaringana uye hupenyu hurefu hwe dehumidifier yako.
6.1 Kuchenesa/Kutsiva Sefa
The MERV-1 filter should be inspected and cleaned regularly, typically every 2-4 weeks depending on usage and air quality. A dirty filter can reduce efficiency and airflow.
- Bvisa dehumidifier.
- Locate and remove the MERV-1 filter.
- Clean the filter using a vacuum cleaner or by rinsing it with warm, soapy water. Ensure it is completely dry before reinserting.
- Dzorera sefa kana yakuvadzwa kana kuti isingagoni kucheneswa zvinobudirira.
Mufananidzo 6.1: Pedyo-kumusoro view of the MERV-1 filter, highlighting its mesh design for air filtration.
6.2 General Kuchenesa
Pukuta kunze kweyuniti nekanyoro, damp jira. Usashandise makemikari ane hasha kana abrasive cleaners.
6.3 Kugadzirisa Masisitimu Emvura Yakabuda Mumvura
Periodically check the drainage hoses for kinks, blockages, or algae buildup. Clean the hoses as needed to ensure continuous and efficient water removal.
7. Kugadzirisa matambudziko
Tarisa kune tafura iri pazasi kune zvinowanzoitika uye mhinduro dzadzo.
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Unit haibatike. | No power, power cord loose, circuit breaker tripped. | Tarisa kubatana kwemagetsi, iva nechokwadi chekuti soketi inoshanda, gadzirisa circuit breaker. |
| Dehumidifier not removing moisture effectively. | Dirty air filter, blocked air inlets/outlets, room too large, humidity setting too high, low ambient temperature. | Clean/replace filter, ensure clear airflow, verify room size is within unit capacity, lower humidity setting, ensure operating temperature is above 41°F (5°C). |
| Unit is freezing up. | Low ambient temperature, refrigerant issue. | Ensure operating temperature is within recommended range. If problem persists, contact customer support. |
| Mvura haisi kupera. | Drain hose kinked/blocked, pump malfunction (if using pump drainage), hose not properly connected. | Check and clear drain hose, ensure proper connection, verify pump operation. |
| Chikwata chine ruzha. | Unit not level, fan obstruction, normal operating sound. | Ensure unit is on a level surface. Check for any foreign objects near the fan. Some operational noise is normal. |
8. Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Brand | ARGENDON |
| Model Name | Sanddry 55C |
| Floor Area Coverage | Up to 1300 Square Feet (Optimal for 1500 Sq.Ft. as per image) |
| Capacity | 120 Pints / Zuva |
| Color | Chena |
| Special Feature | Automatic Defrost |
| Inokurudzirwa Zvishandiso | Commercial, Basements, Crawl Spaces, Garages, Whole Home, Job Sites, Large Spaces |
| Material | Metal, Plastiki |
| Operation Mode | Auto Defrost |
| Zviyero zveChigadzirwa (L x W x H) | 17.64 x 11.69 x 11.85 inches |
| Item Weight | 51.9 makirogiramu |
| UPC | 745278646726 |
9. Ruzivo rweWaranti
All ARGENDON dehumidifiers, including the Sandidry 55C, come with a 5-year limited warranty. This warranty covers various components and labor as detailed below:
- Zvikamu zvemwedzi mitanhatu nemabasa: Inosanganisira muripo wekutumira zvinhu zvinotsiva kana kuti midziyo.
- Zvikamu zveGore rimwe Nebasa: Hazvibatanidzi muripo wekutumira zvinhu kuti zvinhu zvidzoserwe kuti zvigadzirwe kana kutsiviwa.
- Zvikamu zveMakore Matatu uye Basa: Kuvharwa kwesystem yekutonhodza chete.
- Compressor neCoil zvemakore mashanu: Kufukidzwa kwakananga kwezvikamu izvi zvakakosha.
For additional warranty information or to make a claim, please refer to the official product user manual or contact customer support.
10. Mutengi Tsigiro
Should you encounter any issues or have questions regarding your Argendon Sandidry 55C dehumidifier, please do not hesitate to contact our customer support team. Our dedicated professionals are available to assist you with troubleshooting, parts replacement, and general inquiries.
For the most up-to-date contact information, please visit the official ARGENDON websaiti kana tarisa kune iyo yekutaurirana inopihwa mune yako chigadzirwa kurongedza.
Unogonawo kushanyira Chitoro cheARGENDON paAmazon kune rumwe ruzivo rwechigadzirwa uye zviwanikwa zvekutsigira.
