Bloomfold 12L Dehumidifier User Manual

1. Nhanganyaya

Thank you for choosing the Bloomfold 12L Dehumidifier. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and keep it for future reference. This dehumidifier is designed to effectively remove excess moisture from the air, helping to prevent mold, mildew, and unpleasant odors, thereby improving the overall air quality in your home.

2. Yakakosha Mirayiridzo Yekuchengetedza

YAMBIRO: Kuti uderedze njodzi yemoto, kuvhunduka kwemagetsi, kana kukuvara, gara uchitevera matanho aya ekutanga ekudzivirira:

• Verenga mirairo yese usati washandisa mudziyo.
• Usashandise dehumidifier netambo yakakanganisika kana plug.
• Ita shuwa kuti magetsi anoenderana nevoltage yakatsanangurwa pane iyo reti label.
• Usavhara nzvimbo dzinopinda mweya kana nzira dzinobuda nadzo. Chengeta nzvimbo iri pakati pechinhu ichi inosvika 20 cm.
• Usanyudze mudziyo, tambo, kana kuisa mvura kana zvimwe zvinwiwa mumvura.
• Bvisa dehumidifier usati wachenesa kana kuita chero kugadzirisa.
• Chengetedza kure nevana nemhuka dzinovaraidza.
• Shandisa chete panzvimbo yakatsiga uye yakati sandara.
• Do not use in direct sunlight or near heat sources.

3. Chii chiri muBhokisi

Pakuburitsa zvinhu, ndapota iva nechokwadi chekuti zvinhu zvinotevera zviripo:

• Bloomfold Dehumidifier (Model BF001)
• Mushandisi Chinyorwa (gwaro iri)
• Drain Hose for continuous drainage

4. Chigadzirwa Pamusoroview

Familiarize yourself with the main components of your Bloomfold Dehumidifier:

Mufananidzo 4.1: Mberi view of the Bloomfold 12L Dehumidifier.

Figure 4.2: Key features of the Bloomfold Dehumidifier, including mold prevention, laundry drying, quiet operation, and energy efficiency.

Zvikamu Zvikuru:

• Control Panel: Intuitive digital display and touch controls for settings.
• Air Inlet/Outlet: Located on the back and top for efficient air circulation.
• Tangi Yemvura: Removable 2-liter tank for collected moisture.
• Continuous Drain Outlet: Port for attaching the drain hose for continuous water removal.
• Mavhiri: For easy portability and movement.

5. Setup

5.1 Kusunungura uye Kuisa

1. Nyatsobvisa dehumidifier kubva pakurongedzerwa kwayo.
2. Isa chikwata chakarurama panzvimbo yakasimba, yepamusoro.
3. Ensure there is at least 20 cm (8 inches) of space around all sides of the unit for proper airflow. Avoid placing it against walls or furniture that could obstruct the air inlets or outlets.
4. Do not place the unit near heat-generating appliances or in direct sunlight.

5.2 Simba Connection

Plug the power cord into a grounded electrical outlet. Ensure the outlet's voltage matches the specifications of the dehumidifier.

5.3 Kuyerera Kwemvura Nguva Dzose (Sarudzo)

For continuous operation without needing to empty the water tank, you can use the included drain hose:

1. Tsvaga pokubudisira mvura inoyerera iri kumashure kweyuniti.
2. Bvisa chivharo cherabha (kana chiripo).
3. Batanidza mugumo mumwe wepaipi yekudhonza mvura nepaburi remvura, zvichiita kuti ikwane zvakanaka.
4. Route the other end of the hose to a suitable drain (e.g., floor drain, large bucket), ensuring it is sloped downwards for gravity drainage.

Figure 5.1: Setting up the continuous drainage function with the included hose.

6. Operating Instructions

6.1 Control Panel Pamusoroview

Mufananidzo 6.1: Detailed view ye control panel nemabasa ayo.

• Bhatani reSimba: Inoshandura iyo unit ON / OFF.
• Bhatani reModhi: Cycles through different operating modes (e.g., Auto, Continuous, Laundry Drying).
• Humidity Set Button: Inogadzirisa hunyoro hunodiwa.
• Speed ​​Button: Inogadzirisa kumhanya kwefani.
• Bhatani reTimer: Inoisa iyo auto-on kana auto-off timer.
• Bhatani Rokukiya Mwana: Inokiya control panel kudzivirira shanduko dzisina tsaona.
• Dhijitari Display: Inoratidza hunyoro huripo, hunyoro hwakatarwa, kana marongero enguva.

6.2 Kubatidza/Kudzima

Press the Simba button to turn the dehumidifier on or off. The digital display will illuminate when the unit is on.

6.3 Nzvimbo Hunyoro Hunodiwa

Press the Humidity Set button repeatedly to cycle through desired humidity levels (e.g., 40%, 50%, 60%). The unit will operate until the set humidity is reached, then cycle on/off to maintain it.

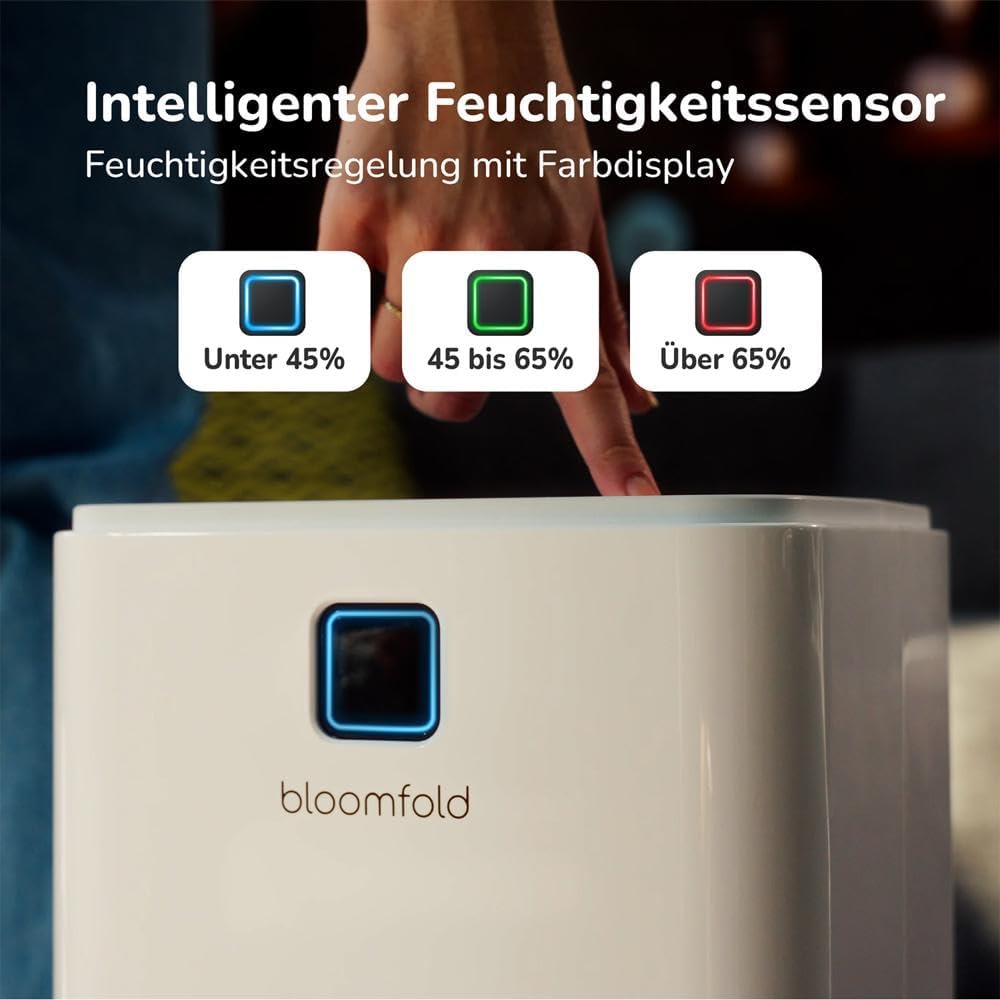

Figure 6.2: The intelligent humidity sensor with color-coded display for current humidity levels.

Figure 6.3: The dehumidifier intelligently regulates humidity, starting when levels are high and stopping when the target is met.

6.4 Maitiro Okushandisa

Press the Mode bhatani rekusarudza:

• Auto Mode: The unit automatically adjusts operation based on the ambient humidity.
• Continuous Mode: The unit runs continuously regardless of humidity level, ideal for very damp conditions or for use with continuous drainage.
• Wacha Drying Mode: Optimized settings for faster drying of clothes in a confined space.

6.5 Timer Basa

Press the Timer button to set a desired operating duration (e.g., 2 hours, 4 hours). The unit will automatically turn off after the set time. You can also set a delayed start timer.

6.6 Kushanda kwakanyarara

The Bloomfold Dehumidifier is designed for quiet operation, making it suitable for various living spaces including bedrooms and offices.

Figure 6.4: Noise level comparison, highlighting the dehumidifier's quiet 36dB operation.

6.7 Kushanda kwakasiyana-siyana

The compact design and efficient performance make this dehumidifier ideal for various rooms in your home.

Figure 6.5: The dehumidifier is suitable for use in bathrooms, cellars, living rooms, laundry rooms, and bedrooms.

7. Kuchengeta

Kugara kugadziridza kunovimbisa kuita kwakaringana uye kunowedzera hupenyu hwe dehumidifier yako.

7.1 Kubvisa Mutangi Wemvura

When the water tank is full, the unit will automatically stop operating and an indicator light will illuminate. To empty the tank:

1. Bvisa tangi remvura zvinyoro nyoro kubva pamberi pechishandiso.
2. Takura tangi racho nokungwarira usinki kana kuti mudhireni.
3. Dururira mvura yakaunganidzwa.
4. Dhonza tangi risina chinhu ridzokere muyuniti kusvika rapinda panzvimbo yaro. Yuniti yacho ichatanga kushanda zvakare.

Figure 7.1: Manually emptying the 2-liter water tank.

7.2 Kuchenesa Sefa Yemhepo

The air filter should be cleaned every two weeks or more frequently depending on usage and air quality. A dirty filter can reduce efficiency.

1. Dzima uye bvisa dehumidifier.
2. Tsvaga firita yemhepo (kazhinji seri kwegrille yemhepo inopinza).
3. Bvisa sefa.
4. Geza sefa ne vacuum cleaner kana kuigeza nemvura inodziya ine sipo. Sukurudza zvakanaka.
5. Bvumira sefa kuti iome zvachose usati waidzorera zvakare.

7.3 General Kuchenesa

Pukuta kunze kweyuniti nekanyoro, damp jira. Usashandise makemikari ane hasha kana abrasive cleaners.

8. Kugadzirisa matambudziko

Usati wabata rutsigiro rwevatengi, ndapota tarisa kune anotevera akajairika nyaya uye mhinduro:

9. Zvinotsanangurwa

10. Warranty uye Tsigiro

Your Bloomfold Dehumidifier comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For any technical issues, questions, or support needs not covered in this manual, please contact Bloomfold customer service. Contact details can typically be found on the product packaging or the official Bloomfold website.
