JISHO Nail Drill User Manual

Model: DX001-Pur

Nhanganyaya

Thank you for choosing the JISHO Electric Nail Drill. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new nail drill. Please read this manual thoroughly before use and retain it for future reference.

Ruzivo Rwakakosha Chekuchengetedza

Yambiro: Kuderedza njodzi yekutsva, magetsi, moto, kana kukuvara kuvanhu:

  • Always wear appropriate eye protection to prevent injury from flying debris or dust during operation.
  • Exercise caution when handling components that may become hot during prolonged use to avoid burns.
  • Keep the device away from water or other liquids. Do not use in wet conditions.
  • Bvisa mudziyo kana usiri kushandiswa uye usati wachenesa.
  • Do not operate with a damaged cord or plug. If the device is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
  • Chengeta bvudzi, zvipfeko zvisina kusimba, zvigunwe, uye nhengo dzese dzemuviri kure nekuvhura uye nhengo dzinofamba.
  • Shandisa zvinonamirwa chete zvakatsanangurwa nemugadziri.
  • Usashandise kunze kana kushanda uko zvigadzirwa zveaerosol (spray) kana panoiswa oxygen.
  • Mudziyo uyu ndewekushandisa pamba chete.

Package Zviri mukati

Upon opening your JISHO Nail Drill package, please verify that all the following items are included:

  • JISHO Electric Nail Drill Handpiece (Purple)
  • USB Power Tambo
  • 5V 2A USB A Charging Adapter
  • Ceramic Drill Bits (various types, including Ceramic Corn Head)
  • Mandrel Bit
  • Sanding Bands
  • Mushandisi Chinyorwa (gwaro iri)
JISHO Nail Drill and included accessories: purple handpiece, USB power cord, charging adapter, various drill bits, and sanding bands.

Image: All components included in the JISHO Nail Drill package.

Product Overview

The JISHO Electric Nail Drill is a portable and efficient tool designed for various nail care tasks. Familiarize yourself with its main components:

  • Handpiece: The main body of the drill, housing the motor and collet for bits.
  • Speed Control & Direction Switch: Located on the power cord, allows adjustment of rotation speed and direction (Forward/Reverse).
  • USB Power Cord: Connects the handpiece to the power adapter or other USB power sources.
  • Adapter yekuchaja: 5V 2A USB A adapter for wall outlet connection.
  • Drill Bits: Various shapes and materials for different functions (e.g., shaping, polishing, cuticle removal).
Close-up of the JISHO Nail Drill handpiece showing the internal motor and the inline speed control and direction switch on the power cord.

Mufananidzo: Zvakadzama view of the nail drill's powerful motor and the speed/direction control on the cord.

Diagram showing various types of nail drill bits including Needle Head, Safety Bit, Conical Head, Small Barrel, Large Barrel, Mandrel Bit, and Ceramic Corn Head, with their respective uses.

Image: Selection of superior nail drill bits for manicure, detailing their shapes and functions.

Gadzirira

  1. Batanidza Simba:

    Insert the DC plug of the USB power cord into the port at the end of the nail drill handpiece. Then, plug the USB-A end of the power cord into the provided 5V 2A USB A charging adapter, or another compatible USB power source such as a laptop, power bank, or car charger.

    Image showing the JISHO Nail Drill connected via its USB port to various power sources like a laptop, wall adapter, power bank, and car charger.

    Image: The nail drill is equipped with a standard USB port for versatile power options.

  2. Isa Drill Bit:

    Ensure the drill is turned off. Gently push the desired drill bit into the opening at the tip of the handpiece until it is securely seated. Do not force the bit. To remove, gently pull the bit out.

Operating Instruction

Follow these steps for effective and safe operation of your JISHO Nail Drill:

  1. Power On: Once connected to power, slide the ON/OFF switch on the inline controller to the 'ON' position.
  2. Gadzirisa Kumhanya Use the speed control dial on the inline controller to adjust the rotation speed. Start with a lower speed and gradually increase as needed for your task. The drill offers up to 25,000 RPM.
  3. Sarudza Rotation Direction: Use the FWD/REV switch on the inline controller to select the desired rotation direction (Forward or Reverse). This is useful for left-handed or right-handed use, and for different nail techniques.
  4. Begin Nail Work: Gently apply the rotating drill bit to the nail surface. Use light pressure and keep the drill moving to avoid heat buildup or damage to the nail.
  5. Power Off: After use, slide the ON/OFF switch to the 'OFF' position and unplug the device from the power source.

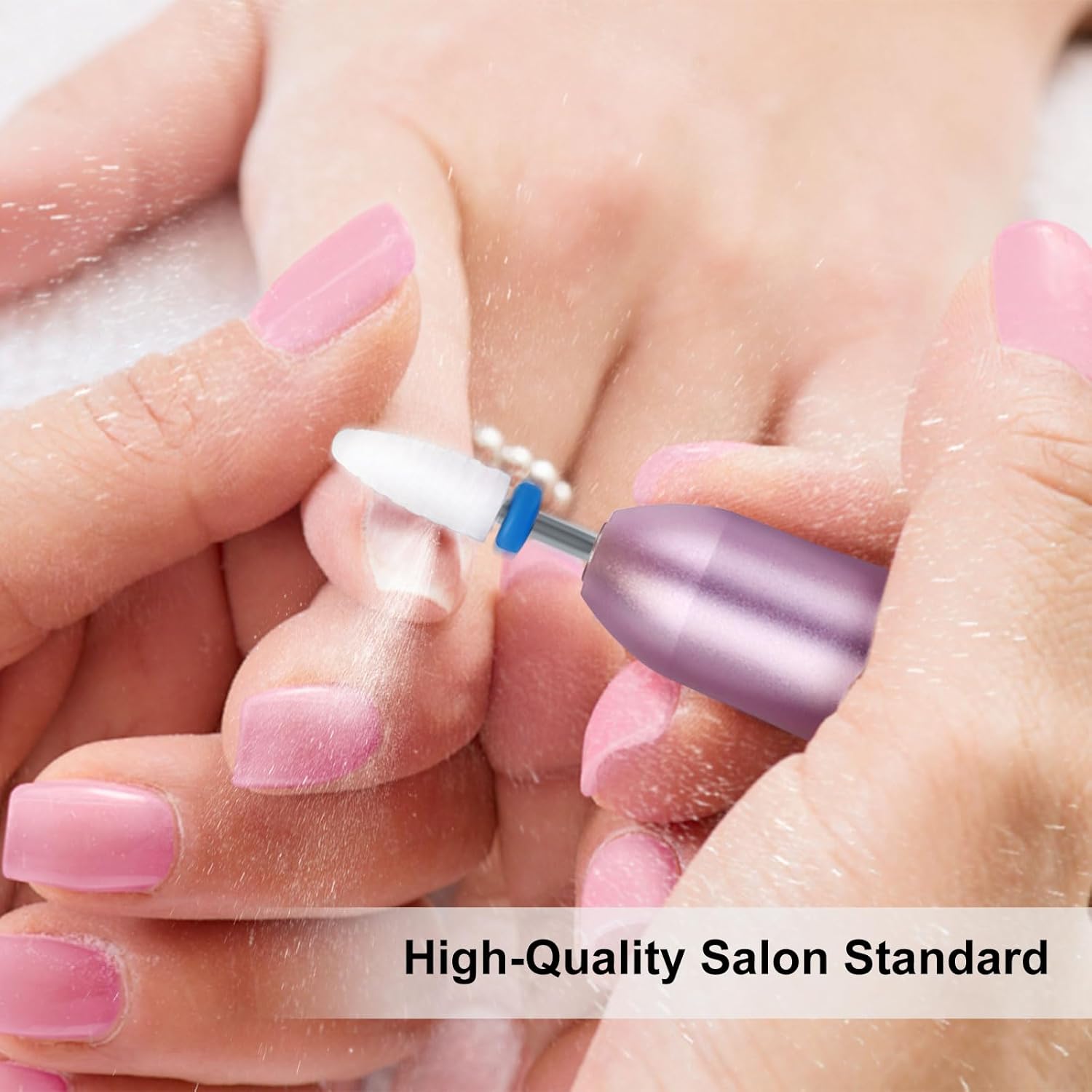

Image of the JISHO Nail Drill being used on a fingernail, demonstrating its application for nail care.

Image: High-quality salon standard application of the nail drill.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your JISHO Nail Drill:

  • Cleaning the Handpiece: After each use, wipe the handpiece with a soft, dry cloth to remove dust and debris. Do not use harsh chemicals or immerse the handpiece in water.
  • Cleaning Drill Bits: Clean drill bits after each use. You can use a small brush or an ultrasonic cleaner for thorough cleaning. Ensure bits are completely dry before storage.
  • Kuchengeta: Store the nail drill and its accessories in a clean, dry place, away from direct sunlight and extreme temperatures. Keep out of reach of children.
  • Cord Care: Avoid bending or twisting the power cord excessively. Do not wrap the cord tightly around the handpiece.

Kugadzirisa matambudziko

DambudzikoZvinogona KukonzeraSolution
Drill not turning on.Not properly connected to power; power outlet issue; ON/OFF switch is off.Ensure all connections are secure. Try a different power outlet. Slide the ON/OFF switch to 'ON'.
Drill bit wobbles or falls out.Bit not inserted correctly; bit is incompatible.Ensure the bit is fully and securely inserted. Use only compatible drill bits.
Excessive heat during use.Prolonged use at high speed; excessive pressure on nail; dull bit.Reduce speed or take breaks. Apply lighter pressure. Replace dull bits. Ensure proper ventilation.
Ruzha rusina kujairika kana kudedera.Loose bit; internal issue.Check if the bit is securely inserted. If the problem persists, contact customer support.

Zvinotsanangurwa

  • Muenzaniso: DX001-Pur
  • Brand: JISHO
  • Material: Ceramic (bits)
  • Voltage: 5 Volts
  • Kunobva Simba: Corded Electric
  • Input Power: 10 Watts
  • Maximum Rotational Speed: 25,000 RPM
  • Noise Level: Kusvika pa40 dB
  • Kurema Approximately 50g (handpiece only)
  • Dimensions (Parcel): 16.79 x 6.81 x 4.19 cm

Warranty uye Support

JISHO products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact information provided on your product packaging or visit the official JISHO website. Ndapota chengetedza humbowo hwako hwekutenga kwezvichemo zvewaranti.

For further assistance, please contact JISHO Customer Service.
