Alert ProReel 5030MFR Heavy-Duty Reverse Plug Retractable Cord Reel User Manual

1. Nhanganyaya

Thank you for choosing the Alert ProReel 5030MFR Heavy-Duty Reverse Plug Retractable Cord Reel. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new cord reel. Please read all instructions carefully before use and retain this manual for future reference.

2. Safety Information

YAMBIRO: Kuti uderedze njodzi yemoto, kuvhundutswa nemagetsi, kana kukuvara, gara uchitevera matanho aya ekutanga ekuchengetedza.

• Always ensure the cord reel is properly grounded.
• Do not overload the cord reel. The maximum capacity is 13 amps.
• Do not use in wet conditions or immerse in water.
• Fully extend the cord when using high-wattage appliances to prevent overheating.
• Inspect the cord and reel for damage before each use. Do not use if damaged.
• Chengeta vana nezvipfuyo kure netambo yekubatanidza tambo panguva yekushanda.
• Always unplug the cord reel from the power source before performing any maintenance or when not in use.
• The integrated 13 amp resettable circuit breaker provides additional protection. If the breaker trips, reduce the load and press the reset button.

3. Package Zviri mukati

Your Alert ProReel 5030MFR package should include the following items:

• Alert ProReel 5030MFR Retractable Cord Reel (Powder Coated Metal Housing)
• User Manual
• Mounting Hardware (for wall or ceiling installation)

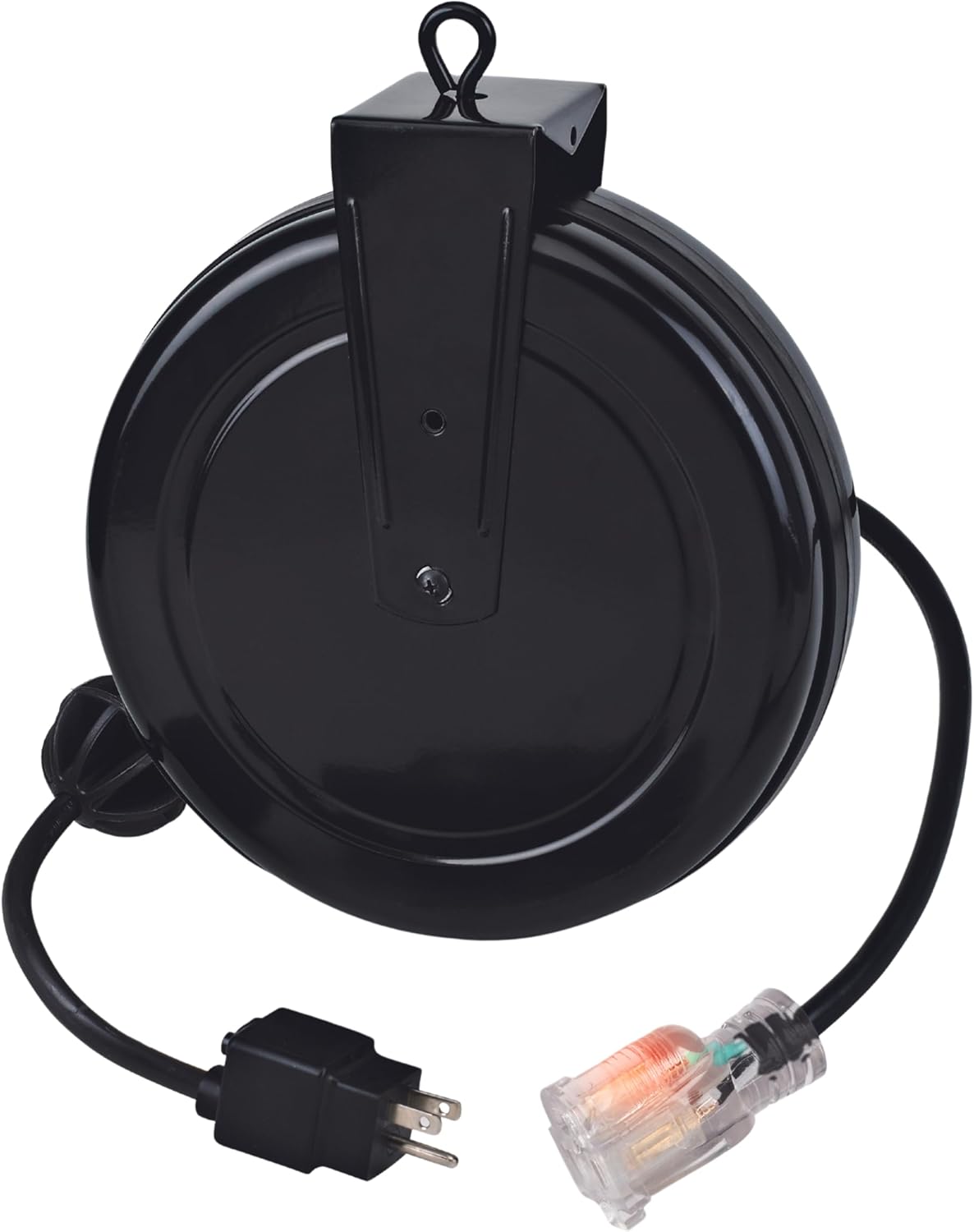

Image: The Alert ProReel 5030MFR Retractable Cord Reel, showing its compact design and the attached power cord with a clear grounded outlet.

Video: This video demonstrates the unboxing of the Alert ProReel 5030MFR, showcasing all included components such as the cord reel, user manual, and mounting hardware.

4. Zvigadzirwa zveChigadzirwa

• 30-Foot 14/3 SJTW Cord: Heavy-duty, Stranded, Junior, Thermoplastic, and Weather resistant cord for various applications.
• Reverse Wired Single Grounded Outlet: Ideal for charging battery-powered items like e-bikes, scooters, and golf carts where the male plug is on the retractable end.
• Simba PaChiedza Chiratidzo: Clear NEMA 5-15R grounded outlet features a light to indicate when power is active.
• 13 Amp Chinodzoserwazve Dunhu Chinopwanya: Provides overload protection, preventing damage to the reel and connected devices.
• Powder Coated Steel Housing: Kuvakwa kwakasimba kwekuita kwenguva refu.
• Built-in Heavy-Duty Steel Mounting Bracket: Allows for easy wall or ceiling installation.

Image: The Alert ProReel 5030MFR showing its compact dimensions of 11 inches in height, 9 inches in length, and 3 inches in width.

Image: A diagram illustrating the difference between a standard cord reel and a reverse plug cord reel, highlighting that on a reverse plug reel, the male plug is on the retractable end.

5. Setup uye Kuiswa

The Alert ProReel 5030MFR is designed for easy wall or ceiling mounting. Follow these steps for installation:

1. Sarudza Nzvimbo: Select a sturdy wall stud, ceiling joist, or other secure structural element capable of supporting the weight of the cord reel and the force of cord retraction. Ensure the location allows for full extension and retraction without obstruction.
2. Mako Mounting Points: Use the built-in steel mounting bracket as a template to mark the drilling locations for the mounting hardware.
3. Drill Pilot Holes: Drill pilot holes appropriate for the provided mounting hardware.
4. Chengetedza Bracket: Attach the cord reel to the mounting surface using the provided screws or bolts, ensuring it is firmly secured.
5. Test Installation: Gently pull and retract the cord a few times to ensure the reel is securely mounted and operates smoothly.

6. Operating Instructions

Using your Alert ProReel 5030MFR is straightforward:

1. Batanidza kuSimba: Plug the fixed end of the cord reel into a standard 15 amp electrical source. The power indicator light on the clear outlet will illuminate when power is supplied.
2. Wedzera Tambo: Gently pull the retractable end of the cord to the desired length. The cord will lock into place at various intervals.
3. Batanidza mudziyo: Plug your battery-powered device (e.g., e-bike, scooter, golf cart charger) into the clear grounded outlet.
4. Bvisa Tambo: To retract the cord, pull it gently until the locking mechanism disengages, then guide the cord back into the reel. Do not release the cord abruptly, as this can cause damage.
5. Circuit Remake: If the cord reel stops providing power, the 13 amp resettable circuit breaker may have tripped due to an overload. Disconnect the device, reduce the load, and press the reset button on the plug to restore power.

Image: The Alert ProReel 5030MFR with its 30-foot cord fully extended, demonstrating its reach and tangle-free management.

Video: This video demonstrates the smooth retraction of the 30-foot SJTOW cord, the functionality of the clear NEMA 5-15R grounded outlet with its power indicator light, and the 13 Amp resettable circuit breaker on the plug.

7. Kuchengeta

Regular maintenance will ensure the longevity and safe operation of your cord reel:

• Kuchenesa: Wipe the reel and cord with a dry cloth to remove dust and debris. Do not use harsh chemicals or abrasive cleaners.
• Cord Inspection: Periodically inspect the entire length of the cord for cuts, fraying, or damage. Check the plugs and outlets for any signs of wear or corrosion. Replace the unit if any damage is found.
• Maitiro Ekudzosa: Ensure the retraction mechanism operates smoothly. If it becomes stiff or noisy, ensure the cord is clean and free of obstructions.
• Kuchengeta: When not in use, store the cord reel in a dry, clean environment, away from direct sunlight and extreme temperatures.

8. Kugadzirisa matambudziko

If you encounter issues with your Alert ProReel 5030MFR, refer to the following common problems and solutions:

9. Zvinotsanangurwa

10. Warranty uye Tsigiro

Alert products are manufactured to high standards. For warranty information or technical support, please contact Alert Reel Manufacturing directly. Protection plans are also available for extended coverage.

For further assistance, please visit the official Alert store or contact customer service through your purchase platform.
