DEVAISE ASJZ021 40-Inch Electric Standing Desk User Manual

1. Ruzivo Rwakakosha Chekuchengetedza

Ndapota verengai mirairo yese zvakanaka musati magadzira uye mashandisa. Kusatevedzera mirairo iyi kunogona kukonzera kukuvara kana kukuvara kwechigadzirwa.

• Always keep children and pets away from the desk when in motion.
• Use the child lock feature (if available) to prevent unintended height adjustments.
• Be aware of the anti-collision feature; do not force the desk to move if it encounters an obstacle.
• Ensure all cables are properly managed to avoid entanglement during height adjustments.
• Do not overload the desk. The maximum weight capacity is 180 lbs.
• Only use the desk on a level surface.

2. Package Zviri mukati

Iva nechokwadi chekuti zvese zvirimo usati watanga kugadzira. Kana paine zvimwe zvikamu zvisipo kana kuti zvakakuvara, ndapota taura nerutsigiro rwevatengi.

• Desktop (0.6" thick, Rustic Brown)
• Makumbo eDesiki (2)
• Foot Pads (2)
• Crossbar/Frame Assembly
• Control Panel with LED Touchscreen
• Power Adapter uye Cable
• Headphone Hook
• Assembly Hardware (screws, L-shaped installation tools)
• User Manual

3. Mirayiridzo yeGungano

The DEVAISE ASJZ021 desk is designed for quick and simple assembly, typically within 15 minutes. All holes are pre-drilled, and accessories are clearly labeled.

Zvishandiso Zvinodiwa:

• Phillips musoro screwdriver (isina kuisirwa)
• L-shaped installation tools (included)

Nhanho-ne-Nhanho Gungano:

1. Unpack Components: Nyatsobvisa zvikamu zvese kubva pakurongedzerwa uye wozviisa panzvimbo yakachena, yakapfava kudzivirira makwara.
2. Batanidza Mapedhi Etsoka: Secure the foot pads to the bottom of each desk leg using the provided screws.
3. Assemble Frame: Connect the desk legs to the crossbar/frame assembly. Ensure all connections are tight and secure.
4. Batanidza Desktop: Carefully place the desktop onto the assembled frame. Align the pre-drilled holes on the desktop with the frame. Secure the desktop to the frame using the provided screws.
5. Isa Control Panel: Mount the LED touchscreen control panel to the underside of the desktop in the designated location. Connect the control panel cable to the motor.
6. Batanidza Simba: Plug the power adapter into the desk's motor and then into a wall outlet.
7. Batanidza Hook yeHeadphone: Install the headphone hook to the side of the desk as desired.

Mufananidzo: Yakaputika view of desk components illustrating the 15-minute quick installation process.

4. Operating Instructions

The DEVAISE ASJZ021 Electric Standing Desk features a tri-motor system for smooth and quiet height adjustments and a smart LED touchscreen controller.

Kudzora Panel Pamusoroview:

Mufananidzo: Zvakadzama view of the multi-function control panel with LED display, up/down arrows, memory presets (1, 2, 3), and 'S' button.

• Akatungamirira Ratidza: Shows the current desk height in real-time.
• Miseve Yekumusoro/Yakadzika (▲ / ▼): Press and hold to adjust the desk height manually. Release to stop at the desired height.
• Zvigadziriso zveMemory (1, 2, 3): Store and recall up to three personalized height settings.
• 'S' Button: Used for saving memory presets and activating the child lock function.

Kugadzirisa Hurefu:

The desk can be adjusted between 28.35 inches (sitting height) and 46.45 inches (standing height).

Image: Comparison of the desk at its minimum height of 28.35 inches and maximum height of 46.45 inches.

• Manual Adjustment: Press and hold the ▲ (Up) or ▼ (Down) button until the desk reaches your desired height.
• Setting Memory Presets:
  1. Adjust the desk to your preferred height using the Up/Down buttons.
  2. Press the 'S' button. The LED display will show 'S-'.
  3. Immediately press one of the memory buttons (1, 2, or 3). The display will show 'S-1', 'S-2', or 'S-3' to confirm the height is saved.
• Kuyeuka Magadzirirwo Endangariro: Simply press the corresponding memory button (1, 2, or 3) once. The desk will automatically move to the saved height.

Quiet Operation:

The tri-motor system operates quietly, typically below 50dB, ensuring minimal disruption in your workspace.

Image: Graphic illustrating the quiet operation of the desk, comparing its sound level (below 50dB) to soft breaths (10dB), whisper (25dB), and car horns (80dB).

5. Zvinotsanangurwa

Detailed technical specifications for the DEVAISE ASJZ021 Electric Standing Desk.

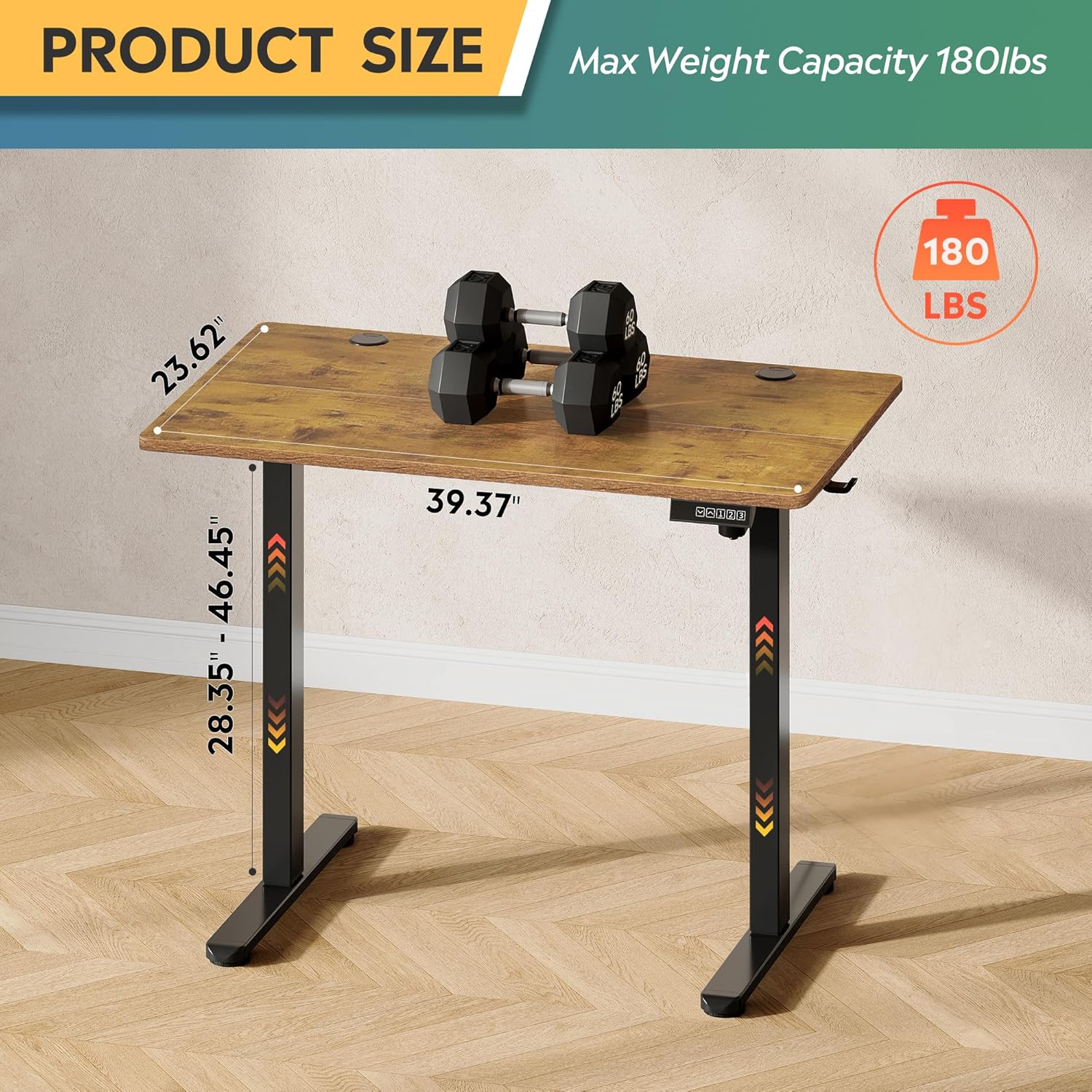

Image: Product dimensions (39.37"W x 23.62"D) and height range (28.35"-46.45"), highlighting the 180 lbs maximum weight capacity.

6. Kuchengeta

Regular maintenance helps ensure the longevity and optimal performance of your standing desk.

• Kuchenesa: Pukuta desktop uye furemu nenyoro, damp jira. Dzivisa makemikari ane hasha kana abrasive cleaners anogona kukanganisa kupera.
• Cable Management: Periodically check and organize cables to prevent them from snagging or getting pinched during height adjustments.
• Screw Tightness: Dzimwe nguva tarisa ese screws uye mabhaudhi kuti ave nechokwadi kuti anoramba akasimba. Simbisazve kana zvichidiwa.
• Motor Inspection: Listen for any unusual noises during operation. If you notice any issues, refer to the troubleshooting section or contact support.

7. Kugadzirisa matambudziko

If you encounter any issues with your DEVAISE ASJZ021 Electric Standing Desk, please refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact DEVAISE customer support.

8. Warranty uye Tsigiro

DEVAISE is committed to providing quality products and customer satisfaction. Your purchase is backed by our support services.

• Tsigiro yeVatengi: For any questions, concerns, or assistance with assembly or operation, please contact our 24/7 US-based support team. Refer to your purchase documentation for contact details.
• Ruzivo rwewaranti: Specific warranty terms and conditions may vary. Please refer to the warranty card included with your product or visit the official DEVAISE websaiti kuti uwane ruzivo rwakadzama.
