Nhanganyaya
This manual provides instructions for the installation, maintenance, and care of your Swagtron EB7 and EB-7 Plus eBike Headlight Outer Cover. This product is an original equipment manufacturer (OEM) replacement part designed for specific Swagtron eBike models.
Safety Information
Always ensure your eBike is powered off and the battery is removed before performing any installation or maintenance.
If you are unsure about any step, consult a qualified bicycle technician.
Wear appropriate safety gear, such as gloves, during installation to prevent injury.
Package Zviri mukati
Tarisa kuti zvese zvirimo zviripo usati watanga kuisa.
- 1x Swagtron EB7 / EB-7 Plus eBike Headlight Outer Cover (Black)
Note: The inner lamp assembly, horn, power PCB, LED PCB, and lenses are sold separately and are not included with the outer cover.
Kugarisana
This Headlight Outer Cover is specifically designed for use with the following Swagtron eBike models:
- Swagtron EB7
- Swagtron EB-7 Plus
Ensure your eBike model matches the listed compatibility to guarantee proper fit and function.
Installation Instructions
This section outlines the steps for replacing the headlight outer cover.
- Kugadzirira: Power off your Swagtron eBike and remove the battery for safety.
- Locate Headlight: Identify the headlight assembly on the front of your eBike.
- Remove Existing Cover (if applicable): Carefully inspect how the current outer cover is attached. It is typically secured by small screws or clips. Use an appropriate tool (e.g., a small Phillips head screwdriver) to remove any fasteners. Gently pry off the old cover.
Mufananidzo: Side view of the black Swagtron EB7 eBike headlight outer cover, highlighting its curved design and attachment points.
- Inspect Inner Components: With the old cover removed, inspect the inner lamp assembly, including the horn, PCBs, and lenses, for any damage or debris. Clean if necessary.
Mufananidzo: Angled view of the black Swagtron EB7 eBike headlight outer cover, illustrating the front opening where the light lens would sit.
- Position New Cover: Align the new Swagtron EB7 / EB-7 Plus Headlight Outer Cover with the headlight assembly. Ensure the screw holes or clips on the new cover match the mounting points on the eBike.
Mufananidzo: Mberi view of the black Swagtron EB7 eBike headlight outer cover, clearly showing the oval-shaped opening designed for the headlight lens.
- Secure Cover: Gently press the new cover into place. If screws were used, reinsert and tighten them securely, but do not overtighten to avoid stripping the threads or cracking the plastic.
Image: Top-down perspective of the black Swagtron EB7 eBike headlight outer cover, emphasizing its sleek, curved exterior.
- Kuongorora Kwekupedzisira: Once the cover is secured, gently tug on it to ensure it is firmly attached and does not wobble.

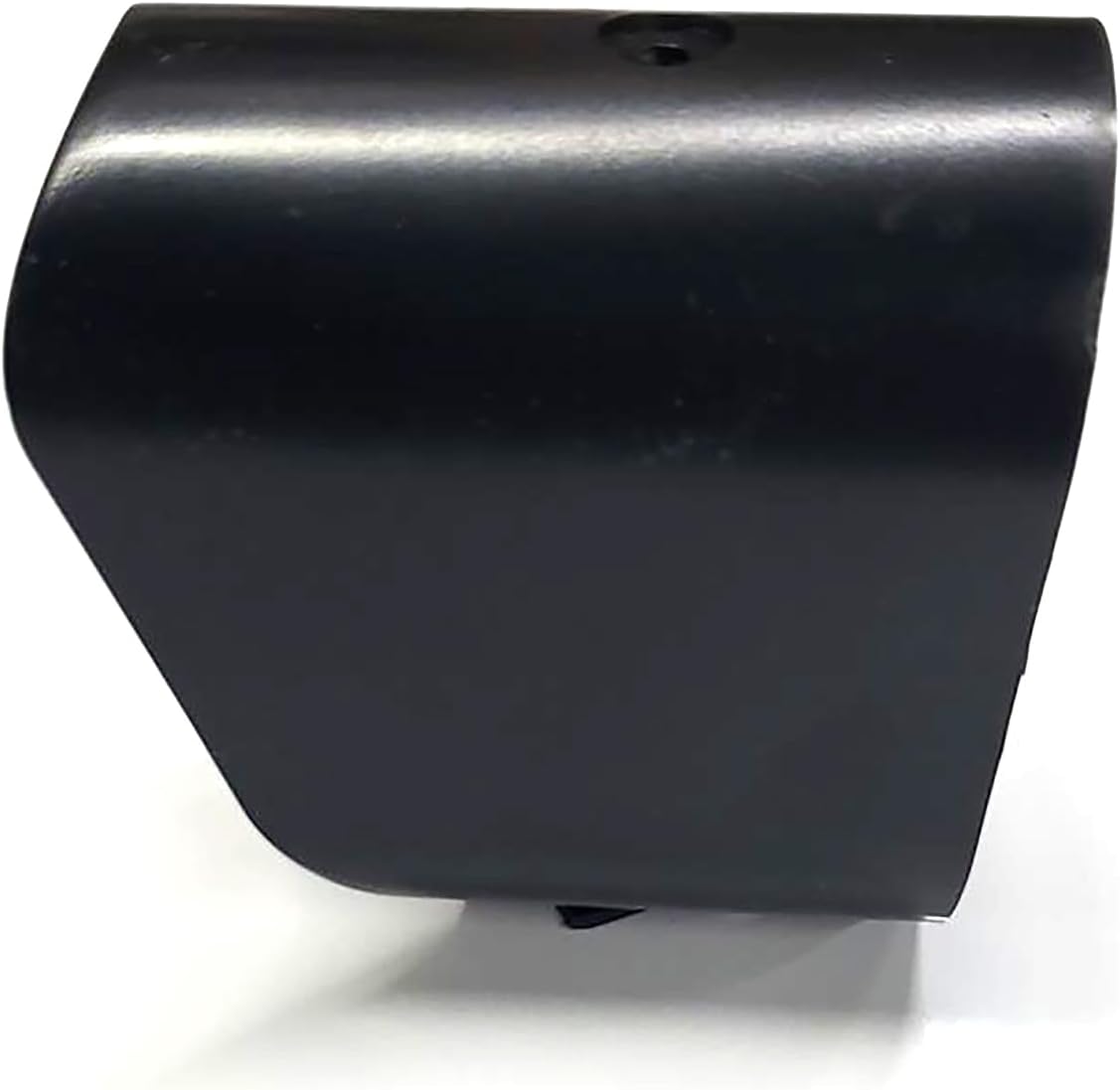

Image: An additional side view of the black Swagtron EB7 eBike headlight outer cover, providing a comprehensive look at its form and finish.
- Test Mashandiro: Reinstall the eBike battery and power on the eBike. Test the headlight to ensure it functions correctly and the new cover does not obstruct the light beam.
If you encounter any difficulties during installation, please refer to the Troubleshooting section or contact Swagtron customer support.
Kushandisa Headlight
The outer cover itself does not have operational controls. Its function is to protect the internal headlight components and direct the light beam.
To operate the headlight, refer to your Swagtron EB7 or EB-7 Plus eBike's main user manual for instructions on how to turn the headlight on and off.
Maintenance
Regular maintenance helps prolong the life and appearance of your headlight outer cover.
- Kuchenesa: Wipe the outer cover regularly with a soft, damp cloth to remove dirt and dust. Avoid abrasive cleaners or solvents, as these can damage the plastic finish.
- Kuongorora: Periodically check the cover for any cracks, damage, or loose fasteners. Address any issues promptly to prevent further damage to the headlight assembly.
- Kuchengeta: If storing your eBike for an extended period, ensure it is in a clean, dry environment away from direct sunlight and extreme temperatures.
Do not attempt to disassemble the inner lamp assembly unless you are a qualified technician.
Kugadzirisa matambudziko
This section addresses common issues related to the headlight outer cover.
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Cover is loose or rattling | Screws are not tightened sufficiently or clips are not fully engaged. | Ensure all screws are securely tightened. If clips are used, ensure they are fully engaged. Avoid overtightening. |
| Headlight beam is obstructed | Cover is not seated correctly or debris is inside. | Re-seat the cover, ensuring it is properly aligned. Check for and remove any debris from inside the headlight assembly. |
| Kavha yakatsemuka kana kukuvara | Kukanganisa kana kusashanda zvakanaka. | The cover is a replacement part. If damaged, it needs to be replaced. |
For issues not listed here, please contact Swagtron customer support.
Zvinotsanangurwa
- Product Name: Swagtron EB7 / EB-7 Plus eBike Headlight Outer Cover
- Model Number: EB7-HEADLIGHT
- Chikamu Type: OEM Replacement Part (Outer Cover Only)
- Material: Plastiki
- Ruvara: Nhema
- Kuenderana: Swagtron EB7, Swagtron EB-7 Plus eBikes
- Gungano Rinodiwa: Ehe
- UPC: 810012302906
Zvinyorwa zvinogona kuchinja pasina chiziviso.
Warranty uye Support
This Swagtron EB7 / EB-7 Plus eBike Headlight Outer Cover comes with a Waranti Yemazuva makumi matatu Yezvigadzirwa Zvemugadziri.
For warranty claims, technical assistance, or further inquiries, please contact Swagtron customer support through their official webnzvimbo kana mutengesi uko chigadzirwa chakatengwa.
Please have your product model number (EB7-HEADLIGHT) and proof of purchase ready when contacting support.
