Tristar KD-7310 Ice Crusher Instruction Manual

1. Yakakosha Mirayiridzo Yekuchengetedza

Please read these instructions carefully before using the appliance and keep them for future reference. Incorrect use can lead to injury or damage to the appliance.

• Nguva dzose chengetedza voltage iri pachiratidzo chekuongorora inoenderana nevhoriyamu yako hurutage.
• Usanyudze mudziyo, tambo, kana plug mumvura kana chero imwe mvura.
• Bvisa mudziyo kubva kunobuditsa kana usiri kushandiswa, usati wabatanidza kana kubvisa zvidimbu, uye usati wachenesa.
• Keep hands and utensils out of the ice reservoir during operation to prevent injury.
• Usashandise chero mudziyo uine tambo yakakuvadzwa kana plug, kana mushure mekunge mudziyo watadza kushanda kana wakakuvadzwa chero nzira.
• Isa mudziyo panzvimbo yakatsiga, yakati sandara, isingapise kupisa.
• Chishandiso ichi hachina kuitirwa kuti chishandiswe nevanhu (kusanganisira vana) vane masimba emuviri, pfungwa kana pfungwa dzakadzikira, kana kushaya ruzivo neruzivo, kunze kwekunge vapihwa tarisiro kana kuraira maererano nekushandiswa kwemudziyo nemunhu ane mutoro wekuchengetedza kwavo.
• Vana vanofanira kutariswa kuti vaone kuti havasi kutamba nemudziyo wacho.
• Shandisa zvinhu zvinokurudzirwa nemugadziri chete.
• Ensure the lid is securely locked before operating the machine.

2. Chigadzirwa Pamusoroview

The Tristar KD-7310 Ice Crusher is designed to quickly and easily prepare crushed ice for various beverages. It features a 600 ml ice reservoir and a 1.1 L pitcher, allowing for efficient preparation of slushies, cocktails, and other refreshing drinks. The machine offers two crushed ice settings for different consistencies.

Mufananidzo 2.1: The Tristar KD-7310 Ice Crusher preparing a red slushie, enjoyed by a family outdoors.

Zvinokosha:

• Dual Crushing Settings: Choose between fine or medium crushed ice.
• Kuita Kwepamusoro: Crushes up to 250 grams of ice per minute.
• Rupo Kukwanisa: Features a 600 ml ice compartment and a 1.1 L serving pitcher.
• Safety Lock Lid: Transparent, removable lid with a safety locking mechanism for secure operation.
• Efficient Motor: 30 W motor provides effective crushing with low energy consumption.

Mufananidzo 2.2: The Tristar KD-7310 can be used to prepare various drinks including slushies, smoothies, cocktails, and iced coffees.

3. Setup uye Gungano

Before first use, ensure all packaging materials are removed. Wash the removable parts (pitcher, lid) in warm soapy water, rinse thoroughly, and dry. Wipe the main unit with a damp jira.

1. Place the main unit on a clean, stable, and dry surface.
2. Ensure the pitcher is correctly seated in its designated position on the base.
3. Open the transparent lid of the ice reservoir.
4. Add ice cubes to the ice reservoir. Do not overfill; the maximum capacity is 600 ml. Ensure ice cubes are not excessively large to prevent jamming.
5. Close the transparent lid securely until it locks into place. The safety lock prevents operation if the lid is not properly closed.

Mufananidzo 3.1: Illustration of adding ice cubes to the 600 ml ice reservoir and the transparent safety-lock lid.

4. Operating Instructions

Once the appliance is set up and ice is loaded, you can begin crushing ice.

1. Ita shuwa kuti mudziyo wabatanidzwa mune yakakodzera magetsi outlet.
2. Select your desired crushed ice size using the control knob on the front of the unit.
   • Fine Crush: For smooth slushies and delicate drinks.
   • Medium Crush: For cocktails and beverages requiring a coarser ice texture.
3. Press the power button or turn the knob to the "ON" position to start the crushing process. The machine will begin to crush the ice into the 1.1 L pitcher.
4. Once the desired amount of crushed ice is achieved, turn the knob to the "OFF" position or release the button.
5. Remove the pitcher and add your preferred syrup or beverage to create your drink.

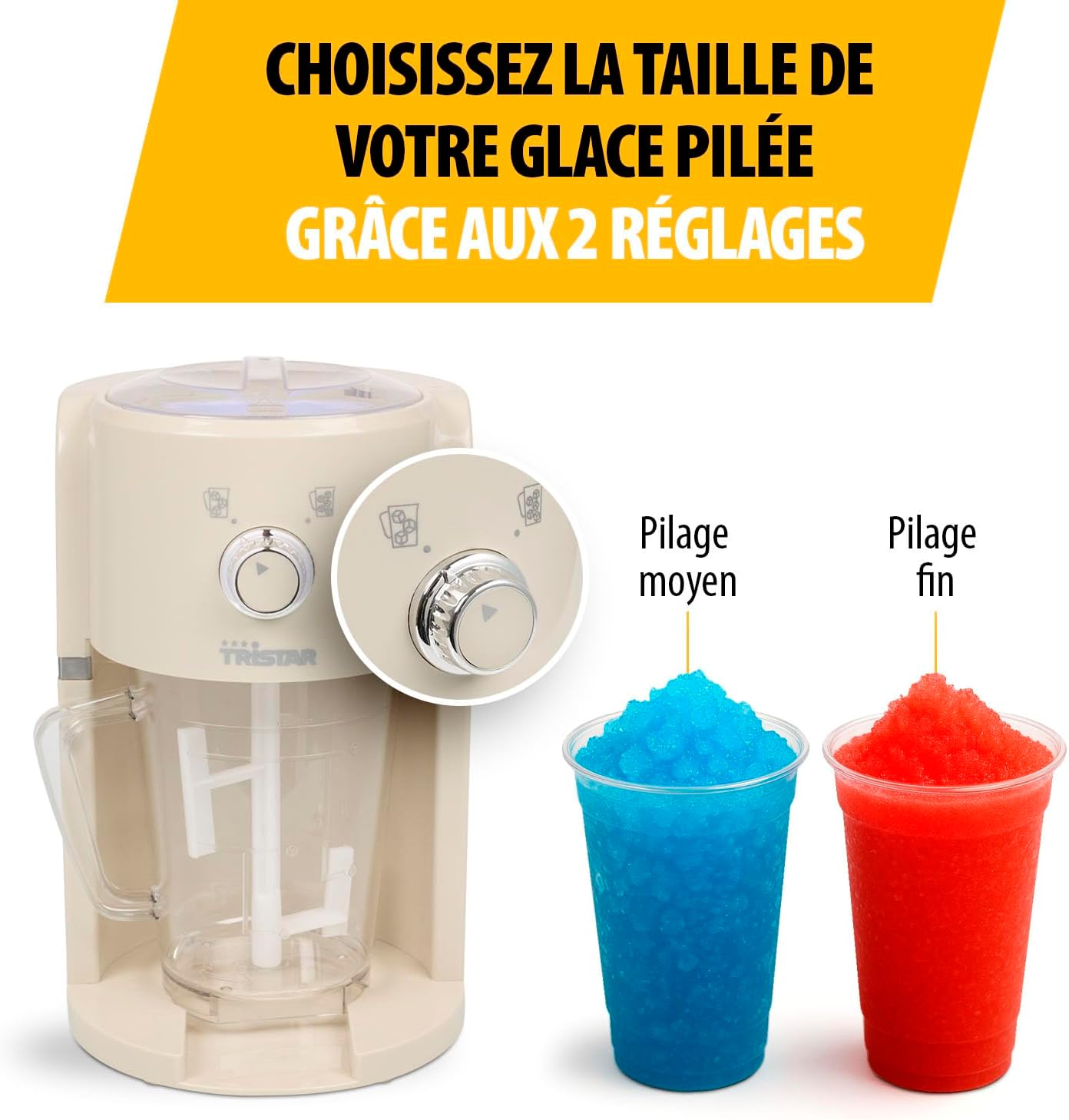

Mufananidzo 4.1: The control knob allows selection between medium and fine crushed ice textures.

5. Kuchenesa uye Kuchengetedza

Regular cleaning ensures optimal performance and extends the lifespan of your ice crusher.

1. Nguva dzose bvisa mudziyo kubva panzvimbo yemagetsi usati wachenesa.
2. Remove the pitcher and the transparent lid.
3. Wash the pitcher and lid in warm, soapy water. Rinse thoroughly and dry completely before reassembling or storing. These parts are generally not dishwasher safe unless specified otherwise in a full manual.
4. Pukuta chikamu chikuru nechinyoro, damp jira. Usashandise abrasive cleaners kana scouring pads, sezvo anogona kukwenya pamusoro.
5. Usambofa wakanyudza chinhu chikuru mumvura kana chero imwe mvura.
6. Ita shuwa kuti zvikamu zvese zvaoma zvachose usati wachengeta mudziyo.

6. Kugadzirisa matambudziko

If you encounter issues with your Tristar KD-7310 Ice Crusher, refer to the following common problems and solutions:

7. Zvinotsanangurwa

Technical details for the Tristar KD-7310 Ice Crusher:

• Brand: Tristar
• Model Number: KD-7310
• Simba: 30 W
• Ice Crushing Capacity: 250 g per minute
• Ice Reservoir Capacity: 600 ml
• Pitcher Capacity: 1.1 litres
• Material: Plastiki
• Chinhu Weight: 1.6 makirogiramu
• Approximate Dimensions (Product): 21 cm (width) x 18 cm (depth) x 30 cm (height) - As shown in product imagery.
• ASIN: B0DZ2MHBBL

Mufananidzo 7.1: Product dimensions and power rating (30W) of the Tristar KD-7310 Ice Crusher.

Mufananidzo 7.2: The appliance features a 30W motor and crushes 250g of ice per minute.

8. Warranty uye Tsigiro

Tristar products are manufactured to high quality standards. In the unlikely event of a defect, please contact your retailer or the Tristar customer service for assistance. Keep your proof of purchase for warranty claims.

For further information or support, please refer to the official Tristar webwebhusaiti kana kuti taura nebazi ravo rebasa revatengi. Ruzivo rwekuwanikwa kwezvikamu zvekuchengetedza harupo parizvino.
