VILTROX AF 50mm F2.0 Z-Mount Full Frame Lens User Manual

1. Nhanganyaya

The VILTROX AF 50mm F2.0 Z-Mount Full Frame Lens is designed for Nikon Z-Mount mirrorless cameras, offering a versatile 50mm focal length and a wide F2.0 aperture. This lens is suitable for various photography styles, including portraits, street photography, landscapes, and everyday moments. It features an advanced optical design for high image quality and a compact, lightweight build for portability.

Figure 1.1: VILTROX AF 50mm F2.0 Z-Mount Full Frame Lens

2. Package Zviri mukati

Ona kuti zvinhu zvese zviripo mupasuru yako:

• 1 x VILTROX AF 50mm F2.0 Z Lens
• 1 x Hood yeLens
• 1 x Front Lens Cap
• 1 x Rear Lens Cap
• 1 x Kuchengeta Bhegi
• 1 x Chinyorwa cheMushandisi
• 1 x Warranty Card

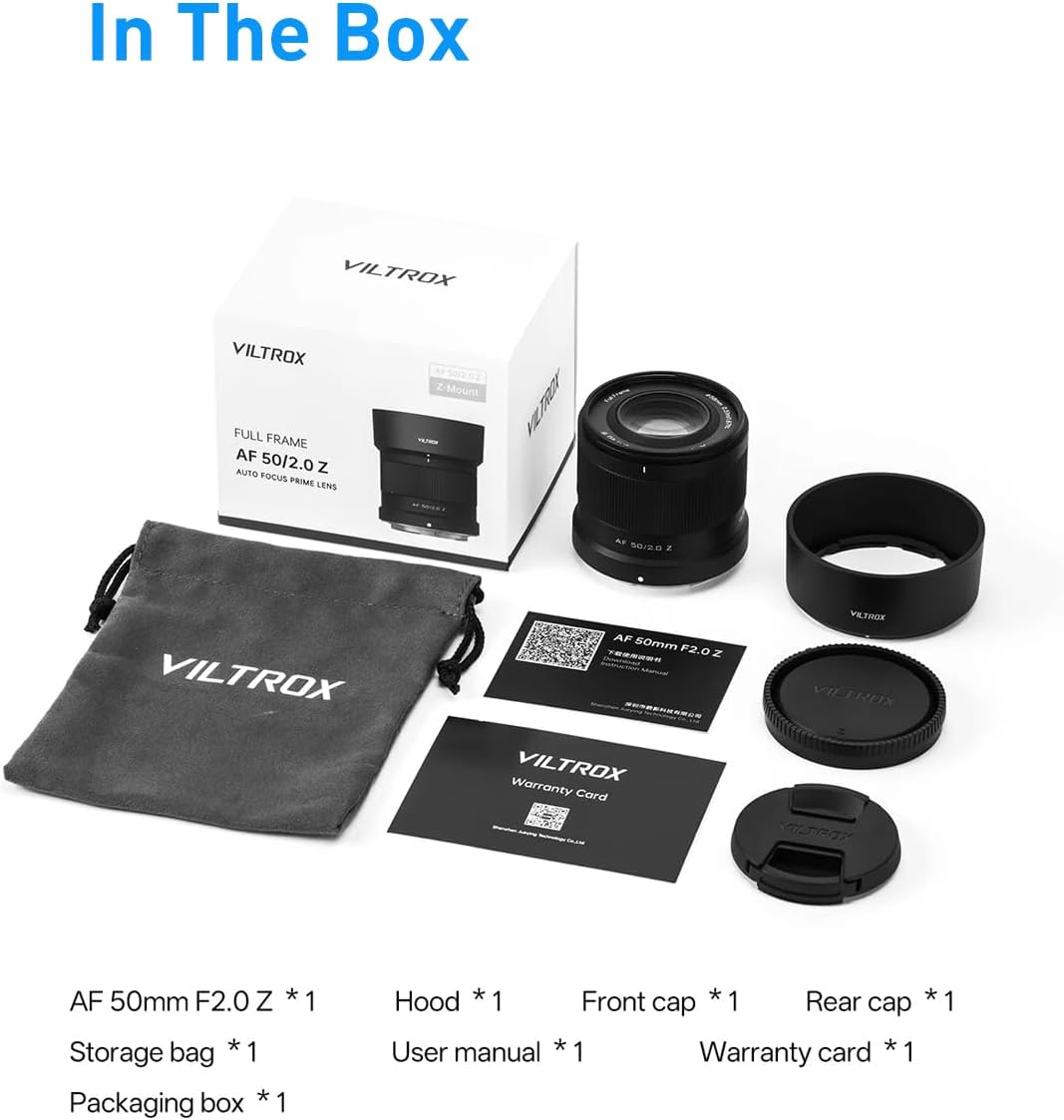

Figure 2.1: Included items in the VILTROX AF 50mm F2.0 Z-Mount Lens package.

3. Zvigadzirwa zveChigadzirwa

• AF 50mm Focal Length: Compatible with full-frame mirrorless cameras, providing a standard angle of view for natural and authentic imagery. Ideal for portraits, street photography, and general use.
• F2.0 Kaburi Kakakura: Creates a natural bokeh effect, blurring backgrounds to highlight subjects. Enhances performance in low-light conditions for clearer images.
• Autofocus System: Equipped with a Viltrox STM silent motor for precise and rapid autofocus. Supports eye and face detection autofocus (functionality may vary by camera model).
• Lightweight and Durable Design: Constructed with specially engineered lightweight materials for portability. Features a 58mm filter thread and a metal mount for compatibility and reliability.
• Hunhu Hwakanaka Wemifananidzo: Incorporates three ED lenses, one aspherical lens, and four high-refractive-index lenses to deliver true-to-life colors and clear, pure images with outstanding detail.

Figure 3.1: Optical structure of the lens, featuring ED, aspherical, and high-refractive-index elements.

4. Setup

1. Kubatanidza Lens:
   • Align the white dot on the lens barrel with the corresponding mark on your Nikon Z-Mount camera body.
   • Isa lenzi zvinyoro nyoro muchibatiso chekamera.
   • Tenderedza lenzi wachi kusvika yadzvanya panzvimbo, zvichiratidza kuti yakakiyiwa zvakachengeteka.


   Figure 4.1: The durable metal lens mount ensures a secure connection to the camera body.
2. Kubvisa Lens:
   • Dzvanya wobata bhatani rekuburitsa lenzi riri mumuviri wekamera yako.
   • Tenderedza lenzi uchitarisa wachi kusvika yabva pane kamera.
   • Place the front and rear caps on the lens immediately to protect the elements.
3. Kubatanidza Lens Hood:
   • Gadzirisa hood ye lens nechemberi kwelens.
   • Rotate the hood until it locks into position. The hood helps to block stray light and protect the front element.


   Figure 4.2: The lens features a 58mm filter thread and comes with a cylindrical lens hood.

5. Operating Instructions

1. Autofocus (AF) Operation:
   • Ensure your camera's focus mode is set to AF.
   • The lens's STM silent motor provides fast and accurate autofocus.
   • Utilize your camera's eye and face detection features for precise subject tracking, especially in portrait photography.
2. Manual Focus (MF) Operation:
   • Set your camera's focus mode to MF.
   • Rotate the focus ring on the lens to adjust focus manually.
3. Aperture Control:
   • The F2.0 large aperture allows for significant background blur (bokeh) and excellent low-light performance.
   • Adjust the aperture through your camera's settings to control depth of field and exposure.
4. Firmware Dzokorora:
   • The lens supports firmware upgrades via its USB-C interface.
   • Visit the official VILTROX websaiti yeazvino firmware nemirayiridzo.


   Figure 5.1: USB-C port for convenient firmware updates.
5. EXIF Data Transmission:
   • The lens features electronic contacts for seamless EXIF information transmission to your camera.
   • This ensures accurate recording of shooting parameters such as aperture, focal length, and exposure settings.


   Figure 5.2: Electronic contacts on the lens mount for camera communication.

6. Kuchengeta

• Kuchenesa Lens:
  • Shandisa jira rakapfava, risina lint kana bhurasho re lens kuti ubvise huruva kubva panzvimbo yelens.
  • For smudges or fingerprints, use a specialized lens cleaning solution and a microfiber cloth. Apply solution to the cloth, not directly to the lens.
  • The front lens features a waterproof and anti-fouling coating, making it easier to clean.


  Figure 6.1: The front element features a protective coating for easier cleaning.

• Kuchengeta:
  • Gara uchibatanidza zvivharo zvemalenzi ekumberi nekumashure kana zvisiri kushandiswa.
  • Chengetedza lens munzvimbo inotonhorera, yakaoma, kure nechiedza chezuva uye tembiricha yakanyanyisa.
  • Kana ukachengeta kwenguva yakareba, funga nezvekushandisa mushonga unobvisa hunyoro kudzivirira kukura kwefungus.

7. Kugadzirisa matambudziko

• Lenzi isingaonekwe nekamera:
  • Iva nechokwadi chekuti lenzi yakabatana zvakanaka nemuviri wekamera.
  • Clean the electronic contacts on both the lens and camera with a clean, dry cloth.
  • Tangazve kamera.
• Kutarisisa otomatiki kunononoka kana kuti hakuna kururama:
  • Check camera settings to ensure AF mode is selected and appropriate AF area mode is in use.
  • Ensure there is sufficient light on the subject.
  • Update the lens firmware to the latest version.
• Image quality issues (e.g., soft images, chromatic aberration):
  • Ensure the lens elements are clean.
  • Check that the lens is properly focused.
  • Avoid shooting at extreme apertures (e.g., widest open or smallest) if image quality is critical, as some lenses perform best in the mid-aperture range.

8. Zvinotsanangurwa

9. Warranty uye Tsigiro

The VILTROX AF 50mm F2.0 Z-Mount Full Frame Lens comes with a 1-makore waranti kubva pazuva rawakatenga. Waranti iyi inovhara zvikanganiso zvekugadzira uye inova nechokwadi chekuti chigadzirwa chinosangana nezvinodiwa zvemhando yepamusoro.

For warranty claims, technical support, or further inquiries, please contact VILTROX customer service or visit the official VILTROX store online:

Visit the VILTROX Store

Ndapota chengetedza humbowo hwako hwekutenga kuti utsigire waranti.
