FLYCOLOR QIDI 570 RC Airplane Instruction Manual

1. Nhanganyaya

This manual provides essential information for the safe and effective operation of your FLYCOLOR QIDI 570 RC Airplane. The QIDI 570 is a versatile 2.4GHz 6-channel remote control glider featuring three distinct flight models, brushless motors, and vertical takeoff capabilities. Please read this manual thoroughly before assembly and operation to ensure proper use and to prevent damage or injury.

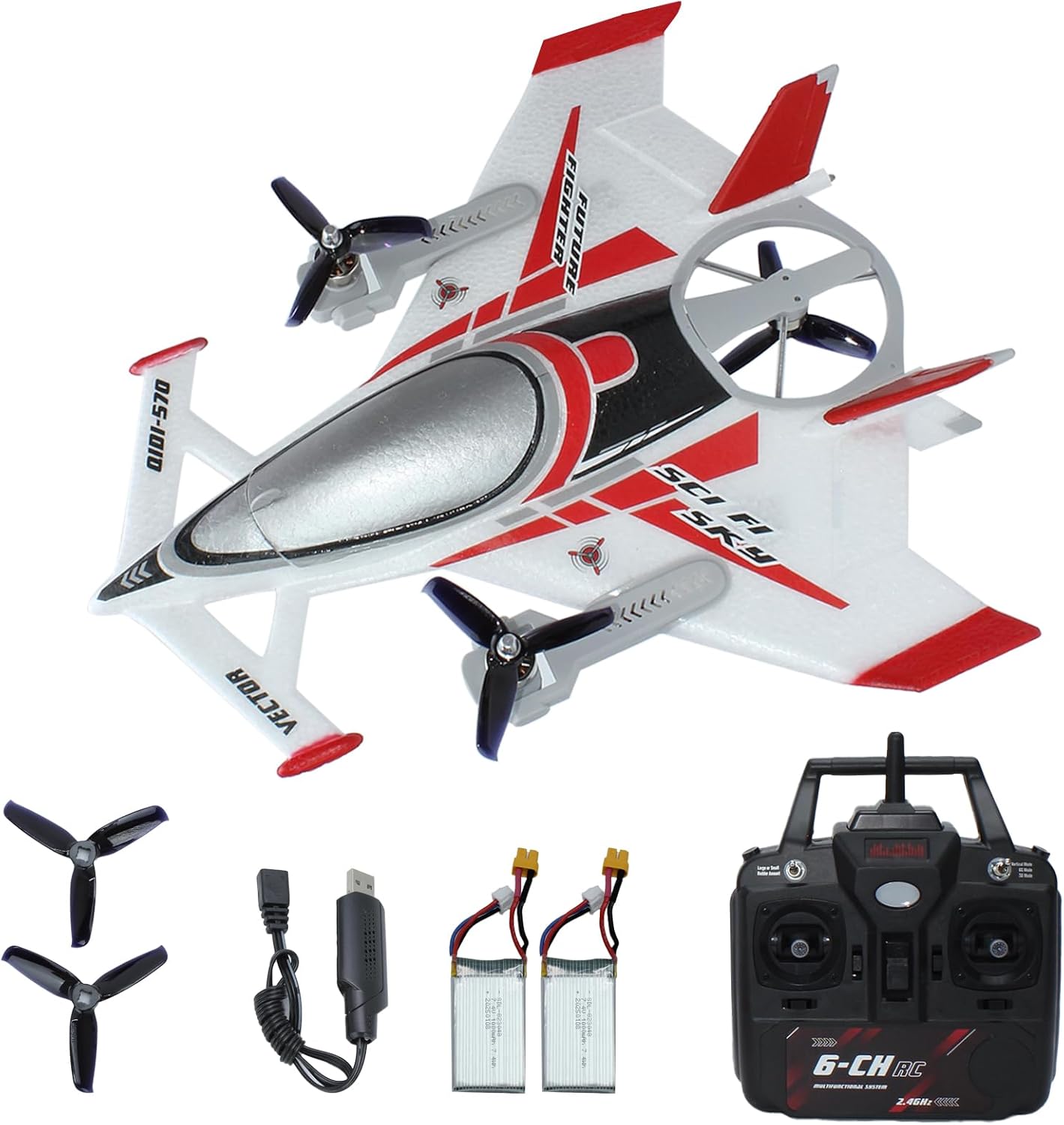

2. Chii chiri muBhokisi

Carefully unpack all components and verify that all items are present. If any parts are missing or damaged, please contact customer support.

• Remote controlled airplane (QIDI-570) x 1
• Remote control x 1
• 7.4V 1000mAh Lithium battery x 2
• Kuchaja tambo x 1
• Mufambi x 2
• Screwdriver x 1
• Chinyorwa chekuraira x 1

Note: 4 AA dry batteries for the remote control are not included.

3. Zvigadzirwa zveChigadzirwa

• Flight Control System: Equipped with two new receiver conversion sockets. A 5V socket is suitable for FUTABA (S-BUS) and other receivers with S-BUS ports. A 3V socket is used for DSM receivers.
• Brushless DC Motor: Features a brushless DC motor and driver, significantly reducing friction for smooth operation and lower noise levels.
• 2.4GHz Remote Control System: Allows multiple aircraft to fly simultaneously without interference.
• Three-axis Vector Variable Dynamics: Enhances flight stability and control.
• Durable EPP Material: Constructed from EPP material for improved resilience.
• Mwenje Wakabatana: Features cool lighting for enhanced visibility and aesthetic appeal.

Figure 3.1: Key features of the QIDI 570 RC Airplane.

4. Zvinotsanangurwa

Figure 4.1: QIDI 570 RC Airplane dimensions.

5. Setup uye Gungano

5.1 Kuiswa kwebhatiri uye kuchaja

1. Insert 4 AA batteries (not included) into the remote control, observing correct polarity.
2. Connect the provided lithium battery to the charging cable.
3. Connect the charging cable to a suitable USB power source. The charging indicator will show charging status.
4. Allow approximately 45 minutes for a full charge. Do not overcharge the battery.
5. Once charged, carefully connect the battery to the aircraft's battery compartment. Ensure a secure connection.

5.2 Aircraft Assembly

The QIDI 570 RC Airplane typically comes pre-assembled. However, ensure all propellers are securely attached and free from damage. Verify that the wings and tail fins are firmly in place. Use the provided screwdriver if any minor adjustments or tightening are needed.

5.3 Kubatanidza Remote Control

1. Batidza remote control.
2. Connect the aircraft battery. The aircraft's indicator lights will flash.
3. Move the throttle stick (left stick) to its lowest position, then to its highest position, and back to the lowest position.
4. The aircraft's indicator lights will become solid, indicating successful binding.

Figure 5.1: QIDI 570 RC Airplane with 2.4GHz Remote Control System.

6. Operating Instructions

The QIDI 570 offers multiple flight modes for varied experiences. Always operate in an open area free from obstacles, people, and animals.

6.1 Pre-Flight Check

• Ensure batteries in both the aircraft and remote control are fully charged.
• Verify all propellers are securely attached and undamaged.
• Check for any loose parts or damage to the aircraft body.
• Confirm successful binding between the aircraft and remote control.

6.2 Flight Modes

The QIDI 570 supports 3 flight models, including vertical takeoff and fixed-wing flight. Refer to the remote control's specific buttons for switching between modes.

Vertical Takeoff Mode

In this mode, the aircraft operates like a multi-rotor drone, allowing for vertical ascent and descent. This is ideal for confined spaces or initial liftoff.

1. Isa ndege panzvimbo yakati sandara, yakaenzana.
2. Slowly increase the throttle to lift off vertically.
3. Use the directional sticks to control movement.

Fixed-Wing Flight Mode

Once airborne, the aircraft can transition to fixed-wing mode for traditional airplane flight, offering higher speeds and gliding capabilities.

1. While in vertical flight, activate the fixed-wing mode switch on the remote control.
2. The propellers will reorient, and the aircraft will transition to forward flight.
3. Control pitch, roll, and yaw using the remote control sticks.

6.3 Kudzika

To land, transition back to vertical takeoff mode if desired, or perform a controlled glide landing in fixed-wing mode. Reduce throttle gradually to descend.

Figure 6.1: The QIDI 570 RC Airplane in flight.

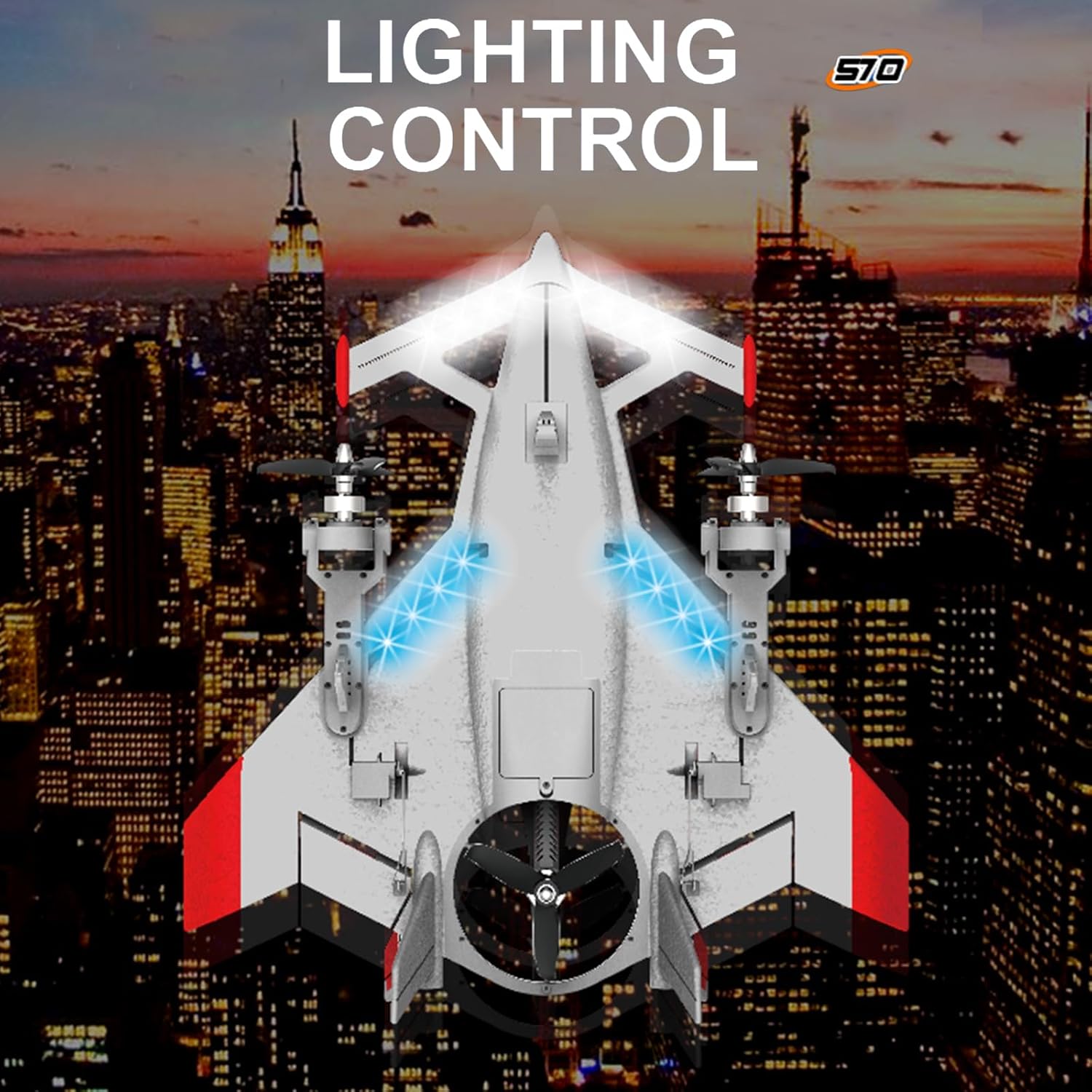

Figure 6.2: QIDI 570 RC Airplane with activated lighting.

Figure 6.3: QIDI 570 RC Airplane showcasing its power system.

Figure 6.4: QIDI 570 RC Airplane design for stability.

7. Kuchengeta

7.1 Kutarisirwa uye Kutsiviwa kwePropeller

• Regularly inspect propellers for cracks, bends, or chips. Damaged propellers can affect flight performance and safety.
• To replace a propeller, carefully remove the old one and install a new one, ensuring it is oriented correctly and securely fastened.

7.2 Bhatiri Kuchengeta

• Store lithium batteries in a cool, dry place away from direct sunlight and extreme temperatures.
• Kuti uchengetedze kwenguva refu, uchaja mabhatiri kusvika pa50%.
• Never store fully charged or completely depleted batteries for extended periods.

7.3 Kuchenesa

Wipe the aircraft body with a soft, dry cloth. Avoid using harsh chemicals or solvents that could damage the EPP material or electronic components.

8. Kugadzirisa matambudziko

8.1 Aircraft Does Not Respond to Remote Control

• Ensure both the aircraft and remote control batteries are charged.
• Re-perform the binding procedure (Section 5.3).
• Check for any obstructions or damage to the remote control's antenna.

8.2 Short Flight Time

• Ensure the aircraft battery is fully charged before each flight.
• Check for damaged propellers or motors that might be drawing excessive power.
• Environmental factors like strong winds can reduce flight time.

8.3 Aircraft Flies Unevenly or Drifts

• Check for bent or damaged propellers and replace if necessary.
• Ensure the aircraft is placed on a flat surface during power-on for proper gyroscope calibration.
• Adjust trim settings on the remote control to correct minor drifts.

9. Mirayiridzo Yekuchengetedza

• Zera Recommendation: Ichi chigadzirwa chinokurudzirwa kune vashandisi vane makore gumi nemana zvichikwira.
• Nzvimbo Yendege: Always fly in open, unobstructed areas, away from people, buildings, trees, and power lines. Avoid flying near airports or restricted airspace.
• Mamiriro ekunze: Do not fly in strong winds, rain, snow, or other adverse weather conditions.
• Kuchengetedzwa kweBhatiri: Use only the specified batteries and charging equipment. Do not puncture, disassemble, or expose batteries to extreme heat. Always supervise battery charging.
• Propeller Safety: Chengetedza maoko, chiso, uye zvipfeko zvisina kusimba kure nezvinotenderera.
• Visual Line of Sight: Gara uchichengetedza mutsara wekuona nendege panguva yekubhururuka.
• Respect Privacy: Be mindful of privacy when operating the aircraft, especially near residential areas.
• Kuparara Kwechigadzirwa: This product is an actual aircraft. While it flies, like other aircraft, it can be damaged by contact or collision with a fixed object. The product does not cover accidental or collision damage. Enjoy but fly safely!

10. Warranty uye Tsigiro

10.1 Return Policy

This product is eligible for a 30-day return for refund or replacement. Please refer to your retailer's specific return policy for detailed terms and conditions.

10.2 Zvirongwa zvekudzivirira

Optional protection plans are available for purchase to cover potential damages beyond the standard return policy. These include:

• 2-Yegore Dziviriro Chirongwa
• 3-Yegore Dziviriro Chirongwa
• Complete Protect + Norton 360 (monthly billing, covers eligible past & future purchases)

For more details on these plans, please consult your retailer or the plan provider.

10.3 Mutengi Tsigiro

For technical assistance, missing parts, or warranty inquiries, please contact FLYCOLOR customer support through your purchase platform or the official FLYCOLOR website.
