Generic 5000W Pure Sine Wave Inverter (Model A-1) Instruction Manual

Nhanganyaya

This manual provides essential information for the safe and efficient operation of your Generic 5000W Pure Sine Wave Inverter. Please read this manual thoroughly before installation and use, and retain it for future reference.

Safety Information

Adhering to these safety guidelines is crucial for preventing injury and damage to the inverter and connected devices.

• Power Off Before Connection: Always ensure the inverter switch is in the OFF position before making any electrical connections.
• No Household Outlet Connection: Never connect the inverter directly to a household AC power outlet. This inverter is designed for DC input from batteries.
• Battery Polarity: Carefully identify and connect the positive (+) and negative (-) terminals of the battery to the corresponding terminals on the inverter. Incorrect polarity can cause severe damage.
• Secure Connections: Ensure all wiring connections, especially the positive (+) and negative (-) battery cables, are tightened securely. Loose connections can lead to overheating and potential fire hazards.
• Dzivisa kuwandisa: Do not exceed the continuous output power rating of 5000W. For inductive loads (e.g., motors, refrigerators, pumps), select an inverter with a continuous output power 3 to 7 times higher than the device's rated power to account for surge requirements.
• Kufefetedza Ita shuwa kufefetera kwakakwana kwakatenderedza inverter kudzivirira kupisa.
• Dry Environment: Operate the inverter in a dry environment, away from water, moisture, and flammable materials.

Product Overview

The Generic 5000W Pure Sine Wave Inverter converts DC power from batteries into clean, stable AC power suitable for a wide range of electronic devices and appliances.

Zvinokosha:

• Kushandura Simba: Transforms DC input (24V, 48V, 60V, 72V, 96V) to AC output (110V/240V).
• Pure Sine Wave Output: Provides true 5000W continuous power and 10000W peak power, ensuring compatibility with sensitive electronics.
• Chiratidziro cheLCD: Real-time monitoring of input voltage, goho voltage, output frequency, and power.
• Multiple Dziviriro Mabasa: Built-in smart chip and fuse for protection against overheating, overload, overvoltage, kusazvidzatage, and short circuits. Includes Automatic Voltage Regulation (AVR), Intelligent Power Management (IPM), and Intelligent Fan Control (IFC).
• Wide Application: Ideal for off-grid solar systems, vehicles (cars, trucks, RVs), travel, camping, and outdoor emergency power needs.

Component Identification:

Mufananidzo 1: Mberi view of the inverter, showing the LCD display, power switch, and four AC output ports.

Mufananidzo 2: Rear view of the inverter, highlighting the cooling fans and DC input terminals (red for positive, black for negative).

Mufananidzo 3: Waveform comparison illustrating the superior quality of pure sine wave output for sensitive electronics.

Gadzirira

Follow these steps for proper installation of your inverter.

1. Sarudza Nzvimbo: Select a dry, well-ventilated area for the inverter, away from direct sunlight, heat sources, and flammable materials. Ensure sufficient space around the unit for airflow.
2. Prepare Battery: Ensure your DC power source (battery bank) matches the inverter's input voltage (24V, 48V, 60V, 72V, or 96V). Verify the battery is fully charged or adequately powered.
3. Batanidza Matabhu eDC:
   • With the inverter switch OFF, connect the positive (+) cable (typically red) from your battery to the positive (+) terminal on the inverter.
   • Connect the negative (-) cable (typically black) from your battery to the negative (-) terminal on the inverter.
   • Zvakakosha: Double-check polarity before tightening connections. Loose connections can cause sparks and overheating.
4. Grounding (Optional but Recommended): If available, connect a grounding wire from the inverter chassis to a suitable earth ground.
5. Kutanga Kubatidza Once all connections are secure, switch the inverter ON. The LCD display should illuminate, showing input voltage uye mamwe ma parameter.

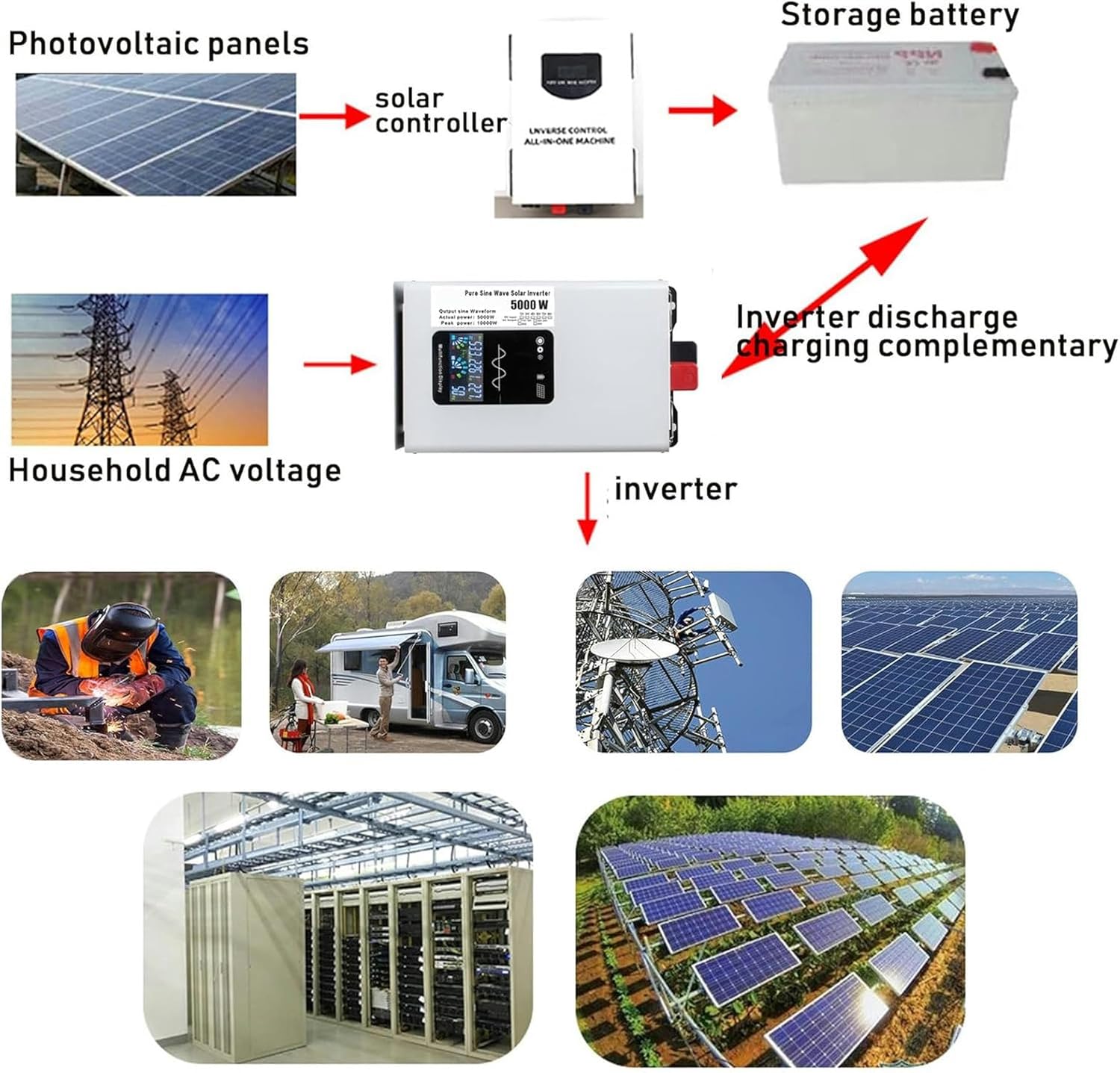

Mufananidzo 4: Example application diagram for the inverter, demonstrating its use in off-grid solar systems and other scenarios.

Operating Instruction

This section details how to operate your inverter safely and effectively.

1. Kubatidza After successful setup, turn the inverter's main power switch to the "ON" position. The LCD display will show operational parameters.
2. Connecting AC Devices: Plug your AC appliances into the output ports on the front of the inverter. Ensure the total wattage of connected devices does not exceed the inverter's continuous output power (5000W).
3. Monitoring Performance: Regularly check the LCD display for input voltage, goho voltage, output frequency, and real-time power consumption. This helps in understanding the load and battery status.
4. Inductive Loads: When connecting inductive loads (e.g., refrigerators, pumps, power tools), be aware of their high startup surge current. Ensure the inverter's peak power (10000W) can handle these surges. It is recommended to select an inverter with a continuous output power 3 to 7 times the device's rated power for such loads.
5. Powering Off: Before disconnecting any AC devices or the DC input, switch the inverter to the "OFF" position.

Maintenance

Proper maintenance ensures the longevity and reliable performance of your inverter.

• Kuchenesa Nguva Dzose: Keep the inverter's exterior clean and free from dust and debris. Use a dry, soft cloth. Do not use liquid cleaners.
• Kuongorora Kwemhepo: Periodically inspect the cooling fans and vents to ensure they are not obstructed. Blocked vents can lead to overheating.
• Kutariswa Kwekubatanidza: Annually, or as needed, check all electrical connections (DC input, AC output) for tightness. Loose connections can cause resistance, heat, and power loss.
• Kuchengeta: If storing the inverter for an extended period, ensure it is disconnected from all power sources, cleaned, and stored in a cool, dry place.

Kugadzirisa matambudziko

Ichi chikamu chinopa mhinduro kune zvakajairika zvaungasangana nazvo.

Mufananidzo 5: Visual representation of the inverter's 8 protection functions, including low voltage, overload, short-circuit, and over-temperature protection.

Zvinotsanangurwa

Warranty uye Support

Information regarding product warranty and customer support was not available in the provided product data. Please refer to the product packaging or contact the retailer/manufacturer directly for details on warranty coverage and technical assistance.
