Swann DVR8-4685 2K Security System Instruction Manual

1. Nhanganyaya

The Swann DVR8-4685 2K Security System is designed to provide comprehensive surveillance for your home or business. This system features crystal-clear 2K video recording, advanced True Detect™ motion and heat detection, and color night vision for enhanced visibility in low-light conditions. With reliable wired connections and local storage options, your property remains protected without reliance on monthly fees.

Zvinokosha:

• Crystal-Clear 2K Video: Capture every detail with 2K Full HD resolution.
• Color Night Vision: See clearly in color, even in low-light conditions.
• Powerful Deterrents: Integrated spotlights deter intruders.
• TrueDetect Motion Detection: Advanced sensors provide accurate alerts, minimizing false alarms.
• Audio Kuongorora: Cameras include microphones to capture audio for identifying key details.
• Reliable Wired Connection: Ensures uninterrupted security with stable wired connections.
• Free Local Storage: Retain weeks of footage on the included 256GB MicroSD Card and back up to the cloud.

2. Chii chiri muBhokisi

Your Swann DVR8-4685 2K Security System package includes the following components:

• 1 x 8 Channel DVR with 256GB MicroSD Card
• 4 x 2KMQB Bullet Cameras with Lights
• 4 x Extension Cables (60ft/18m)
• 1 x Power Adapter
• 1 x Ethernet Cable
• 1 x Kutsemuka
• 1 x Mounting Screws & Plugs
• 1 x Operating Instructions (iri bhuku)
• 1 x Theft Deterrent Sticker

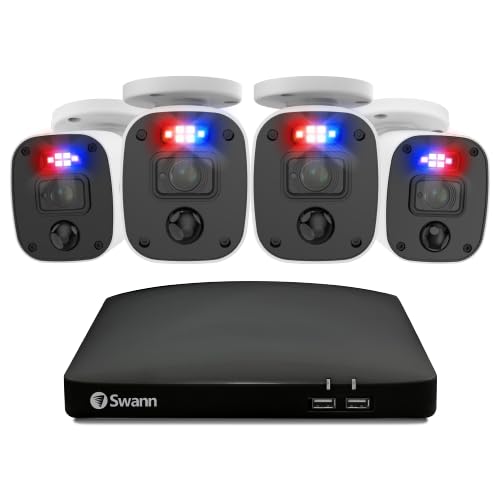

Mufananidzo: Pamusoroview of the Swann DVR8-4685 2K Security System components, including the DVR, four bullet cameras, and various cables and accessories.

3. Setup

Before permanent installation, it is recommended to set up and test the system to ensure all components are functioning correctly.

3.1 Initial System Connection

1. Batanidza Makamera kuDVR: Connect each 2KMQB Bullet Camera to an available PoE port on the DVR using the provided Ethernet cables.
2. Connect DVR to Router: Connect the DVR's WAN port to a spare port on your internet router using the supplied Ethernet cable.
3. Batanidza DVR kuDisplay: Plug one end of an HDMI cable into the HDMI port on the back of the DVR and the other end into an HDMI input on your TV or monitor.
4. Batanidza Mouse: Plug the USB mouse into an available USB port on the rear of the DVR.
5. Power On: Connect the power adapter to the DVR and then plug the power cable into a power outlet. The system should power on and display the setup wizard on your connected screen.

3.2 Kugadzika kweSoftware yeNharembozha

Download the Swann Security app from your device's app store (Android or iOS) to access live viewing, playback, and system controls remotely.

1. Download and install the "Swann Security" app on your smartphone or tablet.
2. Follow the in-app instructions to add your DVR system. This typically involves scanning a QR code on the DVR or manually entering device details.
3. Kana wangobatanidzwa, unogona view live feeds, access recordings, and configure settings from anywhere.

4. Kushandisa System Yako

4.1 Rarama View uye Playback

Wana ma feed emakamera aripo uye dzokororaview yakanyorwa footage through the connected monitor or the Swann Security mobile app. The system allows for customizable layouts to prioritize important areas.

4.2 True Detect™ Motion Detection

The True Detect™ technology uses heat and motion sensors to accurately detect activity, reducing false alarms. You can adjust the motion sensitivity for each camera to suit specific areas, ensuring you receive alerts only when it truly matters.

4.3 Kuona Ruvara Husiku

The 2KMQB Bullet Cameras feature color night vision, allowing you to see detailed, full-color footage even in low-light conditions, providing clearer identification than traditional black and white night vision.

4.4 Kurekodha Audio

Each camera is equipped with a microphone to record audio, adding another layer of detail to your surveillance footage. This can be crucial for capturing conversations or identifying sounds associated with events.

4.5 Storage and Backup

The DVR includes a 256GB MicroSD card for local storage, capable of retaining weeks of footage. You can also configure cloud backup options for added security and accessibility of your incident videos.

5. Kuchengeta

• Kuchenesa Nguva Dzose: Chenesa magirazi ekamera nguva nenguva uchishandisa soft, damp cloth to ensure clear image quality.
• Firmware Dzokorora: Check the Swann Security app or website for available firmware updates for your DVR and cameras to ensure optimal performance and security.
• Cable Inspection: Regularly inspect all wired connections for any signs of wear or damage, especially for outdoor cameras.
• Kuchengeta Kuchengeta: Monitor your storage usage and ensure regular backups to prevent loss of important footage.

Image: A Swann camera being sprayed with water, demonstrating its sturdy weatherproof design suitable for outdoor use.

6. Kugadzirisa matambudziko

• Hapana Kuratidzwa kweVhidhiyo: Ensure all HDMI/VGA cables are securely connected and the display input is set correctly. Check power connections for both the DVR and cameras.
• Hapana Indaneti: Verify the Ethernet cable from the DVR to your router is connected. Check your router's internet status.
• Nhema Yekuyeverwa: Adjust the motion sensitivity settings for individual cameras via the DVR interface or mobile app. Ensure detection zones are configured to avoid irrelevant areas.
• Hunhu Hwakashata Wemufananidzo: Clean camera lenses. Check cable connections for any damage or loose fittings. Ensure cameras are positioned correctly for optimal lighting.
• Remote Access Issues: Confirm your mobile device has a stable internet connection. Verify the DVR is connected to the internet and the Swann Security app is updated to the latest version.

7. Zvinotsanangurwa

8. Warranty uye Tsigiro

Kuti uwane ruzivo rwewarandi uye rutsigiro rwehunyanzvi, ndapota tarisa Swann yepamutemo websaiti kana kubata basa ravo revatengi. Chengetedza humbowo hwako hwekutenga kune chero vimbiso yewaranti.

Rutsigiro rwepamhepo: Visit www.swann.com ye FAQs, madhairekitori ekugadzirisa matambudziko, uye kurodha software.
