1. Nhanganyaya
The Generic BM4070 LCD Digital Multimeter is a high-precision LCR tester designed for accurate electrical measurements in both field and laboratory settings. It features a clear LCD display for easy data reading, fast response times, and a compact, lightweight design for portability. This device is equipped with multiple functions for professional electrical testing, making it suitable for a wide range of applications.
2. Safety Information
WARNING: To avoid electric shock, do not touch the meter's probes or exposed circuits during measurement. Always ensure the device is properly configured for the measurement type before connecting to a circuit. Do not attempt to measure voltages or currents exceeding the device's specified limits.
- Always inspect the test leads for damage before use.
- Ita shuwa kuti bhatiri rakaiswa zvakanaka uye rine chaji yakakwana.
- Do not operate the meter in wet environments or when your hands are wet.
- Refer to the specifications section for maximum input values.
3. Chigadzirwa Pamusoroview
The BM4070 Digital Multimeter is designed for ease of use and clear readings. Below is an illustration of the device and its key components.

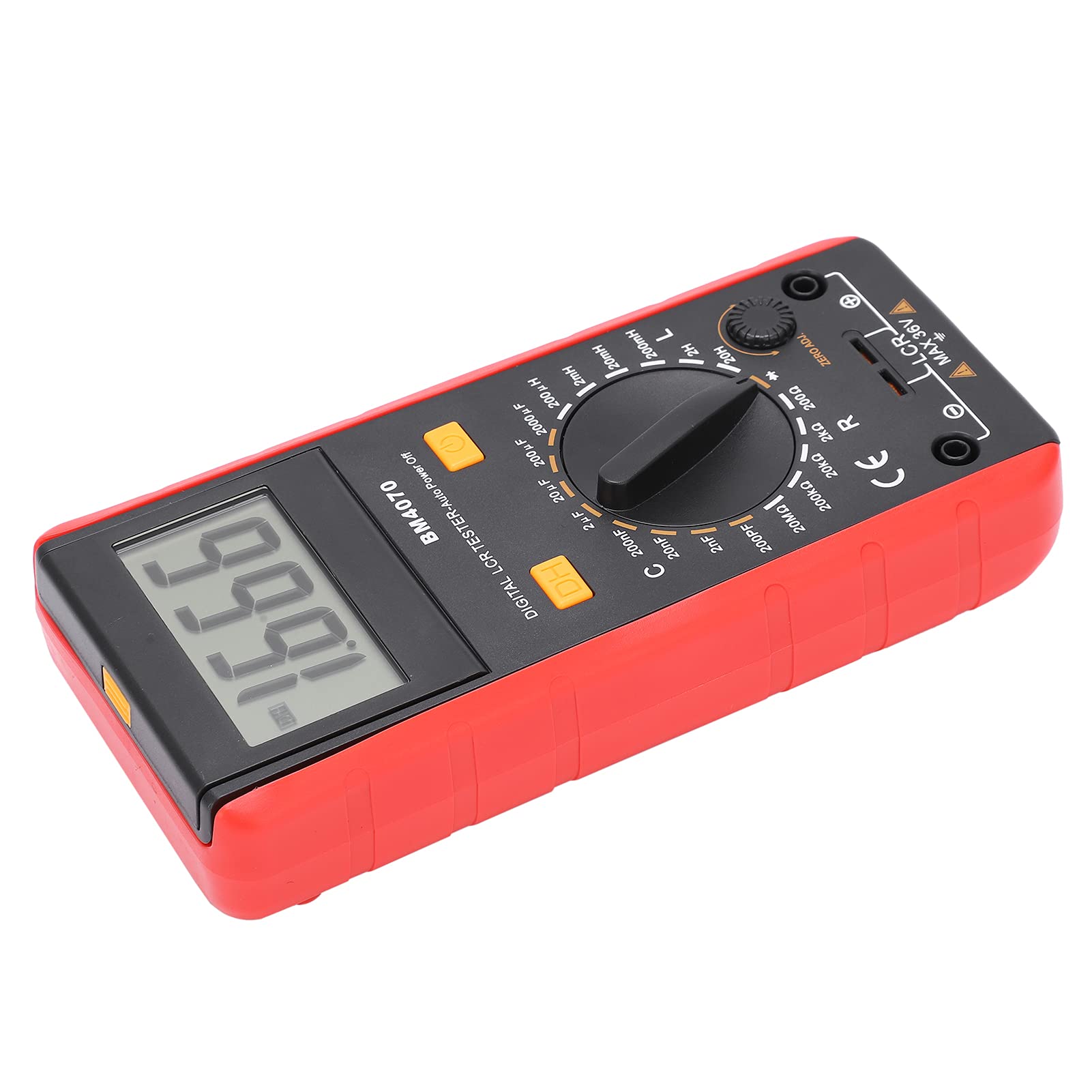

Mufananidzo 1: Mberi view of the Generic BM4070 LCD Digital Multimeter, showing the LCD display, rotary switch, and function buttons.
Figure 2: Close-up of the BM4070's high-definition LCD display, showing a clear numerical reading.
Zvikamu Zvikuru:
- Chiratidziro cheLCD: Inoratidza kuverenga kwekuyerwa uye zviratidzo.
- Rotary Switch: Used to select measurement functions (Capacitance C, Inductance L, Resistance R) and ranges.
- DH Button: Data Hold function to freeze the current reading on the display.
- Bhatani reSimba: Inobatidza kana kudzima mudziyo.
- Input Jacks: Connect test leads for measurements.
- ZERO ADJ. Knob: For zero adjustment, typically used for resistance measurements to compensate for lead resistance.
Figure 3: Bottom section of the multimeter showing the input jacks and the LCR MAX 36V safety marking.
4. Setup
4.1 Kuiswa kwebhatiri
- Tsvaga iyo bhatiri mukamuri kumashure kweiyo multimeter.
- Using a screwdriver, carefully open the battery cover.
- Insert one 9V 6F22 battery, ensuring correct polarity. (Battery not included)
- Tsiva chivharo chebhatiri uye chichengetedze nescuru.
4.2 Kubatanidza Miedzo Inotungamira
- Ensure the multimeter is powered off.
- Insert the black test lead into the common (COM) input jack.
- Insert the red test lead into the appropriate input jack for your measurement (e.g., for LCR measurements, use the designated LCR input).
5. Operating Instructions
5.1 Simba On/Kudzima
Press the Bhatani reSimba (usually marked with a circle and a vertical line) to turn the multimeter on. Press it again to turn the device off.
5.2 Selecting Measurement Function
Rotate the central Michina chinja to select the desired measurement function (C for Capacitance, L for Inductance, R for Resistance) and the appropriate range. Start with a higher range if the value is unknown to prevent overloading.
5.3 Kuyera Kwekuita
- After selecting the function and range, connect the test leads to the component you wish to measure.
- For resistance measurements, you may need to use the ZERO ADJ. knob to zero out the resistance of the test leads before connecting to the component.
- Verenga kukosha kwekuyera kunoratidzwa paLCD skrini.
5.4 Data Bata Basa
Press the DH Button to freeze the current reading on the display. Press it again to release the hold function and resume live readings.
6. Kuchengeta
- Keep the multimeter clean and dry. Use a soft, damp jira rekuchenesa; usashandise zvinochenesa zvinogumbura kana zvinonyungudutsa.
- Chengetedza mudziyo munzvimbo inotonhorera, yakaoma kure nechiedza chezuva uye tembiricha yakanyanyisa.
- Kana mudziyo usingazoshandiswe kwenguva yakareba, bvisa bhatiri kudzivirira kubuda.
- Regularly check the test leads for any signs of wear or damage. Replace them if necessary.
7. Kugadzirisa matambudziko
If you encounter issues with your BM4070 multimeter, refer to the following common problems and solutions:
- Mudziyo haubatike: Tarisa kana bhatiri rakaiswa nemazvo uye rakachajwa zvakakwana. Tsiva bhatiri kana zvichidikanwa.
- Hapana kuverenga kana 'OL' kunoratidzwa: Ensure the test leads are properly connected to the component and the correct measurement function and range are selected. 'OL' (Overload) indicates the measured value exceeds the selected range; switch to a higher range.
- Kurava kusina kururama: Check for proper test lead connection. Ensure the ZERO ADJ. knob is correctly set for resistance measurements. Verify the component is functioning correctly.
Kana dambudziko rikaramba riripo, bata rutsigiro rwevatengi.
8. Zvinotsanangurwa
| Feature | Tsanangudzo |
|---|---|
| Item Type | Multimeter |
| Model | BM4070 |
| Material | ABS |
| Magetsi | 1x9V 6F22 Battery (not included) |
| Sampling Rate | Ka3 pasekondi |
| Operating Environment | 0 ℃ kusvika 40 ℃ |
| Nzvimbo Yekuchengetedza | -10 ℃ kusvika 50 ℃ |
| Chiyero Chakarurama | 0.1mm (General) |
| Capacitance Range | 200pF ~ 200μF (±2.5%+5), 2000μF (±5.0%+5) |
| Range yeInductance | 200uH (±3.0%+5), 2mH ~ 2H (±2%+5), 20H (±5%+5) |
| Yakadzika Voltage Ratidza | Battery symbol indication |
9. Package Zviri mukati
Zvinhu zvinotevera zvinosanganisirwa mupakeji yechigadzirwa chako:
Figure 4: Contents of the BM4070 package, including the multimeter, test clips, manual, and tool bag.
- Multimeter x 1 (Battery not included)
- Test Clips x 2
- Murairo Chinyorwa x 1
- Tool Bag x 1
10. Warranty uye Tsigiro
Specific warranty and support information is not provided in the product details. Please refer to the retailer or manufacturer's website for details regarding warranty coverage and customer support options.
