CNYST 60-Degree Gloss Meter Instruction Manual

1. Nhanganyaya

This instruction manual provides comprehensive guidance for the safe and effective use of the CNYST 60-Degree Gloss Meter, Model 2025090103. This device is designed for accurate gloss measurement of various surfaces, including paint, coatings, plastics, inks, rubber, printing, paper, glass, hardware, ceramics, and marble. Please read this manual thoroughly before operation and retain it for future reference.

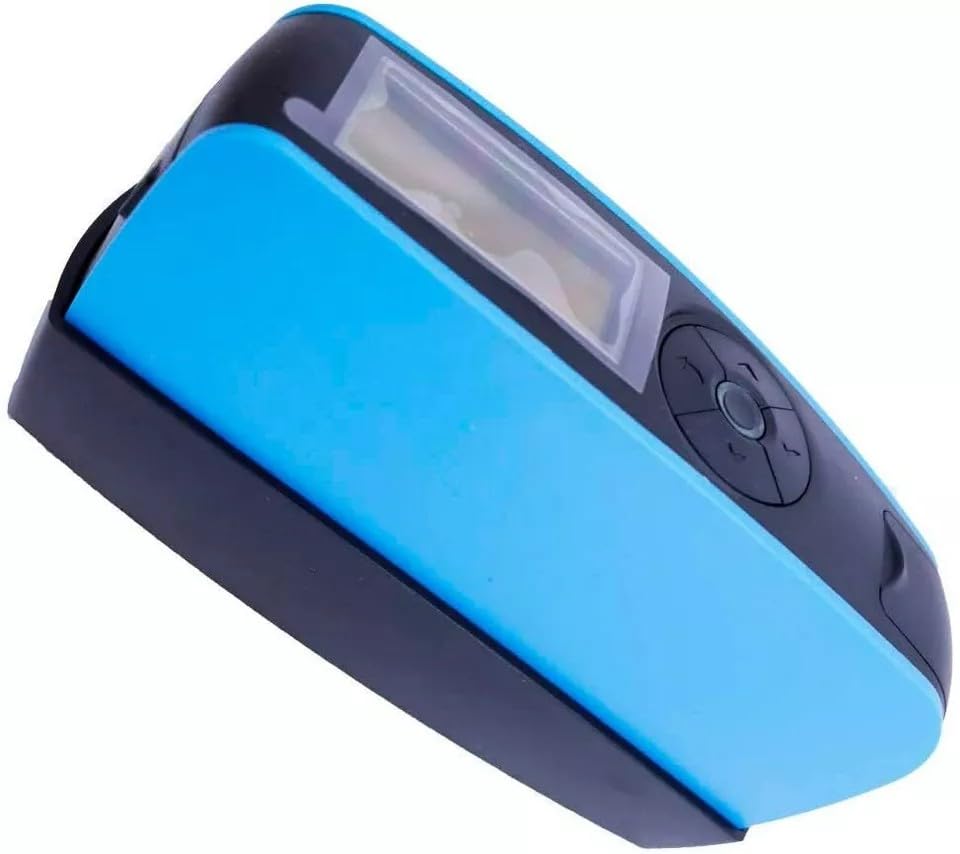

Figure 1: CNYST 60-Degree Gloss Meter main unit.

2. Safety Information

Tevedzera matanho ekuchengetedza anotevera kudzivirira kukuvara nekukuvadzwa kwemudziyo:

• Usaisa mudziyo kune tembiricha yakanyanyisa, mwando, kana zuva rakananga.
• Dzivisa kudonhedza mudziyo kana kuzviisa pasi pesimba rakasimba.
• Usaedze kuparadzanisa kana kugadzirisa mudziyo. Tumira masevhisi ese kuvashandi vanokwanisa.
• Keep the measurement aperture clean and free from dust or debris to ensure accurate readings.
• Use only the specified battery type (AAA dry battery) and ensure correct polarity.
• Rasa mabhatiri maererano nemitemo yemunharaunda.

3. Chigadzirwa Pamusoroview

The CNYST 60-Degree Gloss Meter is a compact and portable device designed for precise gloss measurement. It features a 2.3-inch black and white display for clear readings and a simple interface for ease of use.

3.1 Zvikamu

• Chikwata chikuru
• Calibration Plate
• Simple Instruction Manual

Mufananidzo 2: Pamusoro view of the gloss meter, highlighting the display and control buttons.

Mufananidzo 3: Rutivi view of the gloss meter, showing the USB port for power supply and the product serial number.

4. Setup

4.1 Kuiswa kwebhatiri

The device requires one AAA dry battery (not included). To install the battery:

1. Tsvaga chifukidziro chebhatiri chiri pamudziyo.
2. Vhura chivharo.
3. Isa imwe AAA bhatiri, kuve nechokwadi chechokwadi polarity (+/-).
4. Vhara chivharo chebhatiri zvakachengeteka.

Figure 4: Illustration of battery compartment location and test button.

4.2 Chekutanga Kuchengetedza

Before first use and periodically thereafter, calibrate the gloss meter using the provided calibration plate. This ensures measurement accuracy.

1. Ensure the calibration plate is clean and free of dust or fingerprints.
2. Place the gloss meter firmly onto the calibration plate, aligning the measurement aperture with the designated area on the plate.
3. Follow the on-screen instructions for manual calibration.

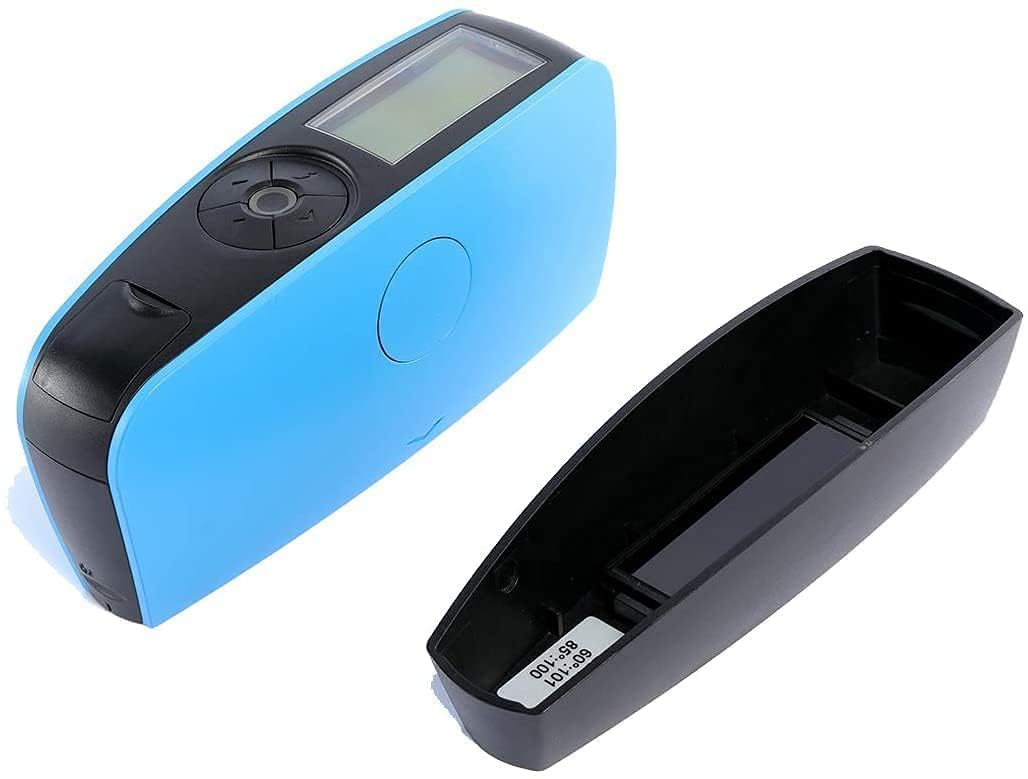

Figure 5: The gloss meter positioned next to its calibration plate.

5. Operating Instructions

5.1 Simba On/Kudzima

Press the power button to turn the device on. The device will automatically power off after 30 seconds of inactivity to conserve battery life.

5.2 Kutora Chiyero

The gloss meter operates in a basic measurement mode, providing quick and accurate readings.

1. Ensure the surface to be measured is clean and dry.
2. Place the measurement aperture of the gloss meter firmly and flatly against the surface.
3. Press the "Test" button (refer to Figure 4).
4. The gloss value will be displayed on the screen within approximately 0.5 seconds.
5. The measurement area for the 60° angle is 9x15 mm.

5.3 Kusarudzwa kweMutauro

The device supports both Chinese and English languages. Refer to the on-screen menu to switch between languages if necessary.

6. Kuchengeta

Proper maintenance ensures the longevity and accuracy of your gloss meter.

• Kuchenesa: Use a soft, dry cloth to clean the exterior of the device. For the measurement aperture and calibration plate, use a lens cleaning cloth or a soft, lint-free cloth with a small amount of isopropyl alcohol if necessary. Avoid abrasive cleaners.
• Kuchengeta: Store the device in a dry, cool place, away from direct sunlight and extreme temperatures. The storage temperature range is -20°C to 50°C (-4°F to 122°F).
• Bhatiri: Bvisa bhatiri kana mudziyo wacho usingazoshandiswi kwenguva yakareba kudzivirira kubuda kwemvura.
• Ndiro Yekuongorora: Keep the calibration plate protected from scratches and dirt, as its condition directly affects calibration accuracy.

7. Kugadzirisa matambudziko

If you encounter issues with your gloss meter, refer to the following common problems and solutions:

Kana dambudziko rikaramba riripo mushure mekuedza mhinduro idzi, ndapota taura nerutsigiro rwevatengi kuti uwane rumwe rubatsiro.

8. Zvinotsanangurwa

9. Warranty uye Tsigiro

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official CNYST website. Optional accessories like a mini printer or Bluetooth 5.0 adapter can be acquired by contacting the manufacturer directly.
