Generic Carburetor Rebuild Kit Instruction Manual

Nhanganyaya

This manual provides instructions for the Generic Carburetor Rebuild Kit, designed for CV40 27421-99C and 27490-04 carburetors. It is intended to assist users with the proper identification, installation, and maintenance of the components. Understanding the function of each part is crucial for successful rebuilding and optimal engine performance.

Package Zviri mukati

The Carburetor Rebuild Kit includes the following components:

• Float bowl gasket
• Float needle
• Main jets (various sizes)
• Pilot jets (various sizes)
• Mixture screw with spring, washer, and O-ring
• Diaphragm (vacuum piston diaphragm)
• Float
• Float pin
• Springs (various sizes)
• O-rings and washers
• Air cut-off valve diaphragm
• Needle jet

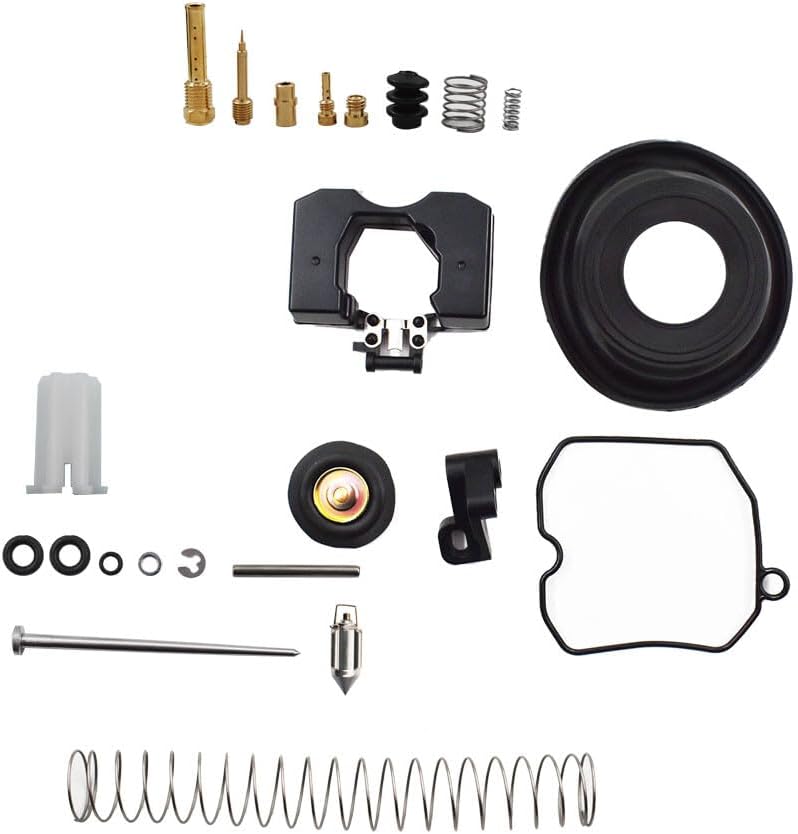

This image displays all the components included in the Carburetor Rebuild Kit. It features various brass jets, springs, rubber O-rings, a float, a float needle, a diaphragm, and a float bowl gasket, among other parts necessary for a carburetor rebuild.

Kugarisana

This kit is compatible with CV40 27421-99C and CV 40mm 27490-04 carburetors.

It is recommended to refer to your appliance service manual, contact your appliance manufacturer, or contact a service professional to validate the needed part number for your appliance prior to purchasing.

Setup uye Installation

Installation of carburetor rebuild kits requires mechanical knowledge and appropriate tools. It is recommended that installation be performed by a qualified technician.

• Kugadzirira: Ensure the carburetor is clean and free of debris. Disassemble the carburetor carefully, noting the position and orientation of all components.
• Component Replacement: Replace old or worn components with the new parts from this kit. Pay close attention to matching jet sizes and gasket shapes.
• Reassembly: Reassemble the carburetor according to the manufacturer's specifications. Ensure all screws are tightened to the correct torque and all seals are properly seated.
• Kugadziriswa Kwekutanga: After installation, the carburetor may require initial adjustments for idle speed and mixture settings. Refer to your equipment's service manual for specific adjustment procedures.

Operation

This kit provides replacement parts for the internal components of a carburetor, which is responsible for mixing air and fuel for an engine. Proper operation of the carburetor, once rebuilt, depends on correct installation and subsequent tuning.

After rebuilding, ensure the engine starts and runs smoothly. Monitor for any signs of improper fuel mixture, such as rough idling, stalling, or poor acceleration.

Maintenance

Regular maintenance of your carburetor is essential for optimal engine performance.

• Periodically inspect the carburetor for leaks or signs of wear on gaskets and O-rings.
• Ensure fuel lines are clean and free of blockages.
• Use clean fuel and replace fuel filters as recommended by your equipment manufacturer to prevent debris from entering the carburetor.
• If the equipment is stored for extended periods, consider draining the fuel from the carburetor or using a fuel stabilizer to prevent fuel degradation and gumming.

Kugadzirisa matambudziko

If your engine experiences issues after installing the rebuild kit, consider the following:

• Engine not starting: Check for proper fuel flow, spark, and air intake. Verify that all components of the rebuild kit were installed correctly and that no parts were missed.
• Rough idling or poor performance: This may indicate an incorrect fuel-air mixture. Recheck jet sizes, float level, and mixture screw settings. Ensure there are no vacuum leaks.
• Fuel leaks: Inspect all gaskets, O-rings, and fuel lines for proper seating and damage.

For complex issues, it is advisable to consult a qualified service professional.

Zvinotsanangurwa

Warranty uye Support

This product is designed for durability and ease of installation. We provide excellent replacement parts that are compatible with the components on your equipment.

If you have any questions or concerns about the product, please feel free to contact us. We are committed to addressing your inquiries as soon as possible.
