VILTROX AF 50mm f/1.4 Pro FE Lens Instruction Manual

1. Nhanganyaya

Thank you for choosing the VILTROX AF 50mm f/1.4 Pro FE Lens. This high-performance prime lens is designed for Sony E-mount mirrorless cameras, offering exceptional optical quality and advanced features for both photography and videography. Its bright f/1.4 aperture excels in low-light conditions and provides beautiful background blur, while the precise autofocus system ensures sharp and reliable performance.

2. Chigadzirwa Pamusoroview

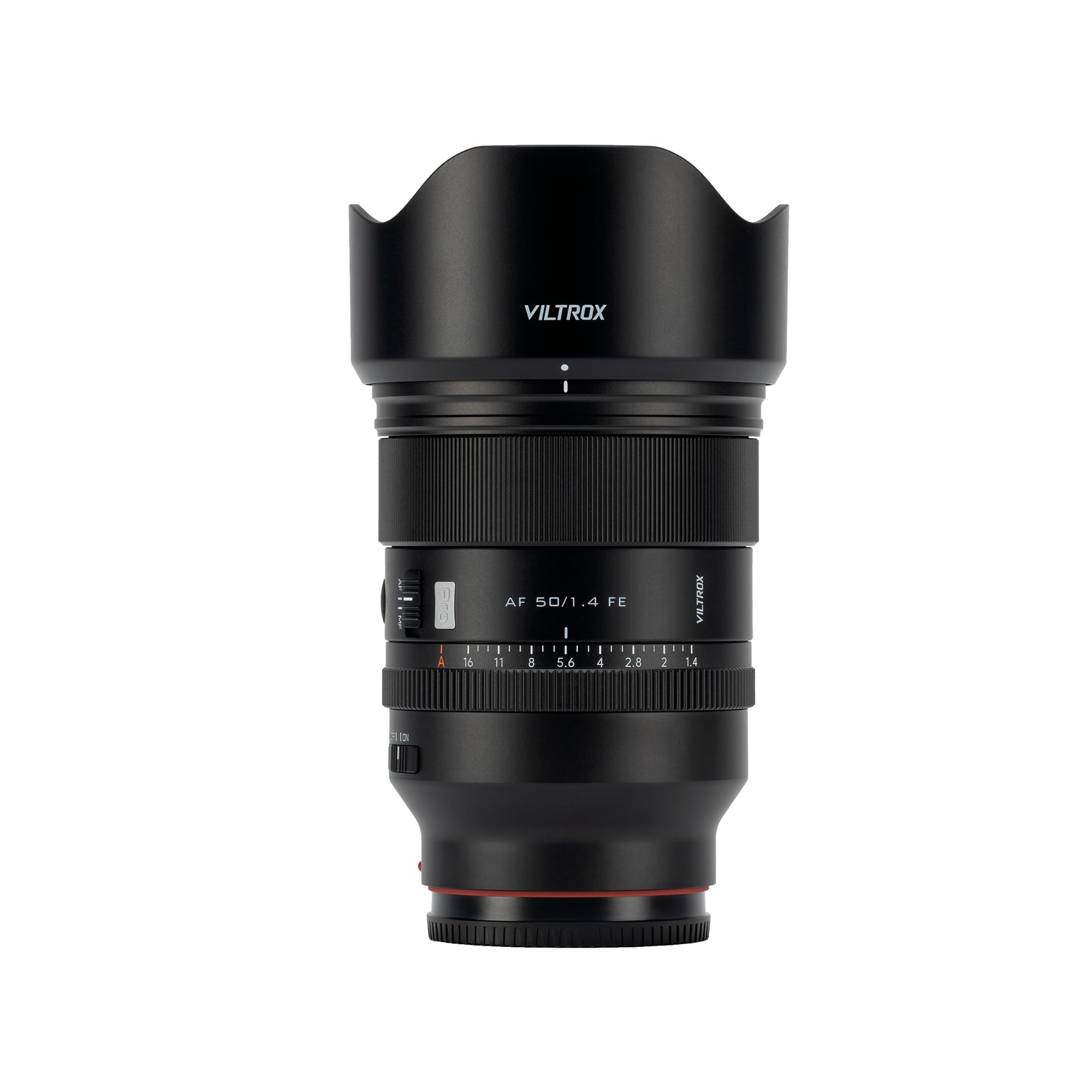

The VILTROX AF 50mm f/1.4 Pro FE lens features a robust magnesium-aluminum alloy construction, ensuring durability and reliability. Key components include:

• Funga Mhete: For manual focus adjustments.
• Mhete yeAperture: For controlling the lens aperture.
• Chinja cheAF/MF: To toggle between autofocus and manual focus modes.
• Click ON/OFF Switch: To enable or disable click stops on the aperture ring.
• USB-C Chiteshi: Nezve firmware updates.

Optical Design

The lens incorporates an advanced 11-group, 15-element optical structure, including 3 ED (Extra-low Dispersion), 1 ASPH (Aspherical), and 8 HR (High Refractive index) elements. This design minimizes aberrations, distortion, and color fringing, ensuring high sharpness and clarity across the frame. The Nano Crystal Coating further reduces flare and ghosting.

3. Setup

Kuisa Lens

1. Ita shuwa kuti kamera yako yakadzimwa.
2. Align the white dot on the lens barrel with the white dot on your Sony E-mount camera body.
3. Isa lenzi zvinyoro nyoro muchibatiso chekamera woitenderedza newachi kusvika yadzvanya panzvimbo yayo.
4. Attach the lens hood by aligning the dot on the hood with the dot on the lens, then twist until it locks.

Initial Camera Settings

After mounting the lens, power on your camera. Ensure your camera's firmware is up to date for optimal compatibility and performance with the VILTROX lens. Refer to your camera's manual for specific settings related to third-party lenses.

4. Operating Instructions

Kuisa pfungwa pachinhu chimwe chete (AF) uye Kuisa pfungwa pachinhu chimwe chete (MF)

The lens features a HyperVCM autofocus motor, providing quiet and fast focusing, ideal for tracking moving subjects in both photography and video. Use the AF/MF switch on the lens barrel to select your desired focus mode.

• AF (Autofocus): The camera will automatically focus on your subject.
• MF (Manual Focus): Rotate the focus ring to adjust focus manually.

Aperture Control

The f/1.4 large aperture allows for excellent performance in low-light conditions and creates a shallow depth of field with creamy bokeh. You can control the aperture via the lens's aperture ring or through your camera settings. The Click ON/OFF switch allows you to enable or disable the click stops on the aperture ring, which is particularly useful for smooth aperture transitions during video recording.

Minimum Focusing Distance

With a minimum focusing distance of 0.45 meters (45cm), the lens allows for detailed close-up shots, adding versatility to your shooting scenarios.

5. Kuchengeta

Kuchenesa Lens

To maintain optimal image quality, keep your lens clean. Use a soft, lint-free cloth and a specialized lens cleaning solution to gently wipe the front and rear elements. Avoid touching the glass surfaces with your fingers. Use a blower brush to remove dust particles before wiping.

Firmware Dzokorora

The VILTROX AF 50mm f/1.4 Pro FE lens features a USB-C port for firmware updates. Regularly check the VILTROX Official Store for the latest firmware versions and instructions to ensure your lens performs at its best with new camera models and features.

Dust uye Splash Dziviriro

The lens is designed with advanced dust and splash protection, offering reliable performance in various environments. However, it is not fully waterproof. Avoid prolonged exposure to heavy rain or submersion in water.

6. Kugadzirisa matambudziko

• Lenzi isingaonekwe nekamera: Ensure the lens is securely mounted and the camera's firmware is up to date. Clean the electrical contacts on both the lens and camera body.
• Autofocus issues: Check if the lens is set to AF mode. Ensure there is sufficient light and contrast for the autofocus system to work effectively. Update lens firmware if available.
• Image quality concerns: Ensure lens elements are clean. Check camera settings (ISO, shutter speed, aperture). Verify that the lens is compatible with your camera model.

7. Zvinotsanangurwa

8. Warranty uye Tsigiro

This VILTROX lens comes with a 3-Yegore Mugadziri Warranty. For detailed warranty information, product support, or to contact customer service, please visit the VILTROX Official Store.
