1. Chigadzirwa Pamusoroview
The LIVALL Lite PikaBoost2 is an innovative e-bike assist kit designed to convert your standard bicycle into an electric-assisted bike. It features a pure assist function, providing power only when you pedal, making your rides easier and more enjoyable. This kit is designed for quick and easy installation, offering a seamless transition between an e-bike and a traditional bicycle.
Zvinokosha:
- Pure Assist Function: Smart sensors detect slopes and provide instant extra power, reducing pedaling effort.
- Kuisa Nyore: Quick and secure rear-wheel mounting without extra wires.
- 158Wh Bhatiri: Provides up to 31 miles (50km) of assist under ideal conditions and can function as a power bank.
- Kuchengetedzwa Kwakawedzerwa: Durable V-shaped tire for excellent grip, automatic shut-off if tilting over 30°, and power activation above 3.1 mph (5km/h).
2. Setup uye Kuiswa
2.1 Unboxing uye Zvikamu
Carefully unpack all items from the box. Ensure all components are present and undamaged.
The kit typically includes the PikaBoost2 main unit, 158Wh battery, quick guide, USB-C charging cable, fender, and seat post clamp.
2.2 Kuenderana Kuongorora
Before installation, verify your bicycle's compatibility:
- Seat Post: Fits round seat posts with a diameter of 25–35mm (0.98–1.38in). Not suitable for carbon seat posts.
- Matai: Compatible with wheel sizes 14-29 inches and V-shaped tire widths of 1.0-2.6 inches (25-65mm).
- Kumiswa: Not suitable for bikes with rear suspension.
- Bhasikoro Type: Not suitable for children's bikes.
2.3 Matanho ekuisa

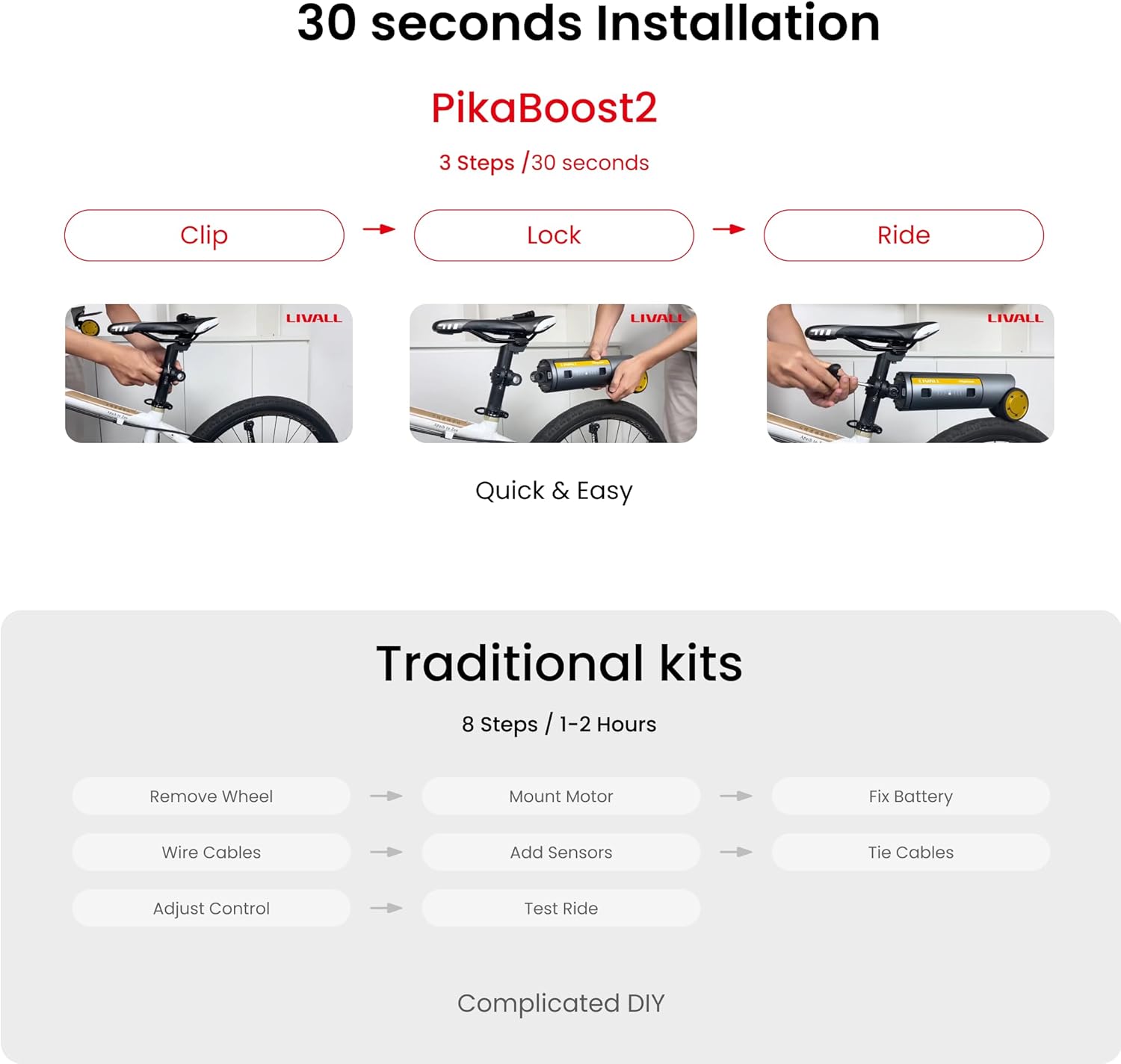

The PikaBoost2 is designed for quick installation, typically within 30 seconds:
- Batanidza iyo Clamp: Secure the PikaBoost2 unit to your bike's seat post using the provided clamp. Ensure it is firmly tightened to prevent movement.
- Isa iyo Unit: Adjust the unit so the drive wheel makes proper contact with your bicycle's rear tire.
- Isa Bhatiri: Slide the 158Wh battery into the PikaBoost2 unit until it clicks into place.
- Power On: Dzvanya bhatani rekubatidza simba payuniti kuti uibatidze.
- App Connection (Recommended): For the best experience and to confirm your firmware is on the latest version, download the LIVALL app and connect to your PikaBoost2.
3. Operating Instructions
3.1 Power Assist Function
The PikaBoost2 operates with a pure assist function, meaning it provides power only when you are pedaling. Smart sensors detect your pedaling input and the terrain, delivering assistance as needed.
- Uphill Assist: When climbing hills, the system automatically detects the incline and provides instant extra power, making ascents smoother and less strenuous.
- Effort-Saving on Flat Roads: The built-in 250W motor reduces pedaling effort by up to 50%, ensuring easier and smoother rides on flat terrain.
- Activation: Power assistance only activates when your speed is above 3.1 mph (5km/h).
3.2 Chengetedzo Zvimiro
The PikaBoost2 incorporates several safety mechanisms:
- Otomatiki Shut-off: The system automatically shuts off if it detects a tilt of over 30°, reducing the risk of accidents on slopes and sharp turns.
- Durable Tire: The V-shaped tire ensures excellent grip for safer rides.
- Warning Tail Light: Integrated tail light for increased visibility.
3.3 Kushanda kweBank reMagetsi
The 158Wh battery can also charge your devices on the go, providing a convenient power source during your rides.
4. Kuchengeta
4.1 Kuchengeta Battery
- Kuchaja: Use a 65W USB-C charger (not included) to charge the 158Wh battery. The battery can be charged directly via the PikaBoost2 unit or removed for external charging.
- Hupenyu: The lithium-ion battery's integrated BMS (Battery Management System) helps retain 80% capacity after 1,000 cycles.
- Dziviriro: Features dual protection, charging protection, and discharge protection.
4.2 Kuchengetedza Matayi
The durable V-shaped tire has a service life of approximately 1,864–3,107 miles (3,000–5,000km). Regularly inspect the tire for wear and tear, and replace it if necessary to maintain optimal grip and safety.
4.3 General Kuchenesa
Keep the PikaBoost2 unit clean from dirt and debris. Use a damp cloth to wipe down the exterior. Avoid using harsh chemicals or abrasive materials that could damage the unit.
5. Kugadzirisa matambudziko
If you encounter issues with your PikaBoost2, consider the following:
- Unit Sliding: Ensure the seat post clamp is securely tightened. Re-calibrate the unit if necessary.
- Power Issues: Check the battery charge level. Ensure all connections are secure. If using the app, check for any error codes or firmware updates.
- No Assist: Verify that your speed is above 3.1 mph (5km/h) for power assistance to activate. Check for any tilt warnings if riding on uneven terrain.
- App Connectivity: Ensure Bluetooth is enabled on your device and the PikaBoost2 is powered on and within range.
6. Zvinotsanangurwa
| Feature | Tsanangudzo |
|---|---|
| Max Range (Assist) | 31 mamaira / 50 km |
| Battery Capacity | 158 W |
| Net Weight | 6.6 lbs / 3 kg |
| Kuenderana kweSaizi yeVhiri | 14-29 inches / 35.6-73.7 cm |
| Seat Post Shape | Round Shape |
| Waterproof Rating | IPX5 |
| Seat Post Diameter | 0.98-1.38 inches / 25-35 mm |
| V-shaped Tire Width | 1.0-2.6 inches / 25-65 mm |
| Motor Power | 250W (Rated), 500W (Peak) |
| Max Speed (Assist) | 25 km/h (15 mph) |
7. Warranty
The LIVALL Lite PikaBoost2 E-Bike Assist Kit comes with a 1-Year Limited Warranty Protection. Please refer to the included Service Security Card or contact customer support for detailed warranty terms and conditions.
8. Mutengi Tsigiro
For any questions, technical assistance, or warranty claims, please contact LIVALL customer support. You can find contact information on the official LIVALL websaiti kana kuburikidza nepuratifomu yako yekutenga.
For the latest firmware updates and additional features, please download the official LIVALL app from your smartphone's app store.
