1. Nhanganyaya
The Extech Instruments HW30 HeatWatch is a multi-function stopwatch designed to provide essential environmental data alongside precise timing capabilities. This device displays digital up/down timer functions, current temperature, humidity, and calculates the heat index, which indicates how hot it feels when humidity is combined with the actual temperature. It is an ideal tool for monitoring conditions in various environments, particularly those with hot weather. Additional features include a 12/24-hour clock, a standard stopwatch, 30 lap/split memory, and a programmable alarm.
2. Key Features
- Multi-function stopwatch with digital display.
- Integrated up/down timer.
- Real-time temperature display.
- Real-time humidity display.
- Heat Index calculation for perceived temperature.
- 12/24-hour clock display.
- Stopwatch function with 30 lap/split memory.
- Basa realarm rinogona kurongwa.
3. Package Zviri mukati
Tarisa uone kuti zvinhu zvese zviripo uye zviri muchimiro chakanaka pakuvhura pasuru:
- HW30 HeatWatch Humidity and Temperature Stopwatch
- Lanyard
- 1 x Lithium Metal Battery (installed or separate)
- Operating Instructions (iri bhuku)
4. Chigadzirwa Pamusoroview
The HW30 HeatWatch features a robust design with clearly labeled buttons for easy operation and a large LCD for clear readings.
Mufananidzo 4.1: Mberi view of the Extech HW30 HeatWatch, showing the display and control buttons.
Mufananidzo 4.2: Detailed view of the HW30 display, indicating humidity (50%), temperature (86°F), and heat index (88°).
4.1. Kudzora uye Kuratidza
- Tanga/Mmisa Bhatani: Inotanga uye inomisa mabasa enguva.
- Bhotani reMODE: Cycles through different operating modes (Time, Stopwatch, Humidity/Temperature/Heat Index, Alarm).
- Bhatani reLAP/SPLIT/RESET: Records lap/split times or resets the stopwatch.
- RECALL Bhatani: Accesses stored lap/split memory.
- Chiratidziro cheLCD: Shows time, measurements, and function indicators.
5. Setup
5.1. Kuiswa kwebhatiri
The HW30 HeatWatch requires one Lithium Metal battery for operation. The battery is typically included with the device.
- Tsvaga chivharo chebhatiri kuseri kweyuniti.
- Use a small screwdriver or coin to open the battery compartment.
- Insert the Lithium Metal battery, ensuring correct polarity (+/-) as indicated inside the compartment.
- Tsiva chivharo chebhatiri uye chengetedza.
Cherechedza: Rasa mabhatiri akashandiswa zvine ungwaru maererano nemitemo yenzvimbo.
6. Operating Instructions
This section details the various functions and modes of the HW30 HeatWatch.

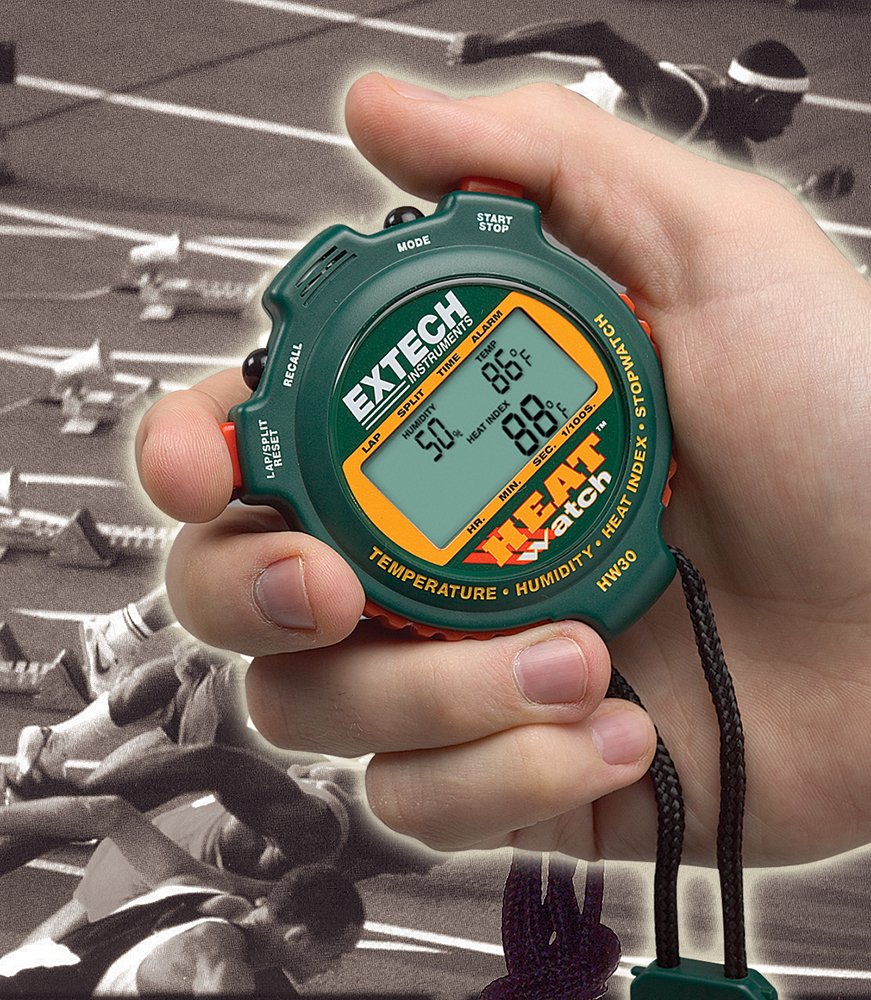

Figure 6.1: The HW30 HeatWatch being held, demonstrating its portable and ergonomic design for active use.
6.1. Basic Operation and Mode Selection
Press the MODE bhatani kuti utenderere nenzira dzinotevera dzekuratidza:
- Nguva Mode: Displays the current time (12 or 24-hour format).
- Stopwatch Mode: For timing events, including lap/split functions.
- Humidity/Temperature/Heat Index Mode: Shows environmental readings.
- Alarm Mode: For setting and activating the programmable alarm.
6.2. Kugadza Nguva uye Zuva
- MuNguva Modhi, tinya uye ubate iyo MODE bhatani kusvika nhamba dzenguva dzatanga kupenya.
- Shandisa iyo TANGA/MIRA bhatani rekugadzirisa bhaisikopo rinopenya (maawa, maminitsi, masekondi).
- Press the LAP/SPLIT/RESET button to move to the next digit or setting (e.g., 12/24-hour format, date).
- Kana zvese zvagadziriswa, tinya bhatani rekuti MODE button to exit setup.
6.3. Using the Stopwatch Functions
- Switch to Stopwatch Mode using the MODE bhatani.
- Press TANGA/MIRA kutanga nguva.
- Press LAP/SPLIT/RESET to record a lap or split time. The display will momentarily show the recorded time while the stopwatch continues to run in the background.
- Press TANGA/MIRA zvakare kuti ambomira wachi yekumisa nguva.
- Kuti utangezve, tinya TANGA/MIRA. Kuti uise patsva, tinya LAP/SPLIT/RESET while the stopwatch is paused.
- To recall stored lap/split times, press the CHENJERA button in Stopwatch Mode. Use LAP/SPLIT/RESET to scroll through memory.
6.4. Humidity, Temperature, and Heat Index Measurement
The HW30 automatically measures and displays humidity, temperature, and calculates the heat index in the dedicated mode.
- Switch to Humidity/Temperature/Heat Index Mode using the MODE bhatani.
- The display will show the current humidity percentage, temperature (in °F or °C), and the calculated heat index.
- Allow a few minutes for the sensors to stabilize and provide accurate readings, especially when moving the device between environments with different conditions.
6.5. Kuisa Alarm
- Switch to Alarm Mode using the MODE bhatani.
- Dzvanya uye ubate iyo MODE bhatani kusvika madigits enguva yealarm atanga kupenya.
- Shandisa iyo TANGA/MIRA button to adjust the flashing digit (hours, minutes).
- Press the LAP/SPLIT/RESET bhatani rekufamba pakati pemaawa nemaminitsi.
- Kana nguva yearamu yaunoda yangoiswa, tinya bhatani rekuti MODE bhatani rekusimbisa.
- Kuti uvhure kana kudzima alarm, tinya iyo TANGA/MIRA button in Alarm Mode. An alarm icon will appear on the display when activated.
7. Kuchengeta
7.1. Kuchenesa
- Pukuta unit neine nyoro, damp jira. Usashandise abrasive cleaners kana solvents.
- Ensure the device is dry before storage or further use.
7.2. Kuchengeta
- Store the HW30 in a cool, dry place away from direct sunlight and extreme temperatures.
- If storing for extended periods, it is recommended to remove the battery to prevent leakage.
7.3. Kutsiviwa kwebhatiri
Replace the battery when the display becomes dim or the unit ceases to function. Refer to Section 5.1 for battery installation instructions.
8. Kugadzirisa matambudziko
This section addresses common issues you might encounter with your HW30 HeatWatch.
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Hapana kuratidza kana dim kuratidza | Low or dead battery; Incorrect battery installation. | Replace the battery; Ensure battery is installed with correct polarity. |
| Kuverenga kusina kujeka kwekushisa/mwando | Sensors not stabilized; Extreme environmental conditions. | Allow several minutes for the unit to acclimate to the environment; Ensure sensors are not obstructed. |
| Stopwatch haisi kudaira | Unit in incorrect mode; Buttons stuck. | Cycle through modes to Stopwatch Mode; Check for any physical obstructions on buttons. |
| Heat Index reading seems off | Heat index calculation is based on specific algorithms and can vary slightly; Sensor acclimation. | Ensure temperature and humidity readings are stable; Understand that heat index is a calculated value. |
9. Zvinotsanangurwa
Technical specifications for the Extech HW30 HeatWatch Humidity and Temperature Stopwatch:
| Tsanangudzo | Value |
|---|---|
| Model Number | HW30 |
| Product Dimensions | 3.1 x 2.6 x 0.8 inches (7.9 x 6.6 x 2.0 cm) |
| Item Weight | 0.71 ounces (0.02 Makirogiramu) |
| Bhatiri Type | 1 Lithium Metal bhatiri (inosanganisirwa) |
| Material | Plastiki |
| Color | Girinhi |
| Mugadziri | Extech |
| Kutanga Kuwanikwa Zuva | Kubvumbi 20, 2004 |
10. Warranty uye Tsigiro
Extech Instruments products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official Extech Instruments website. For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact Extech Instruments customer service through their official channels.
Unogona kuwana rumwe ruzivo uye zviwanikwa zvekutsigira pa Extech Instruments Brand Store on Amazon.
