Nhanganyaya
Ndatenda nekutengaasing the Optimus F-1760 16-inch Wave Oscillating Stand Fan. This manual provides important information regarding the safe operation, assembly, maintenance, and troubleshooting of your fan. Please read these instructions thoroughly before use and retain them for future reference.
Image: The Optimus F-1760 stand fan positioned in a bedroom, showcasing its design and size relative to furniture.
Yakakosha Mirayiridzo Yekuchengetedza
Paunenge uchishandisa midziyo yemagetsi, matanho ekutanga anofanirwa kuteedzerwa nguva dzose kuderedza njodzi yemoto, kuvhunduka kwemagetsi, uye kukuvara kwevanhu, kusanganisira zvinotevera:
- Verenga mirairo yese usati washandisa fan iyi.
- Shandisa fani iyi chete sekutsanangurwa kwazvakaitwa mubhuku rino. Zvimwe zvinoshandiswa zvisina kukurudzirwa zvinogona kukonzera moto, kuvhunduka kwemagetsi, kana kukuvara kwevanhu.
- To protect against electrical shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.
- Kutariswa kwepedyo kunodiwa kana chero mudziyo uchishandiswa nevana kana pedyo.
- Unplug fan from outlet when not in use, when moving fan from one location to another, and before cleaning.
- Do not operate fan in the presence of explosive and/or flammable fumes.
- Usaise feni kana chero zvidimbu pedyo nemurazvo wakavhurika, kubika kana chimwe chinodziya.
- Do not operate fan with a damaged cord or plug, or after the fan malfunctions or has been dropped or damaged in any manner.
- Dzivisa kusangana nezvikamu zvinofamba.
- Kuti udimbure, bata plug uye dhonza kubva pamadziro. Usambozeya patambo.
- Nguva dzose shandisa panzvimbo yakaoma, yakaenzana.
- Usaturike kana kuisa fan pamadziro kana sirin'i.
- Usashande pasina fan grill zvakanaka munzvimbo.
- This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the servicing instructions (follow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.
Setup uye Assembly
The Optimus F-1760 fan requires minimal assembly. Ensure all components are present and undamaged before proceeding.
- Base Assembly: Attach the weighted base legs to the main pole. Ensure they are securely fastened to provide stability. The base is designed to be sturdy, with weights at the ends of the feet.
- Kugadzirisa Hurefu: The fan's height can be adjusted. Loosen the height adjustment knob on the pole, extend or retract the pole to the desired height, and then securely tighten the knob.
- Fan Head Attachment: Ensure the fan head is securely attached to the top of the pole. The motor housing and fan blade are plastic, while the grill is metal.
- Kuiswa: Place the fan on a dry, level surface. Ensure there is adequate space around the fan for proper air circulation and oscillation.
Operating Instruction
The Optimus F-1760 fan offers multiple control options and features for customized comfort.
Control Panel
The fan features a 4-position push-button switch on the pole for basic operation.

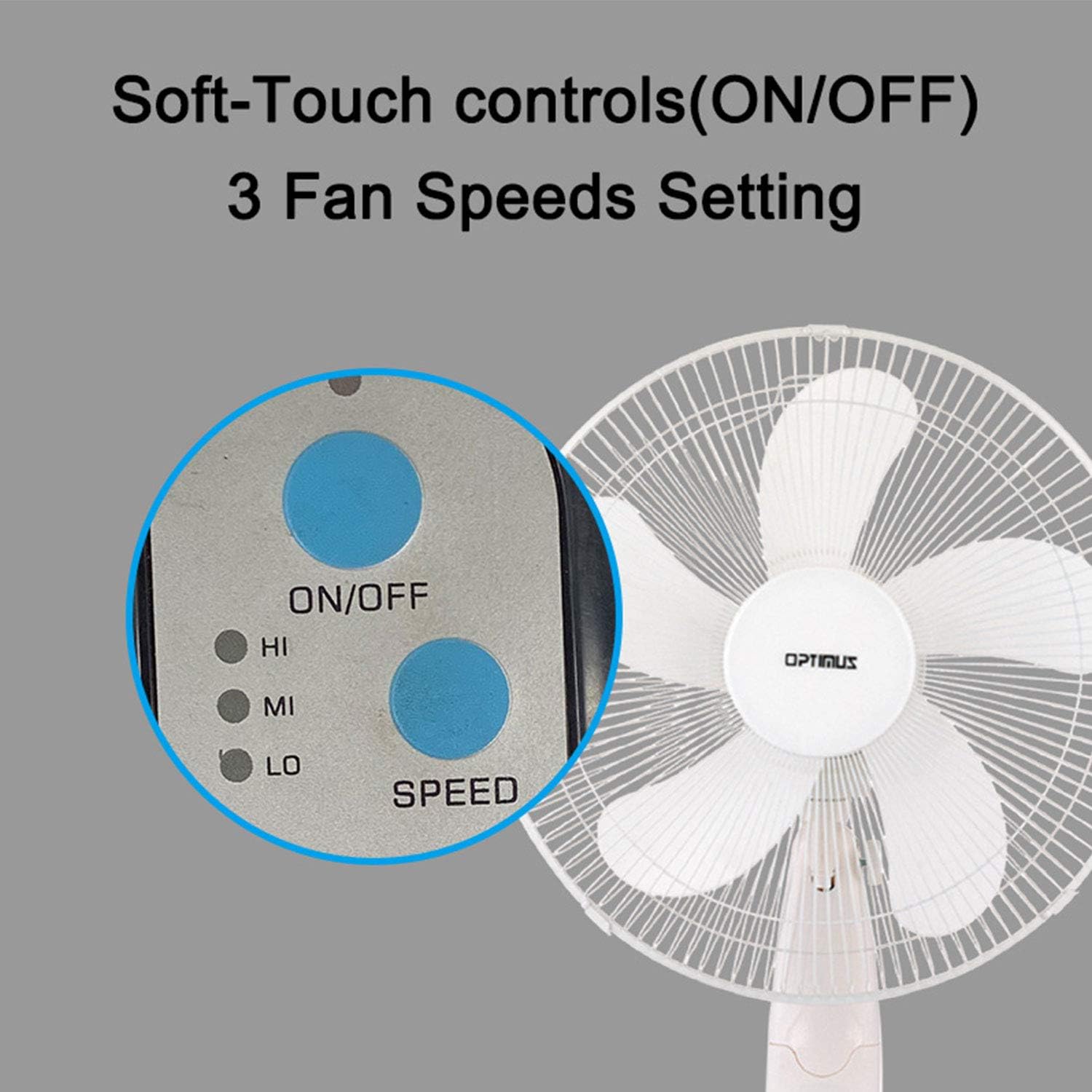

Image: The fan's soft-touch control panel, showing buttons for ON/OFF and SPEED, with indicators for High (HI), Medium (MI), and Low (LO) fan speeds.
- VABISA/KUDZIMA: Dzvanya kuti ubatidze kana kudzima feni.
- Speed Settings: Select from Low, Medium, or High speeds. The 3-speed, energy-saving, whisper-quiet operation motor provides efficient airflow.
Remote Control
The fan comes with a remote control for convenient operation from a distance. (Batteries not included).
Image: The remote control for the fan, featuring buttons for Mode, Time, Speed, and ON/OFF functions.
- VABISA/KUDZIMA: Inobatidza kana kudzima feni.
- SPEED: Cycles through the three fan speeds (Low, Medium, High).
- MUENZANISO: Selects between different wind modes.
- TIME: Activates and sets the shut-off timer.
MaMhepo Mhepo
The fan offers three distinct wind modes to suit your preference:
Image: The fan's control panel highlighting the MODE button and indicators for Normal, Natural, and Sleep wind modes.
- Normal Mode: The fan blows at a constant speed based on your selected setting.
- Natural Mode: The fan speed fluctuates to mimic a natural breeze.
- Nzira yekurara: The fan operates at a lower, quieter speed, ideal for sleeping, with gentle speed variations.
Kudzingwa
The F-1760 features unique wave oscillation for comprehensive air distribution.
Image: A diagram illustrating the fan's capability for both vertical (up/down) and horizontal (left/right) wave oscillation, providing wider air coverage.
- Up/Down & Left/Right Wave Oscillating: Activates a unique oscillation pattern that moves the fan head both horizontally and vertically, distributing air throughout the room.
- Kuti umise oscillation, tinya bhatani re oscillation zvakare.
Timer Basa
Seta iyo fan kuti idzima otomatiki mushure menguva yakatarwa.
Image: The fan's control panel showing the TIME button and indicators for 1 hour (1H), 2 hours (2H), and 4 hours (4H) timer settings. The fan can be programmed for up to 7 hours.
- The timer can be set for 1, 2, 4, or up to 7 hours. Press the TIME button repeatedly to cycle through the desired duration.
Kuchengetedza uye Kuchenesa
Kuchenesa nguva dzose kunobatsira kuchengetedza kushanda kwefeni uye kuwedzera hupenyu hwayo.
- Before Cleaning: Gara uchisunungura feni kubva pamagetsi usati wachenesa.
- Kucheneswa Kwekunze: Shandisa nyoro, damp jira rekupukuta kunze kwekunze kwefani. Usashandise abrasive cleaners kana solvents.
- Kuchenesa Grill: The metal grill can be cleaned with a soft brush or vacuum cleaner to remove dust. For thorough cleaning, the grill may need to be carefully removed.
- Blade Cleaning: If necessary, the fan blades can be cleaned. Ensure the fan is completely off and unplugged. The care instructions specify "Hand Wash" for components.
- Kuchengeta: Kana usingashandiswe kwenguva yakareba, chengeta feni munzvimbo inotonhorera, yakaoma, zviri nani mupakeji yayo yekutanga.
Kugadzirisa matambudziko
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Fani haibatike. | No power supply. Blown fuse. | Ensure the fan is plugged into a working outlet. Check the fuse in the plug and replace if necessary (refer to safety instructions for fuse replacement). |
| Fan operates but air movement is weak. | Low speed setting. Dust accumulation on blades/grill. | Increase the fan speed. Clean the fan blades and grills as per maintenance instructions. |
| Remote control haisi kushanda. | Dead batteries. Obstruction between remote and fan. | Replace batteries in the remote control. Ensure a clear line of sight between the remote and the fan's receiver. |
| Fan changes speed automatically or unexpectedly. | Interference from other remote controls (e.g., TV remote). | This fan may respond to frequencies from other remote controls. Try operating the fan manually or repositioning the fan/other devices to minimize interference. |
| Fan makes clicking noises during oscillation. | Normal operation of oscillation gears. | A slight clicking noise from the oscillation gears can occur during normal operation. If the noise is excessive or new, ensure the fan head is securely attached. |
| Fan feels unstable. | Base not properly assembled or tightened. Uneven surface. | Ensure all base components are securely fastened and the fan is placed on a firm, level surface. |
Zvinotsanangurwa
- Zita remuenzanisi: F-1760
- Brand: Optimus
- Fan Diameter: 16 inches
- Electric Fan Dhizaini: Uriri Fan
- Kunobva Simba: Corded Electric
- Wattage: 60 watts
- Voltage: 6 Volts
- Nhamba yeBlades: 3
- Speed Settings: 3 RPM (Low, Medium, High)
- Kudzora nzira: Kure, Push Bhatani
- Special Features: Up/Down & Left/Right Wave Oscillating, Adjustable Height, Timer Function (up to 7 hours), Wind Modes (Normal, Natural, Sleep)
- Kushandiswa Kwemukati/Kunze: Indoor
- Chinhu Weight: 9.9 makirogiramu
- Zvinosanganisirwa Zvikamu: Chigadzirwa, Bhuku rekushandisa
Warranty Information
This Optimus F-1760 fan comes with a 1-makore mashoma waranti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, alteration, or unauthorized repair. Please retain your proof of purchase for warranty claims.
Mutengi Support
For technical assistance, warranty claims, or questions regarding your Optimus F-1760 fan, please contact Optimus customer service. Refer to the product packaging or the official Optimus websaiti yeruzivo rwazvino rwekusangana.
