Patlite LMS-302-RYG LED Signal Tower Instruction Manual

1. Nhanganyaya

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Patlite LMS-302-RYG LED Signal Tower. Please read this manual thoroughly before using the product and retain it for future reference.

The Patlite LMS-302-RYG is a multi-functional LED signal tower designed for industrial applications, featuring amber, green, and red strobe light effects. It operates on 24V AC/DC power and is rated for IP54 and IP65 environmental protection.

2. Safety Information

YAMBIRO: Ngozi Yemagetsi Shock

• Ensure power is disconnected before installation, wiring, or maintenance to prevent electric shock.
• All electrical work must be performed by qualified personnel in accordance with local electrical codes and regulations.
• Verify the power supply voltage inoenderana nevhoriyamu yechigadzirwa chakataurwatage (24V AC/DC).

CHENJERERO:

• Do not disassemble or modify the unit. This may cause damage, electric shock, or fire.
• Avoid direct exposure to the strobe light for extended periods, as it may cause discomfort.
• Install the unit securely to prevent it from falling, which could cause injury or damage.

3. Package Zviri mukati

Pakuburitsa zvinhu, ndapota iva nechokwadi chekuti zvinhu zvese zviripo uye hazvina kukuvara:

• Patlite LMS-302-RYG LED Signal Tower (1 unit)
• Chinyorwa Chirairo (gwaro iri)
• Mounting hardware (may vary by specific package)

Kana paine zvinhu zvisipo kana kuti zvakakuvara, taura nemutengesi wako nekukasika.

4. Setup uye Kuiswa

Tevedza nhanho idzi kuti uise zvakakodzera:

4.1 Kuiswa

The LMS-302-RYG is designed for pole mounting. Ensure the mounting surface is stable and capable of supporting the unit's weight. Use appropriate fasteners for secure attachment.

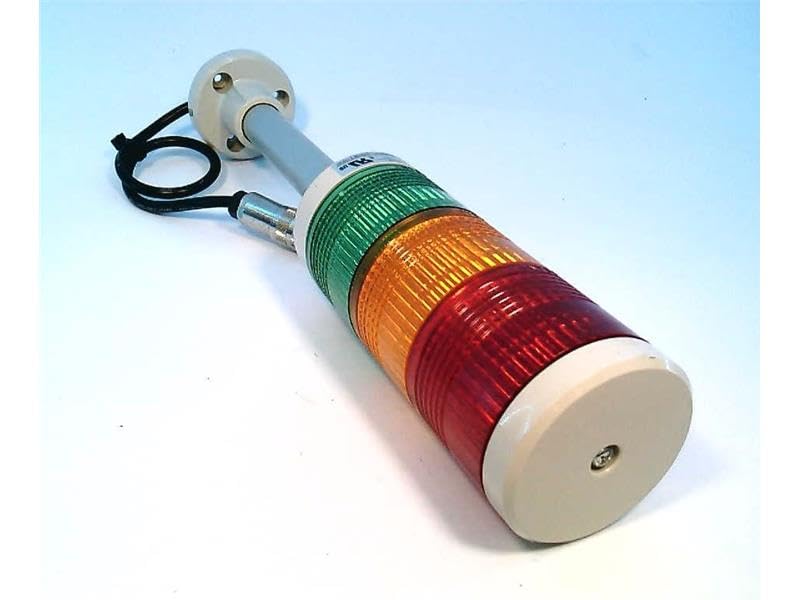

An image showing the Patlite LMS-302-RYG LED Signal Tower. The unit features a cylindrical design with distinct amber, green, and red sections, indicating its multi-color signaling capability. It is mounted on a metallic pole with wiring visible at the base, suggesting its industrial application.

4.2 Wiring

Connect the signal tower to a 24V AC/DC power source. Refer to the wiring diagram provided with the unit (if applicable) or consult a qualified electrician. Ensure all connections are secure and insulated to prevent short circuits.

• Magetsi: 24V AC / DC
• Wire Gauge: Use appropriate wire gauge for the current draw and length of the cable run.
• Polarity: Observe correct polarity for DC connections.

The unit has an IP54/IP65 rating, indicating protection against dust and water splashes/jets. Ensure all cable entries and seals are properly secured to maintain this rating, especially in environments where moisture or dust is present.

5. Operating Instructions

The Patlite LMS-302-RYG LED Signal Tower is designed for straightforward operation once properly installed and powered.

5.1 Kubatidza/Kudzima

The signal tower will activate when power is supplied to its input terminals. Disconnecting power will turn the unit off.

5.2 Luminous Effect

The unit produces a strobe luminous effect. The specific color (Amber, Green, or Red) that illuminates depends on the wiring configuration and control signals from your system. Consult your system's control documentation for how to activate specific colors.

5.3 Multifunctionality

As a multi-functional LED signal tower, the LMS-302-RYG can be integrated into various control systems to indicate different statuses or events using its distinct color signals.

6. Kuchengeta

The Patlite LMS-302-RYG LED Signal Tower is designed for low maintenance. Regular inspection and cleaning are recommended.

6.1 Kuchenesa

To clean the unit, wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the lens or housing. Ensure the unit is powered off before cleaning.

6.2 Chikamu Kutsiva

The LED bulbs are designed for long life and are not user-replaceable. There are no other user-serviceable parts inside the unit. If the unit malfunctions, contact qualified service personnel.

7. Kugadzirisa matambudziko

If the signal tower does not operate as expected, perform the following basic checks:

• Hapana Chiedza:
  • Verify that the power supply is connected and providing the correct 24V AC/DC voltage.
  • Check all wiring connections for looseness or damage.
  • Ensure the control signal for the desired color is active.
• Ruvara Rusina kururama:
  • Review your system's control logic and wiring to ensure the correct signal is being sent to the signal tower.

If the issue persists after performing these checks, contact your supplier or a qualified technician for assistance.

8. Zvinotsanangurwa

9. Warranty uye Tsigiro

For warranty information and technical support, please refer to the documentation provided by your point of purchase or contact Patlite directly through their official website. Chengeta risiti rako rekutenga seumboo hwekutenga.
