1. Nhanganyaya
The KODAK PLAYSPORT (Zx5) HD Waterproof Pocket Video Camera is designed for capturing high-definition videos and photos in various environments. Its robust construction makes it shockproof, dustproof, and waterproof up to 10 feet (3 meters), ideal for active lifestyles. This manual provides essential information for setting up, operating, and maintaining your camera.

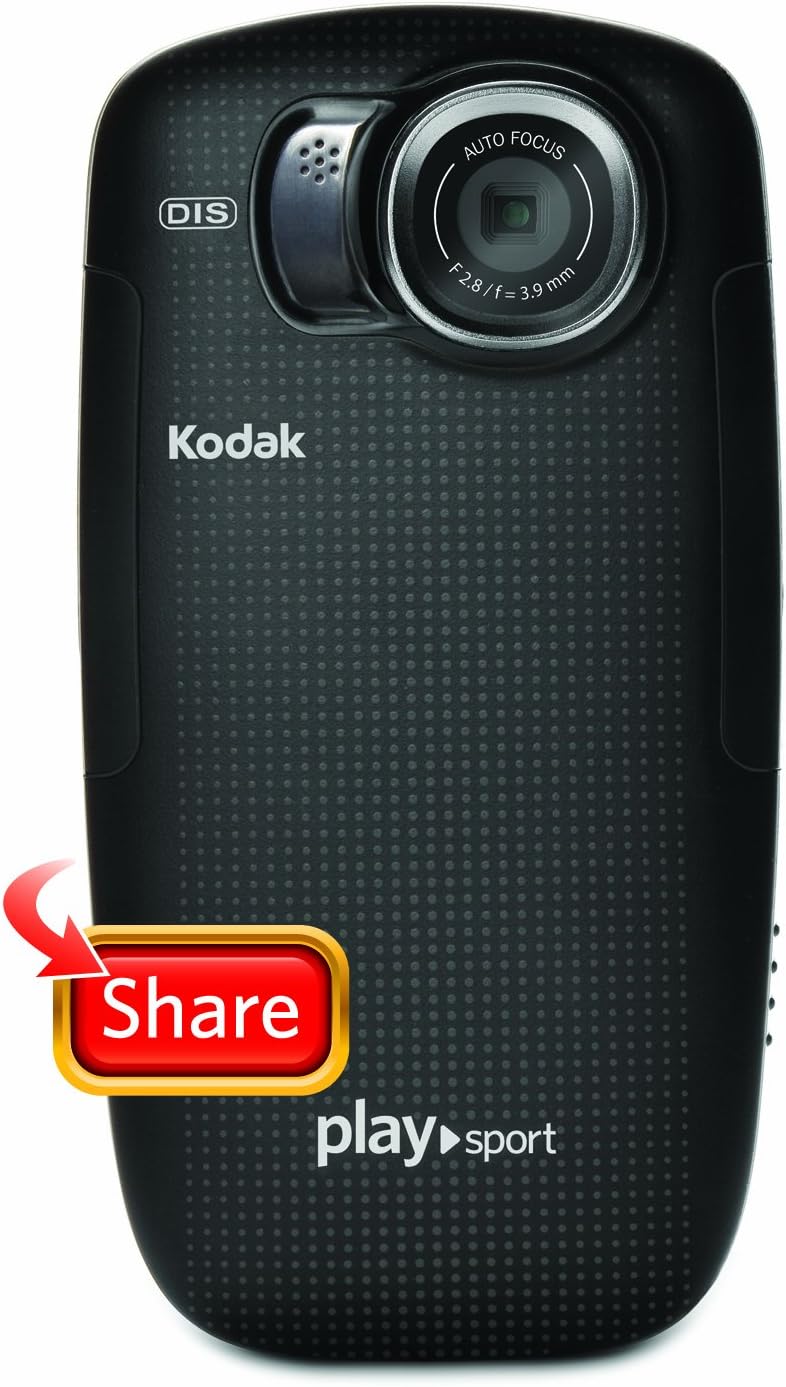

Mufananidzo 1: Mberi view of the Kodak PlaySport (Zx5) HD Waterproof Pocket Video Camera in Black.
2. Chii chiri muBhokisi
- Kodak PlaySport (Zx5) HD Waterproof Pocket Video Camera
- User Manual
3. Zvigadzirwa zveChigadzirwa
- Shockproof, dustproof, and waterproof up to 10 ft (3 meters)
- Kodak's Share button for easy sharing
- Full 1080p HD videos and 5 MP HD stills
- Built-in digital image stabilization for sharper videos
- On-camera editing capabilities
4. Setup
4.1 Kuiswa kwebhatiri
- Locate the battery compartment door on the camera.
- Slide the latch to open the battery compartment.
- Insert the Lithium Ion battery, ensuring correct orientation according to the diagram inside the compartment.
- Close the battery compartment door securely until it latches.
4.2 Kuiswa kweMemory Card
The camera uses SDHC flash memory cards.
- With the battery compartment open, locate the SDHC card slot.
- Insert the SDHC card into the slot until it clicks into place.
- Vhara musuwo wekamuri yebhatiri.
4.3 Kuchaja Kamera
Use the provided USB cable to charge the camera. Connect the micro-USB end to the camera's charging port and the USB-A end to a compatible USB power adapter (not included) or a computer.
5. Operating Instructions
5.1 Simba On/Kudzima
Press and hold the power button located on the top of the camera to turn it on or off.
5.2 Kurekodha Vhidhiyo
- Batidza kamera.
- Press the dedicated record button (usually marked with a red dot) to start recording.
- Dzvanya bhatani rekodhi zvakare kuti urege kurekodha.
5.3 Kutora mafoto
- Batidza kamera.
- Switch to photo mode if necessary (refer to on-screen menu).
- Dzvanya bhatani rekuvhara kuti utore mufananidzo.
5.4 Zoom Basa
Use the zoom controls (W for wide, T for telephoto) to adjust the digital zoom during recording or photo capture.
5.5 Kutamba
Access the playback mode via the menu to review your recorded videos and photos on the camera's 2-inch screen.
5.6 Connecting to a TV/Computer
The camera supports HDMI connectivity for viewing content on a TV. Use a mini-HDMI to HDMI cable (sold separately). For computer connection, use the USB cable to transfer files.
Mufananidzo 2: Kumashure view of the Kodak PlaySport (Zx5) showing the screen and control buttons.
Mufananidzo 3: Mberi view of the Kodak PlaySport (Zx5) with the screen displaying a captured image.
6. Kuchengeta
6.1 Kuchenesa
After using the camera in saltwater, rinse it thoroughly with fresh water and pat dry. Ensure all access flaps are open to dry completely to prevent salt buildup and hinge issues.
6.2 Kuchengeta Battery
Charge the battery fully before each use. Store the camera and battery in a cool, dry place when not in use.
7. Kugadzirisa matambudziko
7.1 Kamera Isina Kubatidzwa
- Ita shuwa kuti bhatiri rakapinzwa zvakanaka uye rakachajwa zvizere.
- Dzvanya uye bata bhatani remagetsi kwemasekonzi mashoma.
7.2 Poor Audio Quality with External Microphone
Some users have reported issues with external microphone input. Ensure the microphone is properly connected. If issues persist, consider using the built-in microphone or alternative audio recording methods.
7.3 Access Flaps Jamming
Regularly clean and dry the camera, especially after saltwater exposure, to prevent salt or debris from causing the access flaps to jam.
7.4 On-Camera Editing Issues
For long videos, on-camera trimming may cause the device to lock up. It is recommended to offload videos to a computer and use dedicated video editing software for extensive edits.
8. Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Brand | KODAK |
| Model Name | PlaySport (Zx5) |
| Vhidhiyo Capture Resolution | 1080p |
| Inoshanda Zvakadaro Resolution | 5 MP |
| Flash Memory Type | Sdhc |
| Screen Size | 2 inches |
| Mvura Resistance Level | Waterproof (up to 10 ft / 3 meters) |
| Mufananidzo Kudzikamiswa | Digital |
| Dhijitari Zoom | 4x |
| Kubatana Technology | HDMI, USB |
| Item Weight | 125 magiramu |
9. Warranty uye Tsigiro
For warranty information or technical support, please refer to the documentation included with your product or visit the official KODAK support website. Contacting the manufacturer directly is recommended for any product-related inquiries.
Image 4: The Kodak PlaySport (Zx5) camera submerged in water, demonstrating its waterproof capability.
