RadioShack Analog AM/FM Pocket Radio User Manual

Nhanganyaya

This manual provides detailed instructions for the operation and maintenance of your RadioShack Analog AM/FM Pocket Radio. Designed for portability and ease of use, this radio allows you to enjoy AM and FM broadcasts wherever you go. Please read this manual thoroughly before using your radio to ensure proper function and longevity.

Product Features

Classic Rotating Tuning Dial: For precise station selection.
1/8" Headphone Jack: Inobvumira kuterera kwakavanzika pasina kukanganisa vamwe.
Telescoping Antenna: Enhances reception for clearer audio.
Wide Frequency Range: AM: 530-1710 kHz; FM: 87.5-108 MHz.
Compact uye Lightweight Dhizaini: Ideal for portability.
Mutauri Akabatanidzwa: 57mm (2.25 Inches) speaker with 0.5W output.

Package Zviri mukati

Ndokumbira utarise zvirimo pasuru kuti uone kuti zvinhu zvese zviripo:

RadioShack Analog AM/FM Pocket Radio
Telescoping Antenna (integrated)
Wrist Strap (attached)

Cherechedza: 2 AA batteries are required and are not included in the package.

Gadzirira

1. Kuiswa kwebhatiri

Tsvaka chivharo chebhatiri kuseri kweredhiyo.
Svetera chivharo pasi kuti uvhure mupanda.
Isa mabhatiri maviri (2) eAA, uchivimbisa kuti polarity (+ na -) yakakodzera sezvakaratidzwa mukati mechikamu.
Vhara chivharo chebhatiri nekuritsveta kumusoro kusvika radzvanya panzvimbo.

Back view of the RadioShack pocket radio with the battery compartment visible.

Mufananidzo 1: Rear view of the radio showing the battery compartment. Ensure correct battery orientation when installing.

2. Antenna Setup

For optimal FM reception, extend the telescoping antenna fully. For AM reception, the internal antenna is typically sufficient, but you may need to rotate the radio for best signal.

Mberi view of the RadioShack pocket radio with the telescoping antenna extended.

Mufananidzo 2: Mberi view of the radio with the telescoping antenna extended for improved FM reception.

Operating Instruction

1. Simba On / Off uye Volume Control

The power switch and volume control are integrated into a single rotary dial located on the side of the radio.

Kuvhura redhiyo ON, rotate the dial clockwise until you hear a click and the radio powers on.
Continue rotating clockwise to kuwedzera inzwi.
Rotate the dial counter-clockwise to kuderedza inzwi.
Kuvhura redhiyo DZIMA, rotate the dial counter-clockwise until it clicks and the radio powers off.

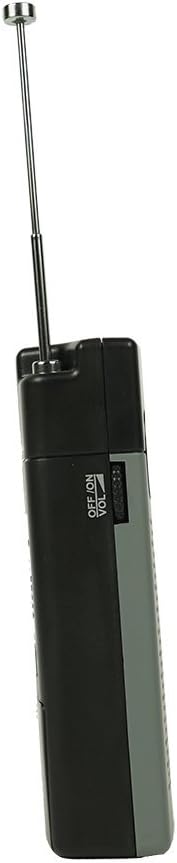

Side view of the RadioShack pocket radio showing the ON/OFF VOL dial.

Mufananidzo 3: Side view illustrating the combined ON/OFF and Volume control dial.

2. AM/FM Band Selection

A slide switch on the side of the radio allows you to select between AM and FM bands.

Slide chinja ku "AM" nokuti Amplitude Modulation broadcasts.
Slide chinja ku "FM" for Frequency Modulation broadcasts.

Side view of the RadioShack pocket radio showing the AM/FM band selector switch and headphone jack.

Mufananidzo 4: Side view showing the AM/FM selector switch and headphone jack.

3. Kugadzirisa Chiteshi

Use the tuning dial to find your desired radio station.

Once the radio is powered on and the desired band (AM/FM) is selected, slowly rotate the Tuning dial located on the side of the radio.
Observe the frequency scale on the front of the radio to identify the station frequency.
Adjust the dial until the desired station is clear.

4. Kushandisa Mahedhifoni

For private listening, plug standard 1/8" (3.5mm) stereo headphones into the headphone jack located on the side of the radio. The internal speaker will automatically mute when headphones are connected.

Maintenance

Kuchenesa

Pukuta redhiyo nenyoro, damp jira. Usashandise zvinochenesa zvinogumbura kana zvinonyungudutsa, sezvo zvinogona kukuvadza magumo acho.

Kutsiviwa kwebhatiri

When the sound becomes distorted or the volume decreases significantly, it is time to replace the batteries. Follow the battery installation steps outlined in the "Setup" section. Always replace both batteries at the same time with new AA batteries.

Zvakakosha: Remove batteries if the radio will not be used for an extended period to prevent battery leakage and damage to the unit.

Kugadzirisa matambudziko

Dambudziko	Zvinogona Kukonzera	Solution
Hapana ruzha kana kuderera zvakanyanya.	Radio is off. Inzwi rakaderera. Mabhatiri akafa kana kuiswa zvisizvo. Mahedhifoni akaiswa mukati.	Vhura radio. Wedzera inzwi. Tsiva mabhatiri kana kutarisa polarity. Unplug headphones if you want to use the speaker.
Kusagamuchirwa zvakanaka kana kuti kusamira zvakanaka.	Antenna not extended (FM). Radio orientation (AM). Weak signal in your area. Kupindira kubva kune zvimwe zvigadzirwa zvemagetsi.	Fully extend the telescoping antenna. Rotate the radio for better AM reception. Try moving to a different location. Move the radio away from other electronics.
Tuning dial is stiff or difficult to turn.	Tsvina kana marara ari mumashini.	Do not force the dial. Contact customer support if the issue persists after gentle cleaning around the dial.

Zvinotsanangurwa

Model Number	FBA_120-0586
Frequency Range	AM: 530-1710 kHz; FM: 87.5-108 MHz
Mutauri Mukuru	57mm (2.25 inches)
Mutauriri Kubuda	0.5W
Simba Source	2 x AA mabhatiri (asina kuisirwa)
Dimensions (WHD)	73 mm x 117 mm x 30 mm (inenge 2.87 x 4.61 x 1.18 inches)
Item Weight	10.4 ounces (inenge 295 gramu)
Headphone Jack	1/8" (3.5mm) Stereo
Inosanganisirwa Zvikamu	Integrated Telescoping Antenna

Warranty uye Support

For information regarding warranty coverage or technical support for your RadioShack Analog AM/FM Pocket Radio, please refer to the documentation provided at the time of purchase or visit the official RadioShack website. Matemu chaiwo ewaranti anogona kusiyana nedunhu nemutengesi.

Unogonawo kushanyira RadioShack Store on Amazon kune rumwe ruzivo rwechigadzirwa uye zviwanikwa zvekutsigira.
