Mitsubishi FD730U Mobile Multimedia HD DLP Projector User Manual

1. Nhanganyaya

This manual provides instructions for the safe and efficient operation of your Mitsubishi FD730U Mobile Multimedia HD DLP Projector. Please read this manual thoroughly before using the projector and keep it for future reference.

The FD730U projector is designed for portability and ease of setup, featuring a vertical lens shift function for image correction and a top-loaded lamp for simplified replacement. It offers a native 1080p resolution, 4100 lumens brightness, and a 3000:1 contrast ratio, suitable for various presentation environments. The Mitsubishi Electric color wheel and BrilliantColor ensure accurate color reproduction. The projector also includes energy-saving features such as automatic power off and selectable lamp modes for extended lamp hupenyu.

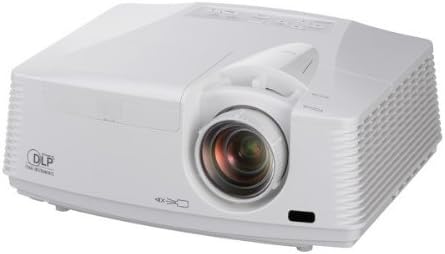

Mufananidzo 1: Mberi view of the Mitsubishi FD730U Projector.

2. Safety Information

Tevedzera matanho anotevera ekuchengetedza kudzivirira moto, kuvhundutswa nemagetsi, kana kukuvara.

• Do not block ventilation openings. Ensure adequate space around the projector for airflow.
• Usatarise zvakananga muprojekita lens kana iyo lamp Chiedza chakajeka chinogona kukuvadza maziso ako.
• Usaise purojekita pangoro isina kugadzikana, pemire, kana tafura.
• Unplug the projector from the wall outlet before cleaning.
• Tumira masevhisi ese kuvashandi vanokwanisa.

3. Package Zviri mukati

Verify that all items listed below are included in your package. If any items are missing or damaged, contact your dealer immediately.

• Mitsubishi FD730U Projector
• Power Cord
• Remote Control nemabhatiri
• VGA Cable
• Mushandisi Chinyorwa (gwaro iri)
• CD-ROM (if applicable)

4. Chigadzirwa Pamusoroview

4.1 Projector Zvikamu

Familiarize yourself with the main components of your projector.

Figure 2: Top and front view of the projector, showing the lens, control panel, and ventilation.

4.2 Rear Panel Connections

The rear panel provides various input and output ports for connecting external devices.

Figure 3: Rear panel of the projector, illustrating the various connection ports including HDMI, VGA, S-Video, and audio inputs/outputs.

4.3 Remote Kudzora

The remote control allows you to operate the projector from a distance. Insert two AAA batteries (included) into the remote control before use.

Figure 4: The remote control for the FD730U projector, showing various function buttons for power, menu navigation, input selection, and image adjustments.

5. Setup

5.1 Kuiswa kwePurojekita

Place the projector on a stable, level surface or mount it securely. Ensure the projector is positioned at an appropriate distance from the screen to achieve the desired image size. Maintain adequate ventilation space around the projector.

5.2 Kubatanidza Simba

1. Connect the power cord to the AC inlet on the projector's rear panel.
2. Batanidza imwe magumo etambo yemagetsi mugetsi rinodzika pasi.

5.3 Kubatanidza Manyuko Ekuisa

Connect your video source (e.g., computer, DVD player, gaming console) to the appropriate input port on the projector's rear panel (refer to Figure 3).

• HDMI: Kuti uwane vhidhiyo neodhiyo zvedhijitari zvine hungwaru.
• VGA (Computer In): For analog computer signals.
• Vhidhiyo yeS-Vhidhiyo/Yakasanganiswa: For standard definition video sources.
• Audio In: Connect audio cables from your source device if not using HDMI.

5.4 Simba rekutanga Rakabatidzwa

After connecting all cables, press the SIMBA button on the projector's control panel or remote control to turn on the projector. The power indicator light will change color, and the lamp achavhenekera.

6. Operating Instructions

6.1 Kubatidza uye Kudzima

• Kubatidza: Press the SIMBA bhatani kamwe.
• Kudzima: Press the SIMBA button twice. The projector will enter a cooling cycle before fully shutting down. Do not unplug the projector during the cooling cycle.

6.2 Sarudzo Yekupinza Kwemukati

Press the INPUT button on the remote or control panel to cycle through available input sources (HDMI, VGA, S-Video, etc.) until your desired source is displayed.

6.3 Kugadziriswa Kwemufananidzo

• Tarisa: Rotate the focus ring on the projector lens until the image is sharp.
• Zoom: Adjust the zoom ring on the projector lens to change the image size without moving the projector.
• Vertical Lens Shift: Use the manual lens shift adjustment toggle (typically located near the lens) to vertically adjust the image position without tilting the projector. This helps correct offset images during installation.
• Keystone Kugadziriswa: Kana mufananidzo wacho wakaita setrapezoidal, shandisa KEYSTONE buttons on the remote control to correct the image shape.

6.4 Menyu Navigation

Press the MENU button on the remote or control panel to access the on-screen display (OSD) menu. Use the arrow buttons to navigate and the PINDA button to select options. Press MENU zvakare kubuda.

6.5 Zvirongwa zveMifananidzo

Within the OSD menu, you can adjust various picture settings:

• Kupenya/Kusiyanisa: Adjust for optimal image clarity.
• Ruvara/Ruvara: Kugadzira mavara zvakanaka.
• Aspect ratio: Select the appropriate aspect ratio (e.g., 16:9, 4:3) for your content.
• Lamp Modhi: Switch between Normal and Low modes. Low mode extends lamp life to an estimated 5000 hours and reduces fan noise, though it slightly lowers brightness.

7. Kuchengeta

7.1 Kuchenesa Purojekita

• Lenzi: Gently wipe the lens with a soft, lint-free cloth specifically designed for optical surfaces. Do not use abrasive cleaners.
• Cabinet: Wipe the projector's exterior with a soft, dry cloth. For stubborn stains, use a slightly damp jira nesipo isina kunyorova, wobva wapukuta.

7.2 Lamp Kutsiva

Purojekita lamp has an estimated life of 5000 hours in Low mode. When the lamp reaches the end of its life, a warning message may appear, or the lamp indicator light may illuminate. The FD730U features a top-loaded lamp for easy replacement.

1. Turn off the projector and unplug the power cord. Allow the projector to cool down for at least 30 minutes.
2. Tsvaga iyo lamp cover on the top of the projector.
3. Unscrew the retaining screw(s) and remove the lamp cover.
4. Nyatsobvisa l yekareamp module by pulling its handle.
5. Isa itsva lamp module, ensuring it is seated correctly.
6. Tsiva lamp cover and secure it with the screw(s).
7. Plug in the power cord and reset the lamp timer in the projector's OSD menu.

7.3 Mhepo Sefa Yekuchenesa

Regularly clean the air filter to maintain optimal performance and prevent overheating. The filter is typically located on the side or bottom of the projector.

1. Dzima purojekita uye bvisa tambo yemagetsi.
2. Tsvaga wobvisa chifukidziro chemhepo inofefetera.
3. Remove the air filter and clean it using a small vacuum cleaner or by gently tapping it to dislodge dust. If heavily soiled, replace it.
4. Reinsert the clean filter and replace the cover.

8. Kugadzirisa matambudziko

9. Zvinotsanangurwa

10. Warranty uye Tsigiro

For warranty information and technical support, please refer to the warranty card included with your product or visit the official Mitsubishi Projectors website. Chengetedza risiti yako yekutenga sehumbowo hwekutenga kwezvichemo zvewaranti.

For further assistance, contact Mitsubishi customer service.
