Nhanganyaya
This manual provides essential information for the safe and effective use of the Lenco 05437 LDC-50 Red Female Dinse Cable Connector. Please read these instructions carefully before installation and operation to ensure proper function and longevity of the product.
Safety Information
Nguva dzose chengetedza zvinotevera zvekuchengetedza:
- Ensure all power sources are disconnected before making or breaking electrical connections.
- Shandisa michina yekudzivirira muviri yakakodzera (PPE) paunenge uchishanda nemidziyo yemagetsi.
- Verify that the connector is compatible with the cable and equipment specifications (e.g., current rating, voltaguye).
- Inspect the connector for any damage before each use. Do not use if damaged.
- Keep the connector clean and free from moisture, dust, and debris.
Product Overview
The Lenco 05437 LDC-50 is a red female Dinse-style connector designed for secure and reliable electrical connections, commonly used in welding and other high-current applications. It is sized for 35/50 Dinse connections.

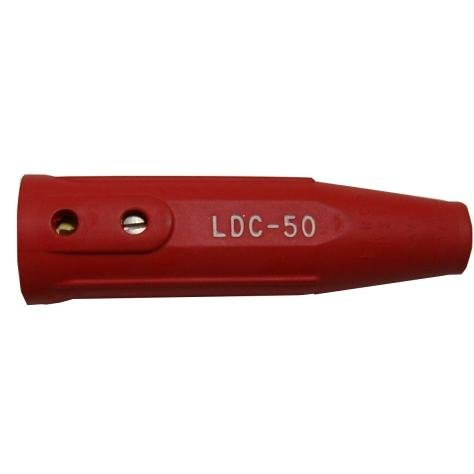

Mufananidzo 1: Lenco 05437 LDC-50 Red Female Dinse Cable Connector. This image shows the red female connector, highlighting its robust construction and standard Dinse interface.
Setup uye Installation
Follow these steps to properly install the Lenco 05437 connector onto a compatible cable:
- Gadzirira Cable: Strip the insulation from the end of the electrical cable to expose the conductor. Ensure the stripped length matches the connector's terminal requirements.
- Isa Waya: Insert the stripped cable conductor into the connector's terminal.
- Secure Connection: Crimp or solder the cable to the connector terminal according to industry best practices and the connector's design. Ensure a tight and secure electrical connection.
- Insulate: If applicable, slide the connector's insulating sleeve or cover over the connection point to provide electrical isolation and strain relief.
- Verify: Double-check all connections for tightness, proper insulation, and absence of exposed conductors.
Cherechedza: Kuisa kwehunyanzvi kunokurudzirwa kuti pave nekuchengetedzeka kwakanyanya uye kushanda zvakanaka.
Operating Instruction
Once the Lenco 05437 female connector is properly installed on a cable, it can be connected to a compatible male Dinse-style connector on equipment or another cable.
- Kubatanidza: Align the female connector with the male connector. Push them together firmly and twist to lock them securely in place.
- Kubvisa: Twist the connectors to unlock them, then pull them apart. Always ensure power is off before disconnecting.
Ensure the connection is fully seated and locked to prevent arcing and ensure efficient power transfer.
Maintenance
Regular maintenance ensures the longevity and safe operation of your connector.
- Kuongorora: Periodically inspect the connector for signs of wear, damage, corrosion, or overheating (discoloration).
- Kuchenesa: Keep the connector contacts clean and free from dirt, grease, and oxidation. Use a non-abrasive cleaner and a clean cloth if necessary. Ensure the connector is dry before use.
- Kuchengeta: Store connectors in a clean, dry environment away from direct sunlight and extreme temperatures when not in use.
Kugadzirisa matambudziko
If you encounter issues with your Lenco 05437 connector, consider the following:
- Kusabatana Kwakashata / Simba Risingachinji:
- Ensure the connector is fully seated and locked.
- Check for dirt or corrosion on the contacts; clean if necessary.
- Inspect the cable connection to the connector for looseness or damage.
- Kupisa zvakanyanya:
- Verify that the connector's current rating is appropriate for the application.
- Check for loose connections, which can cause resistance and heat.
- Ensure proper ventilation around the connection.
- Dambudziko rekubatanidza/kubvisa:
- Ensure the male and female connectors are compatible (e.g., both Dinse 35/50).
- Check for physical damage or deformation on either connector.
If problems persist, discontinue use and consult a qualified technician or contact Lenco support.
Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Brand | Lenco |
| Model Number | 05437 |
| Type | Female Dinse Cable Connector |
| Color | Tsvuku |
| Size | 35/50 Dinse |
| Item Weight | 7.4 ounces |
| Product Dimensions | 5 x 2 x 2 inches |
| ASIN | B00AB2HOTC |
| Zuva Rokutanga Kuwanikwa | Gumiguru 4, 2018 |
Warranty Information
Lenco products are manufactured to high-quality standards. For specific warranty details, please refer to the documentation included with your purchase or visit the official Lenco website. Chengetedza humbowo hwako hwekutenga kune warranty claim.
Mutengi Support
If you have any questions, require technical assistance, or need to report an issue with your Lenco 05437 connector, please contact Lenco customer support through their official websaiti kana ruzivo rwekusangana rwakapihwa neako chigadzirwa kurongedza.
