1. Nhanganyaya
This manual provides essential information for the safe and efficient operation of your InFocus IN2126a WXGA Network Projector. Please read this manual thoroughly before using the projector and retain it for future reference. The InFocus IN2126a is designed for versatile use in various environments, offering high brightness and network capabilities.
2. Safety Information
Observe the following safety precautions to prevent damage to the projector and ensure user safety:
- Do not block ventilation openings. Ensure adequate airflow around the projector.
- Usatarise zvakananga muprojekita lens kana iyo lamp iri on. Chiedza chakajeka chinogona kukuvadza maziso.
- Avoid placing the projector in direct sunlight, near heat sources, or in environments with high humidity or excessive dust.
- Shandisa tambo yemagetsi chete inopihwa nepurojekita.
- Refer all servicing to qualified service personnel. Do not attempt to open or repair the projector yourself.
3. Chigadzirwa Pamusoroview
Familiarize yourself with the components and features of your InFocus IN2126a projector.
3.1 Projector Zvikamu
Mufananidzo 1: Kumberi-kurutivi view of the InFocus IN2126a projector, showing the lens and ventilation.
Mufananidzo 2: Rutivi view of the InFocus IN2126a projector, highlighting the ventilation grilles.
3.2 Rear Panel Connections
The rear panel provides various input and output ports for connecting external devices.

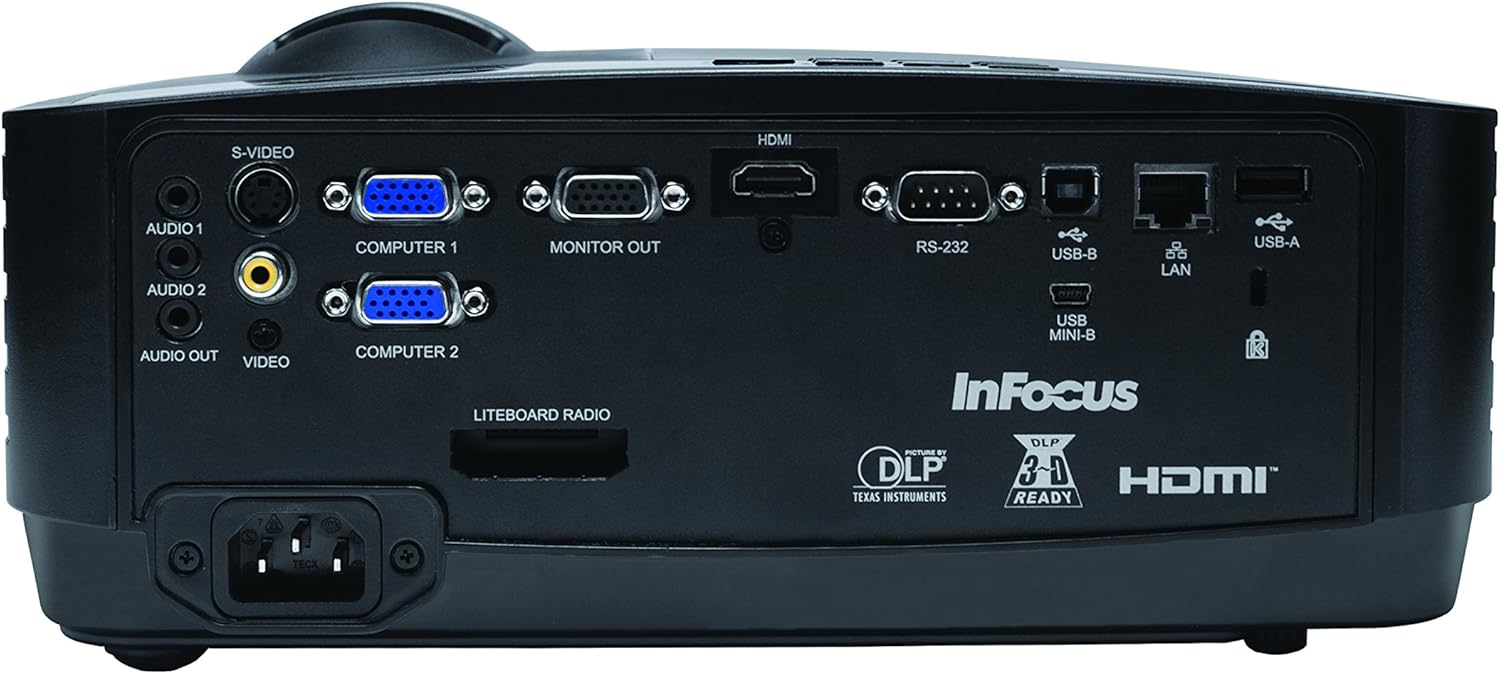

Figure 3: Rear panel of the InFocus IN2126a projector, displaying various connectivity ports including HDMI, VGA, USB, and LAN.
- HDMI: For digital video and audio input.
- COMPUTER 1 / COMPUTER 2 (VGA): Kuti muwane mavhidhiyo e analog kubva kumakomputa.
- MONITOR OUT (VGA): For connecting an external monitor.
- USB-B / USB Mini-B: For service or specific USB functions.
- USB-A: For connecting USB devices, such as a wireless adapter.
- LAN (RJ45): Zvekubatanidza network.
- RS-232: Yekudzora serial.
- AUDIO 1 / AUDIO 2 (RCA): Zvekupinza audio.
- AUDIO OUT: Yekubatanidza masisitimu ekunze eanzwi.
- VIDEO (RCA): Kuti muise mavhidhiyo akabatanidzwa.
- S-VIDEO: For S-Video input.
- Power Inlet: Yekubatanidza tambo yemagetsi.
3.3 Kudzora Panel Yepamusoro
The top panel features controls for basic projector functions and image adjustments.
Figure 4: Top panel of the InFocus IN2126a projector, showing the control buttons and focus/zoom rings.
- Bhatani reSimba: Inobatidza kana kudzima purojekita.
- Menu/Exit Button: Accesses or exits the on-screen display (OSD) menu.
- Mabhatani Ekufambisa (Kumusoro, Pasi, Kuruboshwe, Kurudyi): Anofamba nemamenu sarudzo.
- Enter Bhatani: Inosimbisa sarudzo dziri mumenyu.
- Kunobva Bhatani: Inosarudza zvinyorwa.
- Blank Button: Temporarily blanks the screen.
- Auto Bhatani: Inogadzirisa otomatiki marongero emifananidzo.
- Funga Mhete: Inogadzirisa kupinza kwemufananidzo.
- Zoom Ring: Adjusts image size.
3.4 Dimensions
Understanding the physical dimensions is important for installation and placement.

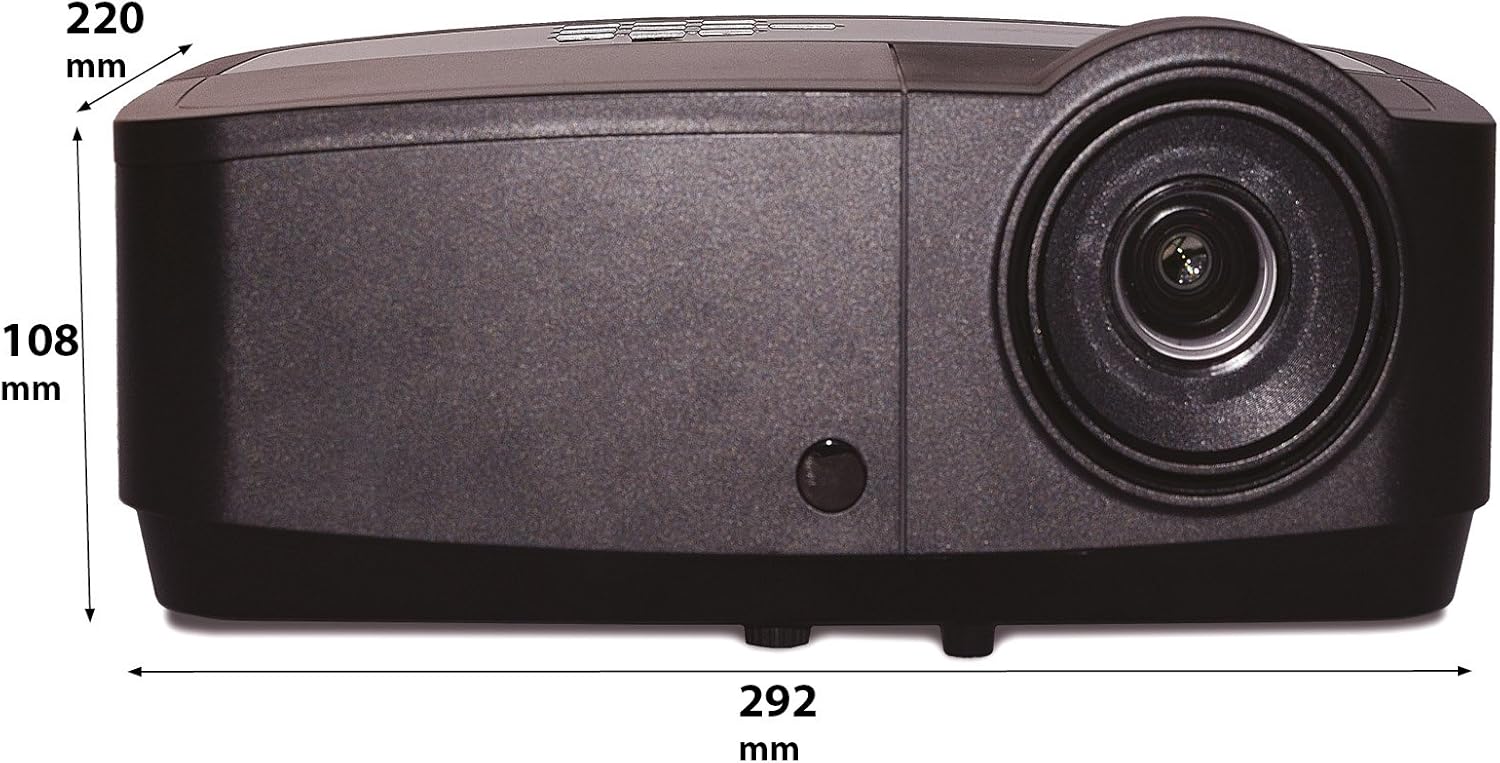

Figure 5: Diagram illustrating the dimensions of the InFocus IN2126a projector (292mm length, 220mm width, 108mm height).
4. Setup
4.1 Kuiswa kwePurojekita
Place the projector on a stable, flat surface or mount it securely. Ensure the projector is positioned at an appropriate distance from the screen to achieve the desired image size. Maintain sufficient space around the projector for proper ventilation.
4.2 Kubatanidza Zvishandiso
- Power Connection: Connect the power cord to the projector's power inlet and then to a grounded electrical outlet.
- Vhidhiyo Source:
- For digital sources (e.g., Blu-ray player, laptop), use an HDMI cable to connect to the HDMI port.
- For analog computer sources, use a VGA cable to connect to the COMPUTER 1 or COMPUTER 2 port.
- For other video sources, use the appropriate S-VIDEO or VIDEO (RCA) connections.
- Kunobva Audio: If your video source does not transmit audio via HDMI, connect audio cables to the AUDIO 1 or AUDIO 2 ports.
- Network Connection: For wired network access, connect an Ethernet cable to the LAN port.
- Wireless Kubatana: If using a compatible wireless adapter (sold separately), insert it into the USB-A port.
4.3 Kubatidza/Kudzima
- Kubatidza: Press the Power button on the projector's top panel or the remote control. The power indicator light will illuminate.
- Kudzima: Press the Power button again. The projector will enter a cooling cycle before shutting down completely. Do not unplug the projector during the cooling cycle.
5. Kushandisa Projector
5.1 Source Selection
After powering on, the projector may automatically detect an active input source. If not, or to switch sources:
- Press the Source bhatani papurojekita kana kuremerwa.
- Use the navigation buttons to highlight the desired input source (e.g., HDMI, Computer 1, Video).
- Press Enter kusarudza kwakabva.
5.2 Kugadziriswa Kwemufananidzo
- Tarisa: Rotate the Focus ring on the projector lens until the image appears sharp and clear.
- Zoom: Rotate the Zoom ring on the projector lens to adjust the image size to fit your screen.
- Keystone Kugadziriswa: If the image appears trapezoidal, use the keystone correction feature in the OSD menu to square the image.
5.3 Pa-Screen Display (OSD) Menyu
The OSD menu allows you to configure various projector settings.
- Press the Menu button to open the OSD menu.
- Shandisa iyo Kumusoro/Kudzika navigation buttons to select a menu category.
- Shandisa iyo Kuruboshwe/Kurudyi navigation buttons to adjust settings or enter sub-menus.
- Press Enter kusimbisa shanduko.
- Press Exit to close the OSD menu.
5.4 Wireless Kubatana
The IN2126a is wireless-ready. To enable wireless display, a compatible InFocus wireless adapter (sold separately) must be connected to the USB-A port. Refer to the wireless adapter's specific instructions for setup and connection procedures.
5.5 Mashandiro e3D
Purojekita inotsigira zviri mu3D. view 3D content, you will need a compatible 3D source, 3D glasses, and appropriate 3D content. Refer to the projector's OSD menu for 3D settings and ensure your source device is configured for 3D output.
6. Kuchengeta
Kugadziriswa nguva dzose kunoita kuti purojekita yako ishande zvakanaka uye kunoita kuti igare kwenguva refu.
6.1 Lamp Kutsiva
Purojekita lamp has a limited lifespan (approximately 4000 hours). When the lamp chiratidzo chinovhenekera kana kupenya kwemufananidzo kuchiderera zvakanyanya, lamp needs replacement. Always use an authorized InFocus replacement lamp. Refer to the full service manual for detailed lamp replacement instructions or contact customer support.
6.2 Kuchenesa Sefa
Dust accumulation on the air filter can impede airflow and cause overheating. Regularly clean the air filter to maintain proper ventilation. Turn off and unplug the projector before cleaning. Use a soft brush or vacuum cleaner to remove dust from the filter cover.
6.3 General Kuchenesa
- Purojekita Casing: Shandisa jira rakapfava, risina mucheka dampened with a mild, non-abrasive cleaner. Do not use harsh chemicals.
- Lenzi: Use a lens cleaning cloth and specialized lens cleaning solution. Avoid touching the lens surface with your fingers.
7. Kugadzirisa matambudziko
Kana ukasangana nematambudziko nepurojekita yako, tarisa kune anotevera akajairika matambudziko uye mhinduro:
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Hapana mufananidzo pachiratidziri | Incorrect input source selected; Loose cable connection; Projector in standby mode. | Verify input source; Check all cable connections; Press power button to wake from standby. |
| Mufananidzo hauna kujeka | Focus isina kugadziriswa; Projector iri padhuze zvakanyanya/kure nescreen. | Adjust the focus ring; Reposition the projector and adjust zoom. |
| Mufananidzo uri trapezoidal | Projector kwete perpendicular kune skrini. | Shandisa kugadzirisa keystone mumenyu yeOSD. |
| Hapana audio | Audio cables not connected; Volume too low; Muted. | Check audio cable connections; Adjust volume; Unmute projector. |
| Purojekita inopisa zvakanyanya uye inodzima | Kufefetera kwakavharika; Sefa yemhepo yakasviba. | Ensure clear airflow around projector; Clean the air filter. |
For more detailed troubleshooting, consult the complete user manual or contact InFocus customer support.
8. Zvinotsanangurwa
Key technical specifications for the InFocus IN2126a WXGA Network Projector:
- Zita remuenzanisi: IN2126a
- Ratidza Rudzi: DLP
- Native Resolution: 1280 x 800 (WXGA)
- Kupenya: 3500 Lumens
- Contrast Ration: 15000:1
- Kuberekwa Kwemavara: 1.07 Billion Colors (30-bit)
- Chiedza Chekushandisa Hupenyu: 4000 Maawa
- Kubatana Technology: Wireless-ready, HDMI 1.4, VGA (x2), USB (Type-A, Mini-B, Type-B), LAN (RJ45), RS-232, Audio In (x2), Audio Out, Video (RCA), S-Video
- Special Features: 3D-Ready, Network Projector
- Fomu Factor: Portable
- Mounting Type: Tabletop Mount
- Chinhu Weight: 7.1 Pondo
9. Warranty uye Tsigiro
For information regarding your product's warranty, please refer to the warranty card included with your purchase or visit the official InFocus website. For technical support, service, or to purchase accessories, please contact InFocus customer service through their official channels.
