1. Nhanganyaya
This manual provides essential information for the safe and effective use of the Cleveland SK1427305 Capacitor. This component is a genuine OEM replacement part designed for specific industrial electrical applications. It functions as an energy storage device, crucial for filtering, smoothing, and timing circuits. Please read this manual thoroughly before installation and operation.
2. Safety Information
Yambiro: Electrical components can pose significant hazards if not handled correctly. Improper installation or use can result in electric shock, fire, or damage to equipment. Always adhere to the following safety guidelines:
- Professional Installation: Installation and maintenance should only be performed by qualified and experienced personnel.
- Bvisa Simba: Always ensure that all power to the circuit is disconnected and locked out before attempting any installation, removal, or inspection of the capacitor.
- Discharge Capacitor: Capacitors can retain a dangerous electrical charge even after power is disconnected. Always discharge the capacitor safely using appropriate tools before handling.
- Tarisa Polarity: Electrolytic capacitors are polarized. Incorrect polarity connection will lead to component failure, potential explosion, and severe damage. Identify the positive (+) and negative (-) terminals carefully.
- Dzivisa Mapfupi Circuits: Prevent accidental short circuits across the capacitor terminals.
- Environmental Conditions: Do not expose the capacitor to conditions outside its specified operating temperature or voltage ranges.
- Kurasa Kwakakodzera: Dispose of old or damaged capacitors according to local environmental regulations.
3. Chigadzirwa Pamusoroview
The Cleveland SK1427305 is a high-quality electrolytic capacitor designed for robust performance in industrial settings. It features a cylindrical shape with screw terminals for secure connections. The capacitor is rated for 4700 microfarads (µF) capacitance and a maximum operating voltage of 63 VDC, with a temperature rating of 105°C.

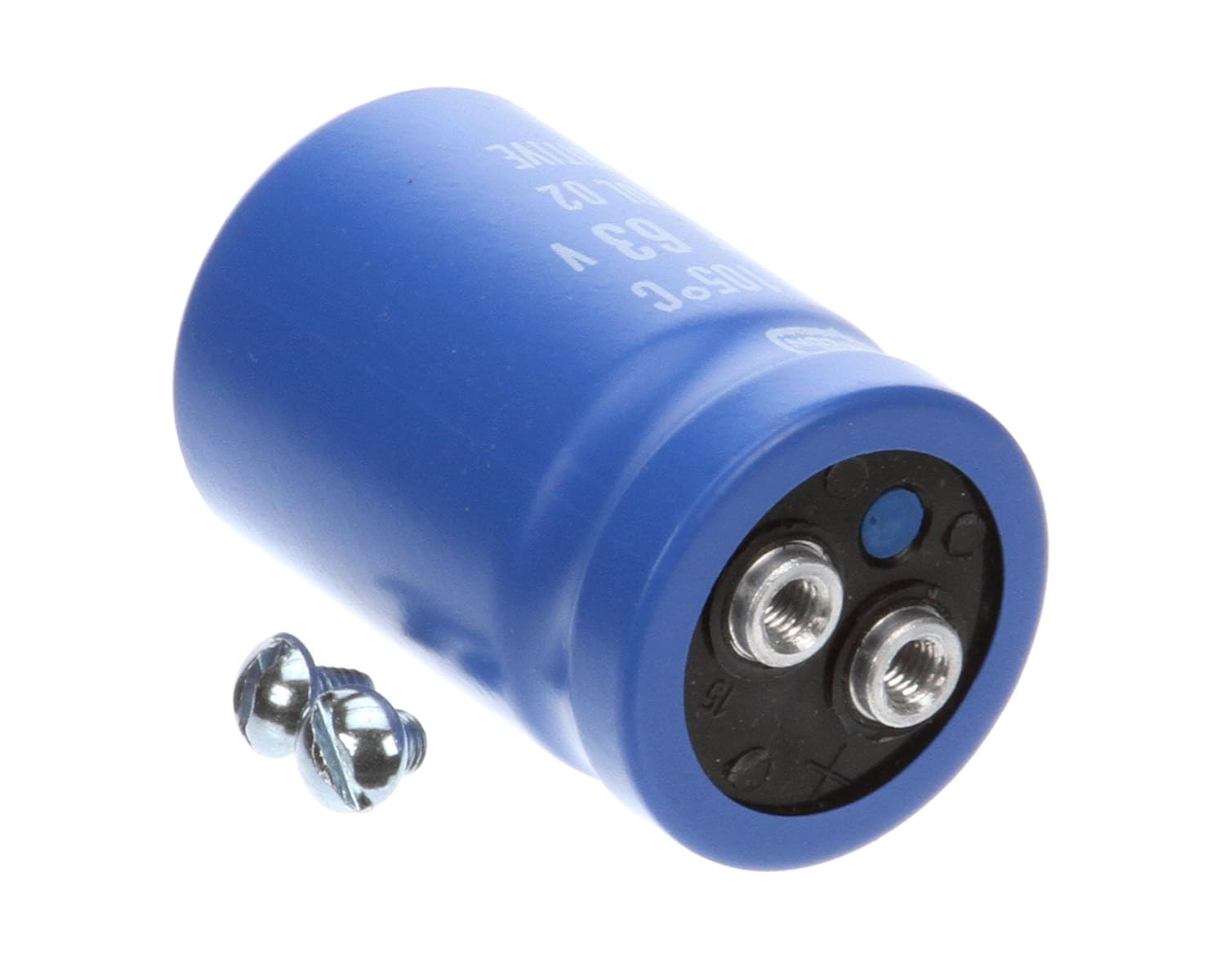

Mufananidzo 3.1: Cleveland SK1427305 Capacitor showing its blue cylindrical body, two screw terminals, and accompanying mounting screws.
Mufananidzo 3.2: Detailed view of the capacitor's side, displaying key specifications such as '4700 µF', '63 V', '105°C', and the 'POSITIVE' terminal indicator.
4. Setup uye Kuiswa
Proper installation is critical for the capacitor's performance and safety. Follow these steps carefully:
- Kudzima Simba: Ensure all power to the equipment is completely disconnected and verified before beginning installation.
- Discharge Existing Capacitors: If replacing an existing capacitor, ensure it is fully discharged before removal.
- Verify Specifications: Confirm that the new Cleveland SK1427305 capacitor's specifications (capacitance, voltage, temperature) match the requirements of the circuit.
- Tarisa Polarity: Carefully identify the positive (+) and negative (-) terminals on both the capacitor and the circuit board/wiring. Connect the capacitor with the correct polarity. Incorrect polarity will cause damage.
- Secure Mounting: Mount the capacitor securely using appropriate hardware. Ensure it is stable and not subject to excessive vibration.
- Terminal Connections: Connect the circuit wires to the capacitor's screw terminals. Ensure connections are tight and secure to prevent arcing or poor contact.
- Kuongorora Kwekupedzisira: Before restoring power, visually inspect all connections for correctness and security.
5. Operating Principles
The Cleveland SK1427305 capacitor is a passive electronic component. Once installed in a circuit, it operates by storing electrical energy in an electric field. Its primary functions include:
- Kusefa: Smoothing out voltage fluctuations in power supplies.
- Kuchengetedzwa Kwemagetsi: Providing temporary power during voltage drops or for specific circuit operations.
- Coupling/Decoupling: Blocking DC current while allowing AC signals to pass, or shunting unwanted signals to ground.
The capacitor will function automatically within the designed parameters of the circuit it is integrated into, provided it is correctly installed and the circuit operates within its specified voltage uye zvino miganhu.
6. Kuchengeta
Capacitors are generally low-maintenance components. However, periodic inspection can help ensure longevity and prevent unexpected failures:
- Visual Inspection: Regularly inspect the capacitor for any signs of physical damage, such as bulging, leakage (electrolyte residue), discoloration, or corrosion around the terminals.
- Utsanana: Keep the area around the capacitor clean and free from dust, dirt, and moisture, which can affect performance and lead to short circuits.
- Environmental Control: Ita shuwa kuti nzvimbo yekushanda inoramba iri mukati meiyo tembiricha yakatarwa uye humidity mazinga kudzivirira kushatisa nguva isati yakwana.
- Kuvimbika kweChiteshi: Check that terminal connections remain tight and free from corrosion.
If any signs of damage or degradation are observed, the capacitor should be replaced immediately by qualified personnel after safely discharging it and disconnecting power.
7. Kugadzirisa matambudziko
Capacitor failures can manifest in various ways, often impacting the overall circuit performance. Common symptoms and potential causes include:
- Bulging or Venting: The top or bottom of the capacitor appears swollen, or there is evidence of electrolyte leakage. This indicates internal pressure buildup, often due to overvoltage, overheating, or age.
- Reduced Circuit Performance: If the circuit is not functioning as expected (e.g., excessive ripple in power supplies, timing inaccuracies), the capacitor may have lost capacitance or developed a high Equivalent Series Resistance (ESR).
- No Power/Circuit Failure: A shorted capacitor can cause immediate circuit failure or blow fuses.
If any of these symptoms are observed, the capacitor is likely faulty and requires replacement. Always ensure power is disconnected and the capacitor is safely discharged before attempting any troubleshooting or replacement.
8. Zvinotsanangurwa
The following table details the key specifications for the Cleveland SK1427305 Capacitor:
| Tsanangudzo | Value |
|---|---|
| Brand | CLEVELAND |
| Item Model Number | CLESK1427305 |
| Capacitance | 4700 µF (Microfarads) |
| Kushanda Voltage | 63 Volts DC |
| Kunonyanyisa Voltage | 63 Volts |
| Temperature Rating | 105°C (as indicated on component) |
| Material | Lead (terminals) |
| Shape | Round (Cylindrical) |
| Product Dimensions | 2.25 x 1.4 x 1.4 inches |
| Item Weight | 3.2 ounces |
| Mugadziri | CLEVELAND RANGE |
| ASIN | B00HVPDRDO |
9. Warranty uye Tsigiro
For warranty information regarding the Cleveland SK1427305 Capacitor, please refer to the terms and conditions provided by your point of purchase or contact the manufacturer directly. As an OEM replacement part, specific warranty details may vary.
For technical support or further inquiries, please reach out to the authorized distributor or the manufacturer, CLEVELAND RANGE, through their official support channels.
