1. Nhanganyaya
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Kettler Fitness Track5 Motorized Treadmill. Please read this manual thoroughly before initial use and retain it for future reference. Proper use and maintenance will ensure the longevity and optimal performance of your equipment.
2. Ruzivo Rwakakosha Chekuchengetedza
Before using the Kettler Track5 Treadmill, please observe the following safety precautions:
- Bvunza chiremba usati watanga chero chirongwa chitsva chekurovedza muviri.
- Ensure the treadmill is placed on a flat, stable surface with adequate clearance around it (at least 2 meters behind and 0.6 meters on each side).
- Chengetedza vana uye mhuka dzinovaraidza kure netreadmill panguva yekushanda.
- Always use the safety key/clip. Attach it to your clothing before starting your workout. In case of an emergency, pulling the safety key will immediately stop the treadmill.
- Usatsika kana kudzima bhandi richifamba.
- Pfeka shangu dzemitambo dzakakodzera.
- Maximum user weight: 140 kg. Do not exceed this limit.
- Bvisa treadmill kubva pamagetsi kana isiri kushandiswa kana usati waichenesa/kuigadzirisa.
3. Setup uye Gungano
The Kettler Track5 Treadmill is designed for home use and comes largely pre-assembled. Minor assembly steps may be required to prepare it for use.
3.1 Kusunungura
Carefully remove all components from the packaging. Inspect for any damage during transit. Retain packaging materials for potential future transport or returns.
3.2 Kuiswa
Place the treadmill on a firm, level surface. Ensure there is sufficient space around the unit for safe operation and access. A minimum of 2 meters clear space behind the running deck and 0.6 meters on each side is recommended.
Mufananidzo 3.2.1: The Kettler Fitness Track5 Motorized Treadmill in its operational state. This image shows the full profile of the treadmill, including the running deck, console, and handlebars, ready for use. It highlights the overall design and footprint of the equipment.
3.3 Simba Connection
Connect the power cord to the treadmill's power input and then to a grounded electrical outlet. Ensure the power switch (usually located near the power cord input) is in the "ON" position.
4. Operating Instructions
Familiarize yourself with the control panel before beginning your workout.
Mufananidzo 4.0.1: A pedyo-up view of the Kettler Track5 Treadmill's control panel. This image displays the digital display, various control buttons for speed and incline adjustments, and the prominent START and STOP buttons. The 3D Black Matrix display is visible, showing workout metrics.
4.1 Kutanga Workout
- Iva nechokwadi chekuti kiyi yekuchengetedza yakaiswa zvakanaka mu console uye yakabatanidzwa pazvipfeko zvako.
- Pinda pamativi etambo yekutsika.
- Press the START button. The belt will begin to move at a slow speed.
- Nyatsotsika pabhandi rinofamba.
- Adjust speed using the + uye - buttons for speed, or use the quick-select speed buttons (e.g., 4%, 8%, 12%).
4.2 Kugadzirisa Kutsamira
The treadmill offers a motorized incline adjustment from 0% to 12%.
- Shandisa iyo + uye - buttons for incline adjustment, or use the quick-select incline buttons (e.g., 4%, 8%, 12%).
- The incline will adjust gradually.
4.3 Kushandisa Zvirongwa
The Kettler Track5 features 7 pre-set programs. Refer to the console display for program selection and details. Press the "Program" button (if available) to cycle through options and "ENTER" to select.
4.4 Kumisa Workout
- Press the MIRA button to gradually slow down and stop the treadmill belt.
- Neimwe nzira, dhonza kiyi yekuchengetedza kuti umise treadmill ipapo ipapo.
- Once the belt has completely stopped, carefully step off the treadmill.
5. Kuchengeta
Kugadziriswa nguva dzose kunovimbisa kugara kwenguva refu uye kushanda kwakachengeteka kwetreadmill yako.
5.1 Kuchenesa
- Nguva dzose bvisa treadmill usati wachenesa.
- Pukuta console nekunze kwayo uchishandisa adamp jira. Dzivisa zvinochenesa zvinogumbura kana hunyoro hwakawandisa.
- Nguva nenguva vacuum pasi pechitsiko kudzivirira guruva nemarara kuwanda.
5.2 Belt Lubrication
The running belt requires periodic lubrication to reduce friction and extend its lifespan. Refer to the specific instructions provided with your treadmill's lubricant or consult Kettler support for recommended lubrication intervals and procedures.
5.3 Kugadzikana uye Kurongeka kweBhandi
Over time, the running belt may require tension adjustment or alignment. If the belt slips or drifts to one side, consult the detailed instructions in the full product manual or contact Kettler customer service. Incorrect adjustment can damage the treadmill.

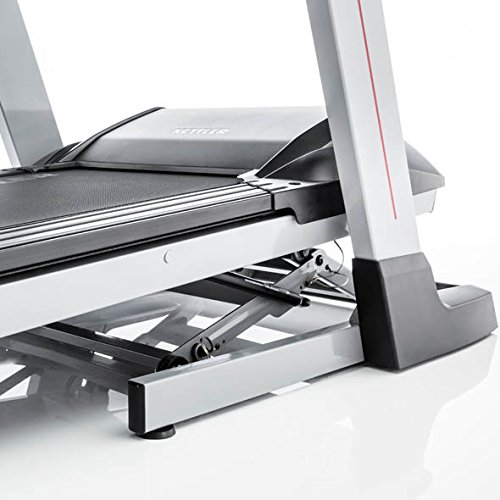

Mufananidzo 5.3.1: A akadzama view of the Kettler Track5 Treadmill's shock absorber system located beneath the running deck. This mechanism is crucial for joint relief during exercise and requires occasional inspection to ensure proper function and prevent wear.
6. Kugadzirisa matambudziko
This section addresses common issues you might encounter with your Kettler Track5 Treadmill.
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Treadmill haibati simba. | Power cord not connected, power switch off, circuit breaker tripped. | Check power cord connection, ensure power switch is ON, reset circuit breaker if necessary. |
| Bhandi harifambi. | Safety key not inserted, motor overload, belt jammed. | Ensure safety key is fully inserted. Reduce user weight if exceeding limit. Inspect for obstructions under the belt. |
| Belt slips during use. | Belt too loose, belt requires lubrication. | Adjust belt tension (refer to full manual). Lubricate the belt as per maintenance schedule. |
| Ruzha rusingawanzoitiki runobva patreadmill. | Zvinhu zvisina kusimba, dambudziko remota, kukweshana kwebhandi. | Inspect for loose screws. Lubricate belt. If noise persists, contact customer support. |
For issues not listed here, or if solutions do not resolve the problem, please contact Kettler customer support.
7. Zvigadzirwa zveChigadzirwa
| Feature | Detail |
|---|---|
| Model | Track5 |
| Motor | 2.5 HP continuous duty DC motor |
| Speed Range | 0.8 - 18 km/h (0.1 km/h increments) |
| Incline Adjustment | 0 - 12% (motor-driven) |
| Running Area (L x W) | 145 x 51 cm |
| Max. Mushandisi Kurema | 140 kg |
| Display | 3D Black Matrix, backlit in green with 7 functions (Distance, Speed, Incline, Calories Burned, etc.) |
| Zvirongwa | 7 pre-set zvirongwa |
| Zviyero (L/W/H) | 202 / 88 / 136 cm (set up) |
| Item Weight | 127 kg |
| Material | Alloy Steel |
| Safety Standard | German DIN EN Standard 957-1/6, Class HB |

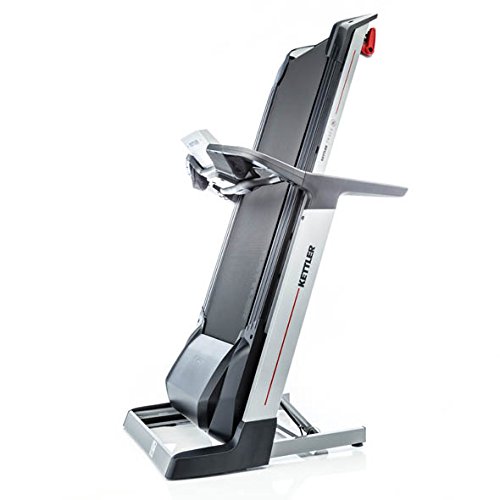

Mufananidzo 7.0.1: The Kettler Track5 Treadmill shown in a folded position, illustrating its space-saving design for storage. This view emphasizes the vertical orientation when not in use, making it suitable for home environments with limited space.
8. Warranty uye Tsigiro
Kettler products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Kettler website. Chengetedza humbowo hwako hwekutenga kune warranty claim.
For technical assistance, spare parts, or service inquiries, please contact Kettler customer support. Contact information can typically be found on the Kettler website or on your product documentation.
Cherechedza: Kugadzirisa kana kugadzirisa zvisina mvumo kunogona kuita kuti garandi yako isashande.
