1. Nhanganyaya
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Bernette B33 Swiss Design Sewing Machine. Please read this manual thoroughly before using the machine for the first time.
Figure 1: The Bernette B33 Swiss Design Sewing Machine. This image displays the overall design of the machine, highlighting its compact and user-friendly appearance with clearly visible stitch selection dials and the Bernette branding.
2. Setup
2.1 Kusunungura uye Kuisa
Carefully remove the sewing machine from its packaging. Place the machine on a stable, flat surface with adequate lighting. Ensure there is enough space around the machine for comfortable operation.
2.2 Simba Connection
Connect the foot control cable to the machine and then plug the power cord into a standard 110V electrical outlet. Ensure the machine's power switch is in the 'Off' position before connecting to power.
2.3 Kuisa tsono
To install a new needle, loosen the needle clamp screw, insert the new needle with the flat side facing the back, and push it up as far as it will go. Tighten the needle clamp sikururu zvakachengeteka.
2.4 Kumonera Bobbin
Place an empty bobbin onto the bobbin winder spindle. Guide the thread from the spool pin through the tension disc for bobbin winding, then around the bobbin a few times. Push the spindle to the right and press the foot control to wind the bobbin. Stop when the bobbin is full.
2.5 Kubatanidza Muchina
Follow the numbered threading path indicated on the machine. This typically involves guiding the thread from the spool pin, through the upper tension discs, down and around the take-up lever, and finally through the semi-automatic needle threader or manually through the needle eye.
Mufananidzo 2: Detailed view of the needle threading process and the bobbin compartment. This image illustrates how to engage the semi-automatic needle threader and the placement of the bobbin for proper setup.

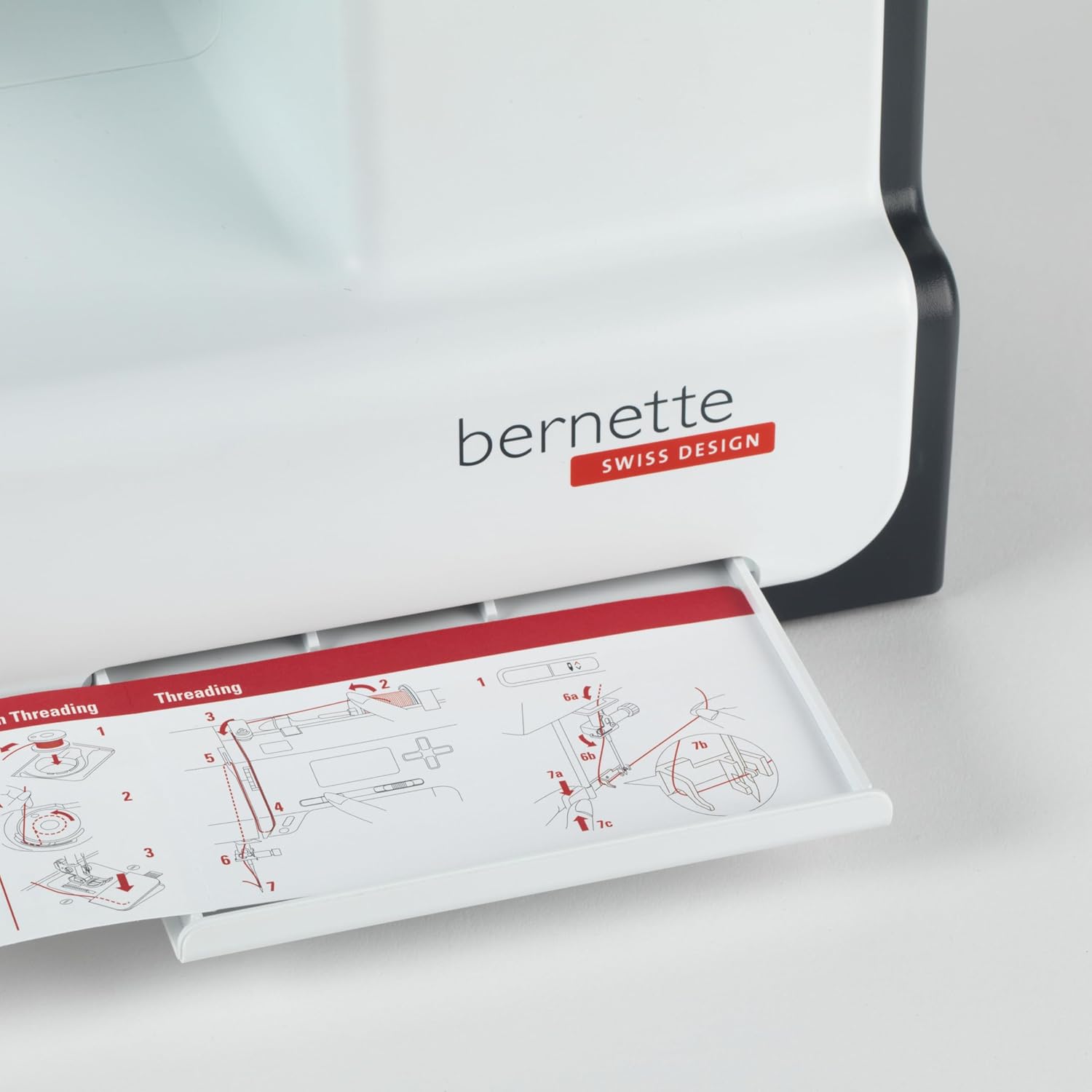

Figure 3: The integrated threading diagram pull-out tray on the Bernette B33. This convenient feature provides clear, step-by-step visual instructions for threading the upper thread and winding the bobbin, ensuring correct setup.
3. Operating Instructions
3.1 Sarudzo yeMusono
The Bernette B33 offers 15 built-in stitches, including utility, decorative, and stretch stitches, as well as a 4-step buttonhole function. Rotate the stitch selection dial on the front of the machine to choose your desired stitch.
3.2 Stitch Length and Width Adjustment
Adjust stitch length and width using the dedicated dials. For most general sewing, a stitch length of 2.5mm is suitable. Experiment with different settings to achieve the desired look for your project.
3.3 Presser Foot Lift
The machine features a 2-step presser foot lift, allowing you to raise the presser foot higher for easier placement of thick fabrics or multiple layers. Always lower the presser foot before beginning to sew.
3.4 Free Arm Sewing
To utilize the free arm, remove the accessory box. This feature is ideal for sewing cylindrical items such as cuffs, sleeves, pant hems, and small children's garments.
3.5 Using the Foot Control
The foot control regulates the sewing speed. Press gently for slower speeds and apply more pressure for faster sewing. Always maintain control of your fabric while sewing.
Figure 4: The Bernette B33 sewing machine positioned on a table in a well-lit sewing room. This image provides a practical context for the machine's use, demonstrating its suitability for various home sewing environments.
4. Kuchengeta
4.1 Kuchenesa
Regular cleaning is crucial for optimal performance. Use a small brush to remove lint and dust from the bobbin case area and feed dogs. It is recommended to clean the machine after every few hours of sewing or after completing a large project.
4.2 Kutsiva tsono
Replace your needle frequently, ideally after every 8-10 hours of sewing, or when you notice skipped stitches, pulled fabric, or a dull sound. A fresh needle prevents damage to your fabric and ensures smooth stitching.
4.3 Kutarisira Kwese
When not in use, cover your sewing machine to protect it from dust. Store it in a dry environment. Avoid pulling on the fabric while sewing, as this can bend the needle or affect stitch quality.
5. Kugadzirisa matambudziko
This section addresses common issues you might encounter. For more detailed troubleshooting, refer to the comprehensive manual provided with your machine or visit the official Bernette support website.
- Skipped Stitches: Ensure the needle is inserted correctly and is not bent or dull. Check that the machine is threaded properly, both upper and bobbin threads. Use the correct needle type for your fabric.
- Kuputsa Thread: Verify that the machine is threaded correctly and the tension is set appropriately. Check for burrs on the needle plate or bobbin case. Ensure the thread is not old or of poor quality.
- Uneven Stitches/Tension Issues: Re-thread the machine completely, ensuring the thread is seated correctly in all tension discs. Check bobbin winding for evenness. Adjust the upper thread tension dial as needed.
- Machine Not Feeding Fabric: Ensure the presser foot is lowered. Check if the feed dogs are engaged (not dropped for free-motion sewing). Clean any lint from the feed dog area.
- Muchina Usina Kutanga: Verify the power cord is securely plugged into both the machine and the electrical outlet. Ensure the foot control is connected. Check the power switch.
6. Zvinotsanangurwa
| Feature | Tsanangudzo |
|---|---|
| Product Dimensions | 17.1 x 8.7 x 13.3 inches (approx. 43.4 x 22.1 x 33.8 cm) |
| Item Weight | 7 ounces (approx. 0.2 kg) - Note: This weight seems unusually low for a sewing machine and may refer to packaging or a component. Actual machine weight is typically higher. |
| Yakavakwa-mukati Stitches | 15 |
| Rudzi rweMabhatani | 4-step manual buttonhole |
| Presser Feet Included | 5 (e.g., zigzag, buttonhole, zipper) |
| Tsono Threader | Semi-otomatiki |
| Presser Foot Lift | 2-nhanho |
| Simba Rinodiwa | 110V (for US market) |
7. Warranty uye Tsigiro
Your Bernette B33 sewing machine is designed for durability and reliable performance. For specific warranty details, please refer to the warranty card included with your product or visit the official Bernette website. Bernette offers various protection plans for extended coverage, which can be purchased separately.
For technical support, service, or to find authorized service centers, please contact Bernette customer service through their official website or the contact information provided in your product documentation. Always provide your model number (B072W7DPQM) when seeking support.
