1. Nhanganyaya
This manual provides essential information for the safe and efficient operation of your Vonyx CDJ450 DJ Workstation. Please read it thoroughly before using the device and retain it for future reference. The Vonyx CDJ450 is a versatile DJ workstation featuring dual CD/MP3 players, Bluetooth connectivity, two USB ports, and a 2-channel mixer, designed for comprehensive audio control.
2. Mirayiridzo Yekuchengetedza
- Ita shuwa kuti magetsi anoenderana nevoltage yakatsanangurwa pane iyo unit.
- Usaise mudziyo wacho pamvura kana hunyoro kudzivirira kuvhunduka kwemagetsi.
- Dzivisa kuisa chikwata pedyo nezvinopisa kana muzuva rakananga.
- Usavhura casing; endesa masevhisi ese kuvashandi vanokwanisa.
- Chengeta mazaru ekufemesa akajeka kudzivirira kupisa.
- Bvisa tambo yemagetsi panguva yemheni kana kuti kana isingashandiswi kwenguva yakareba.
3. Chigadzirwa Pamusoroview
The Vonyx CDJ450 integrates two media players and a central mixer into a single unit, offering a compact and powerful solution for DJs.
Mufananidzo 3.1: Pamusoro-pasi view of the Vonyx CDJ450 DJ Workstation, showing the dual players and central mixer controls.
Mufananidzo 3.2: Angled view of the workstation, highlighting its compact design and accessible controls.
Mufananidzo 3.3: Close-up of the central mixer and player controls, including jog wheels, pitch faders, and display screens.
Mufananidzo 3.4: USB ports located on the top panel, demonstrating USB drive connectivity for MP3 playback.
Mufananidzo 3.5: Mberi view with both CD trays open, ready for disc insertion.
Mufananidzo 3.6: Detailed view of a player's display, showing track information, and associated playback controls.

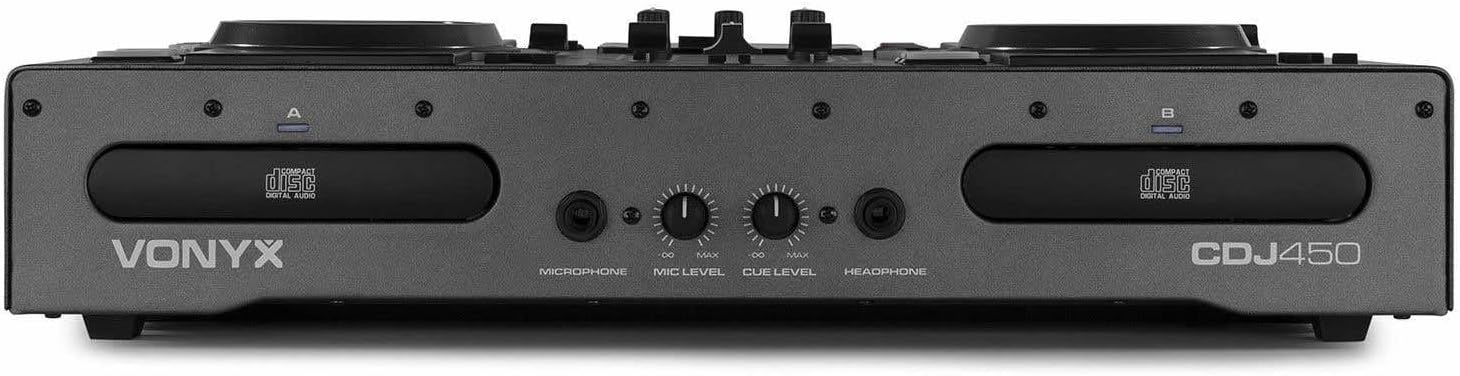

Mufananidzo 3.7: Front panel featuring microphone input, microphone level control, cue level, and headphone output.
Mufananidzo 3.8: Rear panel showing power input, main outputs (XLR, RCA), record output, USB Type-B port, and switchable Phono/Line inputs.
4. Setup
- Kuiswa: Place the CDJ450 on a stable, flat surface with adequate ventilation.
- Power Connection: Connect the included power cable to the unit's power input and then to a suitable wall outlet. Ensure the power switch is in the OFF position before connecting.
- Audio Output: Connect the main outputs (XLR or RCA) to your amplifier, powered speakers, or PA system.
- External Devices (Optional): Connect external audio sources (e.g., turntables, additional CD players) to the Phono/Line inputs on the rear panel. Use the switches to select the correct input type.
- Microphone/Headphones: Connect your microphone to the XLR-DJ input or the 6.3mm jack on the front. Plug your headphones into the 3.5mm jack on the front.
- Kubatanidza USB (Zvichida): For computer control or recording, connect a USB Type-B cable from the unit to your computer.
5. Operating Instructions
5.1. Simba On / Off
Flip the power switch on the rear panel to the 'ON' position. The displays will illuminate. To power off, flip the switch back to 'OFF'.
5.2. Media Playback (CD/USB)
- CD Kutamba: Insert an audio CD or MP3 CD into one of the CD trays. The unit will automatically read the disc.
- USB Kutamba: Isa USB flash drive ine MP3 files into one of the USB ports on the top panel.
- Kwakabva Sarudzo Use the 'SOURCE' button above each player to switch between CD and USB input.
- Track Sarudzo: Use the navigation buttons or the numeric keypad to select tracks. The integrated folder search function allows quick access to files on USB drives.
- Playback Control: Use the 'PLAY/PAUSE' and 'CUE' buttons for standard playback control.
5.3. Kubatana kweBluetooth
- Activate Bluetooth on your smartphone, tablet, or laptop.
- Select 'Bluetooth' as the source on the desired player.
- Tsvaga available devices on your external device and select 'Vonyx CDJ450'.
- Once paired, you can stream audio wirelessly to the workstation.
5.4. Mixer Functions
- Chiteshi Faders: Adjust the volume level for each player (Channel A and B).
- EQ Controls: Use the HIGH, MID, and LOW knobs for each channel to adjust the frequency response.
- Gain/Level: Adjust the input gain for each channel to match levels.
- Crossfader: Blend between Channel A and Channel B.
- Master Output: Control the overall volume of the mix.
- Maikorofoni: Adjust microphone volume using the 'MIC LEVEL' knob on the front panel.
- Mahedhifoni Use the 'CUE LEVEL' knob to adjust headphone volume and the 'CUE' buttons on each channel to monitor specific sources.
5.5. Special Features
- Kukwenya: Use the jog wheels for scratching effects.
- Reverse: Play audio in reverse.
- Kuputsa: Create a brake effect on playback.
- Pitch: Adjust the playback speed and pitch using the pitch faders.
- Loop: Use 'LOOP IN', 'LOOP OUT', and 'RELOOP' buttons to create and manage seamless loops.
6. Zvisungo
The CDJ450 offers a variety of input and output options:
- Zvinobuda:
- 2 x XLR Speaker Outputs
- 1 x RCA Master Output
- 1 x RCA Recorder Output
- Zvinopinza
- 2 x Switchable Phono/Line RCA Inputs (for external devices)
- 1 x XLR-DJ Microphone Input
- 1 x 6.3mm Jack Microphone Input (front)
- Digital/Control:
- 2 x USB Ports (Type-A, top panel, for media playback)
- 1 x USB Type-B Port (rear, for computer connection)
- Kubatana kweBluetooth
- Monitoring:
- 1 x 3.5mm Jack Headphone Output (front)
7. Kuchengeta
- Kuchenesa: Shandisa jira rakapfava, rakaoma kuchenesa kunze kwechikwata. Usashandise abrasive cleaners kana solvents.
- CD Trays: Keep CD trays free of dust and debris. Avoid touching the lens inside the CD player.
- Kuchengeta: Kana isiri kushandiswa, chengetai mudziyo uyu munzvimbo inotonhorera, yakaoma, kure nezuva rakananga uye tembiricha yakanyanya.
8. Kugadzirisa matambudziko
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Hapana simba | Power cable disconnected; power switch off; faulty outlet. | Check power cable connection; ensure power switch is ON; try a different outlet. |
| Hapana inzwi rinobuda | Volume levels too low; incorrect input/output connections; external amplifier off. | Increase master/channel volumes; verify all audio connections; ensure external amplifier iripo. |
| CD harisi kutamba/kuverenga | Disc dirty or scratched; incorrect disc format; source not selected. | Clean or replace disc; ensure disc is audio CD or MP3 CD; select 'CD' source. |
| USB isiri kutamba | USB drive not formatted correctly; unsupported file type; source not selected. | Ensure USB is FAT32 formatted; only MP3 files supported; select 'USB' source. |
| Bluetooth haina kubatana | Bluetooth not enabled on external device; unit not in pairing mode; interference. | Enable Bluetooth on your device; select 'Bluetooth' source on CDJ450; try re-pairing. |
9. Zvinotsanangurwa
- Zita remuenzanisi: CDJ450
- Kubatana Technology: Bluetooth, USB
- Nhamba yeDisiki: 2
- Maodhiyo Anotsigirwa Mafomati: CD, MP3, USB, AAC (Bluetooth)
- Type yekubatanidza: Bluetooth, Jack 6.35 mm, RCA, USB, XLR 3-pin
- Nhamba Yemachiteshi: 2
- Chinhu Weight: 7.8 makirogiramu
- Zvishandiso Zvinoenderana: Mahedhifoni, Vatauri
- Mugadziri: Vonyx
10. Warranty uye Tsigiro
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, please visit the official Vonyx websaiti kana kubata dhipatimendi ravo rebasa revatengi.
