1. Nhanganyaya
Thank you for choosing the Einhell GP-CM 36/47 S HW Li Kit Power X-Change Cordless Lawn Mower. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new lawn mower. Please read this manual thoroughly before first use and keep it for future reference.
2. Mirayiridzo Yekuchengetedza
YAMBIRO:
- Always wear sturdy shoes, long trousers, and safety glasses when operating the lawn mower.
- Avoid wearing open shoes, sandals, or flip-flops.
- Ensure the work area is clear of stones, sticks, and other debris before mowing.
- Chengetedza maoko nemakumbo kure nezvikamu zvinotenderera.
- Usashandise mower mumamiriro emvura kana kunaya.
- Always remove the battery pack when cleaning, transporting, or storing the mower.
3. Chii chiri muBhokisi
Your Einhell GP-CM 36/47 S HW Li Kit includes the following components:
- Cordless Mucheka Mucheka
- 4 x 4.0 Ah Power X-Change Batteries
- 2 x Power X-Change Twinchargers
- Mulch Adapter
- Scraper for cleaning
4. Setup uye Gungano
Follow these steps to assemble your lawn mower before first use:
- Unpack Components: Nyatsobvisa zvikamu zvose kubva pakuputira.
- Bata Assembly: Attach the handle to the main unit. Ensure all locking mechanisms are securely fastened. The handle is height-adjustable for comfortable operation.
- Kuisa Battery: Open the battery compartment cover. Insert the 4 x 4.0 Ah Power X-Change batteries into their respective slots until they click into place. Close the cover securely.
Figure 4.1: The Einhell GP-CM 36/47 S HW Li Kit Cordless Lawn Mower, ready for assembly.
Figure 4.2: Adjusting the height of the ergonomic handle for comfortable use.

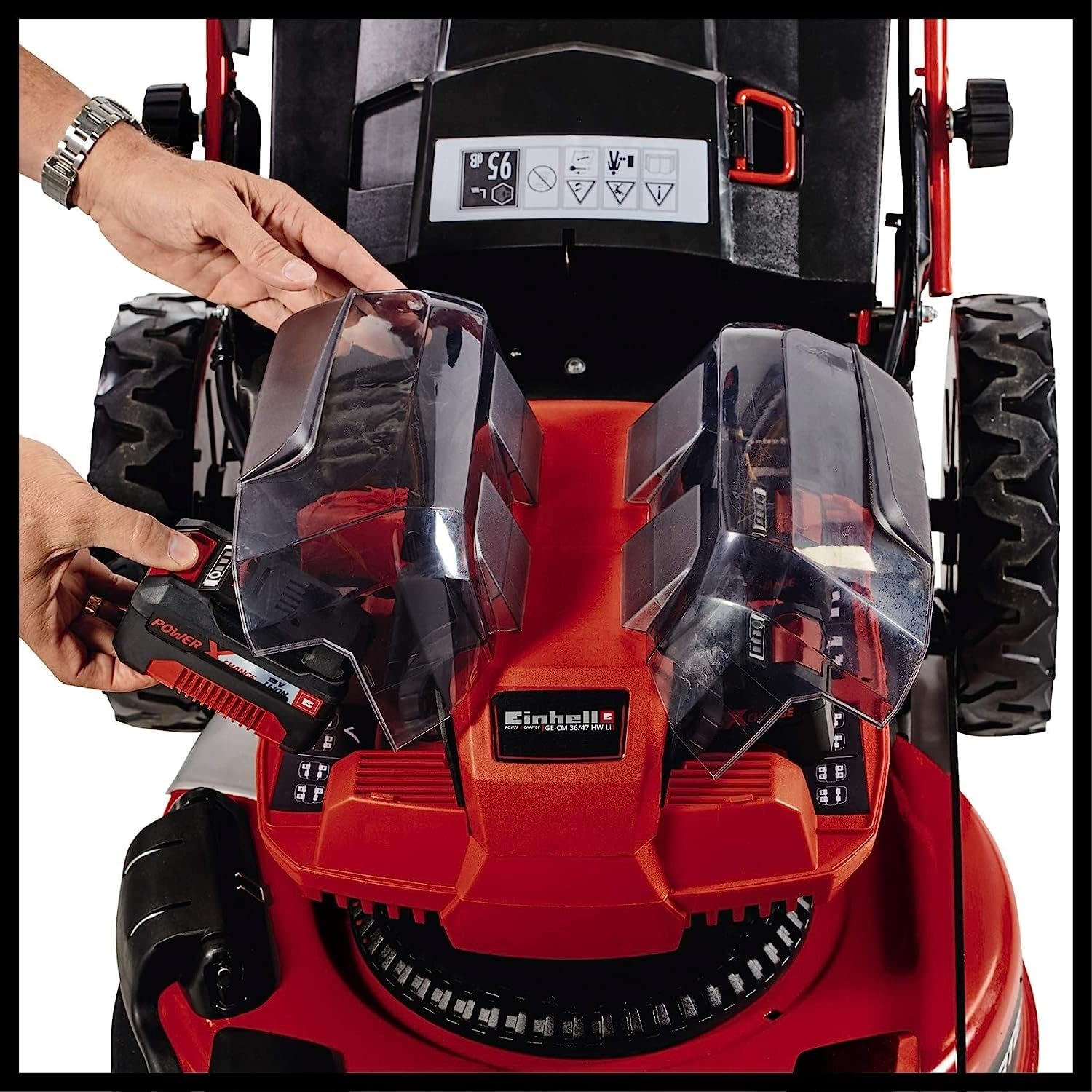

Figure 4.3: Proper insertion of the Power X-Change batteries into the mower's battery compartment.
5. Operating Instructions
Before operating, ensure batteries are fully charged using the provided Twinchargers. The mower operates on the Einhell Power X-Change system, utilizing 36V power from two 18V batteries simultaneously.
5.1 Battery Runtime and Coverage
The mower is designed for efficient operation, covering areas up to 700 m2 with the included 4x 4.0 Ah batteries. The brushless motor ensures maximum performance and extended runtime.
Figure 5.1: Chart showing maximum lawn area coverage based on battery capacity (using 2 batteries).
Figure 5.2: The mower utilizes 36V power by combining two 18V Power X-Change batteries.
5.2 Kucheka Hurefu Kugadziriswa
The mower features a 6-stage central cutting height adjustment. Adjust the lever on the side of the mower to select your desired cutting height for optimal results.
Figure 5.3: The lever for adjusting the cutting height centrally.
Figure 5.4: Visual representation of the 6-stage central cutting height adjustment feature.
5.3 Speed Control and Operation
The mower is equipped with a speed control lever on the handle, allowing you to adjust the mowing speed (Fast/Slow) for different terrain and grass conditions. The integrated wheel drive assists in navigating challenging terrain.
Figure 5.5: The speed control lever for adjusting the mower's drive speed.
Figure 5.6: A user operating the Einhell cordless lawn mower in a garden.
5.4 Mulching Function and Grass Collection
The mower includes a practical mulch adapter for mulching functionality, returning fine grass clippings to the lawn as natural fertilizer. Alternatively, grass clippings are collected in the large 75-liter grass catcher basket. The Einhell Vortex Technology Deck ensures optimal cutting results and efficient discharge of clippings.
Mufananidzo 5.7: View of the mower deck, showing the side discharge and mulching adapter.
Figure 5.8: Illustration of the Einhell Vortex Technology Deck for optimal airflow and cutting.
6. Kuchengetedza nekuchengetedza
Regular maintenance ensures the longevity and performance of your lawn mower.
- Kuchenesa: After each use, clean the mower deck and housing. A scraper is included for optimal cleaning in the cleaning position. Ensure no grass clippings accumulate around the blade or motor.
- Blade Inspection: Regularly check the blade for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn.
- Battery Care: Store batteries in a cool, dry place. Do not expose them to extreme temperatures.
- Kuchengeta: The Einhell Holm concept allows for a space-saving storage position. Fold the handle down to minimize the mower's footprint. Store the mower in a dry, protected area.
Figure 6.1: The mower folded into its space-saving storage position.
7. Kugadzirisa matambudziko
If you encounter issues with your lawn mower, refer to the following common problems and solutions:
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Mower haina kutanga | Batteries not inserted correctly or discharged. Safety key not engaged. | Ensure batteries are fully charged and properly inserted. Check if the safety key is fully engaged. |
| Kuita kusina kunaka kwekucheka | Dull blade. Grass too high or wet. | Sharpen or replace the blade. Mow dry grass. Adjust cutting height. |
| Kudedera kwakanyanyisa | Banga rakakuvara kana kuti risina kuenzana. Zvikamu zvisina kusimba. | Tarisa banga kuti harina kukuvara here uye chinja kana zvichidikanwa. Tarisa zvese zvinosunga kuti zvionekwe kuti zvakagwinya here. |
If the problem persists, please contact Einhell customer support.
8. Zvinyorwa zveUnyanzvi
| Feature | Tsanangudzo |
|---|---|
| Model Number | 3413200 |
| Product Dimensions | 62.99 x 22.83 x 40.55 cm |
| Item Weight | 30 makirogiramu |
| Simba Source | Battery Powered (36V / 2x18V) |
| Bhatiri Type | Lithium-Ion (4 required, included) |
| Cutting Width | 47 Masendimita |
| Kucheka Height Positions | 6 |
| Material | Acrylonitrile Butadiene Yakajeka |
| Drive Type | Battery Powered (with wheel drive) |
| Mugadziri | Einhell Germany AG |
9. Warranty uye Tsigiro
Einhell offers a 3-makore waranti on Power X-Change batteries and Einhell devices upon online registration. This extended warranty reflects our commitment to the quality and durability of our products.
9.1 Activating the Extended Service
To activate the extended service, Einhell products must be registered on our official websaiti mukati memazuva makumi matatu ekutenga.
9.2 Mutengi Tsigiro
For further assistance, technical support, or warranty claims, please visit the official Einhell webwebhusaiti kana kuti taura nevatengi vavo. Unogona kuwana rumwe ruzivo nezvigadzirwa pa Chitoro cheEinhell.
Figure 9.1: Enjoying the ease of use with your Einhell cordless lawn mower.
Figure 9.2: The powerful and maintenance-free brushless motor technology.
