Nuwave Duet Pressure Cook and Air Fryer Combo Cook Instruction Manual

Nhanganyaya

Welcome to the Nuwave Duet, your versatile kitchen appliance combining the power of a pressure cooker and the crisping ability of an air fryer. This manual provides essential information for safe and efficient operation, maintenance, and troubleshooting, ensuring you get the most out of your appliance.

Ruzivo Rwakakosha Chekuchengetedza

Please read all instructions carefully before using the Nuwave Duet. Failure to follow these instructions may result in injury or damage to the appliance.

• Always ensure the lid is properly sealed before operating the pressure cooker function.
• Usanyudze main unit mumvura kana zvimwe zvinwiwa.
• Keep hands and face clear of the steam release valve during and after pressure cooking.
• Use caution when handling hot surfaces and components.
• Mudziyo uyu ndewekushandisa pamba chete.
• Chirevo 65 Yambiro: Chigadzirwa ichi chingave chine makemikari anozivikanwa neHurumende yeCalifornia kuti anokonzera kenza uye kuremara kwekuzvarwa kana kumwe kukuvadza kubereka.

Zvishandiso uye Zvishandiso

The Nuwave Duet comes with several key components designed for optimal performance and versatility.

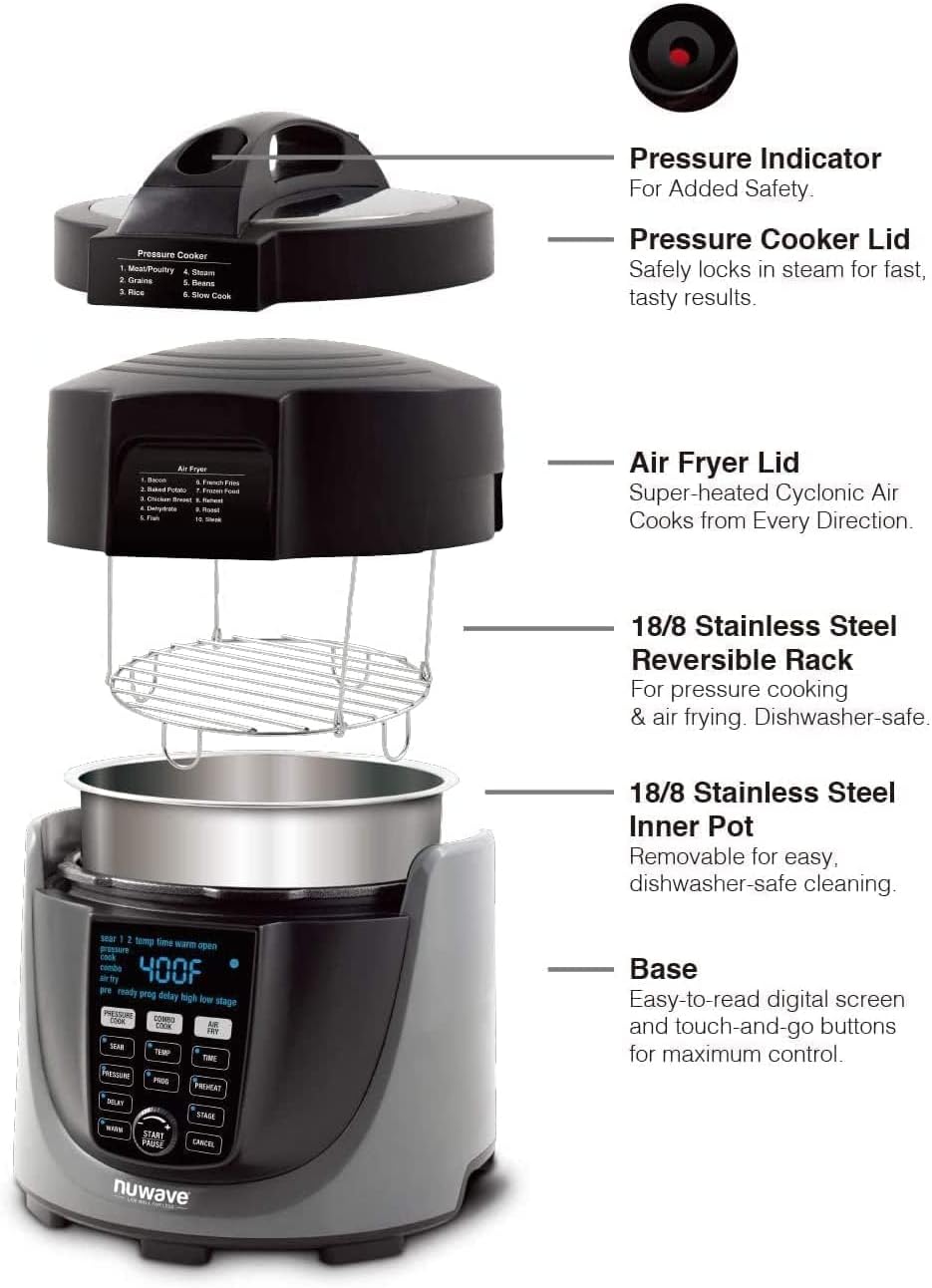

Mufananidzo: Yakaputika view showing the Pressure Indicator, Pressure Cooker Lid, Air Fryer Lid, 18/8 Stainless Steel Reversible Rack, 18/8 Stainless Steel Inner Pot, and Base.

• Base Unit: Contains the heating element, digital control panel, and main housing.
• Stainless Steel Inner Pot: 6-quart capacity, removable for easy cleaning.
• Chivharo cheDhizaini yeKubika: Features a pressure indicator and sure-lock technology for safe pressure cooking.
• Chivharo cheAir Fryer: Super-heated cyclonic air cooks from every direction.
• Stainless Steel Reversible Cooking Rack: For use in both pressure cooking and air frying.
• Non-Stick PFOA-Free Air Fry Basket: For air frying foods.
• Owner's Manual & Quick Start Guide: For detailed instructions.
• Recipe Book: Includes 40 recipes.

Kutanga Setup

1. Bvisa zvinhu: Nyatsobvisa zvese zvikamu kubva pakurongedza.
2. Kuchenesa: Before first use, wash the Stainless Steel Inner Pot, Reversible Cooking Rack, and Air Fry Basket with warm, soapy water. Wipe the exterior of the Base Unit and lids with a damp jira. Pukuta zvikamu zvose zvakakwana.
3. Kuiswa: Place the Nuwave Duet on a stable, flat, heat-resistant surface away from walls and flammable materials. Ensure adequate ventilation.
4. Isa Muhari Yemukati: Place the Stainless Steel Inner Pot into the Base Unit.
5. Power Connection: Batanidza tambo yemagetsi mudura remagetsi rakadzika. Chiratidziro chichavhenekera.

Operating Instruction

The Nuwave Duet offers multiple cooking functions accessible via its intuitive digital control panel.

Image: The Nuwave Duet control panel showing buttons for Pressure Cook, Combo Cook, Air Fry, Sear, Temp, Time, Pressure, Prog, Preheat, Delay, Stage, Warm, Start/Pause, and Cancel.

Kumanikidza Kubika

Use the Pressure Cooker Lid for this function. Pressure cooking allows for faster cooking times and tender results.

Mufananidzo: Eksamples of pressure cooked dishes including Mac & Cheese, Stews, Stir-fry, Steamed Salmon, Soups, and Sticky Rice.

1. Add ingredients and liquid to the inner pot according to your recipe. Do not exceed the MAX fill line.
2. Place the Pressure Cooker Lid on the base, aligning the arrow on the lid with the arrow on the base, then twist clockwise until it locks into place. Ensure the steam release valve is in the "Sealing" position.
3. Press the KUFANANIDZIRA BHEKA bhatani.
4. Shandisa iyo TEMP uye NGUVA buttons to adjust settings as needed.
5. Press KUTANGA/KUMIRA kutanga kubika.
6. Kana kubika kwapera, rega kumanikidzwa kubude zvakasikwa kana kushandisa nzira yekukurumidza kuburitsa sezvinorayirwa nemirairo yekubika.

Air Frying

Use the Air Fryer Lid for this function. Air frying provides crispy results with less oil.

Mufananidzo: Eksamples of air fried dishes including Chicken Wings, French Fries, BBQ Ribs, Roasted Vegetables, Filet Mignon, and Dehydrated Foods.

1. Place the Air Fry Basket or Reversible Rack with food into the inner pot.
2. Place the Air Fryer Lid securely on the base.
3. Press the Mhepo inotonhora bhatani.
4. Shandisa iyo TEMP uye NGUVA buttons to adjust settings. Consider using the GADZIRIRA function for optimal crispiness.
5. Press KUTANGA/KUMIRA kutanga kufryer.

Combo Cooking

The Combo Cook function allows you to pressure cook and then air fry, or vice versa, for tender interiors and crispy exteriors.

Mufananidzo: Eksamples of combo cooked dishes including Roasted 5-lb Chicken, Appetizers, Roast Pork, Ribs, Sirloin Steak, and Chicken Pot Pie.

1. Prepare your food for the first cooking stage (e.g., pressure cooking).
2. Select the initial cooking function (Pressure Cook or Air Fry) and set parameters.
3. Press the STAGE button to program the next cooking stage.
4. Once the first stage is complete, swap the lid if necessary (e.g., from Pressure Cooker Lid to Air Fryer Lid).
5. The appliance will automatically transition to the next programmed stage.

Mabasa Akarongwa Zvisati Zvarongwa

The Duet features over 300 pre-programmed cooking functions and allows you to save up to 240 of your own favorite recipes.

Image: The Nuwave Duet appliance with a recipe book and various cooked dishes, highlighting 300+ preset recipes.

• Press the PROG button to access pre-programmed settings.
• Use the dial or arrow buttons to scroll through options.
• Press KUTANGA/KUMIRA to select and begin.
• To save a custom recipe, adjust settings to your desired parameters, then follow the instructions in the full owner's manual for saving to a memory slot.

Zvimwe Zvimiro

• SEAR: For browning meats before pressure cooking.
• KUNONOKA: Isa nguva yekutanga yekubika inononoka.
• KUDZIYA: Keeps food warm after cooking is complete.
• KANZURA: Inomisa kutenderera kwekubika kuri kuitwa parizvino.

Official Product Video

Kuchengetedza uye Kuchenesa

Regular cleaning ensures the longevity and optimal performance of your Nuwave Duet.

Image: Components of the Nuwave Duet (inner pot, air fry basket, racks) shown next to a dishwasher, indicating they are dishwasher safe.

1. Unplug: Gara uchisunungura mudziyo kubva pamagetsi uye wobvumira kuti utonhore zvachose usati wachenesa.
2. Inner Pot, Racks, Basket: The Stainless Steel Inner Pot, Reversible Cooking Rack, and Air Fry Basket are dishwasher safe. For hand washing, use warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely.
3. Lids: Wipe the Pressure Cooker Lid and Air Fryer Lid with a damp cloth. Ensure the steam release valve and float valve on the pressure cooker lid are clear of food debris. Do not immerse the lids in water.
4. Base Unit: Wipe the exterior of the Base Unit with a damp cloth. Do not immerse the Base Unit in water.
5. Kuchengeta: Chengetedza mudziyo munzvimbo yakachena, yakaoma.

Kugadzirisa matambudziko

If you encounter issues with your Nuwave Duet, refer to the table below for common problems and solutions.

Zvigadzirwa Zvinotsanangurwa

• Brand: Nuwave
• Muenzaniso: Duet
• Kugona 6 Quarts (Pressure Cooker), 4 Quarts (Air Fryer Basket)
• Material: Simbi isina ngura
• Ruvara: Stainless Simbi / Nhema
• Zviyero zvechigadzirwa: 15"D x 17"W x 15"H
• Wattage: 1500 watts
• Chinhu Weight: 12 Pondo
• Kudzora nzira: Bata
• Operation Mode: Automatic
• Dishwasher Yakachengeteka: Yes (Inner Pot, Racks, Basket)
• Voltage: 120 Volts
• UPC: 652185338012

Warranty uye Customer Support

For warranty information, product registration, or further assistance, please refer to the official Nuwave website or the full owner's manual.

You can also access the full User Manual (PDF) here.

Nuwave is an American manufacturer based in Vernon Hills, IL, focused on developing affordable, green-conscious appliances using the latest culinary technology.
