1. Safety Information
Please read all safety instructions carefully before operating the appliance. Retain this manual for future reference.
- Ensure the washing machine is installed on a stable, level surface to prevent vibration and noise.
- Usabvumira vana kutamba kana kushandisa muchina wewachisi.
- Gara uchibvisa mudziyo usati wachenesa kana kuita chero kugadzirisa.
- Usageze zvinhu zvakasvibiswa nezvinhu zvinobvira moto.
- Iva nechokwadi chekuti tambo yemagetsi haina kukuvara uye kuti yakadzika pasi zvakanaka.
- The appliance features a shock-proof body for user safety. However, avoid contact with electrical components during operation.
2. Chigadzirwa Pamusoroview
The Onida 7 Kg Fully-Automatic Top Loading Washing Machine (Model T70FGD) is designed for efficient and convenient laundry care. It features a 7 kg capacity, suitable for large families, and a 5-star energy rating for optimal efficiency.
Zvinokosha:
- Anti-Rust Body: Durable construction designed to resist rust.
- Dynamic Display: Provides clear information during operation.
- One Touch Operation: Simplifies the washing process.

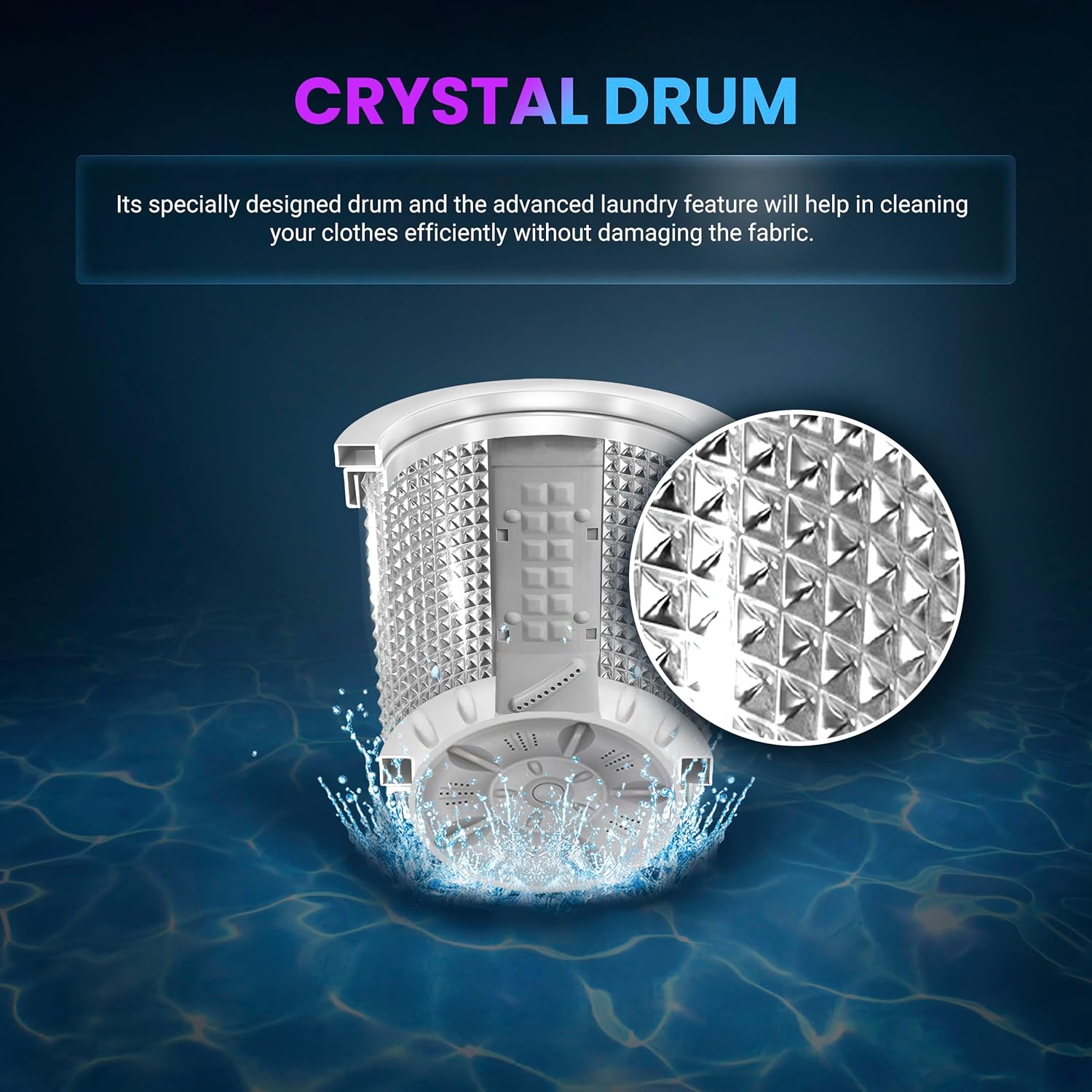

- Crystal Drum Technology: Specially designed drum for efficient and gentle cleaning.
- 8 Geza Zvirongwa: Versatile options for various fabric types and soil levels.
- Kumhanya kwe750 RPM: Higher spin speeds for faster drying.
- 5 Star Energy Rating: Ensures best-in-class energy efficiency.
- Magic Lint Filter: Effectively collects lint during the wash cycle.
- Memory Wash: Resumes wash cycle after a power cut.
3. Kuiswa uye Setup
Proper installation is crucial for the optimal performance and longevity of your washing machine. Please follow these steps carefully.
3.1 Kusunungura
- Nyatsobvisa zvese zvekurongedza.
- Tarisa kana paine kukuvara kuri kuitika panguva yekufambisa. Kana kukuvara, taura nerutsigiro rwevatengi nekukasika.
- Ensure all included components are present: 1 Unit of Machine, 1 Unit of Drain Hose, 1 unit of User Manual.
3.2 Kuiswa
- Isa muchina wekuwachisa panzvimbo yakasimba uye yakati sandara. Nzvimbo dzisina kuenzana dzinogona kukonzera kudedera kwakanyanya uye ruzha.
- Ita shuwa kuti pane nzvimbo yakakwana yakatenderedza muchina wekufemesa nekupinda.
- Avoid direct sunlight or locations with extreme temperatures.
3.3 Mvura yekubatanidza
- Connect the water inlet hose to a cold water tap with a standard 3/4-inch thread. Ensure the connection is tight to prevent leaks.
- Position the drain hose into a suitable drain pipe or sink. Ensure the drain hose is securely fixed and not kinked.
3.4 Simba Connection
- Batanidza tambo yemagetsi pamagetsi akadzikwa (230 Volts).
- Usashandise tambo dzekuwedzera kana adapta.
4. Operating Instructions
Follow these steps to operate your Onida washing machine effectively.
4.1 Kugadzirira kuwacha
- Sort clothes by fabric type, color, and soil level.
- Empty pockets and close zippers and hooks to prevent damage to clothes and the drum.
- Place clothes loosely into the washing machine drum, ensuring not to overload.
4.2 Kuwedzera Detergent
- Add the appropriate amount of detergent to the detergent dispenser according to the detergent manufacturer's instructions and the load size.
4.3 Kusarudza Chirongwa Chekugeza

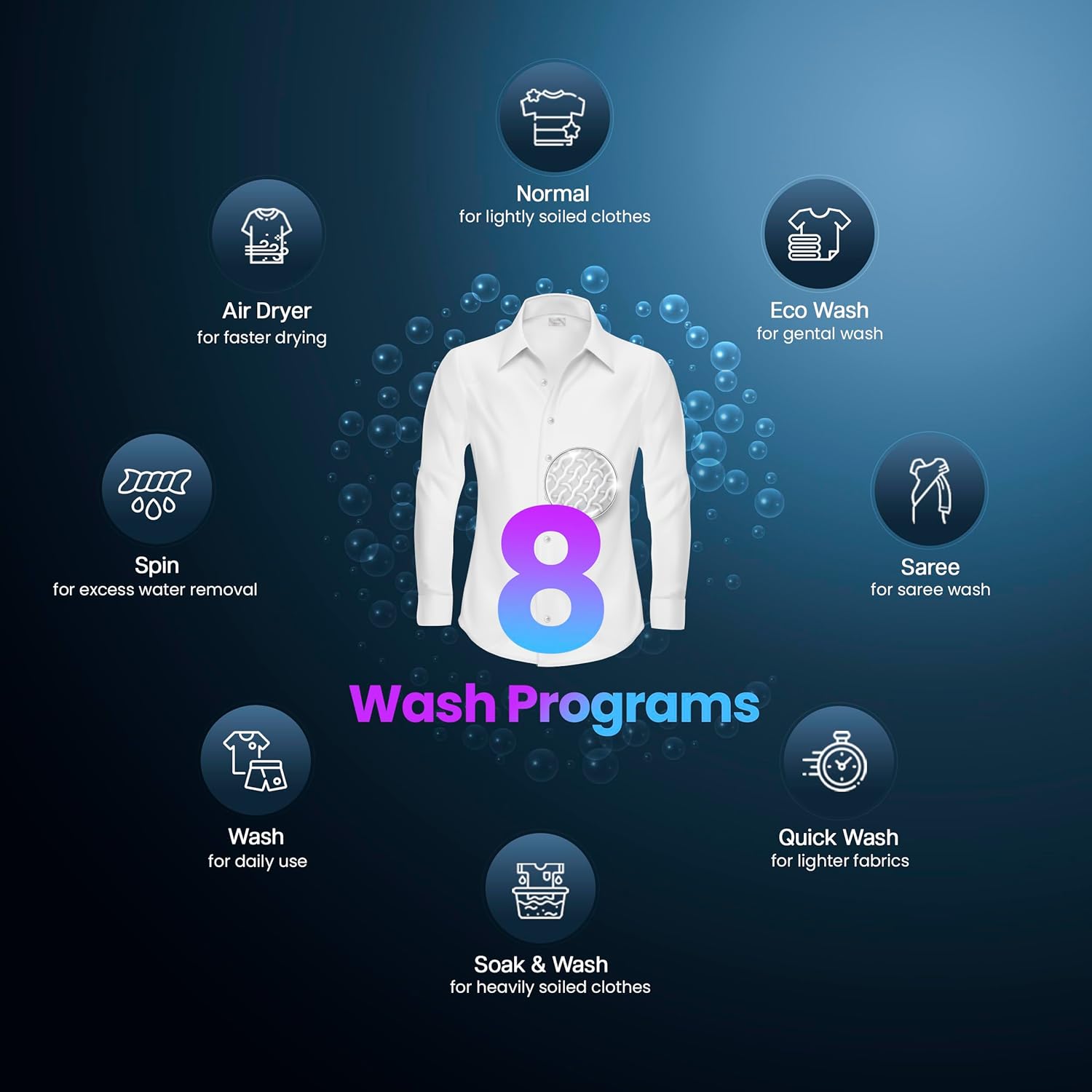

The washing machine offers 8 wash programs to suit various laundry needs. Use the control panel to select the desired program.
- Zvakajairwa Zvehembe dzakasvibiswa zvishoma.
- Zvinorema: Zvezvinhu zvakasvibiswa zvakanyanya.
- Saree: Specific program for delicate saree fabrics.
- Kugeza nekukurumidza: For lighter fabrics requiring a fast wash.
- Soak wash: For heavily soiled clothes requiring pre-soaking.
- Geza: Standard wash cycle for daily use.
- Svetuka: For excess water removal.
- Air Dry: For faster drying after the spin cycle.
4.4 Kutanga Wash Cycle
- After selecting the program, press the 'Start/Pause' button to begin the cycle.
- The Dynamic Display will show the remaining time and current status.
4.5 Hunhu Hunokosha
- One Touch Operation: Simplifies the selection and start of common wash cycles.
- Memory Wash: In case of a power cut, the machine will resume the wash cycle from where it stopped once power is restored.
5. Kuchengeta
Regular maintenance ensures the longevity and efficient operation of your washing machine.
5.1 Cleaning the Magic Lint Filter
- The Magic Lint Filter collects lint and debris during washing. It should be cleaned regularly, ideally after every few washes.
- Locate the lint filter inside the drum. Remove it by pulling it out.
- Open the filter and remove any accumulated lint. Rinse it under running water.
- Reinsert the clean lint filter back into its position until it clicks.
5.2 Kuchenesa Drum
- Periodically run a 'Tub Clean' cycle (if available) or a hot wash cycle with a washing machine cleaner or a cup of white vinegar to remove detergent residue and odors.
- Wipe the inside of the drum with a soft cloth after each use to prevent moisture buildup.
5.3 Kucheneswa Kwekunze
- Pukuta kunze kwekunze kwemuchina wewachisi nekanyoro, damp jira.
- Do not use abrasive cleaners or solvents, as they can damage the finish.
6. Kugadzirisa matambudziko
If you encounter any issues with your washing machine, refer to the following common problems and solutions before contacting service.
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Machine haina kutanga | Tambo yemagetsi yakabviswa; Mukova usina kuvharwa zvakanaka; Simba iwetage. | Check power connection; Ensure lid is fully closed; Check household power supply. |
| Mvura isingazadzi | Pombi yemvura yakavharwa; Pombi yemvura yakavharwa kana kuvharika. | Open water tap; Straighten hose; Clean inlet filter if blocked. |
| Mvura isina kupera | Pombi yekudhonza mvura yakavharwa kana kuvharika; Sefa yepombi yekudhonza mvura yakavharwa. | Straighten hose; Clean drain pump filter (refer to full manual for location). |
| Kudengenyeka kwakanyanyisa/ruzha | Machine not level; Load unbalanced; Transit bolts not removed. | Adjust leveling feet; Redistribute laundry; Ensure all transit bolts are removed during installation. |
| Mbatya hadzina kuchena | Overloading; Insufficient detergent; Incorrect program selected; Lint filter full. | Reduce load size; Use correct detergent amount; Select appropriate program; Clean lint filter. |
7. Zvinotsanangurwa
Detailed technical specifications for the Onida 7 Kg Fully-Automatic Top Loading Washing Machine (Model T70FGD).
| Feature | Tsanangudzo |
|---|---|
| Brand | Onida |
| Model | T70FGD |
| Capacity | 7 makirogiramu |
| Type | Fully-Automatic Top Loading |
| Kushanda Kwesimba | 5 Star Rating |
| Maximum Rotational Speed | 750 rpm |
| Nhamba yeWash Programs | 8 |
| Special Features | Anti Rust Body, Dynamic Display, One Touch Operation, Crystal Drum Technology, Memory Wash, Magic Lint Filter |
| Color | Gireyi |
| Material | Plastiki |
| Voltage | 230 Volts |
| Item Weight | 29 kg |
| Zviyero zveChigadzirwa (LxWxH) | 54.7 x 56.3 x 92 Masendimita |
| Inosanganisirwa Zvikamu | 1 Unit of Machine, 1 Unit of Drain Hose, 1 unit of User Manual |
8. Warranty uye Tsigiro
Your Onida washing machine comes with a comprehensive warranty to ensure peace of mind.
- Product Warranty: 2 years on the entire product.
- Motor Warranty: Makore gumi ari pamota.
For warranty claims, technical support, or service requests, please refer to the contact information provided in your warranty card or visit the official Onida website.
