NEEWER 2.4G Wireless Q Compact Transmitter Instruction Manual

1. Nhanganyaya

Ndatenda nekutengaasing the NEEWER 2.4G Wireless Q Compact Transmitter. This device is designed to wirelessly trigger compatible NEEWER Q series flash strobes and other specified flash units in manual mode. It operates on a 2.4GHz frequency, providing reliable communication between your camera and flash. This manual provides essential information for the safe and effective use of your transmitter.

Chiziviso Chakakosha: This transmitter exclusively supports manual flash mode. High-Speed Sync (HSS) and Through-The-Lens (TTL) functions are not supported when using this trigger.

2. Chigadzirwa Pamusoroview

Familiarize yourself with the components of your Q Compact Transmitter:

Mufananidzo 2.1: Kumberi, kurutivi, uye kumashure views of the NEEWER Q Compact Transmitter, highlighting key features such as the Trigger Indicator, Test Button, OFF/ON switch, Channel Set Switch, PC Sync Socket, and Hot Shoe mount.

• Trigger Indicator: Illuminates to confirm a successful trigger signal.
• Bhatani rekuedza: Used to manually fire the connected flash for testing purposes.
• DZIMA/VISA Switch: Inopa masimba anotumira kana kudzima.
• Channel Set Switch: Allows selection of one of 16 available channels to avoid interference.
• Soketi yekubatanidza PC: Provides an alternative connection for cameras or flashes with a PC sync port.
• Shangu Dzinopisa: Mounts the transmitter securely onto your camera's hot shoe.

3. Setup

3.1 Kuiswa kwebhatiri

The transmitter is powered by a CR2 3V/800mAh Lithium battery. Ensure the battery is inserted with the correct polarity.

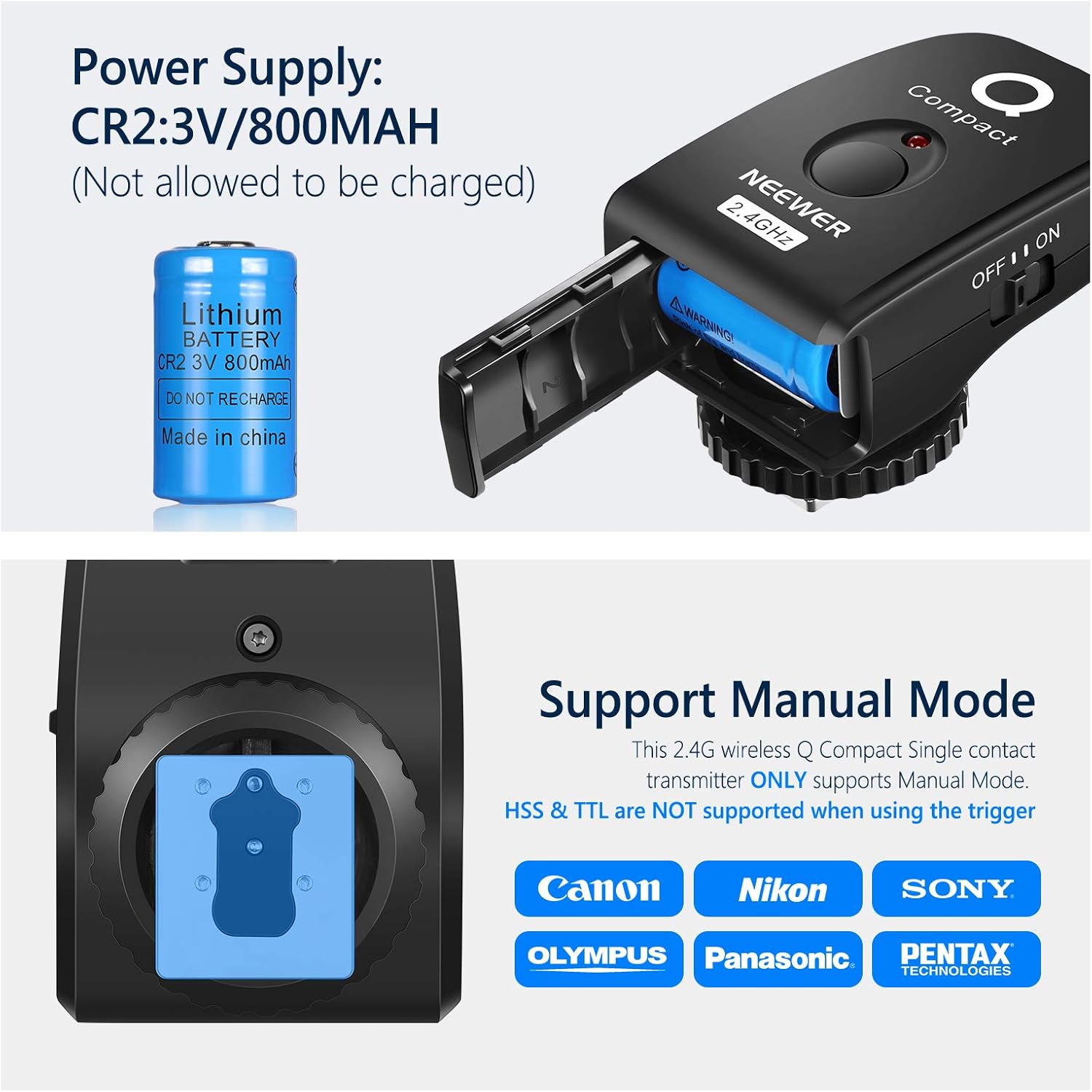

Mufananidzo 3.1: Illustration of the CR2 3V Lithium battery and its insertion into the transmitter's battery compartment.

1. Locate the battery compartment cover on the side of the transmitter.
2. Svetedza chivharo chivhure.
3. Insert one CR2 3V Lithium battery, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Vhara chivharo chebhatiri zvakachengeteka.

Cherechedza: The CR2 battery is not rechargeable. Replace with a new battery when power is low.

3.2 Kuisa Transmitter

Mount the transmitter onto your camera's hot shoe.

1. Slide the transmitter's hot shoe mount fully into your camera's hot shoe.
2. Tighten the locking ring or lever (if present) on the transmitter to secure it in place.

4. Operating Instructions

4.1 Kubatidza/Kudzima

Slide the KUDZIMA/KUVAMBIRA switch to the "ON" position to power on the transmitter. Slide it to "OFF" to power off.

4.2 Setting the Channel

The transmitter features a 4-digit DIP switch for channel selection. To avoid interference, ensure the channel set on the transmitter matches the channel set on your compatible flash unit.

• Use a small tool (e.g., a pen tip) to adjust the DIP switches to select one of the 16 available channels.
• Refer to your flash unit's manual for instructions on setting its channel.

4.3 Triggering the Flash

Once the transmitter is mounted and powered on, and the channels are matched, you can trigger your flash.

Mufananidzo 4.1: A photographer using the NEEWER Q Compact Transmitter mounted on a camera to wirelessly trigger a studio flash, demonstrating its application in a photography setup. The maximum controlling distance is approximately 25 meters.

• Shutter yekamera: Press your camera's shutter button to take a photo. The transmitter will send a signal to the flash, causing it to fire.
• Bhatani rekuedza: Press the Test Bhatani on the transmitter to manually fire the flash. This is useful for checking flash output and setup without taking a photo.

Mufananidzo 4.2: A typical studio setup illustrating the use of the NEEWER Q Compact Transmitter with a camera to trigger a studio light or camera flash, highlighting its ease of use for various lighting scenarios.

5. Kugarisana

This 2.4G Wireless Q Compact Transmitter is designed for use with specific NEEWER flash units and supports various camera brands in manual mode.

Mufananidzo 5.1: Visual representation of the NEEWER Q Compact Transmitter's compatibility with NEEWER Q3 Flash Strobe, NW655, NW420, S101-300W PRO, and S101-400W PRO Flash Strobes. It supports manual mode for Canon, Nikon, Sony, Olympus, Panasonic, and Pentax cameras.

Compatible NEEWER Flash Strobes:

• Neewer Q3 Flash Strobe
• NW655 Flash Strobe
• NW420 Flash Strobe
• S101-300W PRO Flash Strobe
• S101-400W PRO Flash Strobe

Compatible Camera Brands (Manual Mode Only):

• Canon
• Nikon
• Sony
• Olympus
• Vadivelu Comedy Panasonic
• Pentax

6. Kuchengeta

• Keep the transmitter dry. Do not expose it to moisture or rain.
• Geza kunze nemucheka wakapfava, wakaoma. Usashandise makemikari ane hasha kana abrasive cleaners.
• Dzivisa kukanganiswa kwakasimba kana kudonhedza mudziyo.
• Remove the battery if the transmitter will not be used for an extended period to prevent leakage.

7. Kugadzirisa matambudziko

• Transmitter not firing flash:
  • Ita shuwa kuti transmitter yakabatidzwa.
  • Tarisa kana bhatiri rakanyatsoiswa uye rine mari yakakwana. Dzorera kana zvakakodzera.
  • Verify that the channel set on the transmitter matches the channel on the flash unit.
  • Confirm the transmitter is securely mounted on the camera's hot shoe.
  • Ensure the flash unit is powered on and in manual mode.
  • Check the distance between the transmitter and flash; ensure it is within the effective range (up to 25m).
• Matambudziko ekupindira:
  • Change the channel on both the transmitter and the flash unit to a different setting.
  • Iva nechokwadi chekuti hapana mimwe midziyo ye2.4GHz iri kukonzera kukanganiswa munzvimbo iri pedyo.
• Transmitter not powering on:
  • Tarisa kuiswa kwebhatiri uye polarity.
  • Replace the battery with a new CR2 3V battery.

8. Zvinotsanangurwa

Mufananidzo 8.1: Dimensions and weight of the NEEWER Q Compact Transmitter, indicating its compact size and lightweight design.

9. Warranty uye Tsigiro

9.1 Ruzivo rweWaranti

This product is covered by NEEWER's standard warranty policy. Please refer to the warranty card included with your purchase or visit the official NEEWER websaiti kune yakadzama waranti mazwi uye mamiriro. Chengetedza risiti yako yekutenga sehumbowo hwekutenga kwezvichemo zvewaranti.

9.2 Mutengi Tsigiro

For technical assistance, troubleshooting, or any questions regarding your NEEWER 2.4G Wireless Q Compact Transmitter, please contact NEEWER customer support. Contact information can typically be found on the NEEWER official websaiti kana pane chigadzirwa kurongedza.
