1. Nhanganyaya
The Smartwares SH4-90160 Wireless Wall Switch provides convenient control over your lighting and appliances. Designed for ease of use and flexible placement, this battery-operated switch integrates seamlessly with Smartwares Plug & Connect receivers. This manual will guide you through the installation, operation, and maintenance of your new wireless wall switch.

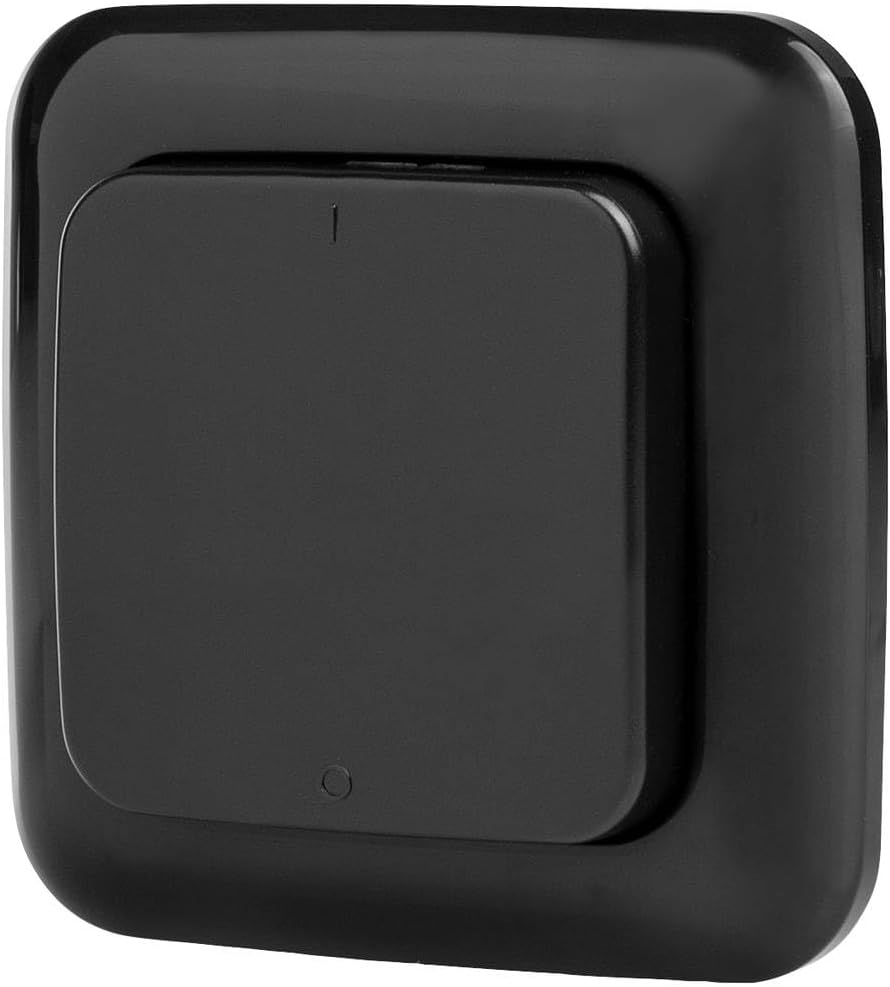

Mufananidzo 1.1: Mberi view of the Smartwares SH4-90160 Wireless Wall Switch.
2. Package Zviri mukati
Ndokumbira utarise pasuru yezvinhu zvinotevera:
- 1x Smartwares SH4-90160 Wireless Wall Switch
- 1x CR2032 Lithium-ion Battery (pre-installed or separate)
- 1x Chinyorwa cheMushandisi
If any items are missing or damaged, please contact customer support.
3. Safety Information
- Usaisa mudziyo kune tembiricha yakanyanyisa, zuva rakananga, kana unyoro.
- This device is intended for indoor and protected outdoor use. Ensure it is not directly exposed to heavy rain or water.
- Chengetedza pasingasvikirwi nevana.
- Do not attempt to open or repair the device yourself. This will void the warranty.
- Rasa mabhatiri zvichienderana nemitemo yemuno. Usarasa mabhatiri pamoto.
- Only use the specified battery type (CR2032).
4. Setup uye Kuiswa
4.1 Kuiswa kwebhatiri
- Carefully open the back cover of the wall switch.
- Insert the CR2032 Lithium-ion battery, ensuring the correct polarity (+/-).
- Vhara chivharo chekumashure zvakachengeteka.
Cherechedza: The battery may already be pre-installed. Remove any protective tab if present.
4.2 Pairing with Smartwares Plug & Connect Receivers
The SH4-90160 Wireless Wall Switch must be paired with a Smartwares Plug & Connect receiver (e.g., SH4-90264, SH4-90256, SH4-90263, SH4-90266, SH4-90265) to control lights or appliances. Receivers are sold separately.
- Ensure your Smartwares Plug & Connect receiver is powered on and within range of the wall switch.
- Put your Smartwares Plug & Connect receiver into pairing mode. This usually involves pressing a small button on the receiver for a few seconds until an indicator light flashes. Refer to your receiver's manual for specific instructions.
- While the receiver is in pairing mode, press the button on the SH4-90160 Wireless Wall Switch.
- The receiver's indicator light should stop flashing, confirming successful pairing.
- Test the connection by pressing the wall switch button. The connected light or appliance should turn on/off.
You can pair multiple SH4-90160 switches with one receiver, or one switch with multiple receivers, depending on your desired setup.
Image 4.1: The Smartwares Plug & Connect ecosystem, showing various compatible devices.
4.3 Mounting the Wall Switch
Since the SH4-90160 is battery-operated and wireless, it can be placed almost anywhere.
- Use double-sided adhesive tape (not included) to mount the switch on a clean, dry, flat surface.
- Alternatively, use screws (not included) to secure the switch to a wall or other surface.
- Ensure the chosen location is within the operational range of your paired Smartwares Plug & Connect receiver.
5. Operating Instructions
Once paired, operating the Smartwares SH4-90160 Wireless Wall Switch is straightforward.
- Kubatidza/Kudzima: Press the main button on the wall switch. Each press will toggle the connected light or appliance between ON and OFF states.
- The switch provides a convenient way to control your lighting, for example, turning bedroom lights on or off from your bed.
Image 5.1: Detail of the push-button interface on the wireless wall switch.
6. Kuchengeta
6.1 Kuchenesa
Pukuta chigadziro nemucheka wakapfava, wakaoma. Usashandise abrasive cleaners kana solvents.
6.2 Kutsiviwa kwebhatiri
When the switch's response becomes inconsistent or stops working, the battery may need to be replaced.
- Carefully open the back cover of the wall switch.
- Remove the old CR2032 Lithium-ion battery.
- Insert a new CR2032 Lithium-ion battery, ensuring the correct polarity (+/-).
- Vhara chivharo chekumashure zvakachengeteka.
- Dispose of the old battery responsibly according to local regulations.
7. Kugadzirisa matambudziko
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Switch haipindure. | Bhatiri rakaderera kana rakafa. | Tsiva bhatiri reCR2032. |
| Switch does not control the receiver. | Not paired or pairing failed. | Re-pair the wall switch with the Smartwares Plug & Connect receiver (refer to Section 4.2). |
| Switch is out of range. | The distance between the switch and receiver is too great, or there are too many obstacles. | Move the wall switch closer to the receiver or reduce obstructions. |
| Kupindira kubva kune mamwe maturusi. | Other wireless devices operating on similar frequencies. | Try moving the switch or receiver to a different location. |
8. Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Model Number | SH4-90160 |
| Mugadziri | Smartwares |
| Zviyero zveChigadzirwa (L x W x H) | 2 x 8 x 8 cm |
| Kurema | 50 magiramu |
| Color | Nhema |
| Style | Wireless Wall Switch |
| Material | Plastiki |
| Voltage | 3 Volts |
| Bhatiri Type | 2x Lithium-ion (CR2032) |
| Mabhatiri Akabatanidzwa | Ehe |
| Chinja Type | 1-nzira |
| Chinja Chimiro | Push-bhatani |
| Mounting Type | Wall mount |
| Nyika Yekwakabva | China |
9. Warranty uye Tsigiro
Smartwares products are manufactured to high quality standards. In the unlikely event of a defect, please contact your retailer or Smartwares customer service.
For technical support, troubleshooting assistance, or warranty claims, please refer to the contact information provided with your purchase or visit the official Smartwares website.
Kuvepo kwemaspare parts: 1 Gore (sekureva kwechigadzirwa).
