1. Nhanganyaya
Thank you for choosing the Avari EG Air Purifier. This advanced air purification system is designed to provide cleaner, healthier air in your home or office. Featuring a 4-stage filtration process, smart air quality sensing, and UV LED sterilization, the Avari EG is engineered for optimal performance and ease of use. Please read this manual thoroughly before operating your new air purifier to ensure safe and efficient use.
2. Zvigadzirwa zveChigadzirwa
- AHAM & ECARF, ETL, CARB Tested and Certified for reliable performance.
- Embossed HEPA filter technology removes particles as small as 0.1 microns.
- Smart Automatic Air Quality Sensor adjusts purification based on real-time air conditions.
- Integrated UV LED Sterilizer for enhanced air hygiene.
- User-friendly controls and quiet operation.
4-Stage Filtration System
The Avari EG Air Purifier employs a comprehensive 4-stage filtration system to capture a wide range of airborne pollutants:
- Pre-sefa: Inobata zvimedu zvakakura seguruva, lint, uye bvudzi remhuka.
- Patented Embossed HEPA Filtration: Effectively removes fine particles including pollen, bacteria, viruses, allergens, and pet dander down to 0.1 microns.
- Carbon Deodorizer: Absorbs odors, smoke, and volatile organic compounds (VOCs).
- LED Sterilizer: Provides an additional layer of purification by sterilizing captured microorganisms.
Mufananidzo 1: Mufananidzo we4-Stage Filtration System
Smart Air Quality Monitoring
The integrated air quality sensor continuously monitors the surrounding air and displays its quality using a color-coded LED indicator. The purifier can automatically adjust its fan speed based on detected pollution levels.
Figure 2: Air Quality Sensor Display
Effective Purification
The Avari EG Air Purifier is highly effective in removing common indoor air pollutants, contributing to a healthier living environment.
Figure 3: Pollutants Removed by Avari EG
Figure 4: Avari EG Air Purifier in a home setting, demonstrating its compact size and effectiveness against pet dander.
Chigadzirwa Vhidhiyo Pamusoroview
Video 1: Official video demonstrating the Avari EG Air Purifier's efficiency and effectiveness in cleaning indoor air.
3. Setup Guide
Kuburitsa
- Nyatsobvisa mhepo yekuchenesa kubva pakurongedzerwa kwayo.
- Remove all plastic bags and protective materials.
- Ensure all components are present: main unit, filter (pre-installed or separate), and power cord.
Sefa Installation
The filter may come pre-installed or require installation. If separate, follow these steps:
- Shandura chikwata pasi.
- Penya base chivharo kumberi-newachi kuti uvhure nekuibvisa.
- Bvisa sefa kubva mubhegi rayo rekudzivirira repurasitiki.
- Insert the filter into the unit, ensuring it sits securely.
- Replace the base cover and twist clockwise to lock it into place.
Placement
Place the air purifier on a firm, level surface. For optimal performance, ensure there is at least 6 inches (15 cm) of space around all sides of the unit for proper air circulation. Avoid placing it directly against walls or furniture.
4. Operating Instructions
Kudzora Panel Pamusoroview

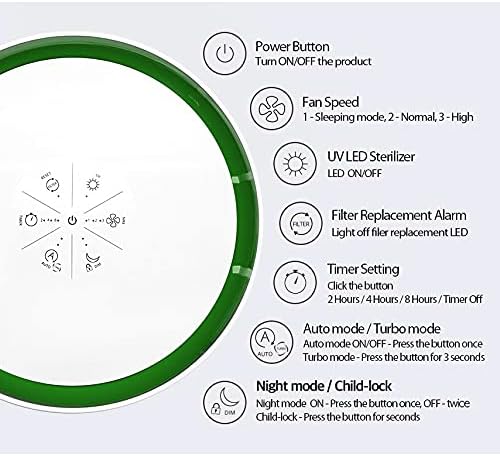

Figure 5: Avari EG Control Panel
- Bhatani reSimba: Dzvanya kuti ubatidze iyo unit ON or OFF.
- Kumhanyisa kweFan: Cycle through 3 fan speeds (1-Sleeping mode, 2-Normal, 3-High).
- UV LED Sterilizer: Press to turn the UV LED ON or OFF.
- Filter Replacement Alarm: A light will indicate when it's time to replace the filter.
- Kugadzirisa nguva: Press to set the operating timer for 2, 4, or 8 hours, or to turn the timer off.
- Auto / Turbo Mode: Press once for Auto mode (adjusts fan speed automatically based on air quality). Press and hold for 3 seconds for Turbo mode (maximum fan speed).
- Night Mode / Child-lock: Press once for Night mode (dims lights and reduces fan speed for quiet operation). Press twice for Child-lock (disables control panel buttons). Press and hold for 3 seconds to activate/deactivate Child-lock.
5. Kuchengeta
Sefa Replacement
The Avari EG Air Purifier is equipped with a filter replacement indicator. When the 'FILTER' light illuminates, it's time to replace the filter to maintain optimal performance. Filters typically last 6-8 months depending on usage and air quality.
- Bvisa chinonatsa mweya kubva pamagetsi.
- Shandura chikwata pasi.
- Penya base chivharo kumberi-newachi kuti uvhure nekuibvisa.
- Bvisa sefa yekare uye uirase zvakanaka.
- Insert a new Avari EG replacement filter (Model AV-EG-HEPA-FILTER) into the unit.
- Replace the base cover and twist clockwise to lock it into place.
- Plug the unit back in. The filter replacement light should reset automatically. If not, consult the troubleshooting section.
Kuchenesa Unit
- Nguva dzose bvisa chikwata usati wachenesa.
- Pukuta kunze kwemhepo yekuchenesa nemucheka wakapfava, wakaoma.
- Usashandise abrasive cleaners, wax, kana solvents.
- The pre-filter layer of the main filter can be gently vacuumed to extend its life, but the entire filter should be replaced as indicated. Do not wash the HEPA or carbon filter layers.
6. Kugadzirisa matambudziko
| Nyaya | Zvinogona Kukonzera | Solution |
|---|---|---|
| Unit haibatike | No power; Power cord not properly connected | Tarisa pombi yemagetsi uye iva nechokwadi chekuti tambo yakabatana zvakanaka. |
| Mhepo yekufema haina simba | Sefa yakasviba kana kuvharika | Tsiva sefa. |
| Ruzha rusina kujairika | Kuvharika kwefeni; Chigadziko hachipo panzvimbo yakagadzikana | Unplug and check for obstructions. Place on a flat, stable surface. |
| Filter replacement light remains on after changing filter | Sensor not reset | Press and hold the 'RESET' button (if available, or power button for 5 seconds) to reset the filter indicator. Refer to the control panel diagram for specific reset instructions. |
| Kubvisa kunhuhwirira kwakashata | Carbon filter saturated | Tsiva sefa. |
7. Zvinyorwa zveUnyanzvi
| Tsanangudzo | Detail |
|---|---|
| Model Number | AV-EG-HEPA |
| Product Dimensions | 11"D x 11"W x 13"H (27.94 masendimita D x 27.94 masendimita W x 33.02 masendimita H) |
| Item Weight | 8 Mapaundi (3.63 kg) |
| Simba Source | Corded Electric |
| Color | Chena |
| Mugadziri | AVARI |
| Rudzi rweKusefa | 4-Stage (Pre-filter, Embossed HEPA, Carbon Deodorizer, UV LED) |
| Particle Removal | Down to 0.1 microns |
Mufananidzo 6: Zviyero zvechigadzirwa
8. Warranty uye Customer Support
Warranty yemugadziri
The Avari EG Air Purifier comes with a manufacturer's warranty. While some users have reported a 5-year warranty, please refer to your product packaging or the official AVARI website for the most accurate and up-to-date warranty information and terms.
Mutengi Support
For any questions, technical assistance, or warranty claims, please contact AVARI customer support through their official website or the contact information provided with your product packaging. Your satisfaction is 100% guaranteed.
