hykolity 52 inch Ceiling Fan Instruction Manual

1. Safety Information

Please read and understand this entire manual before attempting to assemble, operate, or install the product. Failure to do so could lead to electric shock, fire, or other injuries.

• Gara uchibvisa magetsi pa main circuit breaker usati waisa kana kugadzirisa.
• All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code. If you are unfamiliar with electrical wiring, consult a qualified electrician.
• Ensure the installation site can support the weight of the fan.
• Usashandise fan neyakakuvadzwa mablades kana imba.
• Keep hands clear of fan blades during operation.

2. Chigadzirwa Pamusoroview

2.1 Mamiriro Akakosha

• Mazuvano Minimalist Dhizaini: 52-inch ceiling fan with metal motor housing and six dual-color blades. Features an acrylic cover and flicker-free integrated LED light.

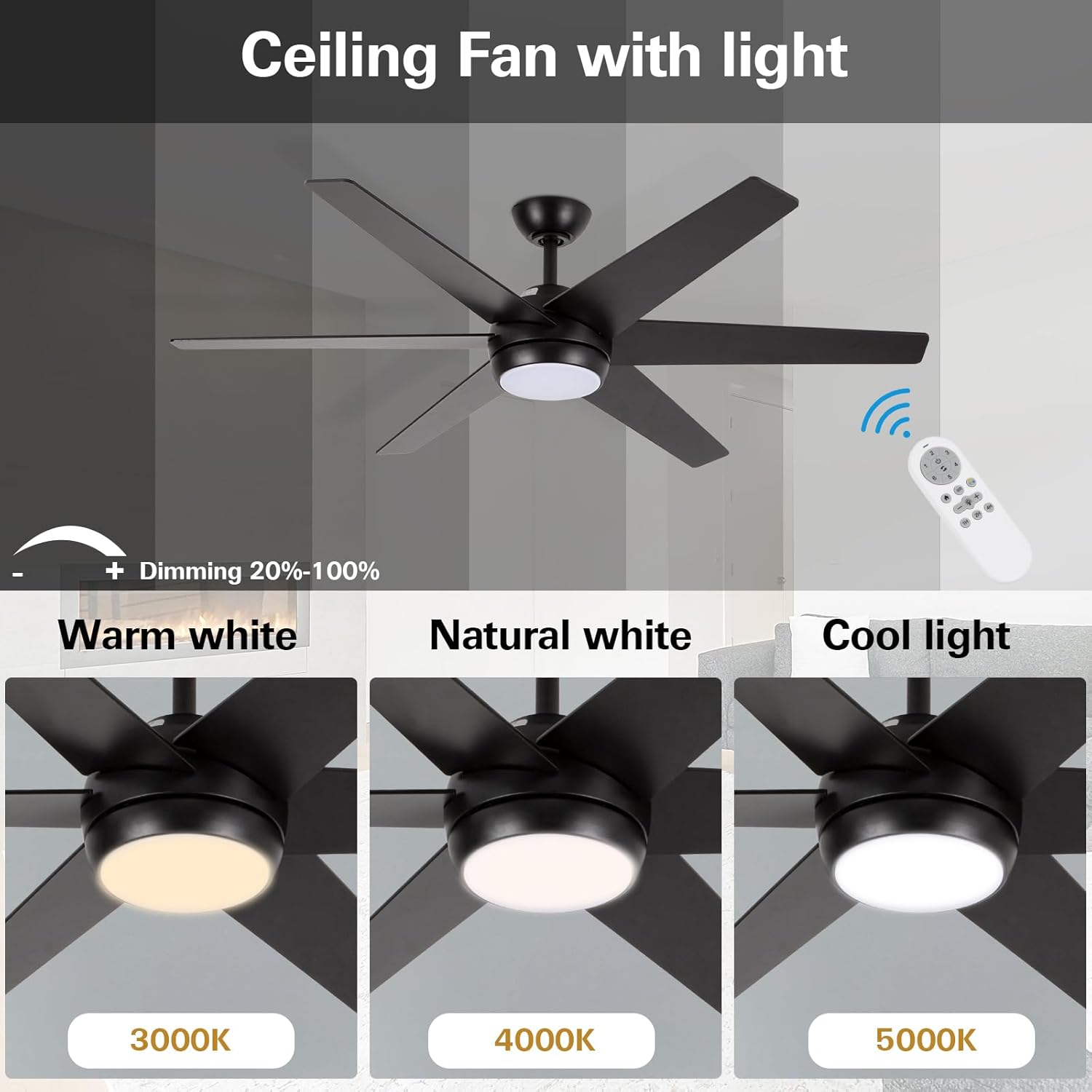

• Dimmable LED Chiedza: Replaceable 18W LED light source with three color temperature options (3000K Warm White, 4000K Natural White, 5000K Cool White) and adjustable brightness (20%–100%).
• Yakanyarara Reversible Motor: Allows for downward airflow in summer for cooling and upward airflow in winter for warm air distribution. Designed for quiet operation.
• Multifunction Remote Control: Offers six fan speeds, a natural wind option, 1/2/4-hour timer functions, and a security anti-theft function (light turns on for 5 minutes every two hours).

2.2 Zvinotsanangurwa

2.3 Mifananidzo yeChigadzirwa

3. Kuiswa

For detailed visual instructions, please refer to the official installation video below. Ensure power is disconnected at the circuit breaker before beginning installation.

3.1 Step-by-Step Installation Guide

1. Gadzirira Downrod:
   • Loosen the hanging ball screw and remove the horizontal bolt to detach the hanging ball.
   • Remove the lower latch from the hanging pipe.
2. Prepare the Motor Assembly:
   • Partially loosen the preassembled set screws in the yoke at the top of the motor assembly.
3. Assemble Downrod to Motor:
   • Thread the main wiring harness through the hole at the bottom of the lifting pipe (downrod).
   • Slip the downrod into the motor assembly yoke, aligning the holes for the safety pin and cotter pin.
   • Tighten the set screws in the motor assembly yoke.
4. Install Remote Control Receiver:
   • Insert the remote control receiver (BCE) into the lifting pipe.
   • Put the crossbolt back through the lifting ball to secure it, then replace the original latch and tighten the lifting screw.
5. Isa Chisungo Chinorembera:
   • Install the hanging bracket to the outlet box using the provided outlet box screws (or original screws).
   • Connect the GROUND (GREEN) wires from the fan and remote control receiver to the BARE/GREEN supply wire from the ceiling.
   • Connect the BLACK wire from the remote control receiver to the BLACK supply wire from the ceiling.
   • Connect the WHITE wire (labeled AC IN N) from the remote control receiver to the WHITE supply wire from the ceiling.
   • Connect the wire group from the remote control receiver to the wire group from the motor assembly.
6. Hang the Fan:
   • Grab the fan firmly with two hands. Slide the downrod through the opening in the hanging bracket and let the hanging ball rest on the hanging bracket.
   • Shandura bhora rakarembera kusvika raita mutsetse netabhu yebhuraketi rakarembera.
   • Gently slide the remote control receiver flat-side up into the mounting bracket.
   • Re-insert the screw that was removed and then tighten both screws securely.
7. Isa Fan Blades:
   • Loosen the screws and remove the installation fan blade decorative panel.
   • Slide a blade through one of the narrow, rectangular openings on the motor housing, aligning holes in the blade with holes in the blade arm.
   • Insert 3 blade attachment screws with fingers first and then tighten screws securely with a Phillips screwdriver. Repeat this procedure for the remaining blades.
8. Isa Kiti yemwenje ye LED:
   • Connect the wire group from the motor housing to the wire group from the LED light kit. Ensure Molex connections snap together securely.
   • Simbisa ese matatu screws nePhillips screwdriver.
9. Batanidza Lampmumvuri:
   • Tenderedza lampshade clockwise to ensure fixation.

4. Operating Instructions

The hykolity ceiling fan is operated using the included multifunction remote control.

4.1 Remote Control Mabasa

• Kumhanya kweFan (1-6): Inogadzirisa kumhanya kwefeni kubva pakaderera (1) kuenda pakakwirira (6).
• Feni On / Off: Inobatidza kana kudzima feni.
• Reversible Motor: Changes the direction of the fan blades for summer (downward airflow) or winter (upward airflow) modes.
• Kuvheneka/Kudzima: Turns the integrated LED light on or off.
• Light Dimming (20%-100%): Inogadzirisa kupenya kwechiedza che LED.
• Color Temperature (3000K/4000K/5000K): Cycles through Warm White, Natural White, and Cool White light settings.
• Natural Wind: Activates a mode that simulates natural breeze by varying fan speeds.
• Timer Function (1H/2H/4H): Sets the fan to automatically turn off after 1, 2, or 4 hours.
• Security Anti-Theft Function: Activates a mode where the light turns on for 5 minutes every two hours.

4.2 Reversible Motor Operation

The reversible motor feature allows you to optimize air circulation for different seasons:

• Zhizha Modhi: Set the fan to rotate counter-clockwise to create a downward airflow, producing a cooling effect.
• Nguva yechando: Set the fan to rotate clockwise to circulate warm air upwards, helping to distribute heat evenly throughout the room.

5. Kuchengeta

Kugara kugadziridzwa kunovimbisa kuita kwakaringana uye hupenyu hurefu hweceiling fan yako.

• Kuchenesa: Shandisa nyoro, damp jira rekuchenesa ma feni mashizha uye mota dzimba. Usashandise abrasive cleaners kana solvents.
• Blade Inspection: Periodically check the fan blades for any signs of damage or warping. Ensure all blade attachment screws are secure.
• Mabatirwo emagetsi: Annually inspect all electrical connections for tightness and wear.
• Kwakabva Chiedza: The integrated LED light source is replaceable. Contact customer service for replacement parts if needed.

6. Kugadzirisa matambudziko

If you experience issues with your hykolity ceiling fan, refer to the following common problems and solutions:

7. Warranty uye Customer Support

For warranty information or any further assistance, please contact hykolity customer service. Refer to the product packaging or the official hykolity webwebhusaiti yeruzivo rwakadzama rwewarandi uye ruzivo rwekuonana.

If you encounter any issues during use, feel free to contact us for assistance.
