1. Nhanganyaya
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your FABER NOVA PLUS 1000 INOX ceiling hood. Please read this manual thoroughly before using the appliance and retain it for future reference. This ceiling hood is designed for efficient kitchen ventilation, offering both ductless/recirculating operation.
2. Safety Information
Gara uchitevera kune anotevera ekuchengetedza nhungamiro kudzivirira kukuvara kana kukuvara kune mudziyo:
- Ita shuwa kuti mudziyo wakaiswa nenyanzvi ane hunyanzvi zvinoenderana nemirairo yemuno.
- Disconnect the power supply before performing any cleaning, maintenance, or repair work.
- Usabvumira vana kushanda kana kutamba nemudziyo.
- Maintain adequate ventilation in the room when the hood is used simultaneously with gas or other fuel-burning appliances.
- Usapisa pasi pehodhi yemhando.
- Gara uchichenesa masefa egirisi kudzivirira njodzi dzemoto.
- Mudziyo uyu ndewekushandisa pamba chete.
3. Package Zviri mukati
Iva nechokwadi chekuti zvikamu zvese zviripo mupakeji:
- FABER NOVA PLUS 1000 INOX Ceiling Hood Unit
- Remote Control
- LED Lighting (pre-installed or separate)
- Installation Hardware (screws, brackets, etc. - specific items may vary)
- User Manual
4. Setup uye Kuiswa
The FABER NOVA PLUS 1000 INOX is an integrated ceiling-mounted hood. Professional installation is highly recommended.
4.1. Kuronga uye Kugadzirira
- Ensure the ceiling structure can support the weight of the hood (package weight: 24 kg).
- Determine the ventilation type: ducted (external exhaust) or recirculating (filter-based). The hood supports both.
- Plan for electrical connections and ducting (if applicable).
4.2. Kuiswa Dimensions

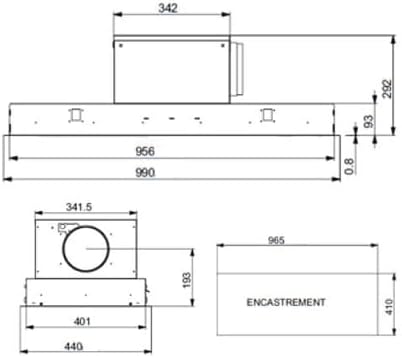

Refer to the technical drawing for precise measurements required for ceiling integration.
4.3. Mounting
The hood features an integrated mounting type. Follow the specific instructions provided in the separate installation guide (if included) or consult a professional installer for secure ceiling integration.
5. Operating Instructions
The FABER NOVA PLUS 1000 INOX ceiling hood is controlled via a remote control.
5.1. Simba On / Off
Press the power button on the remote control to turn the hood on or off.
5.2. Fan Speed Adjustment
The hood offers 3 fan speeds. Use the speed control buttons on the remote to select the desired extraction level. Higher speeds are suitable for intense cooking, while lower speeds are for lighter tasks.
5.3. Kuvhenekera kwe LED
Press the light button on the remote control to switch the integrated LED lighting on or off. The LED lights provide illumination for your cooking area.
5.4. 24H Function
Activate the 24H function for continuous, low-power ventilation throughout the day. This feature helps maintain air quality by gently circulating air, even when not actively cooking. Refer to the remote control's specific button for this function.
6. Kuchengeta
Regular maintenance ensures optimal performance and longevity of your ceiling hood.
6.1. Cleaning the Mesh Filters
The hood is equipped with mesh filters designed to trap grease. These filters should be cleaned regularly (e.g., monthly, depending on usage) to maintain extraction efficiency and prevent fire hazards.
- Kubvisa: Carefully unlatch and remove the mesh filters from the hood.
- Kuchenesa: Wash the filters by hand in hot soapy water or in a dishwasher. Ensure they are completely dry before re-installation.
- Re-installation: Insert the dry filters back into their positions, ensuring they are securely latched.
6.2. Cleaning the Hood Exterior
Clean the brushed stainless steel exterior with a soft cloth and a non-abrasive cleaner specifically designed for stainless steel. Avoid harsh chemicals or abrasive pads that could scratch the surface.
6.3. Replacing LED Lights
If an LED light fails, contact a qualified technician or FABER customer support for replacement. Do not attempt to replace the LED modules yourself unless specifically instructed by the manufacturer.
7. Kugadzirisa matambudziko
Usati wabata basa revatengi, review zvinotevera zvinowanzoitika uye mhinduro:
- Hood haibatidzi: Check if the appliance is properly plugged into a power outlet. Verify the circuit breaker. Ensure the remote control batteries are not depleted.
- Kusaita zvakanaka kwekubvisa: Clean the mesh filters. Ensure there are no obstructions in the ducting (if ducted). Check if the fan speed is set appropriately for the cooking intensity.
- Ruzha rusina kujairika: Check for loose components or objects inside the hood. Ensure the filters are correctly installed.
- Magetsi haasi kushanda: Check if the light function is activated via the remote. If individual LEDs are out, they may need replacement by a technician.
If the problem persists after attempting these solutions, contact FABER customer support.
8. Zvinotsanangurwa
| Brand | FABER |
| Model Number | 5777308 |
| Product Type | Ceiling Hood (Integrated Mounting) |
| Material | Simbi isina ngura |
| Finish Type | Brushed |
| Color | Brushed Stainless Simbi |
| Ventilation Type | Ductless/Recirculating |
| Rudzi rwesefa | Mesh |
| Kudzora Rudzi | Remote Control |
| Nhamba Yekumhanya | 3 |
| Chiedza Chinyorwa Type | LED |
| Special Feature | 24H Function |
| Package Dimensions | 112 x 72 x 38 cm |
| Package Weight | 24 makirogiramu |
9. Warranty uye Tsigiro
For warranty information, please refer to the documentation provided with your purchase or contact FABER customer service directly. Information regarding the availability of spare parts is not explicitly provided in the product details. For technical support, spare parts, or service inquiries, please contact your retailer or the official FABER support channels.
