Hikvision Turbo HD DVR 8-Channel DS-7108HGHI-K1(S)

1. Nhanganyaya

This manual provides essential information for the proper installation, configuration, and operation of your Hikvision Turbo HD DVR 8-Channel, model DS-7108HGHI-K1(S). Please read this manual thoroughly before using the device to ensure safe and efficient operation. Keep this manual for future reference.

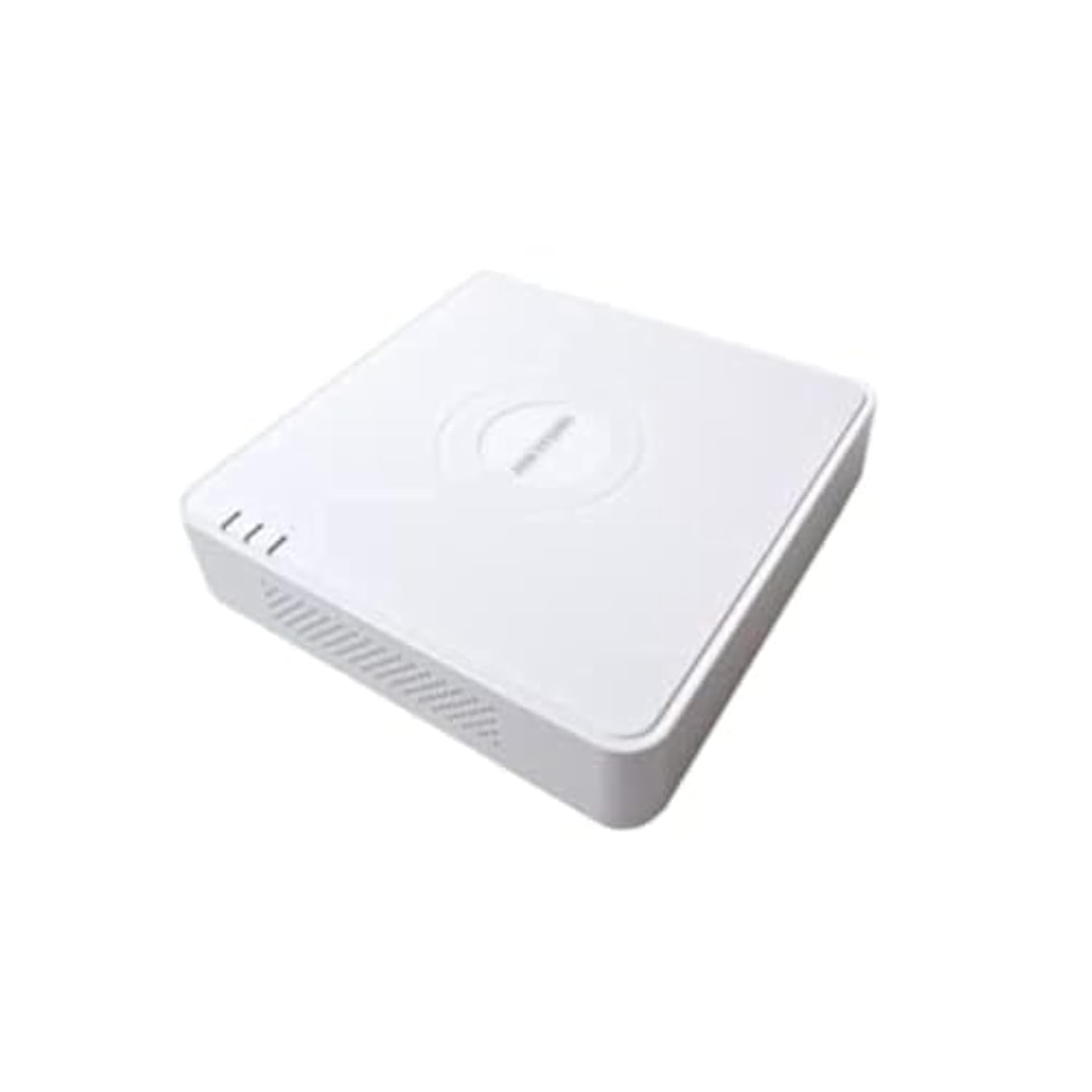

This image shows the Hikvision Turbo HD DVR unit from a front-side perspective, highlighting its compact design, ventilation grilles, and status indicator lights.

2. Zvigadzirwa zveChigadzirwa

• High-definition 8-channel Turbo HD DVR
• Supports audio transmission over coaxial cable
• Equipped with one SATA interface for storage
• Durable plastic casing yekudzivirira
• Video encoding capabilities up to 1080p Lite at 15 frames per second
• Advanced video compression: H.265 Pro+/H.265 Pro/H.265

3. Setup Guide

3.1 Kuburitsa uye Kuongorora

Carefully unpack the DVR and all accessories. Verify that all components are present and undamaged. If any items are missing or damaged, contact your supplier immediately.

3.2 Connecting the DVR

1. Batanidza Hard Drive (kana isina kufanoiswa): Open the DVR casing, connect the SATA data and power cables to the hard drive, and secure the drive.
2. Batanidza Makamera: Connect your Turbo HD cameras to the BNC video input ports on the rear panel.
3. Batanidza Monitor: Use an HDMI or VGA cable to connect a monitor to the corresponding output port on the DVR.
4. Batanidza Mouse: Batanidza USB mouse mu USB port iri paDVR.
5. Batanidza Network: Connect an Ethernet cable from your router/switch to the LAN port on the DVR for network access and remote viewing.
6. Batanidza Simba: Batanidza adapta yemagetsi kune DVR's power input wobva wabatanidza kune power outlet. DVR inongobatidza yega.

3.3 Magadzirirwo ekutanga

Upon first power-on, the DVR will guide you through an initial setup wizard. This includes setting up a strong password, configuring network settings, and initializing the hard drive. Follow the on-screen prompts to complete the setup.

4. Operating Instructions

4.1 Rarama View

Mushure mekutanga kuseta, DVR icharatidza mhenyu view from all connected cameras on the monitor. You can switch between single-camera view uye grid yemakamera akawanda view uchishandisa zvinodzora zviri pachikirini kana mbeva.

4.2 Kurekodha

The DVR is typically configured for continuous recording by default. You can access the recording schedule settings via the main menu to customize recording modes (e.g., motion detection, scheduled recording) for each channel.

4.3 Kutamba

Kuti review yakanyorwa footage, navigate to the Playback menu. Select the desired camera(s) and time range. You can use the timeline and playback controls to fast forward, rewind, or pause the video.

4.4 Remote Access

Zvekure viewing on a mobile device or computer, ensure the DVR is connected to the internet. Download the official Hik-Connect app (or client software) and follow the instructions to add your DVR using its serial number or QR code. This allows you to view mimhanzi inobuda uye marekodhi ekutamba kubva chero kupi zvako kune internet.

5. Kuchengeta

5.1 Kuchenesa Nguva Dzose

Keep the DVR clean by wiping its exterior with a soft, dry cloth. Ensure ventilation openings are free from dust and obstructions to prevent overheating.

5.2 Firmware Updates

Nguva nenguva tarisa mukuru weHikvision website for firmware updates. Keeping your DVR's firmware up-to-date ensures optimal performance, security, and access to new features. Follow the provided instructions carefully when performing updates.

5.3 Data Backup

Gara uchitsigira yakakosha vhidhiyo footage to an external USB drive or network storage. This helps prevent data loss in case of hard drive failure or other unforeseen issues.

6. Kugadzirisa matambudziko

6.1 Hapana Vhidhiyo Inobuda

• Check all video cable connections (BNC, HDMI, VGA) to ensure they are secure.
• Tarisa uone kuti moniti yakabatidzwa uye inoiswa kune chaiyo yekuisa sosi.
• Ensure cameras are powered and functioning correctly.

6.2 Network Connection Nyaya

• Confirm the Ethernet cable is properly connected to both the DVR and the router/switch.
• Check network settings in the DVR menu (IP address, gateway, DNS). Ensure they are correct for your network.
• Restart your router/switch and the DVR.

6.3 Matambudziko Ekurekodha

• Verify that a hard drive is installed and properly initialized.
• Check the recording schedule and settings for the affected channels.
• Iva nechokwadi chekuti pane nzvimbo yakakwana yemahara pa hard drive.

7. Zvinotsanangurwa

8. Warranty uye Tsigiro

For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Hikvision directly. Technical support may be available through the Hikvision official website or your authorized dealer.
