1. Nhanganyaya
Thank you for choosing the HOMCOM Mini Freezer Countertop. This compact upright freezer is designed for convenient storage of frozen foods in various settings such as homes, dorms, apartments, and offices. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

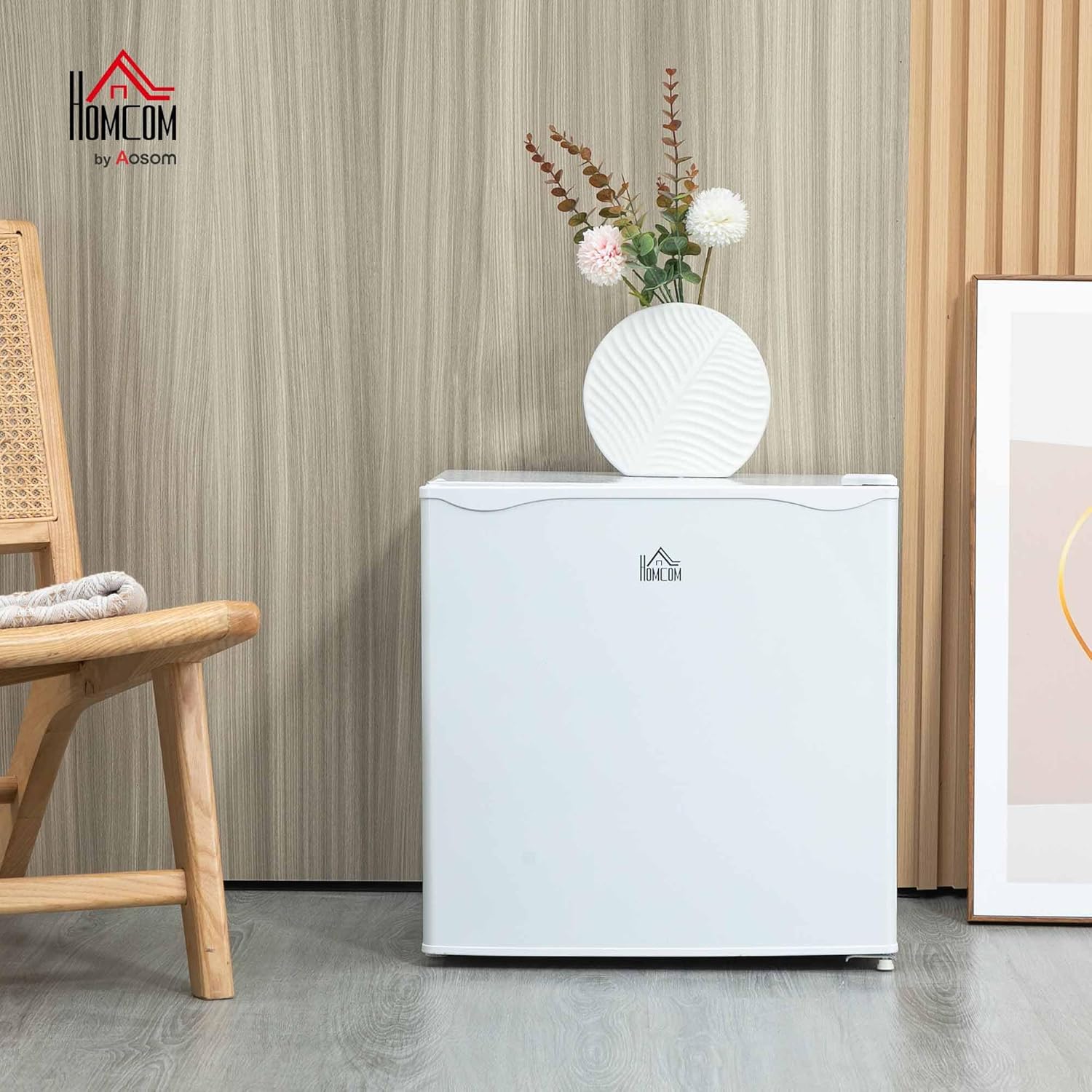

Image 1.1: The HOMCOM Mini Freezer Countertop, 1.1 Cu.Ft, positioned in a room, showcasing yayo compact dhizaini.
2. Safety Information
Kuti uderedze njodzi yemoto, kuvhunduka kwemagetsi, kana kukuvara paunenge uchishandisa mudziyo wako, tevera matanho ekudzivirira aya:
- Verenga mirairo yese usati washandisa mudziyo.
- Usachengete zvinhu zvinoputika zvakaita semagaba eaerosol ane chinopisa chinopisa mumudziyo uyu.
- Ichi chishandiso chakagadzirirwa kushandiswa mudzimba uye zvakafanana zvikumbiro.
- Chengetedza mavhuriro ekufemesa, mumudziyo wemudziyo wakavharirwa kana mune yakavakirwa-mukati magadzirirwo, asina kuvharika.
- Usashandise michina yemagetsi kana imwe nzira yekumhanyisa dhizaini, kunze kweiyo inokurudzirwa nemugadziri.
- Usakuvadza refrigerant circuit.
- Usashandise midziyo yemagetsi mukati menzvimbo dzekuchengetera chikafu chemudziyo, kunze kwekunge dziri dzemhando inokurudzirwa nemugadziri.
- Ita shuwa kuti mudziyo unoiswa panzvimbo yakatsiga, nhanho.
- Allow adequate space around the unit for proper ventilation.
3. Setup uye Kuiswa
3.1 Kusunungura uye Kuisa
- Bvisa zvinhu zvese zvekurongedza, kusanganisira furo uye tepi yekunamatira.
- Clean the interior and exterior of the freezer with a damp jira.
- Place the freezer on a firm, level floor that is strong enough to support the unit when fully loaded.
- Ensure the freezer is not exposed to direct sunlight or heat sources.
- Allow at least 4 inches (10 cm) of space on the sides and back of the freezer for proper air circulation.
3.2 Dzinogadziriswa Tsoka
The freezer is equipped with adjustable feet to ensure stability on uneven surfaces. Rotate the feet clockwise or counter-clockwise to level the unit.
3.3 Reversible Door
The door of the freezer is reversible, allowing it to open from either the left or right side. This feature provides flexibility for placement in various locations. Refer to the detailed diagram for instructions on reversing the door hinge if needed.
Image 3.1: Key features of the freezer, including the adjustable foot for leveling and the reversible door mechanism.
4. Operating Instructions
4.1 Kutanga Kushanda
- After placing the freezer, allow it to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle.
- Plug the freezer into a dedicated electrical outlet.
- The freezer will begin to cool. Allow it to operate for several hours before placing food inside.
4.2 Kugadziriswa kweTembiricha
The temperature of the freezer can be adjusted using the thermostat dial located inside the unit. The dial has 5 levels, allowing you to set the temperature from 6.8℉ to -11.2℉ (or -14℃ to -24℃).
- Setting 0: Off
- Setting 1: Least cold (approximately 6.8℉ / -14℃)
- Setting 5: Coldest (approximately -11.2℉ / -24℃)
Adjust the dial to your desired temperature. A middle setting (e.g., 3) is often sufficient for general use.
Image 4.1: The internal thermostat dial for adjusting the freezer's temperature.
4.3 Storage Capacity and Removable Shelf
The 1.1 Cu.Ft capacity is suitable for storing various frozen items such as seafood, meats, and other frozen foods. The internal shelf is removable, providing flexibility to accommodate items of different sizes.
Video 4.1: This video demonstrates the interior capacity of the HOMCOM Mini Freezer, showing how items like ice trays and various foods can be stored, and highlights the adjustable temperature control.
4.4 Energy Efficiency and Noise Level
The freezer features a low-energy consumption compressor, designed to cool quickly and quietly. It operates at approximately 41 decibels, ensuring minimal disturbance in quiet environments.
Image 4.2: Illustration of the freezer's low noise operation, rated at 41 decibels.
Image 4.3: The freezer highlighting its energy-saving features, with an estimated daily cost of $0.07.
5. Kuchengeta
5.1 Kuchenesa
- Gara uchisunungura firiza usati wachenesa.
- Clean the interior with a solution of mild detergent and warm water. Avoid abrasive cleaners or harsh chemicals.
- Pukuta kunze nekanyoro, damp jira.
- Ensure all surfaces are dry before plugging the freezer back in.
5.2 Kubvisa chando
This freezer is not frost-free and will accumulate frost over time. Regular defrosting is necessary to maintain efficiency and prevent excessive ice buildup.
- Bvisa firiza kubva pamagetsi.
- Bvisa zvese zvekudya uye uzvichengete mune imwe firiji kana inotonhorera.
- Leave the freezer door open to allow the frost to melt naturally. You can place towels inside to absorb melting water.
- Usashandise zvinhu zvinopinza kana midziyo yekudziya kuti ubvise chando, sezvo izvi zvinogona kukuvadza hurongwa hwekutonhora.
- Once all frost has melted, clean and dry the interior thoroughly before plugging the freezer back in and returning food items.
6. Kugadzirisa matambudziko
Kana ukasangana nematambudziko nefiriji yako, tarisa matanho anotevera ekugadzirisa matambudziko:
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Freezer haishande | Hapana magetsi; Tambo yemagetsi yabviswa; Circuit breaker yagumburwa. | Check power supply; Ensure cord is securely plugged in; Reset circuit breaker. |
| Firiza haina kutonhora zvakakwana | Temperature setting too high; Door not closed properly; Excessive frost buildup; Ambient temperature too high. | Adjust thermostat to a colder setting; Ensure door seals tightly; Defrost the unit; Move freezer to a cooler location. |
| Noise yakanyanyisa | Freezer not level; Items inside rattling; Compressor noise (normal). | Adjust leveling feet; Rearrange items; Compressor noise is normal during operation. |
| Mvura pauriri | Defrosting water not contained; Drain pan overflowing. | Ensure proper defrosting procedure is followed; Check and empty drain pan if applicable. |
7. Zvinotsanangurwa
Detailed specifications for the HOMCOM Mini Freezer Countertop, Model 800-127V80WT:
| Feature | Detail |
|---|---|
| Model Number | 800-127V80WT |
| Capacity | 1.1 Cu.Ft |
| Chigadzirwa Zviyero (W x D x H) | 18.5" x 17.5" x 19.25" (47 masendimita x 44.5 masendimita x 49 cm) |
| Item Weight | 28.6 makirogiramu (13 kg) |
| Color | Chena |
| Material | Simbi |
| Simba Source | Corded Electric |
| Voltage | 115 Volts |
| Wattage | 150 watts |
| Sound Level | 41 Decibel |
| Special Features | Adjustable Shelves, Compact, Energy Efficient, Low Noise, Portable, Reversible Door |
| Inosanganisirwa Zvikamu | Ice Shovel, Ice Cube Tray |
| Certification | UL |
Image 7.1: Product dimensions of the HOMCOM Mini Freezer.
Mufananidzo 7.2: Eksamples of the freezer's compact design fitting into small spaces.
8. Warranty uye Tsigiro
The HOMCOM Mini Freezer Countertop, Model 800-127V80WT, comes with a 1 Year Manufacturer Warranty.
For warranty claims, technical support, or any inquiries regarding your product, please contact HOMCOM customer service through the retailer where the product was purchased. Ensure you have your proof of purchase and model number available.
