Bhuku rekushandisa reGREENCUT GGT650X-1 Petrol Brushcutter

1. Safety Information

Yakakosha Mirayiridzo Yekuchengetedza: Always wear protective equipment, including safety glasses and gloves, when operating the GGT650X-1. Ensure the engine is cool before refueling to prevent fire hazards. Do not operate the machine in enclosed spaces or near flammable materials. Keep hands and feet away from moving parts during operation. The GGT650X-1 is not a toy; do not allow children to play with it.

• Read and understand the entire manual before operation.
• Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, heavy-duty gloves, long pants, and sturdy footwear.
• Inspect the brushcutter before each use for loose parts, damage, or wear.
• Ita shuwa kuti nzvimbo yebasa haina vanhu vanomira, vana, uye mhuka dzinovaraidza.
• Bata mafuta nekungwarira kwakanyanya. Dzorera mafuta munzvimbo ine mhepo yakanaka injini yadzima uye inotonhorera.
• Do not operate the brushcutter if you are tired, under the influence of alcohol, drugs, or medication.
• Maintain a firm grip on the handles during operation.
• Be aware of kickback and thrown objects.
• Dzima injini uye bvisa waya yespark plug usati waita chero kugadzirisa kana kubvisa zvivhariso.

2. Chigadzirwa Pamusoroview

The GREENCUT GGT650X-1 is a powerful and versatile petrol brushcutter designed for efficient garden maintenance. It features a robust 65cc 2-stroke engine, providing ample power for various cutting tasks, from dense grass to overgrown areas. Its ergonomic design, including a double-grip handlebar and adjustable shoulder harness, ensures user comfort and precise control during extended use.

Zvinokosha:

• Injini Yakasimba: Equipped with a 65cc, 4.9hp, 2-stroke petrol engine for demanding tasks.
• Ergonomic Dhizaini: Double-grip handlebar for stability and comfort, minimizing fatigue.
• Kucheka kwakasiyana-siyana: Includes a semi-automatic nylon line head (Tap'n Go system) and a 3-point cutting disc, adaptable for various vegetation types.
• Easy Start System: Automatic decompression starter for effortless ignition.
• Durable Construction: Robust aluminum structure for high lightness without compromising strength.
• Kuzvimirira Kuwedzerwa: 1-liter fuel tank for continuous operation.
• Adjustable Shoulder Harness: Distributes weight evenly for reduced effort and increased comfort.

Figure 2.1: The GREENCUT GGT650X-1 petrol brushcutter, showcasing its main body, double handlebar, and the two included cutting attachments: a line head and a 3-point cutting disc.

Figure 2.2: An operator using the GREENCUT GGT650X-1 brushcutter to trim grass along a wall, demonstrating its adjustable, lightweight, and powerful nature for garden tasks.

Figure 2.3: A technical diagram illustrating the key dimensions of the GGT650X-1 brushcutter and its robust 2-stroke engine specifications, including 4.9 CV power, 10000 RPM max rate, 65cc cylinder, and centrifugal clutch.

Mufananidzo 2.4: Detailed view of the GGT650X-1's advanced features: the Tap'n Go system for automatic thread adjustment, the ergonomic handlebar for improved control and reduced fatigue, the Easy Start System for simplified starting, and the lightweight yet strong aluminum structure.

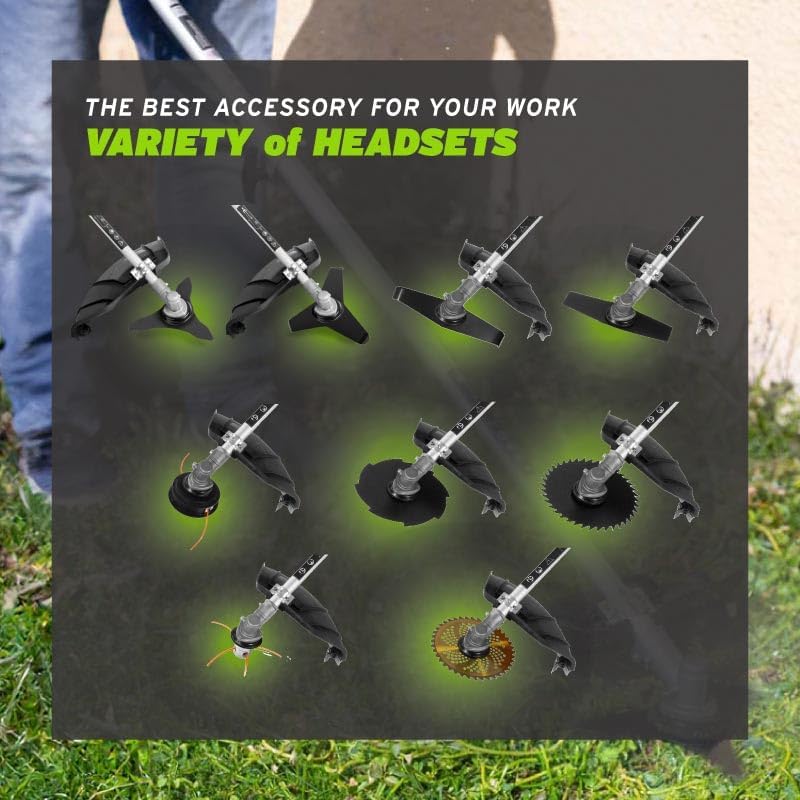

Figure 2.5: An array of different cutting heads and blades, demonstrating the versatility of the GREENCUT brushcutter series and the range of accessories available for various types of vegetation and tasks.

Figure 2.6: An operator utilizing the adjustable shoulder harness provided with the GREENCUT brushcutter, highlighting how it saves strength and increases comfort by distributing the tool's weight.

3. Setup uye Gungano

The GREENCUT GGT650X-1 requires some assembly before its first use. Follow these steps carefully to ensure proper and safe operation.

3.1. Kusunungura uye Kuongorora

• Nyatsobvisa zvese zvikamu kubva pakurongedza.
• Iva nechokwadi chekuti zvikamu zvese zvakanyorwa pane rondedzero yekurongedza zviripo uye hazvina kukuvara.
• If any parts are missing or damaged, do not proceed with assembly. Contact customer support.

3.2. Handlebar Assembly

1. Attach the double-grip handlebar to the main shaft using the provided clamps uye mabhaudhi.
2. Ensure the handlebar is securely fastened and positioned for comfortable operation.
3. Connect the throttle cable and stop switch wiring to the engine unit as per the diagrams in the full manual.

3.3. Guard and Cutting Head Installation

1. Mount the safety guard to the lower part of the shaft, ensuring it is firmly attached and provides adequate protection from debris.
2. Install the desired cutting attachment (nylon line head or 3-point disc) onto the gearbox spindle. Follow the specific instructions for each attachment to ensure correct orientation and secure fastening.
3. Simbisa nzungu dzose nemabhaudhi zvakachengeteka.

3.4. Kugadzirira Kwemafuta

The GGT650X-1 uses a 2-stroke petrol engine and requires a specific fuel mixture.

• Mix unleaded petrol with 2-stroke engine oil.
• Shandisa JASO FC synthetic oil at a 4% ratio (25:1 petrol to oil) or JASO FD synthetic oil at a 2% ratio (50:1 petrol to oil). Refer to the oil manufacturer's recommendations.
• Gara uchisanganisa mafuta mumudziyo wemafuta wakasiyana, unotenderwa.
• Fill the brushcutter's 1-liter fuel tank carefully, avoiding spills. Do not overfill.

4. Operating Instructions

4.1. Starting the Engine (Easy Start System)

1. Place the brushcutter on a flat, stable surface.
2. Ensure the cutting attachment is clear of any obstacles.
3. Set the choke lever to the "CLOSED" (cold start) position.
4. Dzvanya girobhu rekutanga kakawanda kusvika mafuta aonekwa mumutsara wekudzoka.
5. Pull the starter cord firmly and smoothly until the engine fires (usually a few pulls).
6. Once the engine fires, immediately move the choke lever to the "OPEN" (run) position.
7. Rega injini idziye kwechinguva usati watanga kuibata.

4.2. Using the Brushcutter

• Wear the adjustable shoulder harness for balanced weight distribution and reduced fatigue.
• Maintain a firm grip on the double-grip handlebar.
• Always operate the brushcutter with both hands.
• For line trimming, use the Tap'n Go system by gently tapping the cutting head on the ground to advance the nylon line.
• When using the cutting disc, approach vegetation slowly and steadily. Avoid hitting hard objects like rocks or metal.
• Work in a sweeping motion, cutting from right to left for optimal efficiency and debris control.
• Keep a safe distance from other people and objects.

4.3. Kumisa Injini

1. Regedza iyo throttle trigger.
2. Press the engine stop switch (usually located on the handlebar) to turn off the engine.
3. Allow the engine to cool down before storing or refueling.

5. Kuchengeta

Regular maintenance is crucial for the longevity and optimal performance of your GREENCUT GGT650X-1 brushcutter. Always ensure the engine is off and cool, and the spark plug wire is disconnected before performing any maintenance.

5.1. Kuchenesa

• Clean the exterior of the brushcutter with a damp jira.
• Remove any grass, dirt, or debris from the cutting head, guard, and engine cooling fins.
• Ensure the air intake is clear of obstructions.

5.2. Air Sefa

• The GGT650X-1 features a double-element air filter.
• Check the air filter regularly (e.g., every 10 hours of operation or more frequently in dusty conditions).
• Clean the foam element with warm, soapy water, rinse thoroughly, and allow to dry completely. Lightly oil the foam element with clean engine oil before reinstallation.
• Clean the felt element by tapping it gently or using compressed air. Do not wash.
• Replace the air filter if it is damaged or excessively dirty and cannot be cleaned.

5.3. Spark Plug

• Inspect the spark plug every 25 hours of operation.
• Clean any carbon deposits from the electrodes using a wire brush.
• Check the electrode gap and adjust if necessary (refer to the full manual for specific gap size).
• Replace the spark plug annually or if it shows signs of wear or damage.

5.4. Cutting Head Maintenance

• For the nylon line head, replace the line when it becomes too short or worn.
• For the cutting disc, inspect for cracks, bends, or dullness. Sharpen or replace the disc as needed.

5.5. Kuchengeta

• Before long-term storage, drain the fuel tank and run the engine until it stops to consume all remaining fuel in the carburetor. This prevents fuel degradation and carburetor clogging.
• Chenesa midziyo yese zvakanaka.
• Store the brushcutter in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
• Chengetedza pasingasvikirwi nevana.

6. Kugadzirisa matambudziko

This section provides solutions to common issues you might encounter with your GREENCUT GGT650X-1 brushcutter.

If the problem persists after attempting these solutions, please contact Greencut customer support or a certified service center.

7. Zvinyorwa zveUnyanzvi

8. Warranty uye Tsigiro

8.1. Product Warranty

The GREENCUT GGT650X-1 brushcutter typically comes with a manufacturer's warranty. While specific terms may vary by region and retailer, the product is often advertised with a 3-year coverage. Please refer to the warranty card included with your product or visit the official Greencut webwebhusaiti kuti uwane ruzivo rwakadzama nezvewarandi, mitemo, uye mamiriro. Chengeta humbowo hwekutenga kwako kuti uwane zvikumbiro zvewarandi.

8.2. Mutengi Tsigiro

For technical assistance, spare parts, or any inquiries regarding your GREENCUT GGT650X-1, please contact Greencut customer support.

• Rutsigiro rwepamhepo: Visit the official Greencut websaiti yeFAQs, madhairekitori ekugadzirisa matambudziko, uye mafomu ekusangana.
• Service Centers: For repairs or professional assistance, locate an authorized Greencut service center in your area.

When contacting support, please have your product model (GGT650X-1) and serial number (if applicable) ready.
