FIDECO M.2 NVMe SATA to USB Adapter User Manual

1. Nhanganyaya

The FIDECO M.2 NVMe SATA to USB Adapter (Model M118) is a versatile external docking station designed for M.2 NVMe and SATA SSDs. It provides high-speed data transfer capabilities, allowing users to easily access, backup, and transfer data from M.2 solid-state drives via a USB connection. Its robust aluminum alloy construction ensures efficient heat dissipation, contributing to optimal performance and extended SSD lifespan. This manual provides essential information for setting up, operating, and maintaining your FIDECO M.2 SSD adapter.

FIDECO M.2 NVMe SATA to USB Adapter with included cables

Figure 1: FIDECO M.2 NVMe SATA to USB Adapter (Model M118) with USB-C to USB-C and USB-C to USB-A cables.

2. Key Features

Wide SSD Compatibility: Supports M.2 PCIe NVMe SSDs with M Key or B+M Key, and M.2 SATA SSDs with B+M Key. Compatible SSD sizes include 2230, 2242, 2260, 2280, and 22110.
10Gbps Super Speed: Features USB 3.2 Gen 2 PCIe NVMe data bridge, offering data transfer speeds up to 10Gbps. Supports UASP for faster read and write speeds compared to conventional USB 3.1.
Efficient Heat Dissipation: Constructed from aluminum with a unique toaster design, aiding in maintaining a cooler operating environment for optimal performance and extended SSD lifespan. Includes heatsink and thermal pad for enhanced cooling.
Tool-free Installation: Designed for easy plug-and-unplug of SSDs without requiring tools.
Broad Operating System Kuenderana: Widely compatible with Windows, Mac OS, and Linux. Plug and play functionality, no drivers required.
Portable Design: Compact and mini design for easy portability.

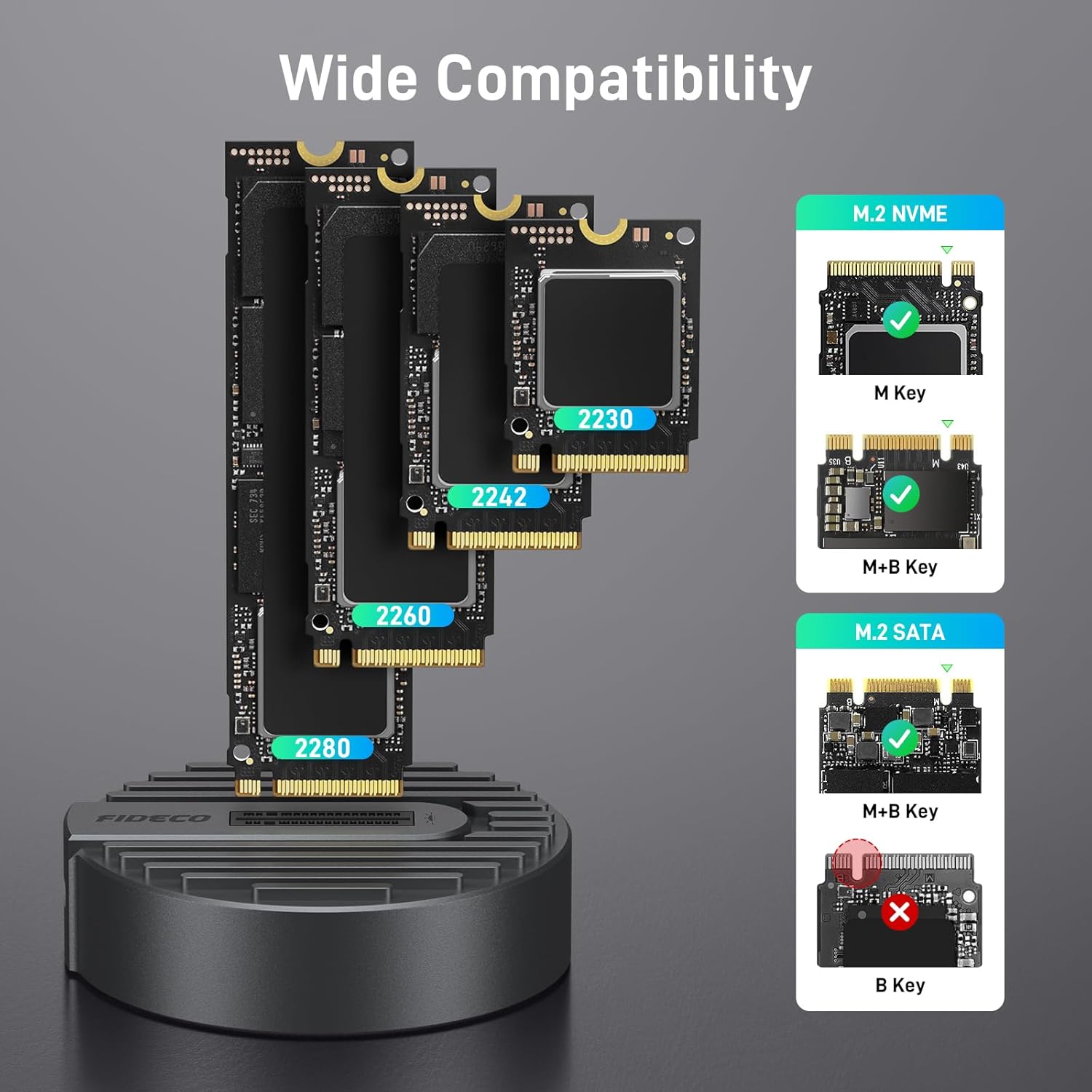

Diagram showing compatibility with various M.2 SSD types and sizes

Figure 2: Compatibility overview for M.2 NVMe (M Key, M+B Key) and M.2 SATA (M+B Key) SSDs, excluding B Key SATA SSDs.

Image demonstrating 10Gbps high-speed data transfer with an SSD in the FIDECO adapter connected to a laptop

Figure 3: High-speed data transfer capabilities of the FIDECO M.2 SSD adapter, illustrating 10Gbps performance.

3. Package Zviri mukati

Ndapota tarisai kuti zvinhu zvese zviripo uye zviri mumamiriro akanaka pamunovhura pasuru.

FIDECO M.2 NVMe SATA to USB Adapter (Model M118)
USB-C to USB-C Cable (with USB-A adapter)
Heatsink (cooling vest)
Thermal Pad
Rubber Bands (for securing heatsink)

4. Setup Guide

Follow these steps to install your M.2 SSD into the FIDECO adapter:

Gadzirira SSD: If using the included heatsink, peel off the protective film from the thermal pad and carefully stick it onto your M.2 SSD.
Attach Heatsink: Place the heatsink over the thermal pad on the SSD. Use the provided rubber bands to securely fasten the heatsink to the SSD. This ensures optimal heat dissipation.
Isa SSD: Gently insert the prepared M.2 SSD into the slot on the FIDECO docking station. Ensure it is fully seated. The tool-free design allows for easy insertion.
Batanidza kuKombuta: Connect the FIDECO SSD docking station to your computer using the provided USB-C to USB-C cable, or the USB-C to USB-A adapter if your computer only has USB-A ports.

Step-by-step guide for installing an M.2 SSD into the FIDECO adapter

Figure 4: Visual guide for the easy, tool-free installation of an M.2 SSD into the FIDECO docking station.

5. Operating Instructions

Once connected, the FIDECO M.2 NVMe SATA to USB Adapter operates on a plug-and-play basis, requiring no additional drivers for most operating systems.

Automatic Recognition: Your computer should automatically detect the connected SSD. The SSD will appear as an external drive in your file explorer (Windows) or Finder (Mac OS).
Kuendesa Data: You can now drag and drop files, copy, paste, or perform any data transfer operations as you would with any other external storage device.
Kuita: For optimal performance, ensure your computer's USB port supports USB 3.2 Gen 2 (10Gbps). While compatible with older USB standards, speeds will be limited to the maximum supported by the port.
Chiedza chechiratidzo: The adapter features an indicator light that typically illuminates when powered and blinks during data transfer activity.

FIDECO adapter connected to a laptop, showing compatibility with Windows, Mac OS, Linux, and Android

Figure 5: The FIDECO adapter offers driver-free, plug-and-play functionality across various operating systems.

Multiple scenarios showing the FIDECO adapter connected to various devices like desktops, laptops, tablets, and smartphones

Figure 6: The FIDECO M.2 SSD adapter can be used with a wide range of devices, including desktops, laptops, tablets, and smartphones.

6. Kuchengeta

Proper maintenance ensures the longevity and optimal performance of your FIDECO M.2 NVMe SATA to USB Adapter.

Heat Management: M.2 SSDs can generate significant heat during high-speed data transfers. The aluminum design and included heatsink are designed to dissipate this heat. It is normal for the SSD to become warm during operation.
Kubata Chengetedzo: Avoid touching the SSD directly during operation, as it may be hot. Always handle the adapter and SSD with care to prevent physical damage.
Kuchenesa: Shandisa jira rakapfava, rakaoma kuchenesa adapta. Dzivisa kushandisa mvura yekuchenesa kana zvinonyungudutsa.
Kuchengeta: Kana isiri kushandiswa, chengetedza adapta munzvimbo inotonhorera, yakaoma kure nechiedza chezuva uye tembiricha yakanyanyisa.

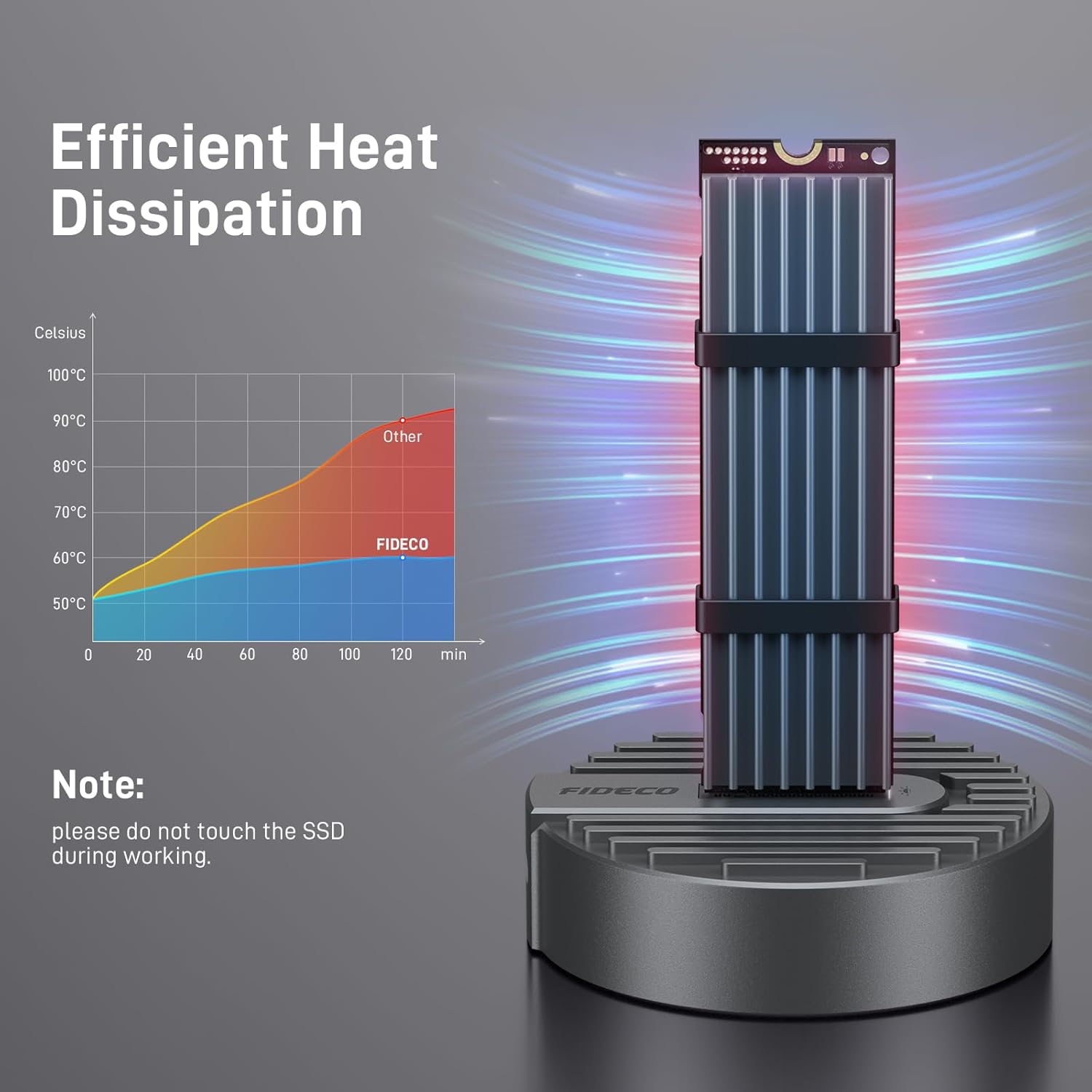

Graph showing temperature comparison between FIDECO adapter and others, highlighting efficient heat dissipation

Figure 7: The FIDECO adapter's design promotes efficient heat dissipation, keeping the SSD cooler during operation.

7. Kugadzirisa matambudziko

If you encounter issues with your FIDECO M.2 NVMe SATA to USB Adapter, refer to the following common solutions:

Dambudziko	Zvinogoneka Chikonzero / Mhinduro
SSD not recognized by computer.	Ensure the SSD is fully and correctly inserted into the adapter slot. Verify the USB cable is securely connected to both the adapter and the computer. Edza imwe USB port pane komputa yako. Disconnect the adapter from USB, insert the M.2 SSD, and then reconnect to USB. This can help the system recognize a newly inserted SSD. Check Disk Management (Windows) or Disk Utility (Mac OS) to see if the drive is detected but unformatted or uninitialized. Confirm your SSD type (NVMe or SATA) is compatible with the adapter (M Key or B+M Key). B Key SATA SSDs are not supported.
Inononoka kutumira data.	Ensure you are connected to a USB 3.2 Gen 2 (10Gbps) port on your computer. Older USB ports (e.g., USB 2.0, USB 3.0/3.1 Gen 1) will limit speeds. Verify your SSD is capable of high speeds (NVMe SSDs are generally faster than SATA SSDs). Close other applications that might be consuming system resources or disk I/O. Ensure the heatsink and thermal pad are correctly installed to prevent thermal throttling.
Adapter or SSD feels hot.	This is normal during high-speed data transfers. The aluminum casing and heatsink are designed to dissipate heat. Iva nechokwadi chekuti mhepo inoyerera zvakanaka yakatenderedza adapta. Do not touch the SSD directly during operation.

8. Zvinotsanangurwa

Attribute	Detail
Model	M118
Brand	FIDECO
Hardware inowanikwa	USB 3.2 Gen 2
Data Transfer Rate	10 Gigabits paSekondi
Mhando dzeSSD dzinoenderana	M.2 PCIe NVMe (M Key, B+M Key), M.2 SATA (B+M Key)
Inotsigirwa SSD Saizi	2230, 2242, 2260, 2280, 22110
Material	Aluminium
Color	Sirivha
Product Dimensions	6.6 x 1.5 x 0.8 cm
Item Weight	80 magiramu
Nhamba yePorts	1 (USB)
Mabhatiri Anodiwa	Aihwa

9. Warranty uye Tsigiro

FIDECO products are designed for reliability and performance. For any technical support, questions, or concerns regarding your FIDECO M.2 NVMe SATA to USB Adapter, please contact FIDECO customer service. We are committed to providing prompt assistance and effective solutions.

Please refer to the product packaging or the official FIDECO websaiti yeruzivo rwewarandi rwazvino uye ruzivo rwekuonana.

Websaiti: www.fideco-it.com
