1. Nhanganyaya
The TENMARS TM-213 is a compact, professional UVAB light meter designed for accurate measurement of ultraviolet radiation. This device is suitable for a variety of applications, including industrial monitoring, UV sterilization, graphic arts, photochemical matching, UV EPROM erasure, photoresist exposure, and curing of inks, adhesives, and coatings. It is also useful for laboratory studies such as weathering degradation, virology, microbial genetics, DNA research, and biological hoods.
This manual provides detailed instructions for the safe and effective use of your TM-213 UVAB Light Meter. Please read it thoroughly before operation and retain it for future reference.
2. Safety Information
To ensure safe operation and to prevent damage to the meter, please observe the following safety precautions:
- Do not operate the meter if it appears damaged or if the casing is open.
- Avoid exposing the meter to extreme temperatures, humidity, or direct sunlight for prolonged periods.
- Do not attempt to repair or modify the meter. Refer all servicing to qualified personnel.
- Remove batteries if the meter is not to be used for an extended period to prevent battery leakage.
- Keep the sensor clean and free from obstructions for accurate readings.
- This device measures UV radiation. Prolonged exposure to high levels of UV radiation can be harmful. Use appropriate personal protective equipment when working in environments with high UV levels.
3. Package Zviri mukati
Iva nechokwadi chekuti zvinhu zvese zvakanyorwa pazasi zviripo uye zviri mumamiriro akanaka pakuburitsa zvinhu:
- TENMARS TM-213 UVAB Light Meter
- User Manual
- Kutakura Nyaya
- Calibration Certificate (if included)
Image 3.1: The TENMARS TM-213 UVAB Light Meter package contents, showing the meter, its protective carrying case, the user manual, and a calibration certificate.
Image 3.2: The TENMARS TM-213 UVAB Light Meter, its carrying case, and the retail packaging.
4. Mudziyo Pamusoroview
Familiarize yourself with the components and controls of your TM-213 UVAB Light Meter.

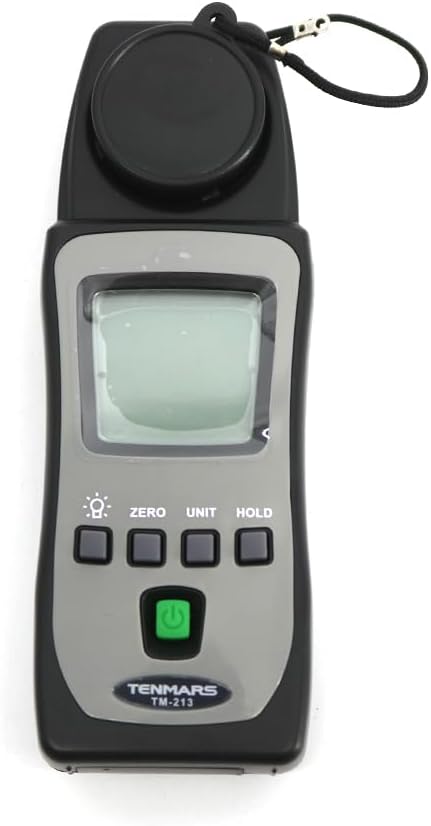

Mufananidzo 4.1: Mberi view of the TM-213 meter. Key features include the LCD display, UV sensor with protective cap, and control buttons for power, zero, unit, and hold functions.

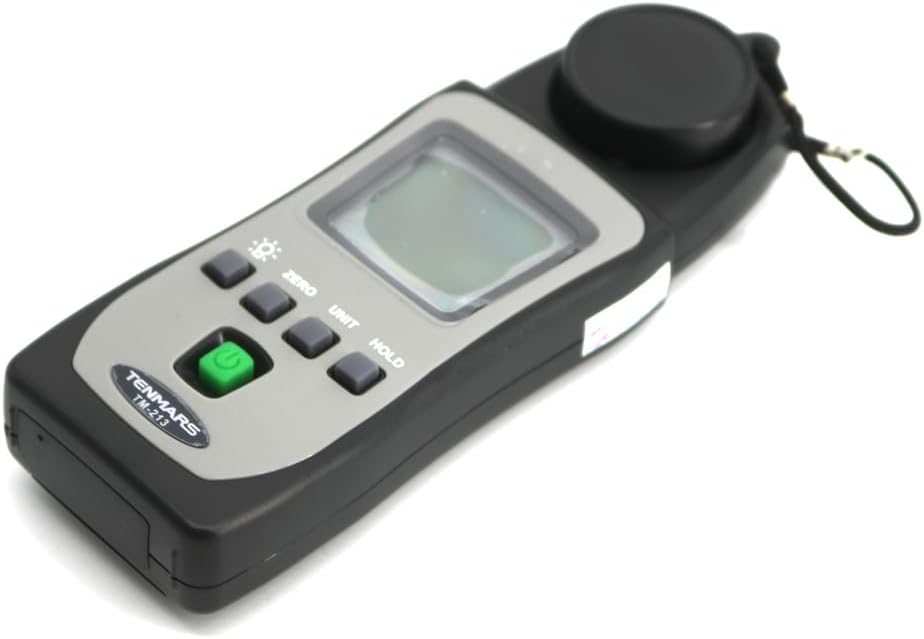

Mufananidzo 4.2: Angled view of the TM-213 meter, providing a better perspective of its compact design and button placement.
Image 4.3: Close-up of the UV sensor with its protective cap removed, ready for measurement.
Mufananidzo 4.4: Kumashure view of the TM-213 meter, displaying the product label with specifications and the battery compartment cover.
4.1 Kudzora uye Kuratidza
- Chiratidziro cheLCD: Inoratidza kuverenga kwekuyera, mayuniti, nezvimwe zviratidzo.
- Bhatani reSimba (●): Turns the meter ON or OFF.
- ZERO Button: Used to zero the reading before measurement.
- UNIT Bhatani: Toggles between measurement units (uW/cm² and mW/cm²).
- BATA Bhatani: Inomisa kuverenga ikozvino pachiratidziro.
- UV Sensor: Detects UVAB radiation. Ensure it is clean and unobstructed.
5. Setup
5.1 Kuiswa kwebhatiri
The TM-213 requires two 1.5V AAA batteries for operation. Batteries are not included with the device.
- Tsvaga chivharo chebhatiri kuseri kwemamita.
- Use a small screwdriver to loosen the screw securing the battery cover.
- Bvisa chivharo chebhatiri.
- Insert two 1.5V AAA batteries, observing the correct polarity (+/-) as indicated inside the compartment.
- Tsiva chivharo chebhatiri uye simbisa sikururu zvakachengeteka.
Image 5.1: The battery compartment of the TM-213 meter with the cover removed, illustrating the correct placement for two AAA batteries.
5.2 Kubatidza/Kudzima
- To turn the meter ON, press the green Power button (●).
- To turn the meter OFF, press the green Power button (●) zvakare.
- The meter features an automatic shutdown function after approximately 15 minutes of inactivity to conserve battery life.
6. Operating Instructions
6.1 Kutora Chiyero
- Ensure batteries are installed and the meter is powered ON.
- Remove the protective cap from the UV sensor.
- Zeroing the Meter: In an area with no UV light (e.g., in a dark room or with the sensor completely covered), press the ZERO button. The display should show "0" or a value very close to zero. This step ensures accuracy.
- Position the UV sensor towards the UV source or area you wish to measure.
- Read the UV radiation value displayed on the LCD screen. The measurement updates approximately every 3 seconds.
6.2 Kuchinja Measurement Units
The TM-213 can display readings in microwatts per square centimeter (uW/cm²) or milliwatts per square centimeter (mW/cm²).
- Press the UNIT button to toggle between uW/cm² and mW/cm².
- Note that 1000 uW/cm² is equivalent to 1 mW/cm².
6.3 Data Bata Basa
Kuti uomese kuverenga kuripo pa display:
- Press the BATA button during a measurement. The reading will be frozen.
- Press the BATA bhatani zvakare kuti ubvise kuverenga uye kuenderera mberi nekuyera mhenyu.
7. Kuchengeta
7.1 Kuchenesa
- Pukuta mita yacho casing ne nyoro, damp jira. Usashandise abrasive cleaners kana solvents.
- Keep the UV sensor clean and free of dust or debris. Use a soft, lint-free cloth to gently clean the sensor surface.
7.2 Kuchengeta
- When not in use, always place the protective cap over the UV sensor.
- Store the meter in its carrying case to protect it from dust, moisture, and physical damage.
- Kana uchichengeta kwenguva yakareba, bvisa mabhatiri kudzivirira kubuda.
- Chengetedza munzvimbo inotonhorera, yakaoma kure nechiedza chezuva uye tembiricha yakanyanyisa.
Image 7.1: The TM-213 meter stored in its protective plastic bag and carrying case, demonstrating proper storage for longevity.
8. Kugadzirisa matambudziko
If you encounter issues with your TM-213 meter, refer to the table below for common problems and solutions.
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Chiyero chemita hachibatidzi. | Mabhatiri akafa kana kuti akaiswa zvisirizvo. | Check battery polarity. Replace with fresh 1.5V AAA batteries. |
| Display shows "OL". | Overload condition; UV radiation exceeds the meter's range. | Move the meter further from the UV source or use in a lower intensity environment. |
| Kuverenga kusina kururama kana kuti kunochinja-chinja. | Dirty sensor, improper zeroing, or external interference. | Clean the UV sensor. Perform a zero calibration in a dark environment. Ensure no strong electromagnetic fields are nearby. |
| Meter shuts off unexpectedly. | Automatic shutdown activated or low battery. | This is normal after 15 minutes of inactivity. If it happens during use, replace batteries. |
9. Zvinotsanangurwa
Technical specifications for the TENMARS TM-213 UVAB Light Meter:
| Parameter | Detail |
|---|---|
| Display | 3¾ digit LCD with a maximum reading of 4000 |
| Measurement Range | 3999 uW/cm² to 39.99 mW/cm² (1000 uW/cm² = 1 mW/cm²) |
| UV Sensor Spectrum | Bandpass from 290 nm to 390 nm |
| Kururama | ±4% FS + 2 digits (FS: full scale 15% for UV sunlight) |
| Maximum Sensitivity Wavelength | 365 nm |
| Sampling Nguva | Anenge 3 seconds |
| Kuwedzera-renji Kuratidzira | "OL" displayed on screen |
| Magetsi | 2 x 1.5V AAA mabhatiri |
| Automatic Shutdown | Mushure memaminitsi angangoita makumi maviri ekusaita basa |
| Dimensions (Main Instrument) | 133 x 48 x 27 mm (5.24 x 1.89 x 1.06 inches) |
| Weight (Main Instrument) | Anenge 90 g (0.2 lbs) |
| EMC Kutevedzera | Complies with EN61326 (1997) + A1 (1998) + A2 (2001) |
| Material | Plastiki |
10. Warranty uye Tsigiro
TENMARS products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or contact your local TENMARS distributor or customer service.
For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact TENMARS customer support through their official websaiti kana ruzivo rwekusangana rwunopihwa mune yako chigadzirwa zvinyorwa.
Note: The provided JSON includes a "Certificate of Calibration" image, indicating that the product is calibrated and tested according to international standards. This supports the quality and reliability of the device.
