Swan Nordic 40cm Tripod Pedestal Fan Instruction Manual

Nhanganyaya

Ndatenda nekutengaasing the Swan Nordic 40cm Tripod Pedestal Fan. This manual provides important information regarding the assembly, operation, maintenance, and safety of your new fan. Please read these instructions carefully before use and retain them for future reference.

Mufananidzo: Mberi view of the Swan Nordic 40cm Tripod Pedestal Fan, showcasing its grey finish and wooden tripod legs.

Yakakosha Mirayiridzo Yekuchengetedza

Kuti uderedze njodzi yemoto, kuvhunduka kwemagetsi, kana kukuvara, gara uchitevera izvi zvakakosha zvekuchengetedza:

• Iva nechokwadi chekuti voltage inoratidzwa pane rating label inoenderana nehuwandu hwemagetsi ako makurutage.
• Do not operate any fan with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• Bvisa feni kubva kunobuditsa kana isiri kushandiswa, usati wachenesa, kana usati wafamba.
• Usanyudze feni, chivharo, kana tambo mumvura kana zvimwe zvinwiwa.
• Do not allow children to play with the fan. Close supervision is necessary when any appliance is used by or near children.
• Dzivisa kusangana nezvikamu zvinofamba.
• Usashandise feni paine hutsi hunoputika uye/kana hunobvira.
• Isa feni panzvimbo yakatsiga, yakati sandara kudzivirira kuti isatsvedzerere.
• Usaise zvigunwe kana zvimwe zvinhu kuburikidza negrille kana fan iri kushanda.

Package Zviri mukati

Please check the contents of the box. If any items are missing or damaged, contact your retailer.

• Fan Head Assembly (including motor, blades, and grilles)
• Main Pole
• Tripod Leg Assembly (3 wooden legs and connecting bracket)
• Fixing Screws and Washers
• Bhuku reMirayiridzo

Gungano uye Setup

Tevedzera matanho aya kuti ugadzire fan yako yepedestal:

1. Attach Tripod Legs: Carefully attach the three wooden tripod legs to the main pole's connecting bracket using the provided screws and washers. Ensure they are securely tightened to form a stable base.
2. Insert Main Pole: Insert the main pole into the assembled tripod base. Secure it with any provided locking mechanisms or screws.
3. Mount Fan Head: Place the fan head assembly onto the top of the main pole. Ensure it clicks into place or is secured with the designated screw/knob.
4. Positioning: Place the assembled fan on a firm, level surface. Ensure there is adequate space around the fan for proper air circulation and to prevent obstruction of the grilles.

Image: The Swan Nordic 40cm Tripod Pedestal Fan positioned in a modern living space, demonstrating its stable tripod base.

Operating Instruction

This section details how to use your fan.

Kuisa Simba uye Kudzora Kumhanya

1. Batanidza kuSimba: Plug the fan's power cord into a suitable electrical outlet.
2. Sarudza Speed: Locate the rotary switch on the motor housing at the back of the fan head. Turn the switch to select your desired speed setting:
   • "O": Off
   • "Ini": Low Speed
   • "II": Kumhanya Kwepakati
   • "III": High Speed

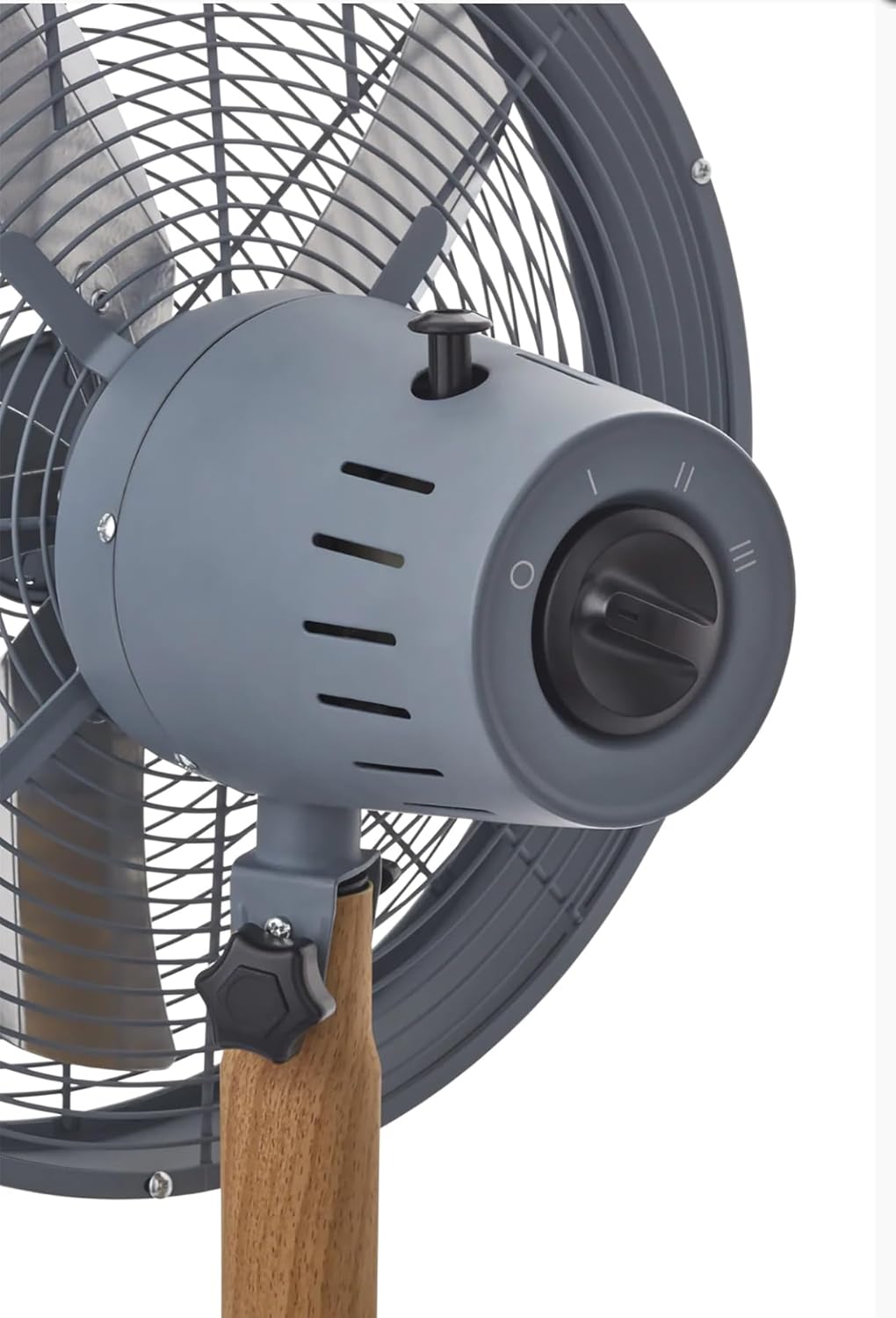

Mufananidzo: Yakadzama view of the fan's control panel, showing the rotary switch for speed selection and the oscillation pull-pin.

Oscillation Basa

The fan features an oscillation function to distribute air over a wider area.

• To Start Oscillation: Push down the oscillation pin located on top of the motor housing.
• To Stop Oscillation: Pull up the oscillation pin. The fan will then blow air in a fixed direction.

Kugadzirisa Tilt Angle

The fan head can be tilted to direct airflow upwards or downwards.

• Kugadzirisa: Loosen the tilt adjustment knob located on the side of the fan head support. Adjust the fan head to the desired angle, then securely tighten the knob to fix its position.

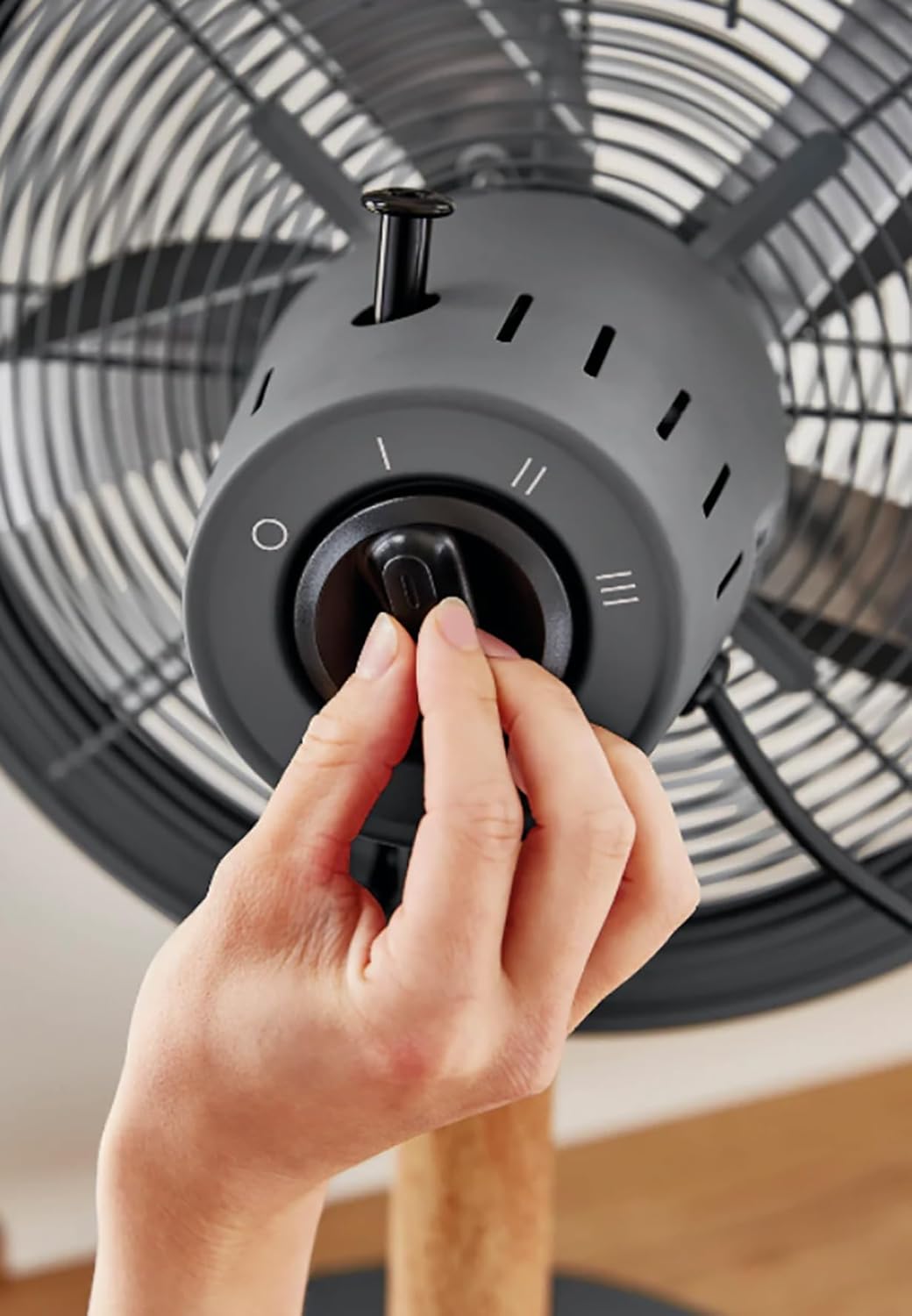

Image: A hand demonstrating the operation of the rotary switch to select fan speed.

Kuchengetedza uye Kuchenesa

Kuchenesa nekugadzirisa nguva dzose kuchaita kuti feni yako ishande zvakanaka uye kuchaita kuti igare kwenguva refu.

• Nguva dzose bvisa fan kubva pamagetsi emagetsi asati achenesa.
• Kucheneswa Kwekunze: Shandisa nyoro, damp jira rekupukuta kunze kwekunze kwefani. Usashandise abrasive cleaners kana solvents.
• Grille and Blades: Dust can accumulate on the grilles and blades. Use a vacuum cleaner with a brush attachment or a soft, dry cloth to remove dust. For thorough cleaning, the front grille may be removed by unscrewing the retaining clips/screws (refer to assembly instructions in reverse). Ensure all parts are dry before reassembling and operating.
• Kuchengeta: Kana usingashandiswe kwenguva yakareba, chengeta feni munzvimbo inotonhorera, yakaoma, zviri nani mupakeji yayo yekutanga.

Kugadzirisa matambudziko

Kana iwe ukasangana nematambudziko nefani yako, tarisa kune anotevera akajairika matambudziko uye mhinduro:

Kana dambudziko rikaramba riripo mushure mekuyedza mhinduro idzi, ndapota taura nerutsigiro rwevatengi.

Zvinotsanangurwa

• Brand: Swan
• Muenzaniso: Nordic 40cm Tripod Pedestal Fan
• Simba / Wattage: 50 watts
• Voltage: 220 Volts (AC)
• Nhamba Yekumhanya: 3
• Material: Metal (housing), Wood (tripod legs)
• Chinhu Weight: 5.5 kg
• Zviyero zvechigadzirwa: Approximately 50D x 50W centimetres
• Special Features: Adjustable tilting head, Oscillation function, High quality metal housing, Tripod legs, Rotary switch.

Warranty uye Support

Specific warranty details are typically provided with your purchase documentation or can be found on the manufacturer's official website. Ndapota chengetedza humbowo hwako hwekutenga kune chero vimbiso yewaranti.

For technical support, spare parts, or service, please contact Swan customer service through their official channels. Contact information can usually be found on the product packaging or the brand's website.
