Dainolite FID-1630LEDFH Frida Modern Flush Mount Light Bhuku reMushandisi

1. Nhanganyaya

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Dainolite FID-1630LEDFH Frida Modern Flush Mount Light. Please read this manual thoroughly before installation and retain it for future reference.

The Frida flush mount light features a slim profile with an integrated LED light source, designed for efficiency and modern aesthetics. Its versatile design is suitable for various indoor spaces such as bedrooms, hallways, closets, and laundry rooms.

2. Safety Information

• YAMBIRO: Njodzi yekuvhundutswa nemagetsi. Bvisa magetsi pa circuit breaker kana pa fuse box usati waisa kana kugadzirisa.
• Kubatanidza magetsi kwese kunofanirwa kuenderana nemutemo wemunharaunda, mitemo, kana National Electric Code (NEC). Bvunza nyanzvi yemagetsi kana usingazive kubatana kwakakodzera kwewaya dzemagetsi.
• Chishandiso ichi chakagadzirirwa kushandiswa mumba chete. Usachiise mumvura kana muhunyoro.
• Do not attempt to alter the fixture. Any alterations may void the warranty and create a safety hazard.
• Bata chinhu chacho nokungwarira. Dzivisa kudonhedza kana kuchikanda zvakasimba.
• Ita shuwa kuti inokwirisa nzvimbo inogona kutsigira huremu hwechigadziriso.
• Usabatanidza chinhu ichi kune sisitimu yemagetsi isina pasi.
• Chiedza che LED chakabatanidzwa uye hachigoni kutsiviwa nemushandisi.

3. Package Zviri mukati

Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact your retailer.

• Frida Flush Mount Light Fixture (with integrated LED)
• Acrylic Diffuser
• Mounting Hardware Kit (screws, wire nuts, mounting bracket)
• Bhuku reMirayiridzo

Figure 1: Dainolite FID-1630LEDFH Frida Flush Mount Light in Satin Chrome finish. This image shows the complete light fixture with its circular design and white acrylic diffuser.

4. Installation Instructions

1. Dzima Simba: Before starting installation, ensure the power supply to the junction box is turned off at the circuit breaker or fuse box.
2. Gadzirira Mounting Surface: Ita shuwa kuti sirin'i junction bhokisi rakaiswa zvakachengeteka uye rinokwanisa kutsigira huremu hwechigadziriso.
3. Batanidza Mounting Bracket: Secure the mounting bracket (included in hardware kit) to the junction box using the provided screws.
4. Gadzira Mabatiro eMagetsi:
   • Batanidza iyo nhema waya kubva kugadziriso kuenda kune nhema waya (mhenyu) kubva mubhokisi rekubatanidza uchishandisa nati yewaya.
   • Batanidza iyo chena waya kubva kugadziriso kuenda kune chena (neutral) waya kubva pajunction box uchishandisa waya nati.
   • Batanidza iyo pasi waya kubva kugadziriso kuenda kune pasi wire from the junction box (or to the green ground screw on the mounting bracket) using a wire nut.
   Ita shuwa kuti zvese zvinongedzo zvakachengeteka.
5. Mount the Fixture: Carefully tuck all wires into the junction box. Align the fixture with the mounting bracket and secure it in place using the provided screws.
6. Install Diffuser: Place the acrylic diffuser onto the fixture, ensuring it is properly seated and secured.
7. Dzosera Simba: Kana kuiswa kwapera, dzorera simba pa circuit breaker woedza mwenje.

Figure 2: The Dainolite Frida Flush Mount Light in Satin Chrome installed on a ceiling, showcasing its sleek design and how it sits flush against the ceiling.

Mufananidzo 3: Imwe view of the Dainolite Frida Flush Mount Light installed, showcasing its integration into a contemporary interior design with a decorative wall.

5. Operating Instructions

The Dainolite FID-1630LEDFH light fixture is designed for simple operation.

• Batidza/Kudzima: Dzora mwenje uchishandisa switch yemadziro yakabatana necircuit yemagetsi yechinhu chacho.
• Dimming Basa: This fixture features an integrated dimmable LED. To utilize the dimming function, it must be connected to a compatible ELV (Electronic Low Voltage) dimmer switch (sold separately). Follow the dimmer manufacturer's instructions for installation and operation.
• Remote Control: The fixture is designed to be compatible with a remote control (sold separately). Refer to the remote control's specific instructions for pairing and operation.

6. Kuchengeta

To ensure the longevity and appearance of your light fixture, follow these simple maintenance guidelines:

• Kuchenesa: Gara uchibvisa magetsi usati wageza. Shandisa jira rakapfava, rakaoma, kana kuti rakapfava zvishoma.amp cloth to wipe the exterior surfaces of the fixture. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or acrylic diffuser.
• Kwakabva Chiedza: The LED light source is integrated and designed for a long lifespan. It is not user-replaceable. If the LED fails, the entire fixture may need to be replaced.
• Kuongorora: Periodically inspect the fixture for any loose connections or signs of damage. If any issues are found, disconnect power and consult a qualified electrician.

7. Kugadzirisa matambudziko

If you experience issues with your light fixture, refer to the following troubleshooting guide:

Kana dambudziko rikaramba riripo mushure mekuedza mhinduro idzi, taura nerutsigiro rwevatengi kana nyanzvi yemagetsi.

8. Zvinotsanangurwa

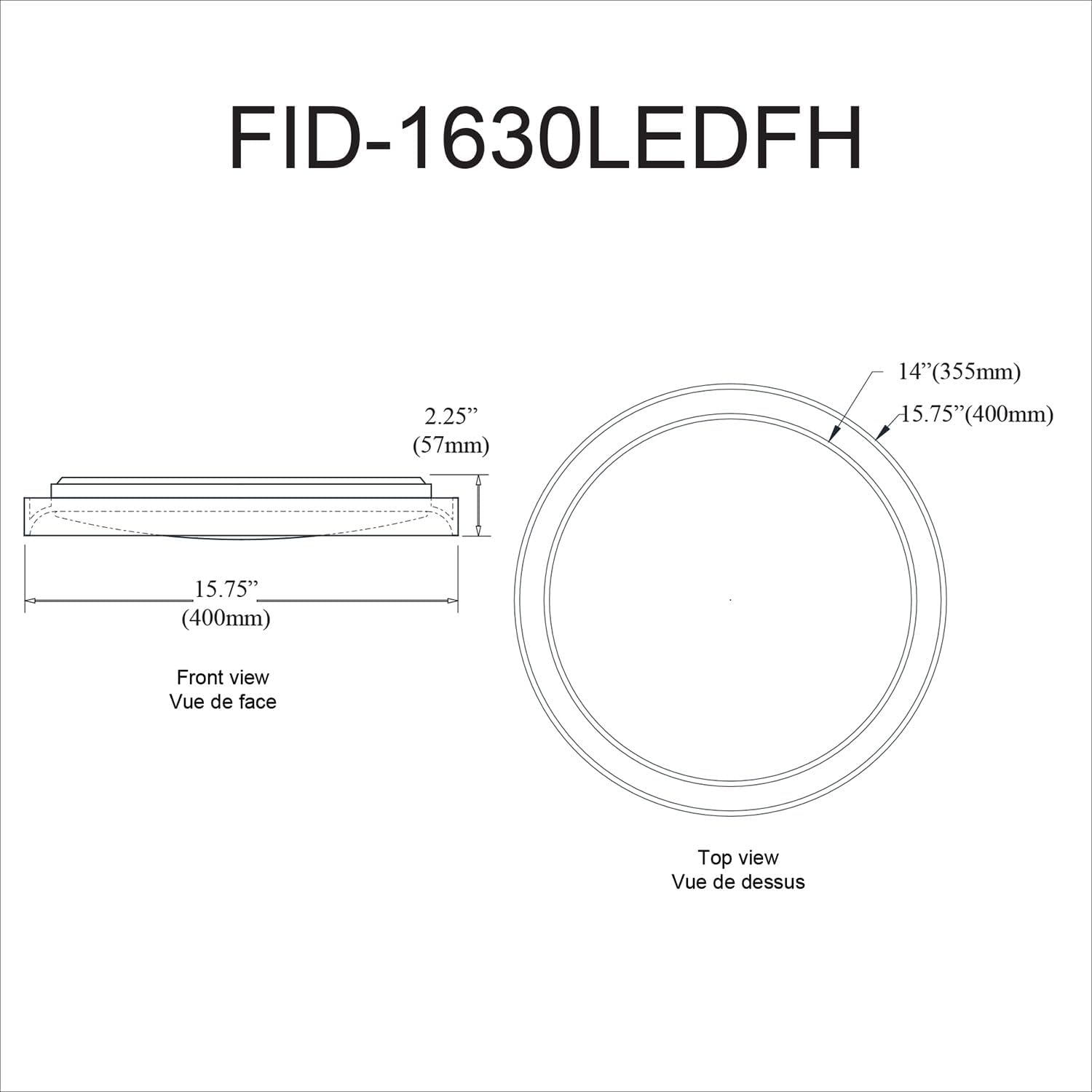

Figure 4: Dimensional drawing of the Dainolite FID-1630LEDFH fixture, showing its front and top views with measurements in inches and millimeters.

9. Warranty uye Tsigiro

This Dainolite fixture comes with a Limited Warranty. Please refer to the warranty documentation provided with your purchase for specific terms and conditions.

For technical support, replacement parts, or warranty inquiries, please contact Dainolite customer service:

• Websaiti: www.dainolite.ca
• Email: support@dainolite.ca
• Runhare: Consult the Dainolite website or your purchase documentation for current contact numbers.
