ThruNite Archer 2A V3 LED Flashlight User Manual

1. Safety Information

Please read all instructions and warnings carefully before using this product. Failure to follow these safety guidelines may result in fire, electric shock, property damage, or injury.

• Do not shine the flashlight directly into eyes. The powerful beam can cause temporary vision impairment or permanent eye damage.
• Chengetedza tochi pasingasvikirwi nevana.
• Do not disassemble the flashlight head as this may damage the reflector or LED.
• The flashlight may generate significant heat during prolonged use at high output levels. Handle with care to avoid burns.
• Use only recommended AA batteries. Do not mix old and new batteries, or different types of batteries.
• Remove batteries if the flashlight will not be used for an extended period to prevent leakage.

2. Package Zviri mukati

Tarisa kuti zvinhu zvese zvakanyorwa pazasi zvinosanganisirwa mupakeji yako:

• ThruNite Archer 2A V3 LED Flashlight x 1
• Chipikiri chehomwe x 1
• Spare O-rings x 2
• Lanyard x 1

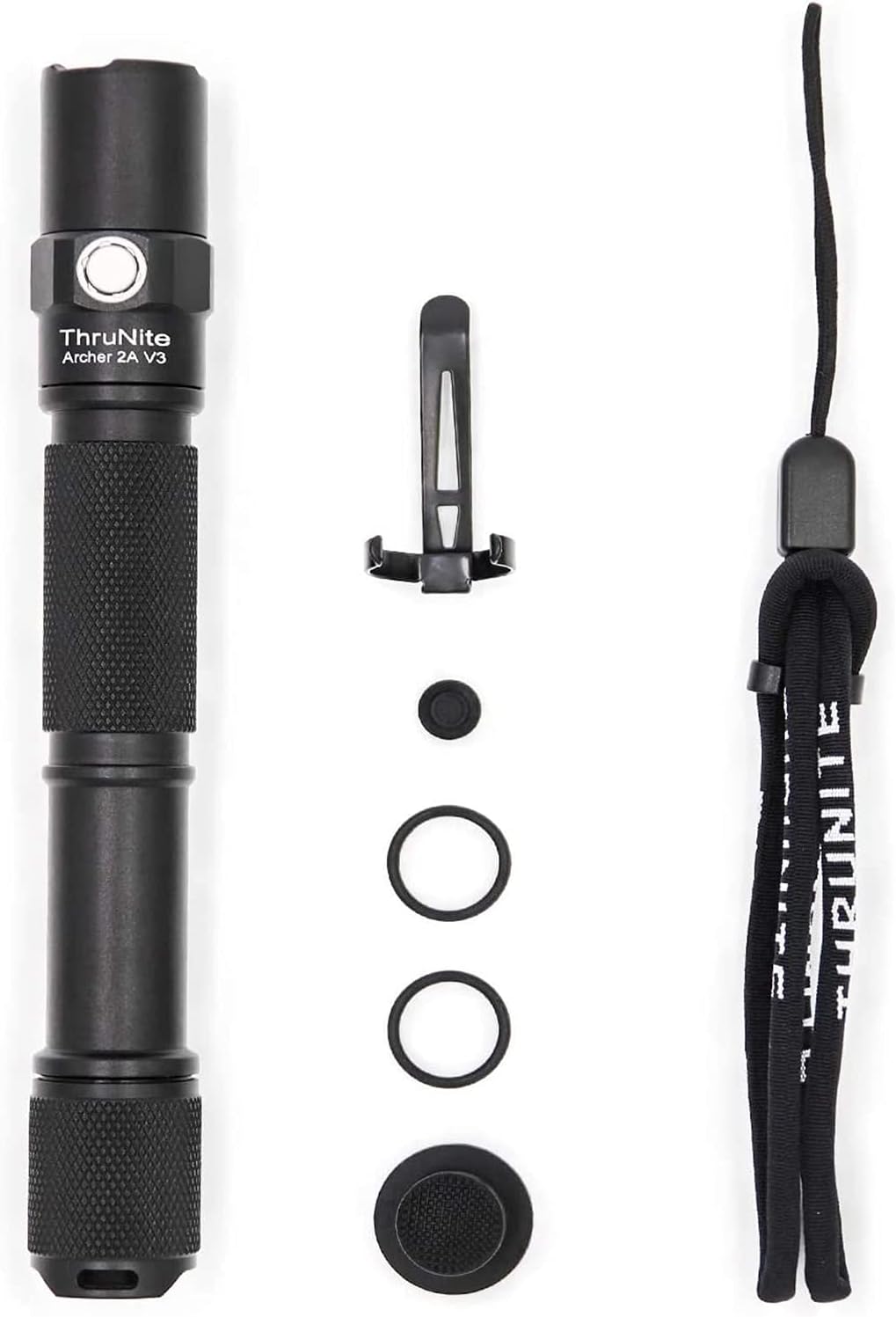

Image: All components included in the ThruNite Archer 2A V3 package, neatly laid out. This includes the flashlight body, a removable pocket clip, two spare O-rings for sealing, and a lanyard for secure carrying.

3. Setup

3.1 Kuiswa kwebhatiri

The ThruNite Archer 2A V3 operates on two AA batteries (not included). Ensure correct polarity during installation.

1. Vhura chivharo chemuswe wetochi nekuitenderedza ichipesana newachi.
2. Insert two AA batteries into the battery compartment with the positive (+) end facing towards the flashlight head.
3. Vhara chivharo chekumashure uchidzokera kurutivi rwewachi kusvika chanyatsosimba.

3.2 Kubatanidza Pocket Clip

The removable pocket clip can be attached to the flashlight body for convenient carrying.

1. Slide the pocket clip onto the flashlight body, positioning it as desired.
2. Ensure the clip is firmly seated in the groove to prevent accidental detachment.

Mufananidzo: Yakadzama view of the ThruNite Archer 2A V3 flashlight, highlighting the textured grip and the securely attached removable pocket clip. This clip allows for easy attachment to clothing or gear.

4. Operating Instructions

The Archer 2A V3 features both a tail switch and a side switch for versatile operation.

4.1 Mashandiro Ekutanga (Switch Yemuswe)

• Kushanda Kwenguva Pfupi: Press the tail switch halfway to momentarily activate the light. Release to turn off.
• Kugara Kuchibatidzwa/Kudzimwa: Fully click the tail switch to turn the light on or off.

4.2 Mode Switching (Side Switch)

When the flashlight is on (via tail switch):

• Cycle Modes: Single press the side switch to cycle through the general modes: Low → Medium → High.
• Strobe Mode: Long press the side switch to activate Strobe mode. Single press again to return to the previously used general mode.

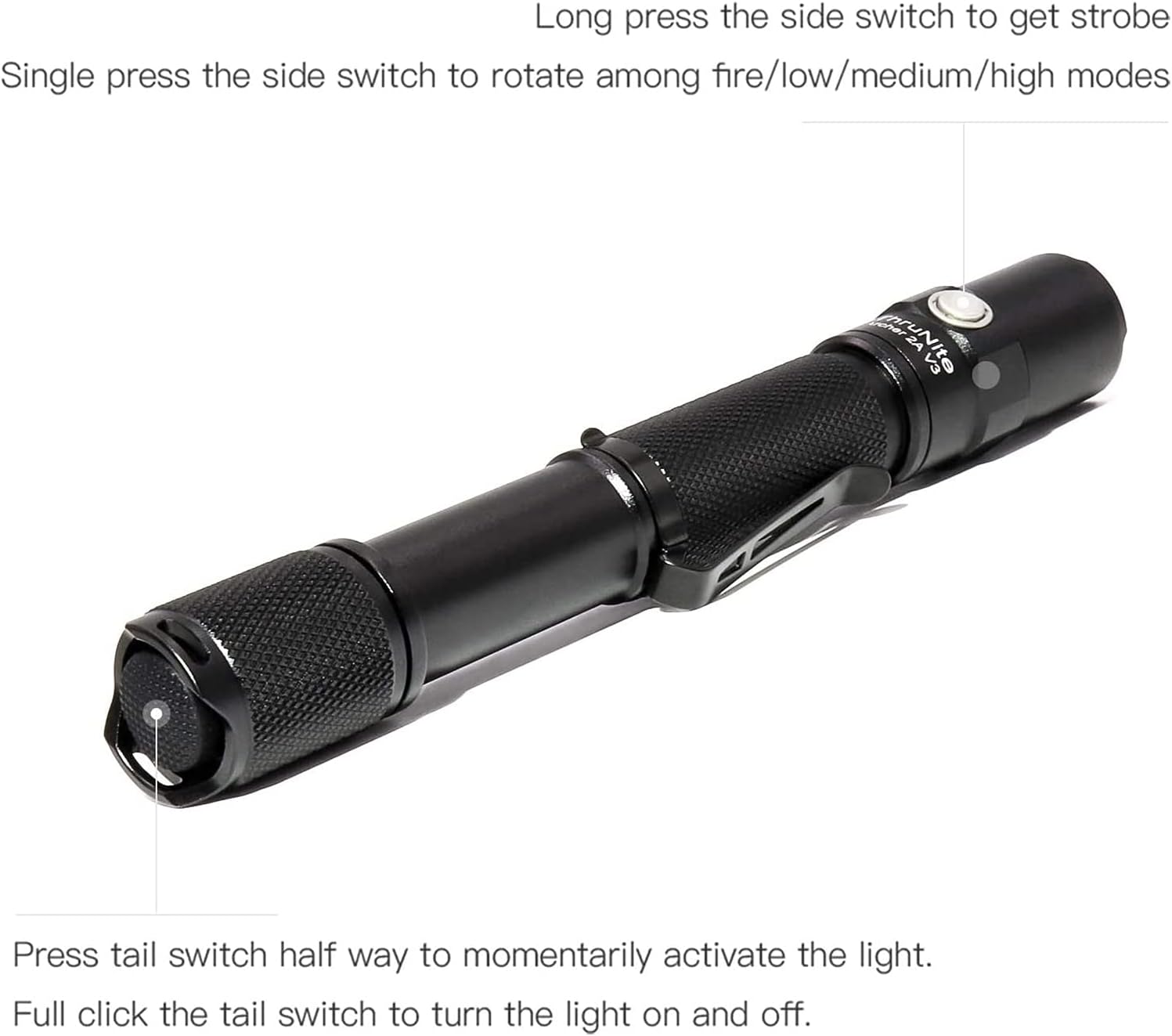

Image: An illustrative diagram demonstrating the operational controls of the ThruNite Archer 2A V3. It shows how to use the tail switch for momentary and constant on/off functions, and the side switch for cycling through brightness modes (Low, Medium, High) and activating the Strobe function with a long press.

Image: A person is shown walking on a dark, unpaved path, illuminated by the powerful beam of the ThruNite Archer 2A V3 flashlight. The flashlight provides ample light to navigate the surroundings, demonstrating its effectiveness in low-light conditions.

5. Kuchengeta

Kugadzirisa kwakaringana kunovimbisa hupenyu hurefu uye kuita kwakakwana kwetochi yako.

• Kuchenesa: Clean the body of the flashlight with a soft, damp jira. Usashandise abrasive cleaners kana solvents.
• Threads uye O-mhete: Periodically lubricate the threads and O-rings with silicone grease to maintain water resistance and smooth operation. Replace worn O-rings with the provided spares.
• Battery Care: Remove batteries if the flashlight is not used for extended periods to prevent corrosion. Store batteries in a cool, dry place.
• Lens Care: Keep the lens clean. If it gets dirty, gently wipe it with a lens cleaning cloth.

6. Kugadzirisa matambudziko

If you encounter issues with your ThruNite Archer 2A V3, try the following steps:

• Tochi haibatike:
  • Tarisa kana mabhatiri akaiswa zvakanaka nechakanaka (+) magumo akatarisa mumusoro.
  • Ensure the batteries are not depleted. Replace with fresh AA batteries.
  • Confirm the tail cap is fully tightened. A loose tail cap can prevent electrical contact.
  • Geza mabhatiri neshinda nejira rakachena.
• Chiedza hachina kujeka kana kuti chinodzima:
  • Mabhatiri anogona kunge ari mashoma. Vatsive.
  • Ensure the tail cap and head are securely tightened.
  • Chenesa mabhatiri anobatika uye shinda.
• Kupinda kwemvura:
  • Check if O-rings are properly seated and not damaged. Replace if necessary.
  • Ensure all parts are tightly screwed together.

Kana matanho aya akasagadzirisa nyaya, ndapota taura nerutsigiro rwevatengi.

7. Zvinotsanangurwa

Detailed specifications for the ThruNite Archer 2A V3 LED Flashlight:

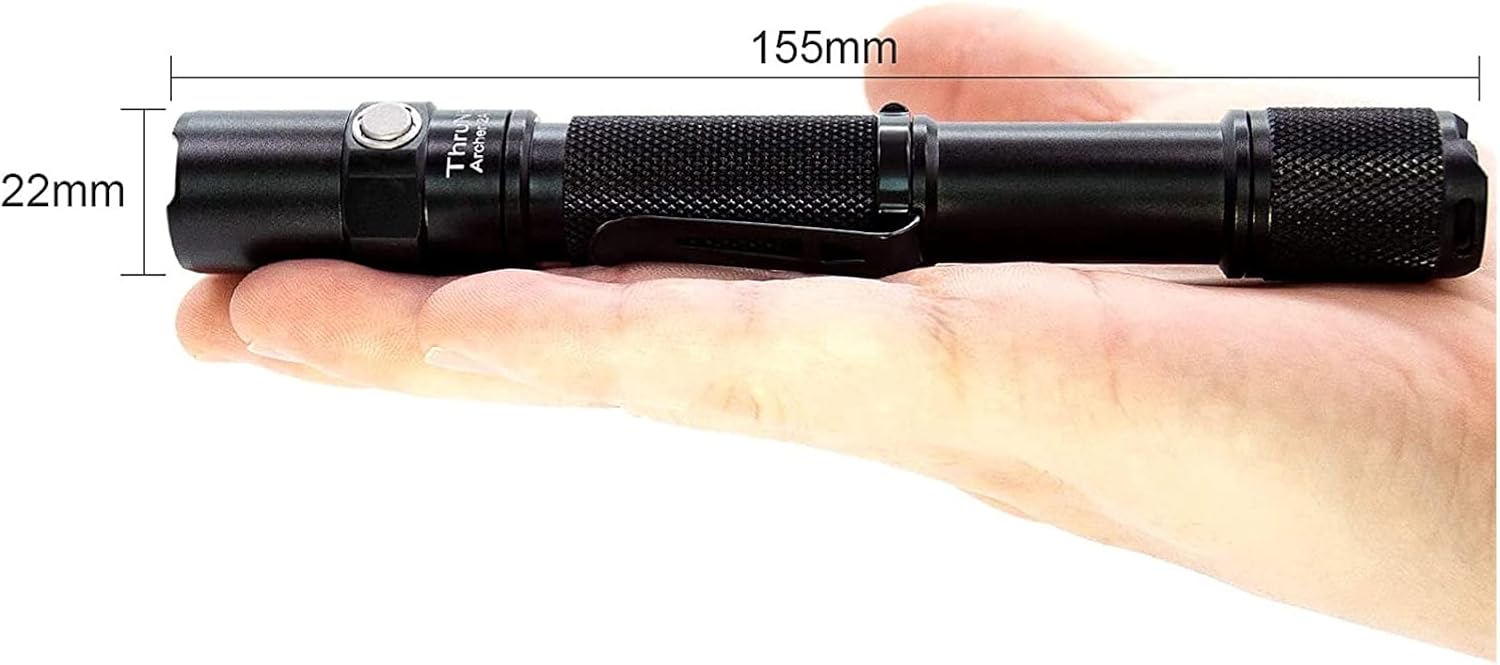

Image: The ThruNite Archer 2A V3 flashlight displayed with its key dimensions: a length of 155mm and a diameter of 22mm, illustrating its compact and portable design.

Image: A hand holding the ThruNite Archer 2A V3 flashlight, providing a clear perspective on its ergonomic design and compact size. The image also reiterates its dimensions, 6.1 inches (155mm) in length and 0.87 inches (22mm) in diameter, and highlights its lightweight nature at 48g (without batteries).

8. Warranty uye Tsigiro

ThruNite is committed to providing quality products and excellent customer service.

8.1 Ruzivo rweWaranti

Specific warranty details may vary. Please refer to the product packaging or the official ThruNite websaiti yemutemo wewarandi wemazuva ano.

8.2 Mutengi Tsigiro

If you have any questions, require assistance with setup, operation, or troubleshooting, or need to inquire about warranty service, please contact our customer service team. Contact information can typically be found on the product packaging or the official ThruNite website.
