1. Ruzivo Rwakakosha Chekuchengetedza
Read and understand all safety warnings and instructions before operating this pressure washer. Failure to follow these instructions may result in serious injury or property damage.
- Pfekai zvinhu zvekudzivirira muviri zvakakodzera (PPE), zvinosanganisira dziviriro yemaziso, dziviriro yekunzwa, uye magirovhosi.
- Never point the spray gun at people, pets, or electrical devices. The high-pressure spray can cause severe injury.
- Iva nechokwadi chekuti kubatana kwese kwakachengeteka usati watanga chishandiso.
- Shandisa muchina wekuwachisa pressure munzvimbo ine mhepo yakanaka kudzivirira chepfu yecarbon monoxide.
- Usashandise mudziyo uyu kana paine zvikamu zvakakuvara kana kuti zvisipo.
- Chengetedza vana nevanoona kure nenzvimbo yekushandira.
- Always turn off the engine and relieve pressure before performing any maintenance or moving the unit.
- Shandisa zvishongedzo zvinotenderwa chete uye zvikamu zvinotsiva.
2. Chigadzirwa Pamusoroview
The GENMAX GPW3000-LT is a gasoline-powered pressure washer designed for heavy-duty cleaning tasks. It features a powerful engine and an axial cam pump to deliver efficient cleaning performance.
Zvinokosha:
- Injini: Genmax 212cc engine with low oil shutdown.
- Pombi: Maintenance-free Axial cam pump.
- Kuita: Delivers 3000 PSI and 2.4 GPM.
- Nozzles: 5 quick-change color-coded nozzle tips (0°, 15°, 25°, 40°, soap).
- Hose: 25 ft. abrasion-resistant high-pressure hose.
- Tangi reSipo: Onboard 1-gallon soap tank.
- Mobility: Equipped with large wheels for easy movement across various terrains.
Components Diagram:
Mufananidzo: Pamusoroview of the GENMAX GPW3000-LT pressure washer, highlighting its main components such as the engine, pump, hose reel, and handle.
Mufananidzo: Zvakadzama view of the pressure washer's features, including the 212cc strong engine, powerful axial-cam pump, safety lock on the gun, 5 quick-connect nozzle tips, 0.5-gallon onboard soap tank, and 9.5-inch big wheels.
3. Setup uye Gungano
The main body of the pressure washer is designed for quick assembly, typically within 10 minutes by one person. Follow these steps for initial setup.
Zvinosanganisira:
Image: Display of included accessories: 10m high-pressure hose, spray gun, gun rack, spark plug wrench, 5 quick-connect nozzles, funnel, and nozzle cleaning pin.
- Main Frame
- Bata
- Pfuti Hook
- Mavhiri
- 5/8 in. x 25 ft. high-pressure hose
- 5 quick-connect nozzles
- Trigger gun and spray wand
Matanho eGungano:
- Attach the handle to the main frame using the provided hardware.
- Secure the gun hook to the handle.
- Install the wheels onto the axle.
- Connect the high-pressure hose to the pump outlet and the spray gun inlet.
- Select and attach the desired quick-connect nozzle to the spray wand.
Kubatanidza Mvura:
The pressure washer supports two types of water connections:
- Kupa Mvura Zvakananga: Connect a standard garden hose directly to the pressure washer's water inlet. Ensure the water source is turned on fully.
- Self-Suction Type: For drawing water from an external source like a bucket, pond, or tank. Ensure the suction hose is properly connected and submerged.
Image: Illustrates two water connection methods: direct connection to a faucet and self-suction from an external water source like a bucket or natural body of water.
4. Operating Instructions
Kutanga Pressure Washer:
Image: Step-by-step guide on starting the pressure washer, including adding engine oil, adding gasoline, turning on the engine switch, sliding the choke to START, turning the fuel valve to ON, pulling the rope to start, and sliding to RUN position.
- Wedzera Injini Mafuta: Pour 0.16 gallons of appropriate engine oil into the engine's oil reservoir. (Note: Some units may come with oil pre-filled in the pump, but engine oil must be added.)
- Wedzera peturu: Fill the fuel tank with 0.95 gallons of fresh, unleaded gasoline.
- Injini Inoshandura: Tendeudza switch yeinjini panzvimbo yekuti "ON".
- Chokes: Slide the choke lever to the "START" position.
- Fuel Valve: Tendeudza vharuvhu yemafuta panzvimbo yekuti "ON".
- Kutanga Injini: Pull the recoil start rope firmly until the engine starts.
- Run Position: Once the engine starts, gradually slide the choke lever to the "RUN" position.
- Tanga Kuchenesa: Squeeze the trigger gun to start the water flow and begin cleaning.
Kushandisa Nozzles:
The pressure washer includes 5 quick-connect nozzles, each designed for specific cleaning tasks. Always select the appropriate nozzle for the job to prevent damage to surfaces.

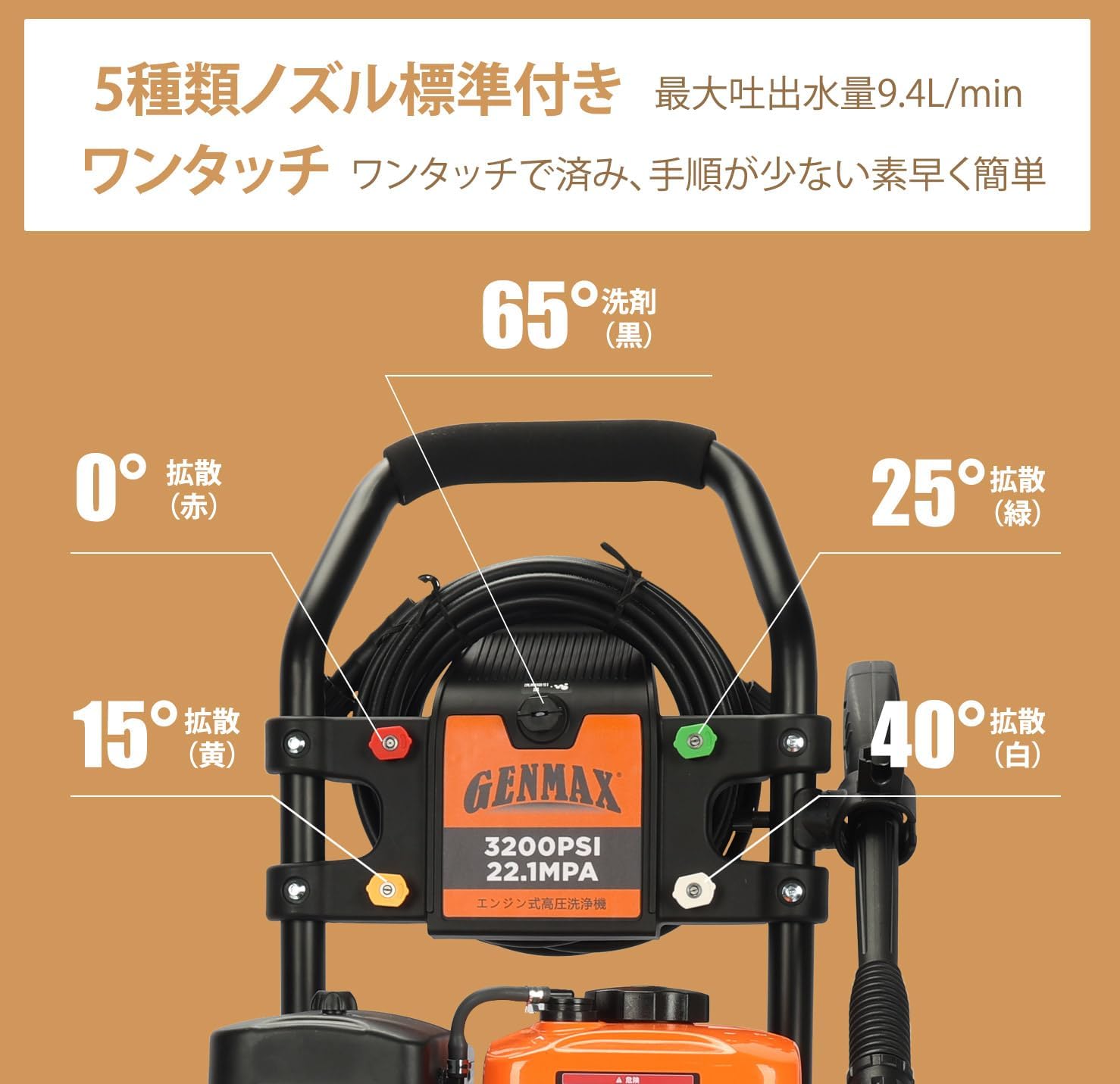

Image: Illustration of the five color-coded quick-connect nozzles: 0° (red) for concentrated stream, 15° (yellow) for intense cleaning, 25° (green) for general cleaning, 40° (white) for wide spray, and a black nozzle for soap application.
- 0° Mhino Tsvuku: Pin-point stream for stubborn stains and hard-to-reach areas. Use with extreme caution.
- 15° Mhino Yero: Narrow, powerful spray for intense cleaning of small areas.
- 25° Green Nozzle: Medium-angle spray for general cleaning of most surfaces.
- 40° White Nozzle: Wide-angle spray for gentle cleaning and rinsing of delicate surfaces.
- Black Soap Nozzle: Low-pressure spray for applying detergents.
Kushandisa Detergent:
The onboard 1-gallon soap tank allows for easy application of detergents. Use the black soap nozzle for detergent application. Ensure the detergent is suitable for pressure washers.
Applications:
The GENMAX GPW3000-LT is suitable for a wide range of cleaning tasks:
Mufananidzo: Eksamples of pressure washer applications, including cleaning cars, driveways, patios, fences, and outdoor furniture.
- Decks and Patios
- Sidewalks and Driveways
- Siding and Fences
- Garage Floors and Exterior Walls
- Cars and Patio Furniture
5. Kuchengeta
Regular maintenance ensures the longevity and optimal performance of your pressure washer. Always turn off the engine and disconnect the spark plug wire before performing any maintenance.
Kugadzirisa Injini:
- Oiri Level Check: Check the engine oil level before each use. Add oil if necessary.
- Kuchinja Oiri: Change the engine oil after the first 5 hours of use, then every 25 hours or annually, whichever comes first.
- Mhepo Sefa: Ongorora uye chenesa firita yemhepo nguva dzose. Chinja kana yakakuvara.
- Dzomoto Plug: Inspect the spark plug annually. Clean or replace as needed. Use the included spark plug wrench.
- Fuel System: To prevent carburetor issues, run the engine until it runs out of fuel before storing for extended periods. Alternatively, use a fuel stabilizer.
Pombi Maintenance:
- Mvura Inopinza Sefa: Clean the water inlet filter screen regularly to prevent debris from entering the pump.
- Winterization: If storing in freezing temperatures, winterize the pump with pump protector or RV antifreeze to prevent damage.
Nozzle Maintenance:
- Nozzle Cleaning: If a nozzle becomes clogged, use the included nozzle cleaning pin to clear any obstructions.
6. Kugadzirisa matambudziko
Chikamu chino chinopa mhinduro kumatambudziko akajairika aungasangana nawo ne pressure washer yako.
| Dambudziko | Zvinogona Kukonzera | Solution |
|---|---|---|
| Injini haisati yatanga |
|
|
| Low pressure output |
|
|
| Pulsating spray |
|
|
7. Zvinotsanangurwa
| Feature | Detail |
|---|---|
| Brand | GENMAX |
| Model Number | GPW3000-LT (also referred to as 3200PSI in some documentation) |
| Simba Source | Iine peturu |
| Injini | 212cc |
| Maximum Pressure | 3000 PSI |
| Maximum Flow Rate | 2.4 GPM |
| Hose Length | 25 Tsoka |
| Soap Tank Volume | 1 Gallon |
| Zviyero zveChigadzirwa (L x W x H) | 20" x 19" x 23" |
| Item Weight | 55 pounds (25 Makirogiramu) |
| UPC | 784728733104 |

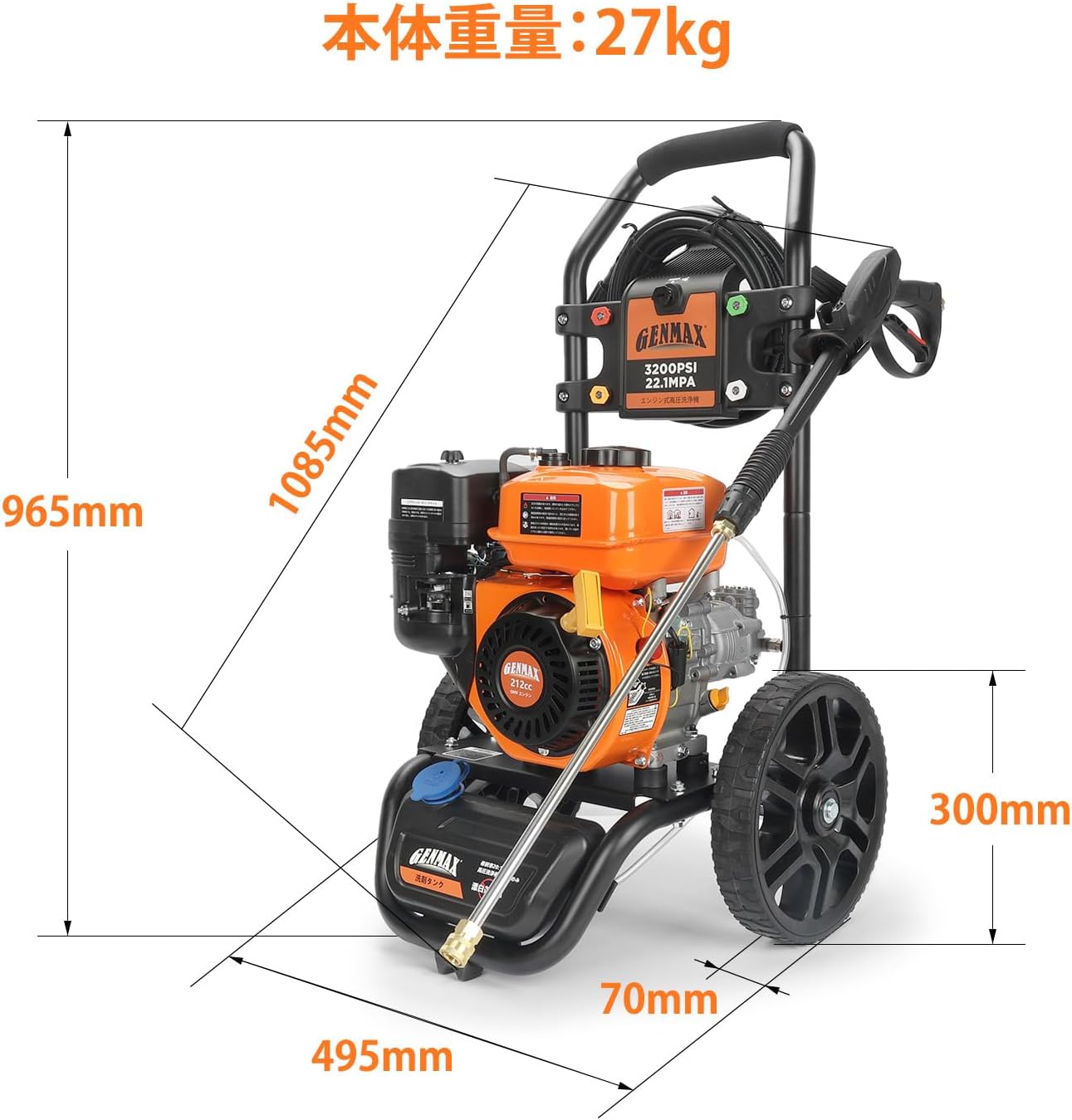

Image: Technical drawing showing the dimensions of the GENMAX GPW3000-LT pressure washer, including height, width, and wheel size.
8. Warranty uye Tsigiro
GENMAX provides comprehensive support for its products.
- Warranty: This product includes a 1-year limited warranty from the date of purchase.
- Tsigiro yehunyanzvi: FREE lifetime technical support is available from GENMAX experts.
- For warranty claims, technical assistance, or to order replacement parts, please contact GENMAX customer support. Refer to the contact information provided with your purchase documentation.
